Andax Environmental    Rutherford, NJ 07070

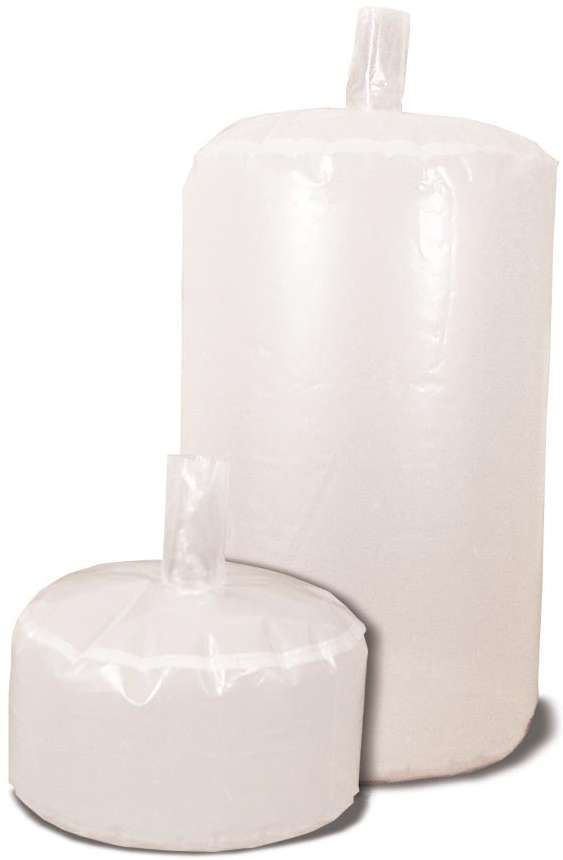

Dec 04, 2003 Spouted Liners have no internal folds or wrinkles to capture product or impede processes. Using FDA-approved resin and 10 mil construction, liners are 100% leak-proof and designed to fit users' Intermediate Bulk Containers (IBCs). Customizable for unique applications, liners are offered with various seals and materials.

ITT Industries, Engineered Valves    Lancaster, PA 17603-2064
Dec 04, 2003 Dia-Flo® PFA Liner, for weir style diaphragm valves, is a fluoropolymer material that handles aggressive chemicals and is tolerant to temperatures up to 350°F. Molded into valve body using Line-Lok® feature, minimum 3mm thick liner helps to protect against permeating chemicals. PFA lined valves are available in ductile iron base body with 150 lb ANSI flanges in sizes 1–6 in.

Labconco Corp.    Kansas City, MO 64132 2696
Dec 03, 2003 Capable of moving large carboys and containers, Carboy Caddy supports loads up to 360 lb to help eliminate heavy lifting. Shelf, made of phenolic board with melamine high-pressure laminate surface, measures 20 x 23.63 in. Handle consists of 18-gauge welded steel frame of 1 in. square steel tubing. Its 3 in. dia casters elevate shelf 4.25 in. above floor. Cart negotiates narrow and crowded laboratory aisles and doorways.

Robohand Inc.    Monroe, CT 06468 2653
Dec 03, 2003 Series PPC Grippers facilitate part ejection, feeding, present sensing, and cleaning. Shielded design protects internal drive mechanism from chips and other particulates. Available in 3 sizes, grippers offer grip forces from 201–974 lb at 100 psi, and can be mounted and operated in any direction. Options include extended strokes, safety springs, sensors, and high-temperature seals.

Air Technical Industries    Mentor, OH 44060
Dec 03, 2003 Large Platform Lifts for maintenance work can be equipped with jet-engine cradle or circular steps to provide access on all sides. Towed and self-propelled units include pneumatic tires with roller-bearing mounted wheels, foldable steps, and 42 in. high railings. Lifting is hydraulically operated, and hydraulic system includes safety relief valves to prevent overloading. Sizes range from 60–144 in. wide by 72–480 in. length, with vertical lift up to 46 ft. height.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Dec 03, 2003 Fisher® 67CFSR Airset offers setpoint capability of 0–150 psig and provides constantly controlled pressures to pneumatic and electro-pneumatic controllers and other instruments. Use of 316/316L stainless steel for all parts assures protection from harsh industrial and chemical environments. Operating temperature is -40 to 180°F. Model 67CFSR is adaptable to instrument mounting, back mounting, and nipple mounting. All maintenance can be performed with regulator in line.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279

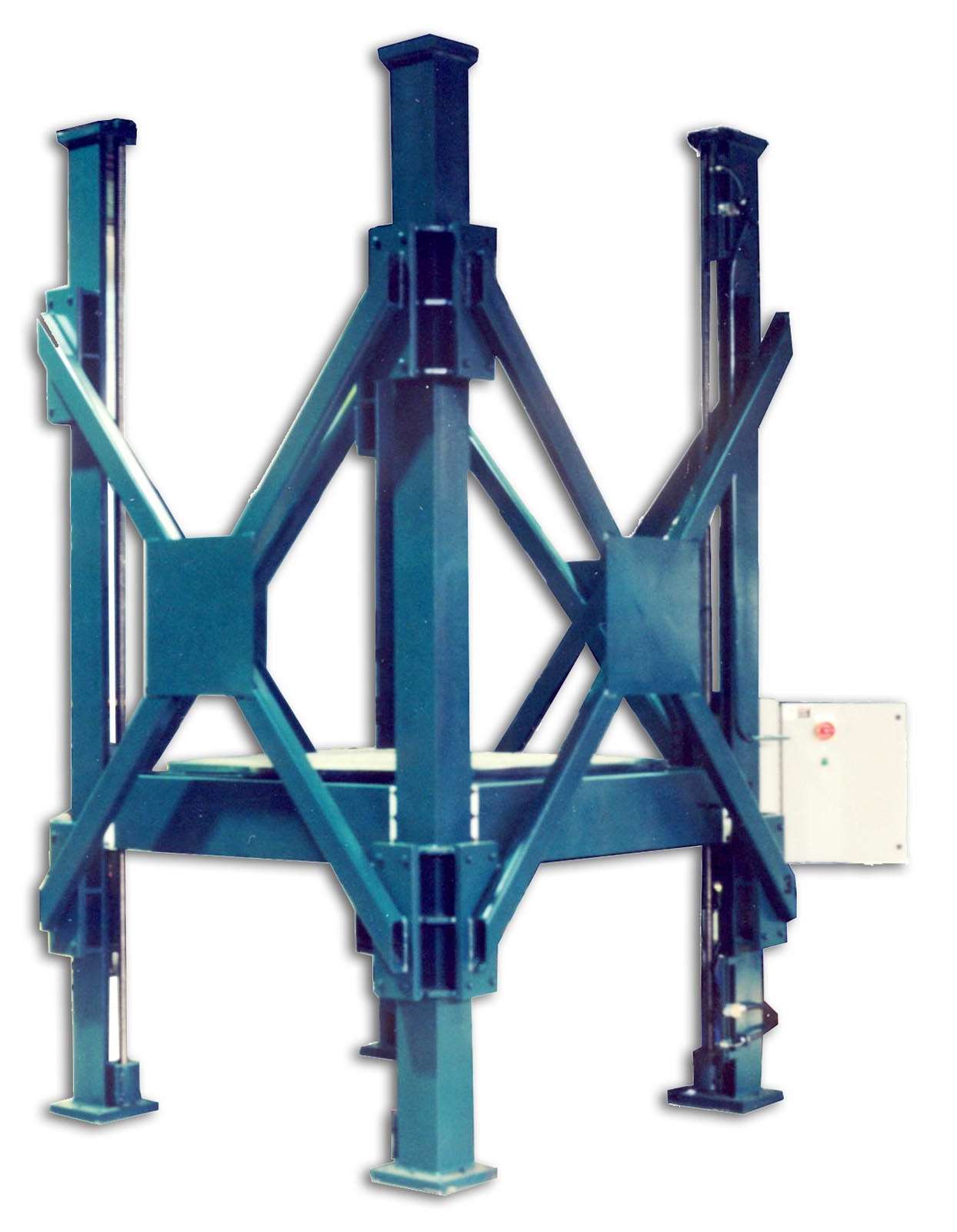

Dec 02, 2003 Specialty Lift utilizes self-locking, electro-mechanical drive to smoothly move and hold copper coils. It features open-center platform where diameter of opening increases with size of coil as copper is wound. Measuring 80 x 80 in. with vertical travel of 138 in. and capacity of 20,000 lb, lift is installed in pit, allowing worker to remain at floor level.

Label-Aire Inc.    Fullerton, CA 92833
Dec 02, 2003 Compatible with any OEM printer, 3138-N utilizes proprietary New Generation technology. It includes automatic setup with multiple programmable label pages for change-overs to labels of different sizes, rate compensation for label placement accuracy, and user-configurable I/O connectivity. Stainless steel and anodized aluminum construction is corrosion-resistant, providing durability in hostile environments.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Dec 02, 2003 Flow Control Regulators mount directly on air cylinder and come in meter out versions. Adjustment screw provides precise airflow control, and locking nut resists effects of vibration. Regulators are offered with NPT threads and push-to-connect fittings or NPT threaded ports. All have solid brass body treated for chemical resistance, SS tube gripping ring, and nickel-plated brass adjustment screw. Working pressure is 15–145 psig and working temperature is 30–160°F.

Advance Lifts, Inc.    St. Charles, IL 60174
Dec 02, 2003 Advantage Manual Lift Tables maintain work at convenient height and move loads from one work station to another. Platform sizes range from 17 x 27 in. up to 24 x 48 in., and travels range from 20–41 in. All lifts include wheels for portability and push handles for ease of movement.

Cooper B-Line    Highland, IL 62249-1331

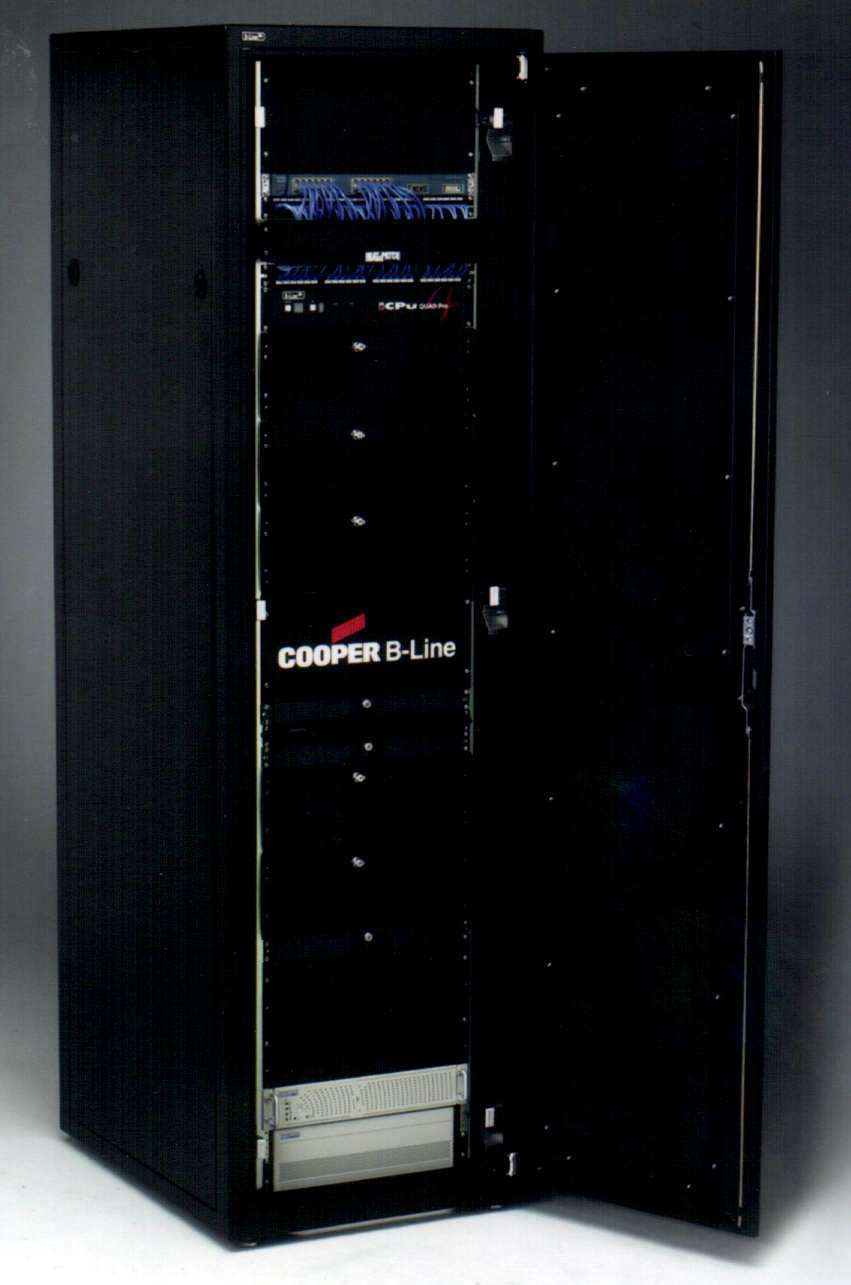

Dec 02, 2003 Series E2 Next Generation Cabinets are configurable to user specifications. They feature welded, 4-post frame with choice of 19 or 23 in. EIA square hole or No. 12–24 tapped rails. Ventilation options such as perforations, vents, and fans are available for doors, side panels, top, and base. Open base allows cable access from bottom, side, and rear. Colocation options offer up to 4 compartments. UPS systems, PDUs, and network monitoring accessories are available.

Komatsu America International Company    Vernon Hills, IL 60061

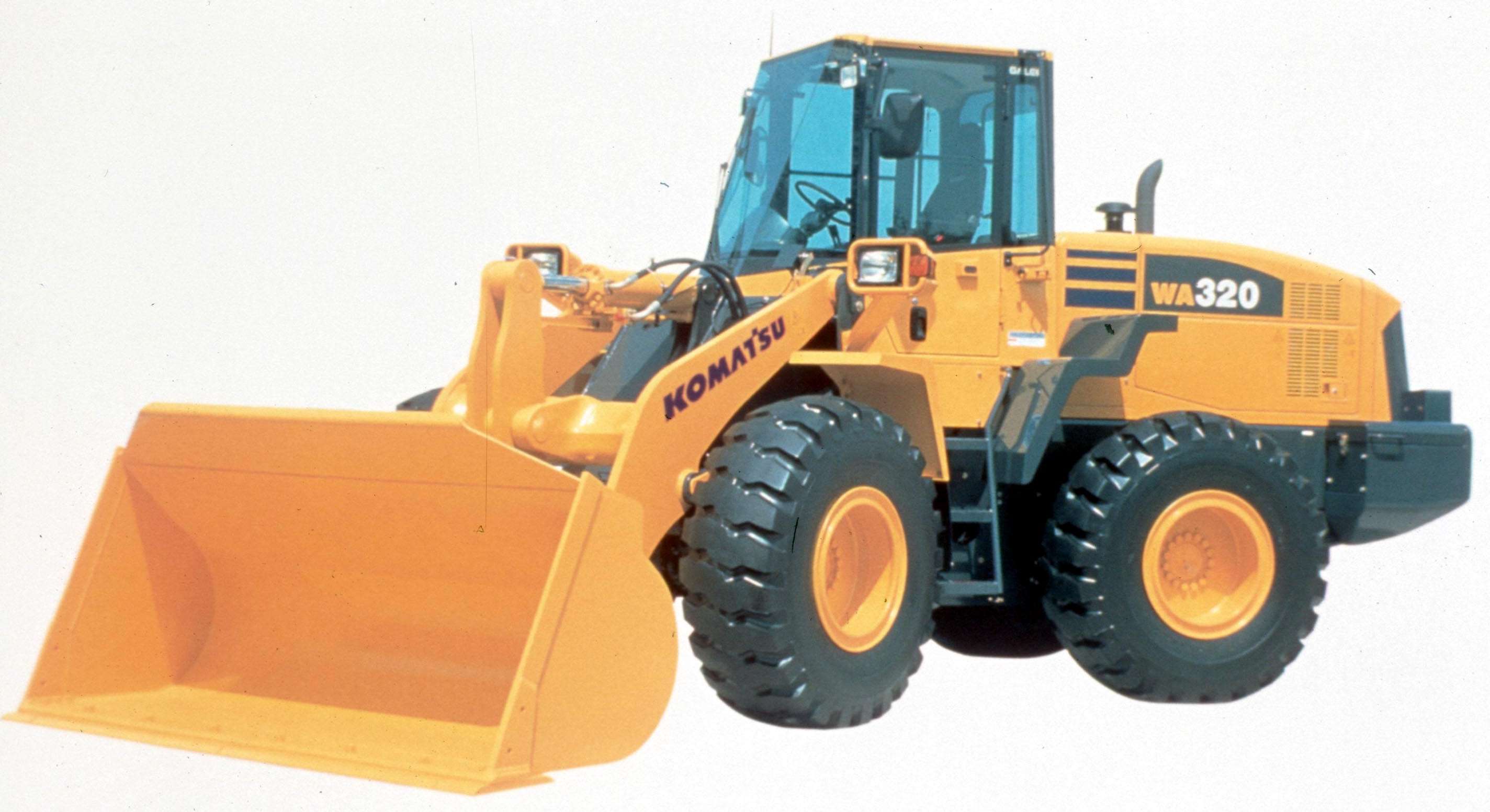

Dec 01, 2003 Offered with electronically controlled hydrostatic transmission, WA320-5 is powered by turbocharged Komatsu SAA6D102E-2-A air-to-air aftercooled engine, has net output of 166 hp, and complies with Tier II regulations. Variable Shift Control lets operator set max speed from 0–8.1 mph, while traction control reduces tire slippage in sandy or wet conditions. Other features include hydraulic braking system, equipment monitoring system, and sealed DT connectors.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
Dec 01, 2003 Plastic Belt Conveyor, Model PSB is utilized where conventional fabric type belts will not work. It can be used as transport belt on conveyors with right angle pusher/pull-offs to maintain belt tracking. Conveyor also provides non-marring accumulation and transport in beverage industry.

Eriez Magnetics    Erie, PA 16506
Dec 01, 2003 Superpower Plate Magnets, measuring 8 in. in size, capture large metal contamination from heavy-duty applications as material cascades down sloped chute. They project 2-3 in. field into burden to remove chunks of tramp metal such as tools or large nuts and bolts.

Terracon Corp.    Holliston, MA 01746 1460
Dec 01, 2003 TerraPharma™ non-metallic, cone-bottom process vessels, made from FDA compliant polypropylene resin, meet Class VI standards and are autoclavable. They include polypropylene cover, sealed with platinum-cured silicone gasket, and captive-clamping hardware, removable handle, and total-lock wheels. Capacities range from 50–1,500 l. Fittings, ports, and accessories are available in various styles and sizes to meet requirement.

Spiroflow Systems, Inc.    Monroe, NC 28110

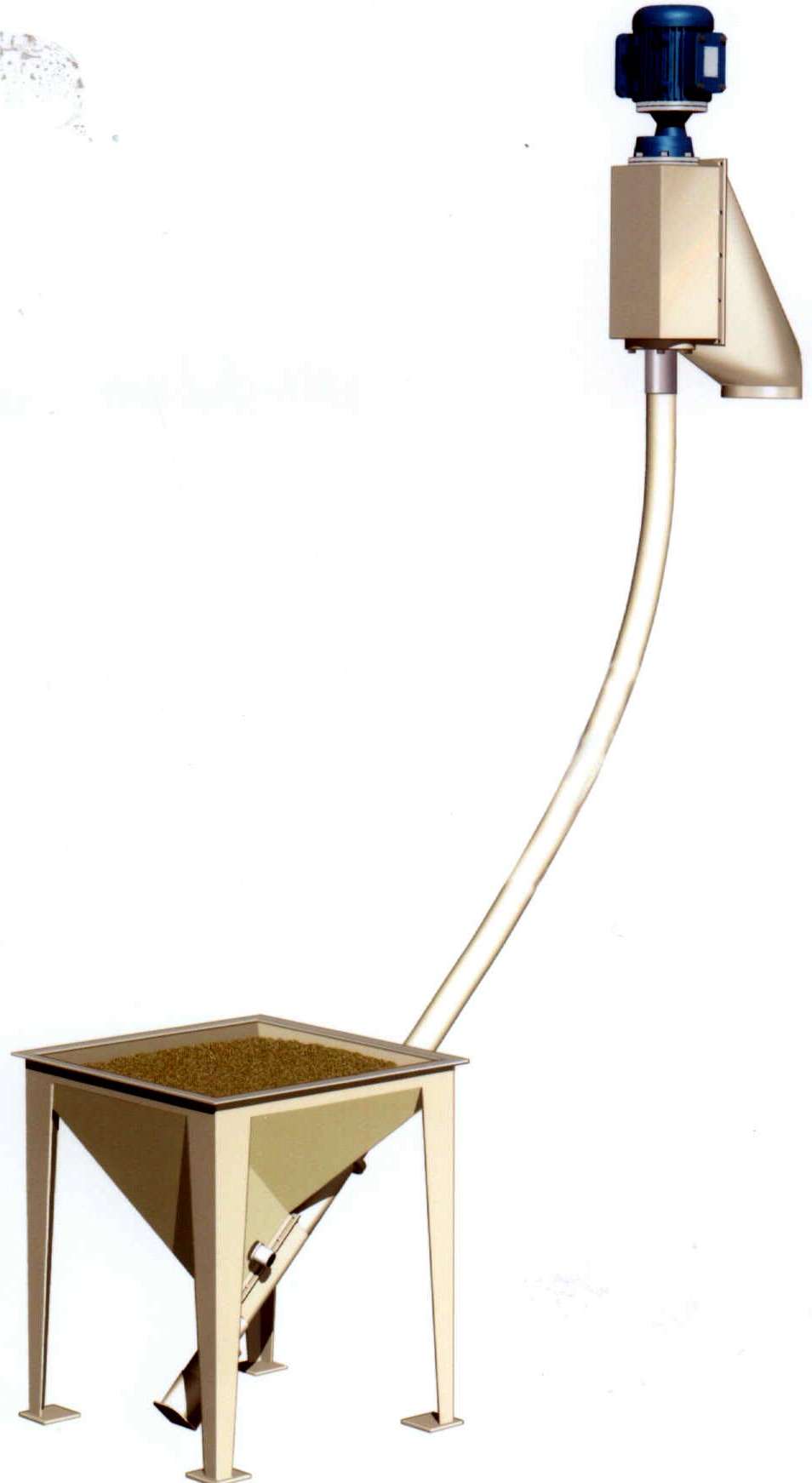

Nov 26, 2003 Suited for diverse applications, Flexible Screw Conveyor employs UHMWPE tube and steel spiral that can be disassembled and cleaned. It is controlled via integrated, pre-programmed PLC or by existing facility controllers. Featuring locking swivel wheels for stability, unit offers maneuverability, even in tight facility locations. Product is available in different tube diameters and lengths to accommodate required rates up to 100,000 ft³/hr.

Berns, J.F., Co. Inc.    Cincinnati, OH 45240
Nov 26, 2003 With 6 ft capacity, Bundle Master Model 610 loads barfeeder or other device with bars ¼â€“3 in. in diameter. Users load device with bundle of bars weighing up to 1 ton and turn it on; unit continues to supply bars to Barfeeder at pace required until bundle is gone. Machine offers high- and low-sensing and height adjustment and requires 115 Vac single-phase power. It is also available in 12 and 24 ft versions and reverse operation accumulation models.

Heyco Products    Toms River, NJ 08753
Nov 26, 2003 Corrosion-resistant, reusable, nylon clamps secure hose and tubing in commercial or residential pool and spa applications. Single-piece hose clamps install and tighten with hand pliers, and interlocking design allows clamp to be adjusted in place for max clamping strength and leak-free seal. Constructed from heat-stabilized high-impact type 6/6 nylon, they withstand temperatures to 125°F and accommodate clamping ranges from 6.4-60.3 mm.

Pactiv Corp.    Lake Forest, IL 60045

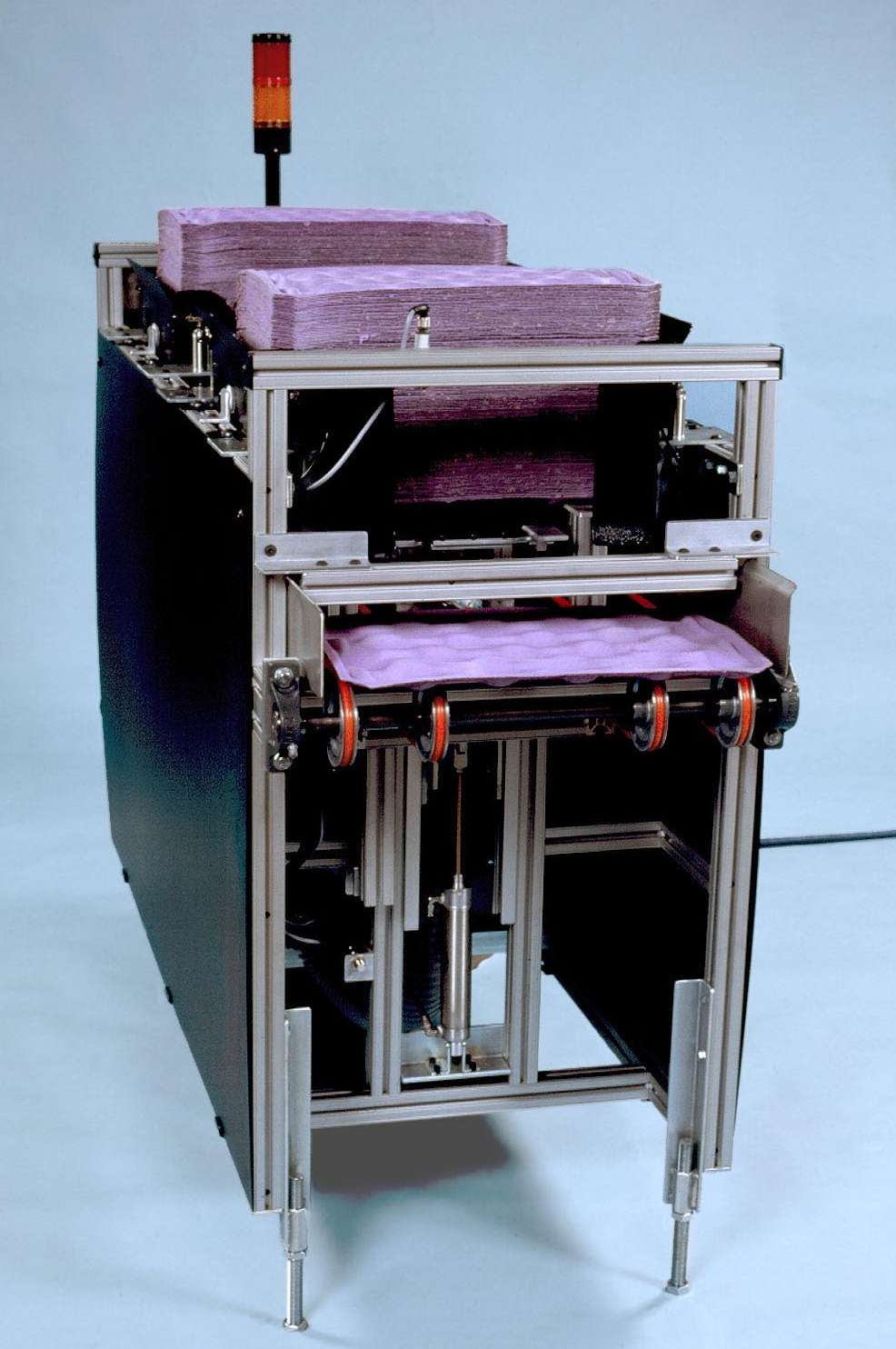

Nov 26, 2003 Apple Tray Denester uses combination of picking clamps and suction to remove individual trays from magazine. Use of 2 magazines enables A and B tray configuration placement onto conveyor belt. Pattern of trays compliment each other to prevent bruising. Tray-staging feature facilitates multiple pick attempts, minimizing jams and machine stoppages. Denester accommodates FruitMaster® standard and EZâ„¢ FruitMaster® Euro-sized trays.

HAN-TEK, Inc.    Victor, NY 14564
Nov 26, 2003 Overhead In-Line Conveyor is driven by controls that perform variety of functions to track data and regulate product flow. Data is then integrated into customer's network so production can be analyzed and optimized. PLCs help operate system and control cooling speeds. In accordance with FDA specifications, conveyor has powder-coated surfaces, stainless steel chutes, and domed Lexan covers to keep products clean.
