MK Automation Engineering Inc.    Bloomfield, CT 06002
Mar 23, 2004 Aluminum Series 60 provides 60 x 60 mm cross-section and multiples up to 120 x 120 mm that provide stability to overcome high moments of inertia typical in linear motion and robotic assembly. It includes 14 mm T-slots to permit use of M12 connecting elements, and angle connections with M2 to support vertical load of 1,250 lb. Series is also available with foamed combination units for external cross section of 420 x 420 mm. Standard framing lengths are 5,100 mm.

Liquid Control Corp.    North Canton, OH 44720
Mar 19, 2004 Titan PF utilizes progressive cavity metering pump technology to transfer highly filled, abrasive, and shear sensitive materials from 1 gal shipping containers to dispense valves. System includes follower plate, dual air cylinder ram, progressive cavity transfer/metering pump, ac brushless motor, and controls. Able to be used as metering system or transfer system, product is suited for integration with automated equipment.

Martin Engineering    Neponset, IL 61345 9766

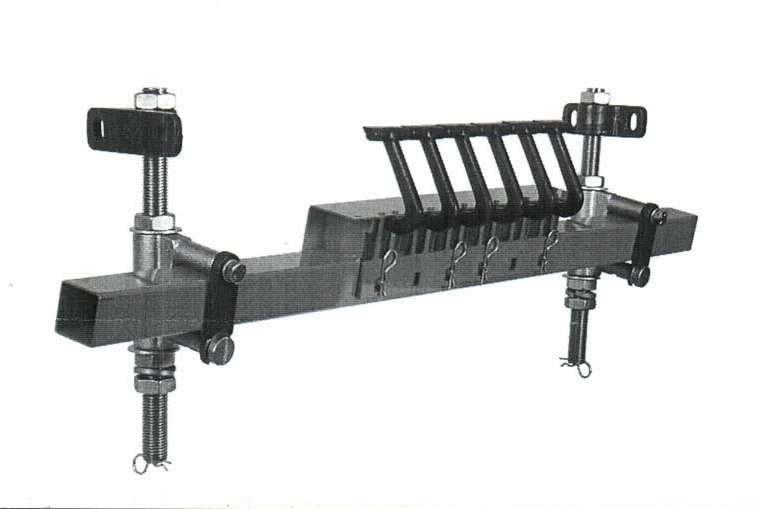

Mar 19, 2004 Bull Dawgâ„¢ allows aggressive belt cleaning by using tungsten carbide cleaning elements cushioned with internal elastomer pillow to remove carryback and return it to material stream. It installs at 5 o'clock position against head pulley and can be used as stand-alone, pre, or secondary cleaner as part of multiple cleaner system. Each arm-and-blade element is cushioned with Shock Blokâ„¢ shock absorbers.

Airgas    Radnor, PA 19087
Mar 19, 2004 BIP® purifier technology gases, including BIP argon, helium, or nitrogen gas, are offered in 12-cylinder BIP Packs that feature built-in purifier train. Requiring one hook-up, BIP technology seals unique purifier inside cylinder in high-pressure, inert atmosphere. It removes O₂, CO, CO₂, hydrocarbons, and halocarbons. Features include bypass channel valve, check valve that protects purifier from back flow and accidental contamination, and 0.5 micron frit.

Graco Inc.    Minneapolis, MN 55440
Mar 18, 2004 Designed for single color, 2-component spray finishing applications, ProMixâ„¢ Easy handles solventborne, waterborne, high solids, acid catalyzed, and moisture-sensitive isocyanate coatings with flow rates as low as 20 cc/min. It also measures and records usage of each component and monitors ratio performance during reporting period. System features intrinsically safe control that allows integration into hazardous environments.

PennEngineering® (Penn Engineering)    Danboro, PA 18916

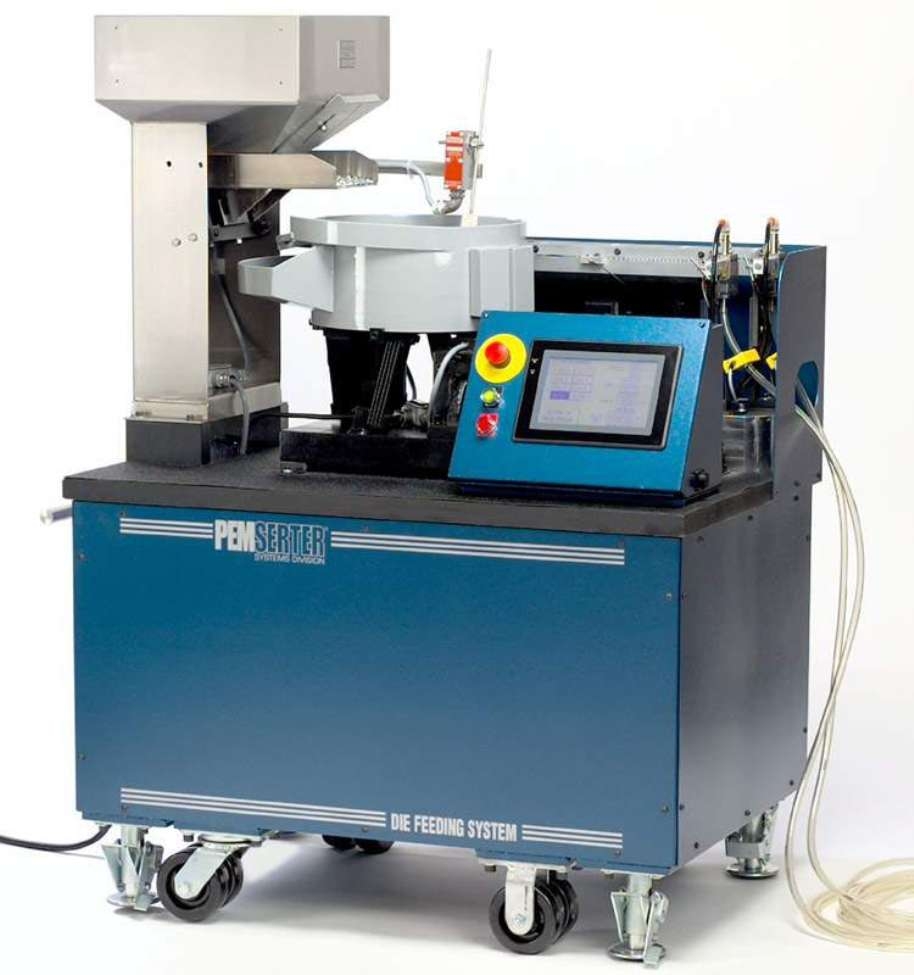

Mar 18, 2004 Pemserter® In-Die Fastener Feeding System installs self-clinching nuts, studs, and stand-offs in assemblies during stamping process. Portable system performs stamping and fastener installation simultaneously in the die. Multi-pin twist lock connectors provide virtual plug-and-play operation. Operator is guided by touchscreen for set-up and operation. Removable tooling allows handling complex work pieces and system can be configured for multiple or single insertions.

HODGE, A Div. OF The Durham Manufacturing Co.    Springfield, MA 01107-1072
Mar 18, 2004 Adjust-A-Tray Trucks allow trays to be spaced as needed to accommodate different sized products. Wire handles let workers remove trays so they can be taken to work areas, filled, and returned. Single-sided trucks offer 1,500 lb capacity, while double-sided trucks feature 2,500 lb capacity. All include full panel construction, 6 x 2 in. phenolic bolt-on casters, and powder coat finish. Spindles are available for storage of wire, chain, or hose.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Mar 17, 2004 Four models of CRX electric, stand-up, counter balanced trucks offer 3,000-5,000 lb capacity. Lower step height and low-effort deadman brake pedal enhance operator comfort. Bubble-cushion floor mat and contoured backrest for lumbar support improve footing and reduce operator strain. Multifunction, single-handle control provides easy-to-use method for all travel and low-flow hydraulic functions. Individual SX motors and controllers increase charge life.

Caterpillar, Inc.    Peoria, IL 61629
Mar 17, 2004 With rated operating capacity of 2,700 lb, model 268B features XPS hydraulic system, a load sensing, pressure-compensating system that delivers maximum power regardless of work tool speed or load. Maximum lift (pin height) of 127 in., combined with vertical lift linkage, provides for efficient truck loading and materials handling. Machine utilizes 76 net hp, direct-injected, turbocharged Cat® 3044C diesel engine with 3.3 l displacement.

Columbia Okura LLC    Vancouver, WA 98661
Mar 17, 2004 Multifunction palletizer enables producers of bagged products to simultaneously palletize output of 3 separate, lower-speed production lines. Robot automatically adjusts itself to handle distinctly different bag styles and sizes. For 3 lines, palletizer accommodates speeds up to 5 bags/min per line for cumulative speed of 15 bags/min. Multifunction end effector can be equipped to handle slip-sheets and pallets.

Hyster Co.    Greenville, NC 27834
Mar 17, 2004 Brushless AC-power E45-65Z series lift trucks utilize AC traction motors and are available with optional brushless AC hoist motor. Powered by 36 or 48 V electrical system, brushless power steer motor provides on-demand steering. With capacities from 4,500-6,500 lb, trucks feature onboard ability to adjust truck settings, ergonomic design, transistor controlled hydraulic option, and soft-touch levers placed within operator's natural reach.

Eurobex Mfg. Ltd.    Blainville, QC J7C 5E2  Canada
Mar 17, 2004 Hydro-Québec metering cabinets incorporate 3 types of pre-punched inner panels, and additional inner panels may be added to larger cabinets. Products feature grounding splitter block installed on left side. Sizes include: 30 x 30 x 10 in., 36 x 36 x 12 in., and 48 x 48 x 12 in.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Mar 17, 2004 Made-to-order Series 2200, with ½ in. dia nose transfer option, enables transfer of small parts without possibility of them getting caught in gap or valley formed by conveyors with larger diameter bearings. Features include oversized outboard bearings, 80 lb load capacity, and 150 fpm belt speeds. Other features include rack and pinion belt tensioning and v-grooved bed plate with guide belt.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Mar 16, 2004 Series TT Transfer Tubes instantly provide air movement when compressed air is applied. Transfer speed and output flow can be infinitely adjusted by regulating input pressure. Made from aluminum with anodized finish, units come in bore sizes from 0.375–1 in. ID, with airflow from 15–145 scfm. Straight-through bore design lets materials pass through without clogging. Tubes are suited for pneumatic conveying, loading hoppers or bulk bins, and dust and trim waste removal.

Hoffman    Anoka, MN 55303 1778
Mar 16, 2004 Series A38 and A38D Free-Standing Enclosures feature cabinet construction on integral 10-gauge steel base, lifting tabs, 3-point latch with padlock provision, and choice of panel or rack mount provisions to accommodate 19 or 23 in. rack equipment. Two-door, general purpose models are available, in addition to 1- and 2-door disconnect models. Enclosures are suited for power distribution, main control, variable frequency drives, and motor control centers.

Bijur Lubricating Corp.    Morrisville, NC 27560
Mar 16, 2004 SureFire Lubricator consists of electric motor-driven gear-pump with outlet connections on both sides, quick-snap reservoir, and built-in strainer. Low level switch provides failsafe operation when lubricant in reservoir is low. Die cast base and sealed motor enclosure protect working components from contamination, while plug-in pin-type terminal block provides fault-free electrical connections. Reservoir sizes include 1.8, 2.7, and 6.0 liter.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Mar 16, 2004 With 4,500 lb capacity, SMX45 walkie can be programmed for up to 10 operating modes controlled by PIN entries from keypad on control handle. Low-lift pallet truck includes Turtle Torque function that provides power boost to climb obstructions and anti-roll system that prevents unintended rolling in tight spaces and on inclines. Walkie features Battery Discharge Indicator, service display, and time-out function.

Columbia Machine Inc.    Vancouver, WA 98661
Mar 16, 2004 Palletizer Discharge Conveyors utilize Intralox® plastic belting with strong interlocked patterns, providing stable means for transporting unitized loads. Offered as alternative to slat conveyors, they eliminate chordal action that can cause load degradation. Heavy-duty welded conveyors are offered in standard sizes, plus custom lengths and widths, depending on product and plant requirements.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301
Mar 15, 2004 Offered in 8 and 12 in. heights, Cross-Stack Akro-Tubs feature side and bottom stacking grooves that allow 90° stacks of loaded containers. When empty, units nest to conserve floor and storage space. Stops on end prevent jamming to allow quick release of nested tubs. Extra-thick walls and reinforcing ribs provide strength for load capacities up to 14 gal. Made from FDA-approved plastic materials, tubs are reusable and suited for direct food contact.

Hi-Tech Duravent    Georgetown, MA 01833
Mar 12, 2004 White Hose suits applications in clean rooms and on medical, pharmaceutical, and food processing equipment. ARH White is all-thermoplastic rubber hose with smooth interior for removing air, fumes, and dust over -60°F to 300°F temperature range. RFH White is wire-reinforced thermoplastic hose for handling dry foods or ventilation. BVH White is lightweight, compressible, all-plastic, and crush-resistant. SDH White and Clear hose are static dissipative.
