De-Sta-Co. Industries, Advanced Development Center    Carrollton, TX 75006
Sep 14, 2004 Stronghold(TM) Select products work together as part of complete workholding system. Available in 18 styles, hydraulic swing/pull clamps come in 475, 1,100, and 2,400 lb sizes. Hydraulic work supports include 1,650, 2,500, 5,000, 7,500, and 10,000 lb models, all in spring advance style. Treated metal surfaces offer corrosion resistance, while seal and wiper technology resists contamination and leaks. Line also includes pneumatic swing clamps, threaded body cylinders, and block cylinders.

DE-STA-CO Industries    Birmingham, MI 48009
Sep 14, 2004 Toggle-Lock Plus Clamps help to maintain over-center toggle position in applications where there is likely to be movement or vibrations, such as transfer lines. Eliminating pinch points, units feature bushings at major pivot points and stop point locations at base. Spindle contacts workpiece in vertical position to help stop marring or movement, while clamping arm completely clears workpiece to facilitate load and unload.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Sep 13, 2004 Measuring 65 x 35 x 23 in., Model 4 suits shops with limited area for manual cleaning, surface preparation, or finishing operations. Process enclosure has full width front swing door, offering 16 in. high opening for access, while 27 x 9 in. tempered safety glass view window promotes visibility. Cabinet includes single treadle activated suction-blast gun and utilizes abrasive or non-abrasive blasting media intended for recirculating-type cabinets.

Danaher Motion    Wood Dale, IL 60191-1073
Sep 13, 2004 URS-Series incorporates recirculating bearing module that contains 4 pre-loaded ball circuits and provides functions of guide block and ballscrew nut. Steel, U-shaped guide resists bending, allowing unit to be single-end supported. Single-axis solution is available in 5 sizes; smallest model, URS20, features 20 x 40 mm cross-section, while largest model, URS55, measures 55 x 100 and is available with travel lengths to 1,134 mm and load capacity of 530 kg.

Pacor Inc.    Cinnaminson, NJ 08077
Sep 13, 2004 Suited for use as acoustical control and thermal liner, flexible MICROMAT(TM) high tensile strength blanket is composed of borosilicate incombustible, non-hygroscopic glass fibers. Unaffected by oil, grease, and most acids, product is available in various densities and thicknesses. It reduces air friction and damage, will not support fungi or vermin, and conforms to physical properties and regulations of ASTM C1071-2000.

Witte L.P. USA    Tucker, GA 30084
Sep 13, 2004 Available in standard size of 1,200 x 800 x 150 mm, Sandwich Plates feature standard grid of 200 mm, which allows positioning of workpiece supports over entire surface. Support comprises base plate with bayonet catch for connection to sandwich plate, and components of Alufix modular fixturing system made of high-tensile aluminum. Several workpieces can be fixed simultaneously on sandwich plates for assessment with regard to their position to one another.

Tornos    Lombard, IL 60148
Sep 13, 2004 Single-spindle, Models Deco 10a and 13a feature Robobar SBF 216, which reduces channel guide changeover time down to 15 min. With quick-change system, operators index guide block to proper size capacity and changeover is complete. System accommodates up to 150 bars in sizes from 2-16 mm. Gripper system adjusts to whatever bar size is being used in machine. All setups are integrated into machine control, facilitating programming and machine/loader operation.

Oil-Rite Corporation    Manitowoc, WI 54221 1207
Sep 10, 2004 Infrared Lubrication System is equipped with solid-state PLC, 3-way solenoid valve, bank of PurgeX® pumps, power supply, and NEMA 12 enclosure. Independent pump operation allows individual adjustment of flow to each lube point from 0–.012 cu in./cycle. Clear, polycarbonate, ½ gal reservoir, with hinged top lid, feeds system and allows for visual confirmation of fluid level. System is suitable for -15 to +180°F applications. Standard systems are available with 1–12 pumps.

Columbia Machine Inc.    Vancouver, WA 98661
Sep 10, 2004 Floor-level Model FL10, with corrosion-resistant structural design, eliminates areas of potential bacterial growth and provides access for thorough sanitation and maintenance. Measuring ¼ in. thick, stainless steel frame features continuous welds. Running at speeds up to 15 cases/min, palletizer is suited for slow-speed production line applications. It comes with preprogrammed stacking patterns and fits through 8 x 8 ft doorways.

Ermanco, Inc.    Spring Lake, MI 49456 9652
Sep 10, 2004 CRUZchannel frame incorporates built-in side guards that eliminate need for guardrails on floor-mounted conveyors and reduce guardrail requirements when hung overhead. Side shroud panels protect controls from damage and dust, while side window channel openings allow convenient viewing of sensor operation. Optional heavy-duty splice plates allow hanger mounts to be installed where it is most efficient, rather than only at bed joints.

JP Sercel Associates, Inc.    Manchester, NH 03102
Sep 10, 2004 Windows®-based, CAD Conversion Software gives user ability to read Autocad, DWG, and DWX files and generate macro processes and programs to perform direct write functions with laser beam. It processes lines, arcs, circles, points, and polylines, and produces direct writing with company's Excimer and DPSS workstations directly from CAD file information. Users can program subroutine function and then execute function every time point is encountered.

Linde Lift Truck Corp.    Summerville, SC 29483-9621
Sep 09, 2004 Electrically powered, operator-seated, Models R12, R16, and R20 offer load capacities from 3,000-4,500 lb and max lift height of 452 in. Entire mast assembly moves forward and uses fork tilt to place load on rack, with constant load center of 24 in. Triple mast, with integral side shifter, has no hose reels and only 2 hydraulic cylinders for clear view at all lift heights. Digital control manages load movements, traction, and diagnostic capability via CAN bus connection.

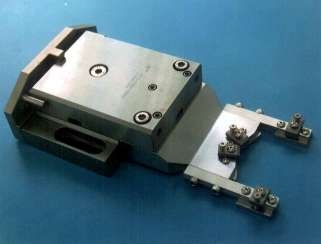

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Sep 09, 2004 Intended for use with Fixturing System 4000, Model HE4232 provides positive clamping of polycrystalline diamond CBN discs, assuring that discs will be held flat and well into cutting zone of wire EDM. Two clearance holes on 50 mm centers allow permanent mounting directly to machine table. Holder accommodates 2.35 in. diameter discs up to .2 in. thick. Distance from bottom of disc to machine table allows accurate tapers to be cut.

Upchurch Scientific, Inc.    Oak Harbor, WA 98277
Sep 08, 2004 Confluentâ„¢ NFM (Nano Fluidic Module) delivers isocratic solvents at flow rates from near zero nL/min to 4.5 µL/min. It includes 3 major components: sapphire piston displacement pump, noninvasive flow sensor, and 4-position selection valve. Product facilitates applications such as nanospray mass spectrometry, trap column regeneration, lab-on-a-chip infusion, mass spectrometric mass calibration, and nano-LC.

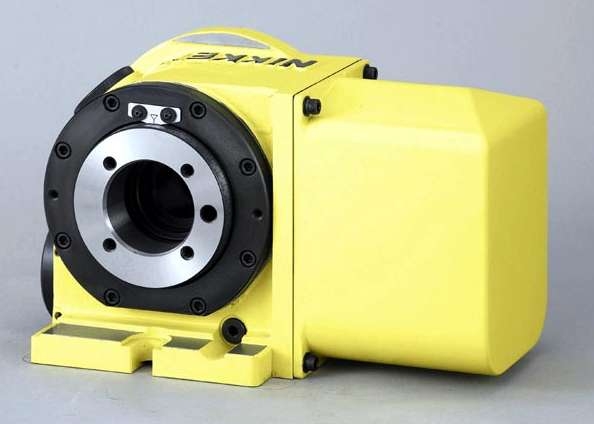

Lyndex-Nikken Inc.    Mundelein, IL 60060
Sep 07, 2004 With clamping torque of 205 Nm, Model CNC105 expands capability of equipment, from small 30 taper high-speed drill and tap machines to larger machining centers. Carbide worm system incorporates V-grade form of carbide worm screw and worm wheel, which is ion-nitrided to depth of 0.1 mm with external surface hardness of 68 Rc. Table is suited for indexing and lead cutting/rotational milling of small workpieces.

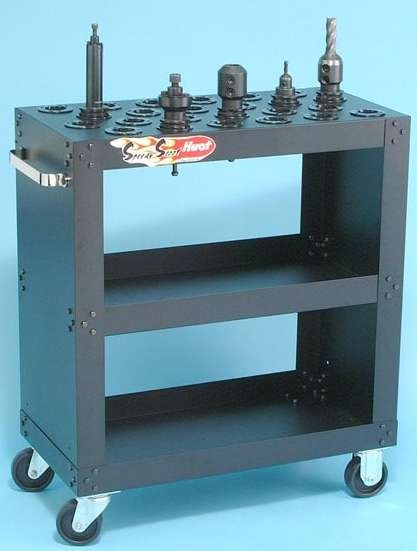

Huot Mfg. Co.    St. Paul, MN 55104-1701
Sep 07, 2004 Measuring 15½ in. wide, SpeedyScootâ„¢ enables users to maneuver through narrow walkways and tights spaces between machines. It is made from 16 gage steel, supports hundreds of pounds of V-flange CNC tooling, and has smooth rolling, 4 in., heavy-duty casters with rear swivels that turn tight corners, even when fully loaded from tool crib. Utilizing molded plastic protective inserts, top shelf holds twenty-four 40 taper tools or eighteen 50 taper tools.

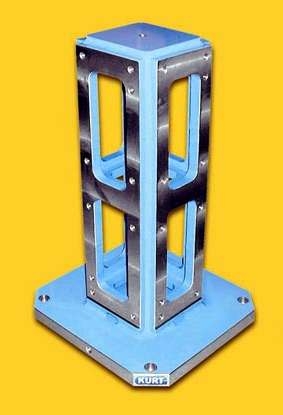

Kurt Manufacturing    Minneapolis, MN 55421
Sep 07, 2004 Available in 2 and 4 face models and 4 different sizes, ToolBloxâ„¢ modular tombstones are highly rigid, A36 HRS steel and help to attain workpiece immobility and to dampen cutter induced vibration. They accommodate all types of workholding devices including single, double, and multiple station vises, either manual or hydraulic. Bolt holes and dowel patterns are provided on each face for installation and removal of sub-plates and workholding components.

Igus, Inc.    East Providence, RI 02914 0349
Sep 07, 2004 Available with inner heights from .35-1.26 in. and inner widths from .24-3.94 in., zipper Energy Chain Systems® are built with interconnected lids which can be pulled back in zipper fashion. If application requires long travel, cables do not have to be snaked through, but can be laid out along cable carrier in their compartment. Interior separators can be used with Series 15 and Series 17 zipper chains for multiple cable configurations.

3M    St. Paul, MN 55144
Sep 03, 2004 Paint Preparation System facilitates mixing and preparing of paint, primer, basecoats, and clearcoats. It consists of 6 oz mini cup with collapsible liner and built-in strainer. Closed system means painters can mix, shake, and spray with one cup, eliminating leaks and drips. Disposable liner cuts down on use of solvent and eliminates need for hazardous materials disposal. Built-in paint strainer snaps into liner and lets gun run with less mess.

Elscint Automation    Pune 411026  India
Sep 03, 2004 Feeding System consists of vibratory hopper feeder, 2 linear vibratory feeders, and small parts feeder. Half bearings up to 90 mm diameter can be fed through system at up to 60 pieces/min. Speed can be varied through potentiometer, and electronic controls synchronize speed of components. Up to 150 kg of material can be loaded in vibratory hopper for unattended operation.
