Igus, Inc.    East Providence, RI 02914 0349
Oct 05, 2004 Rol-E-Chain Energy Chain® is comprised of rollers integrated into side links of cable carrier, enabling travels up to 2,600 ft. Available with 4 inner heights from 1.26-3.15 in., plastic cable carrier houses and protects moving cables and hoses on automated machinery. It integrates with Energy Chain cable carrier system and can be retrofitted in-field. It is suited for cranes, material handling devices, plasma cutters, and high-speed transfer systems.

Sherwin-Williams Co. c/o Ultimate Lead Systems    Berea, OH 44017
Oct 05, 2004 Coating system consists of Steel Spec(TM) epoxy primer and Zinc Clad® II Plus inorganic zinc rich coating and meets slip coefficient performance standards for bolted connections per ASTM and AISC specifications. Zinc Clad II Plus is solvent-based, 3-component, inorganic ethyl silicate coating that dries to handle in 20 minutes at 77°F. Corrosion-resistant Steel-Spec topcoat can be applied at temperatures down to 35°F and dries to touch in 15 min.

Lyon Workspace Products    Aurora, IL 60507
Oct 05, 2004 Offered in 4 models, Multi-Purpose Storage Cabinet measures 36 x 24 x 78 in. It features contemporary styling with flush front, 3-point door locking device, 4 half shelves adjustable every 2 in., double doors that swing 180° for full access, and drawers that glide on ball bearing rollers. Dove Gray or Putty finish is available.

Datron Dynamics, Inc.    Milford, NH 03055
Oct 05, 2004 Quick-Pallets are placed on machining bed, keyed to fixed position, and secured via vacuum. Changing pallet requires no tooling or clamping and reduces setup time. Parts can be setup on Quick-Pallets outside of machine and switched out in seconds with Quick-Pallet in machine. To insure X, Y, Z location repeatability, units are registered using beveled-boss in cavity system.

Anver Corp. - Anver.Com    Hudson, MA 01749
Oct 04, 2004 Side Grip Series VP features crossbeam with adjustable cross arms and vacuum pads on 2 sides for handling products that cannot be lifted from top. Suited for loading and unloading products into shipping containers or onto skids, it offers capacities to 15,000 lb, can be 115 Vac or air powered, and can be equipped to tilt and rotate loads. Applications include metal enclosures that vent from top, file cabinets, and HVAC equipment.

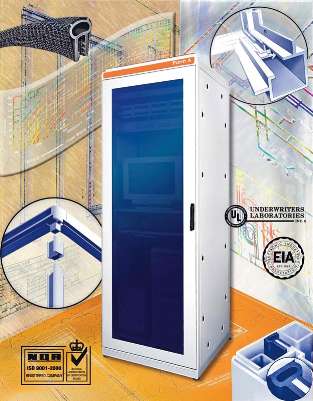

Optima Electronic Packaging Systems    Lawrenceville, GA 30043
Oct 01, 2004 Available in heights to 77 in. and widths of 19, 24, and 30 in., Form 4 Aluminum Cabinets provide protection to UL-508 Type 12 specifications, and offer option for up to 100 dB of EMI attenuation. They include field-reversible doors that open 112°, concealed hinges, multipoint locking, and provision for lifting eyes. It addition to rack mounting rails, shelves, and drawers, cabinets can be supplied with integrated cooling, cable management, and power distribution systems.

Resec Systems, Inc.    Bergenfield, NJ 07621
Oct 01, 2004 Model J181-T sorts small parts based on pre-programmed dimensional tolerances such as length, width, and diameter. Employing high-speed camera and Video Gage technology, sorter inspects each part and automatically places it into accept or reject bin. Suited for parts ranging in size from ¼â€“2 in., system inspects and sorts 3,600 part/hr with accuracy of ±0.0001 in. All measurements are available for data collection via serial port.

Graco Inc.    Minneapolis, MN 55440
Oct 01, 2004 Airless model XTRâ„¢ sprays high solids and plural component coatings. Gun's length of 5 in. and built-in swivel combine to offer maneuverability in cramped areas. It provides maximum fluid pressure to 7250 psi. Four models offer variety of trigger configurations and handles, including insulated handles for heated coatings. Fluid filter is provided in handle and patented RAC tips allow operator to clear clogged tips without shutting down production.

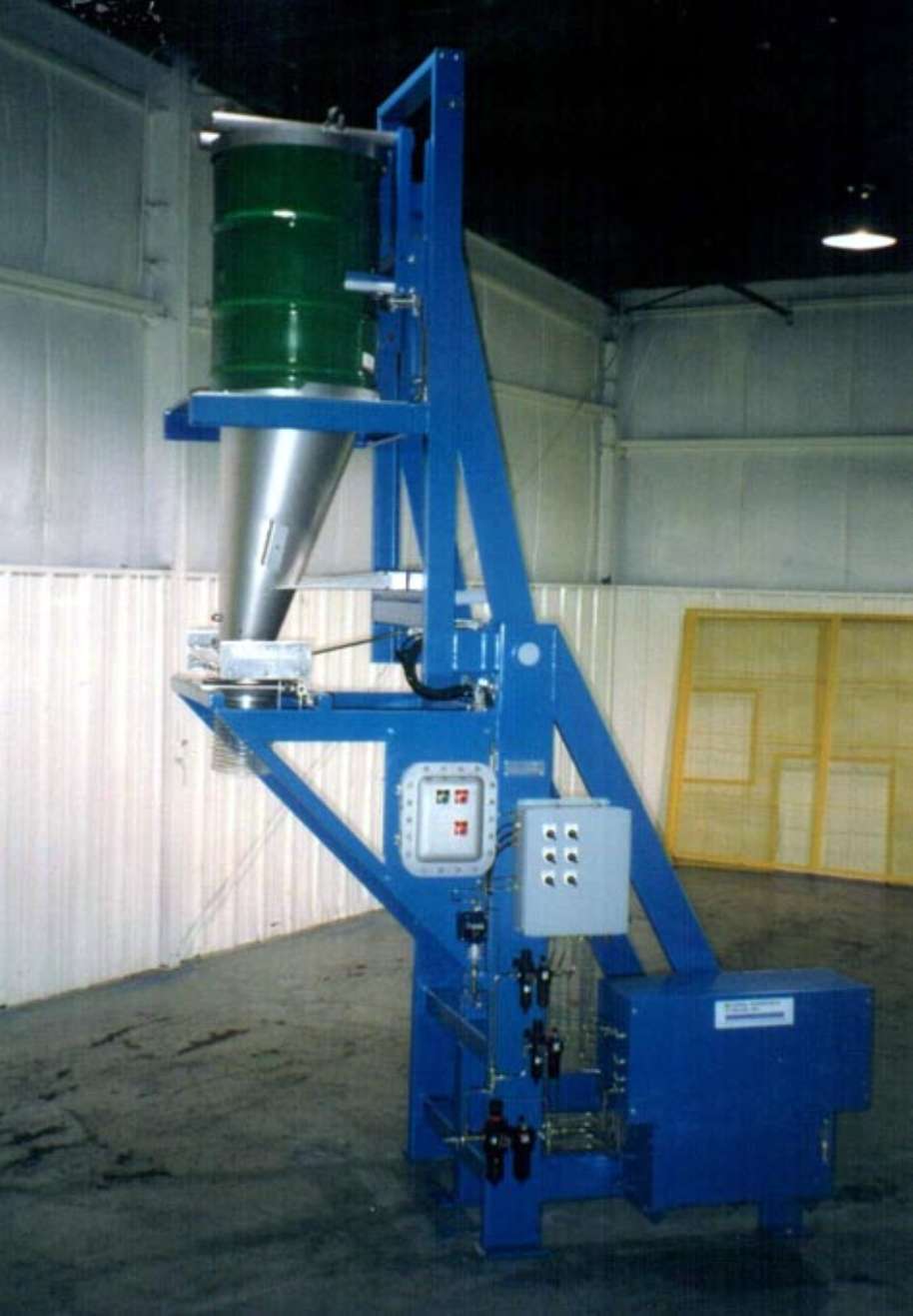

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Oct 01, 2004 Lift & Sealâ„¢ drum feeder provides dust-tight discharge and feeding of powdered material in explosive environment. It includes 8 in. rotary valve with controls, Control Linkâ„¢ Rotation System for 180° drum rotation, and exclusive Lift & Seal Systemâ„¢ for dust-tight operation. Units are custom designed to application requirements.

Darcor    Toronto M8W 1T1  Canada
Oct 01, 2004 Commando, available with swivel seal for protection from contaminants, take repeated heavy side-load impacts without damage. Its 6 or 8 in. wheels come in solid elastomer, neoprene, urethane, semi-steel, or low-effort (LE) wheel materials. With load capacities from 500–1,300 lb, product features 2½ in. offset design with heavy-duty stamped and welded construction and offset double-row ball race with 3/8 and ¼ in. ball bearings.

Hielscher USA, Inc.    Ringwood, NJ 07456
Oct 01, 2004 Comprised of transducer and generator with 2 m connection cable, UM20-1.6 megahertz processor is suited for atomizing, nebulizing, fogging, and spraying of samples in analyzing processes. Ultrasonic device, designed for formation of aerosols, processes liquids of up to 500 cp at rates to 450 ml/hr. Droplet sizes down to 1 micron can be achieved without heat transfer. Operable in air, product has liquid feed supplied to oscillating sapphire glass surface.

International Dispensing Corporation    Hanover, MD 21076
Oct 01, 2004 Aseptic gravity flow valve (GFV) allows liquid product to be dispensed from flexible bag or pouch without bacteria or oxygen entering package, reducing or eliminating need for preservatives and refrigeration. Tamperproof closure and airtight seal add to product safety. Featuring clean, predictable flow rate, product can travel through aseptic fillers and withstand irradiation and steam sterilization. Applications include food and beverage and medical industries.

Hydromat Inc.    St. Louis, MO 63043
Sep 30, 2004 Suited for twin-spindle CNC lathes, VacXtract unloading device removes work pieces through rear of right spindle in under 2 seconds, allowing left spindle to continue working during unloading cycle. In addition to shop air, system receives power from lathe’s own power supply and is programmed via lathe's CNC control. At proper moment, it creates vacuum inside spindle bore, gently extracting parts, allowing them to accumulate on tilt table.

Newport Corp.    Irvine, CA 92606
Sep 30, 2004 With industry standard height of 28 in. and side dimension of 10 in., Stabilizer(TM) I-2000 facilitates OEM integration of vibration isolation tables in space-sensitive applications. Product utilizes laminar flow damping, which employs thousands of tiny orifices, as opposed to single macroscopic orifice. Hybrid chamber design minimizes air volume between piston and damper, while use of trifilar pendulum provides horizontal isolation down to low frequencies.

U E Systems, Inc.    Elmsford, NY 10523
Sep 30, 2004 Ultraprobe 201 Grease Caddy can be mounted directly on grease gun or put in holster and worn on belt. Magnetic mount enables placement of probe on bearing housings, and sensing element detects ultrasound while filtering out low-frequency signals. Monitoring changes in ultrasound levels as bearings are lubricated enables users to know when enough lubricant has been added. Product also has mini-spot light that helps users see their lube connections in low-light conditions.

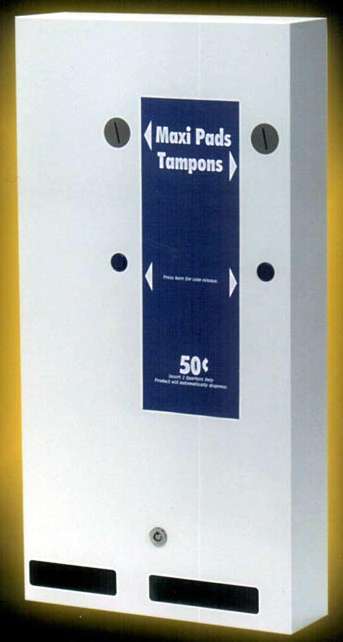

Hospital Specialty Company    Highland Heights, OH 44143
Sep 29, 2004 Promoting optimum cleanliness in public restrooms, dual channel A1-50 vends products at 50¢ each and features Maxithins® Ultra Thin with Wings Sanitary Napkins and TAMPAX® Tampons. It requires users to insert 2 quarters into product channel of choice to make product automatically dispense at bottom of unit. When empty, machine automatically ejects quarters. ADA-friendly design extends 4 in. from wall and has overall dimensions of 27.8 x 15.2 in.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089
Sep 28, 2004 Fully portable TD-850 drum dumper allows operator to pick up drums, mix contents, and pour or dump them. It handles 55 gal steel, fiber, and plastic drums and is available in fully counterbalanced or straddle-leg configurations. Hinged fiber-padded saddle, with 360° rotation radius, locks in drum. Antibacklash, worm-gear reducer provides added safety. Battery-powered model TD-850PL is offered for high-volume lifting and dumping.

Clean Air Products Clean Air Systems Div.    Minneapolis, MN 55445 1828
Sep 28, 2004 Constructed with 16-gauge, cold-rolled steel and finished with white baked enamel, Series 91SC will not crack or harbor contamination. It comes with 5 solid shelves in 4 standard sizes, and custom sizes are available upon request. All units are suitable for cleanroom applications.

NLB Corporation    Wixom, MI 48393 2824
Sep 28, 2004 Able to handle flows up to 35 gpm, NCG24-286 features quick-change cartridge valve that can be replaced in field. Trigger, operated with 8-12 lb of pressure, lets operator dump pressure immediately by pushing forward. It also incorporates one-finger latch that prevents accidental actuation. Product weighs 13.5 lb, and operator can adjust shoulder stock and hand grip for optimal comfort.

ARPAC    Schiller Park, IL 60176
Sep 27, 2004 Equipped with banner applicator, INFRAPAK RTAC-Series accepts pallets from palletizer or forklift, indexes load, and starts wrapping sequence. Banner applicator applies printed banner, displaying company logo or message around perimeter of pallet, and seals tail of banner film to load. Once wrapping sequence is complete, TIE-GR film tail capture mechanism eliminates film tails and secures load to skid.
