Komatsu America International Company    Vernon Hills, IL 60061
Feb 27, 2005 Powered by turbocharged S4D98E-2NFD diesel engine running 84 hp at 2,500 rpm, 4-ton SK1026-5 incorporates HydrauMindâ„¢ hydraulic system, automatic power control, and vertical lift loader arm design. Dual-speed transmission boost operation enables speed changes from 6.5 mph work range to 10 mph travel range. Dimensions include 45.7 in. wheelbase and 36.8 in. max reach. Weighing 8,068 lb, unit has 2,650 lb operating load and 5,300 lb tipping load.

Anver Corp. - Anver.Com    Hudson, MA 01749
Feb 25, 2005 Molded from silicone-free material that resists heat up to 356°F, Nomathaneâ„¢ Vacuum Cups will not leave invisible marks or mold release agents on delicate parts. Cups are 50 Durometer and come in flat, single, and multi-bellows shapes in standard 1/8–2 in. OD sizes and custom sizes up to 5 in. OD. Developed for end-of-arm tooling in plastic injection molding industry, cups are suited for applications where products need to be painted or coated after handling.

Kolinahr Systems, Inc.    Cincinnati, OH 45242
Feb 25, 2005 Featuring heavy-duty, 2-post steel frame, Model PS520 mounts on both sides of pallet conveyor and holds stretch wrapped loads with positive stop gate. Pneumatic alignment system locates pallets in consistent position, and pneumatic slide arms grab pallet and lift it with electric motor. Machine is controlled by PLC, which can communicate with conveyor, stretch wrapper, and palletizer, making it part of packaging line.

Flexicon Corporation    Bethlehem, PA 18020 8006
Feb 25, 2005 Bulk Filling System transfers bulk solid materials from drums to machine’s fill head dust-free, fills pails by weight, and verifies fill weight accuracy. Drums are loaded at floor level onto platen that lifts hydraulically to form dust-tight seal between drum lip and gasketed discharge cone. Entire drum carriage elevates hydraulically, then tips, causing discharge cone to mate with gasketted receiving ring on filling machine’s surge hopper lid.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Feb 25, 2005 Available as stand-alone unit, with forklift or hoist load, custom-designed Bulk Bag Conditioning Systems return materials hardened and/or lumpy materials to dischargeable state within minutes. Conditioner features 2 hydraulically actuated compression plates mounted on opposing sides that break up material which hardened or developed lumps inside bulk bags. Systems are also offered as modular section in Material Masterâ„¢ Bulk Bag Discharger.

Eagle Group    Clayton, DE 19938
Feb 25, 2005 High-Density Floor-Trakâ„¢ track-and-skate system enables material managers to consolidate and optimize storage of supplies, parts, and other items in high-volume applications. Non-corrosive roller track is comprised of stainless steel and anodized aluminum components. Industrial-grade bearings allow loaded shelving units to glide smoothly over tracks, while shock-absorbing end-stops ensure that shelving is securely braked at end of track line.

Jacob Modular Tubing Systems    Memphis, TN 38175
Feb 25, 2005 Featuring USDA - Dairy acceptance certificate as well as BISSC certification, USDA valve has outboard bearings and thumb bolts for tool-free service. Shaft/flap assembly can also be removed for sanitation, service, and inspection. Product is designed for low-pressure/vacuum conveying, bulk material handling and air flow systems in dairy, food, and pharmaceutical industries where equipment must meet USDA - Dairy sanitary levels or equivalent.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Feb 24, 2005 Made of stainless steel with polished 316 contact parts, Cremer CF1220D features 2 counting heads and 2-lane filling conveyor in 12 ft footprint. It uses IR detection, which is unaffected by dust, filling up to 110 bottle/min (based on 100-count bottles). Counter features touch-screen control panel and can be programmed with up to 300 product recipes. It handles tablets, caplets, and hard or soft capsules ranging from 2–25 mm in diameter.

Magtrol, Inc.    Buffalo, NY 14224-1322
Feb 24, 2005 Offered in 8 models customizable to testing application, Dynamometer Tables accommodate one Hysteresis/Engine or Eddy-Current/Powder Brake Dynamometer. Corrosion-resistant tables incorporate aluminum stand and can be modified to accommodate up to 3 dynamometers. Dual working heights permit testing from standing or sitting position, and standard options include 19 in. rack mounts, locking drawer, and cabinet.

Hyster Co.    Greenville, NC 27834
Feb 24, 2005 Trucks offer features based on multi-tiered offering of engine-transmission configurations: Fortis(TM), Fortis(TM) Advance, and Fortis(TM) Advance+. Electrical system utilizes Hyster® field-proven CANbus technology, and transmissions are electronically controlled. Magnetically operated, solid-state Hall Effect sensors and switches are 100% sealed from environment. Truck is rated for 200 psi pressure washing and features sealed connectors on all electrical connections.

LINPAC Materials Handling    Georgetown, KY 40324
Feb 24, 2005 ROPAKâ„¢ Hopper Bottom has inclined, smooth interior that leads to 6.25 x 11 in. dispensing chute and adjustable side-mounted sliding gate provides full control over dispensing flow rate. Constructed of HDPE, reusable, RFID-ready product has max weight capacity of 2,000 lb; 45 x 48 in. base with height options of 39, 48, and 50 in.; and respective volume capacities of 25.3, 34.8, and 37 ft³.

LNS America Inc.    Cincinnati, OH 45245

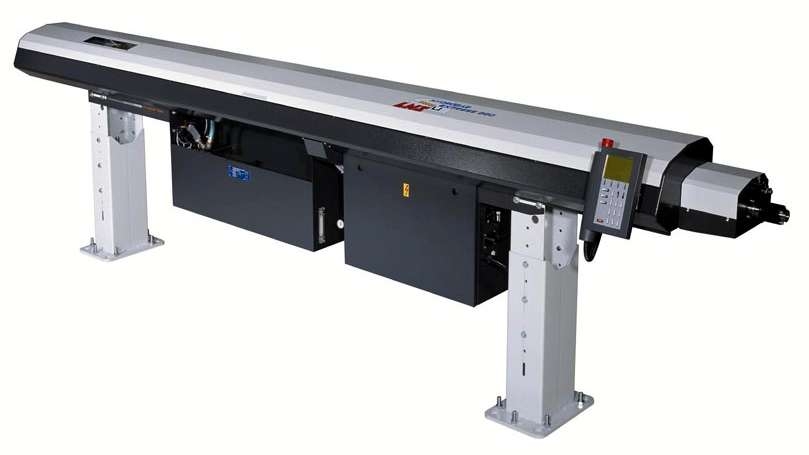

Feb 22, 2005 Express® series automatic bar feeds accommodate bar stock diameters from .079–.787 in. while facilitating partial changeovers in 2 min and complete changeovers in 8 min. For partial changeover, operator enters bar diameter, part length, and guide channel diameter, system then automatically sets torque, feed rate, bar stock diameter selection, steady rest diameter, and headstock synchronization. Change of collet size is only mechanical adjustment needed.

Mi-T-M Corporation    Peosta, IA 52068
Feb 22, 2005 Two-stage Air Compressors feature aluminum head and splash lubricated cast iron crankcase and cast iron cylinder. Electric model is equipped with 5.0 hp UL-listed electric motor, while gasoline model includes 8.0-9.0 hp Honda, Vanguard, or Subaru engine, pneumatic idle control, and pilot valve unloader. Both types feature 2 pneumatic tires with tubes and steel hubs, powder-coated 8 gal twin tank receivers, and stainless steel braided discharge hose.

Michelin Earthmover Group    Greenville, SC 29602-9001

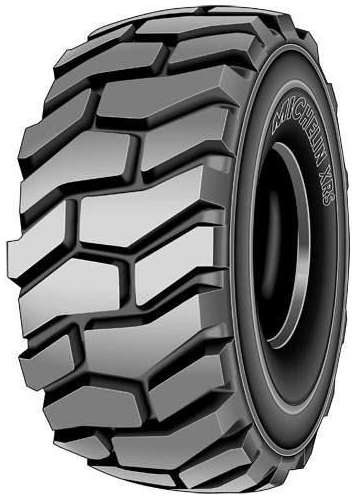

Feb 22, 2005 Suited for use with large scrapers, 37.5R39 XRSâ„¢ radial tire delivers longitudinal/lateral traction and features tread and sidewall cut protection. Aggressive, non-directional, deep tread pattern of E4 radial scraper tire minimizes vibration and delivers optimized traction. Able to withstand tough conditions, tire features buttressed shoulder design and is also available in 37.25R35 size.

Curtis-Toledo, Inc.    St. Louis, MO 63133
Feb 22, 2005 Featuring cast iron construction, heavy-duty CA series incorporates steel ASME air receiver, totally enclosed belt guard, and stainless steel valves. Series includes Simplex tank-mounted, electric, single- and 2-stage models rated ½â€“15 hp, 95–125 psi and 3–15 hp, 145–175 psi, respectively. Tank-mounted, gasoline-driven, 2-stage models are rated 5½â€“18 hp, 145–175 psi, while Duplex tank-mounted, electric, 2-stage models are rated 5–15 hp, 145–175 psi.

Nercon Engineering & Mfg. Inc.    Oshkosh, WI 54903 2288
Feb 22, 2005 Featuring open construction and modular design, FLEX LIFT Vertical Conveyor delivers products from one level to another. It uses heavy-duty UHMW idler wheels and enables conveyor systems to set up archways for access to opposite side of system while maintaining pace of product flow. Platform design incorporates combination of structural tube and geometric blocks to create multiple locking surfaces for product stability during vertical transfer.

Beta Max Hoists, Inc.    Melbourne, FL 32902
Feb 22, 2005 Featuring 118 x 57 x 83 in. cabin with floor level calling system, Max Climber(TM) 4400P incorporates on board and base controls along with interlocking cabin doors and landing gates to ensure passenger safety. Emergency upper and lower limit switches are provided in addition to cabin door, cabin roof, and base enclosure switches. With lifting capacity of 4,400 lb, system can travel up to 500 ft high at speed of 150 fpm.

Labconco Corp.    Kansas City, MO 64132 2696
Feb 18, 2005 Portable Table has 2 open shelves to hold variety of laboratory equipment and miscellaneous containers. Welded frame, made of 18-ga 1 in. square steel tubing, is electrostatically coated with corrosion-resistant epoxy in glacier-white color. Four inch diameter, thermoplastic casters absorb vibration for smooth trips over rough, uneven floors. Measuring 19 in. wide, frame fits through most doors and wide corridors.

NBE    Holland, MI 49424
Feb 16, 2005 Automated Bulk Bag Fillers produce consistent, dense, and stable filled bags. Standard base frame is ergonomic cantilever design that provides unobstructed access from 3 sides of machine for attaching and detaching bags. Controls are intelligently designed to include user-defined inputs that allow filling sequence to be tailored to customer's bag sizes, materials, and material delivery systems.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Feb 15, 2005 Complete system comes with up to 2 Kaeser Sigma rotary screw compressors, CFC-free refrigerated air dryer that delivers consistent pressure dew point as low as 38°F, and optional filter mounted on horizontal receiver tank. Compressors, available in 3–40 hp sizes with max working pressures from 80–205 psig, come with starters, aftercooler, and sound attenuating enclosure. Filters are available that remove particles as small as .01 micron.
