Dispensing System applies light-cure acrylics to tubing.
Henkel Loctite Corporation
Rocky Hill, CT 06067
Mar 03, 2005
Designed for one-handed operation, Loctite® Light Cure Adhesive Dispensing System for Tubing consistently applies uniform coating in user-specified amount. Design prevents light exposure during dispense process and accommodates adhesives with viscosities up to 1,500 cp and parts with 2.0-6.0 mm OD. Features include interchangeable stainless steel bushings, sight glass, and electric motor that continuously recirculates adhesive through dispensing bushing.
Order Picker features 24 V electrical system.
Toyota Material Handling U.S.A., Inc.
Irvine, CA 92623-7419
Mar 03, 2005 Narrow aisle 7-Series Picker offers anti-rattle mast staging, spring suspension system, and electronic disc brakes. Lift motor provides 2-speed lift/lower control, and Separately Excited Drive Motor and Transistor Control System with MOSFET offers smooth speed control for precise positioning of truck, regardless of speed. Auto-steer centering automatically centers drive tire upon start-up, assuring operator of truck's travel direction prior to movement.
Order Picker suits narrow aisle storage systems.
Jungheinrich Lift Truck Corp.
Houston, TX 77043
Mar 02, 2005
Tri-lateral Model EKX 410 stacks and retrieves full pallets or individual items from both sides of aisle. It features adjustable operating console, 180° swing reach mast, and ac drive control with stepless, sensitive control of travel speed via MOSFET technology. Truck handles loads up to 2,200 lb and reaches travel speeds up to 5.6 mph with load and lift speeds of 70.9 fpm. Maximum lift height of 2-stage mast is 236 in. and max turning radius is 80 in.

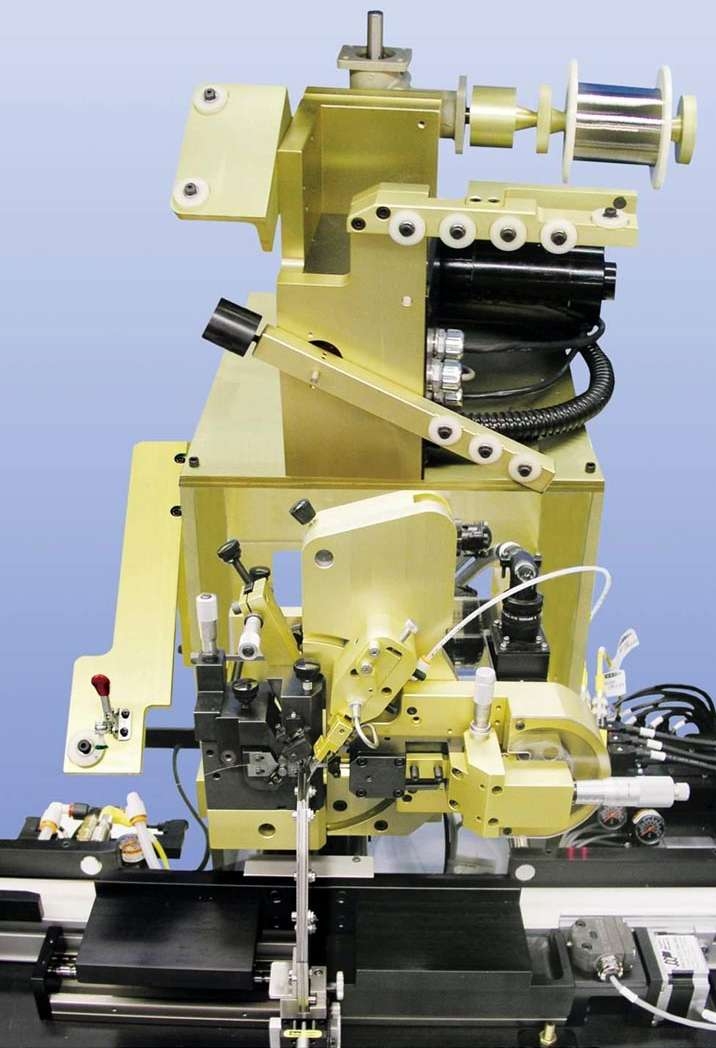

Micro-Coiler System provides coils for automatic assembly.
Worcester, MA 01603-1260
Mar 02, 2005 To facilitate assembly of coils or springs from wire as small as .0015 in. dia., On Demand Coil Production Unit produces micro-coils and transfers oriented coil into assembly system. Micro-Coiler deflection coiling machine can produce complete, cutoff coils of variable pitch and diameter as small as .008 in. dia at rates to 1 per second. Transfer system is based on semi-standard units. Separate electronic control panel can be remotely located.
Air Bag adjusts restraint for front passenger protection.
Troy, MI 48098-2815
Mar 02, 2005 Dual-depth passenger air bag deploys in small or large size depending on seat position, seat belt use, and crash severity. Inflation energy is also adjusted at 2 different pressures according to crash severity. Fully compatible with existing restraint electronics products, system does not require automakers to make any architecture changes to incorporate into vehicles.
Cable Reels provide robotic cable management.
United Equipment Accessories, Inc.
Waverly, IA 50677 4022
Mar 01, 2005 Teach Pendant Cable Reels transmit Profibus, DeviceNet, CC-Link, ControlNet, J1939, and other sensitive signal data. Three different frame sizes meet application extension requirements up to 100 ft. Multiple conductor ratings for amperage and voltage in one unit are also offered. Each reel can be customized to meet specific requirements.
Material Handling Crane offers long lift distance.
Allied Power Products, Inc.
Beaverton, OR 97008
Mar 01, 2005 Davit Crane is equipped with Columbia HD650 AC electric wire rope hoist that offers 115 ft of 5/32 in. wire rope and average lifting speed of 25 fpm. Model 4FFM Davit has maximum lifting capacity of 400 lb. Also included are upper limit switch and removable remote pendant control. Unit suits material handling and maintenance service applications with long lift distances.

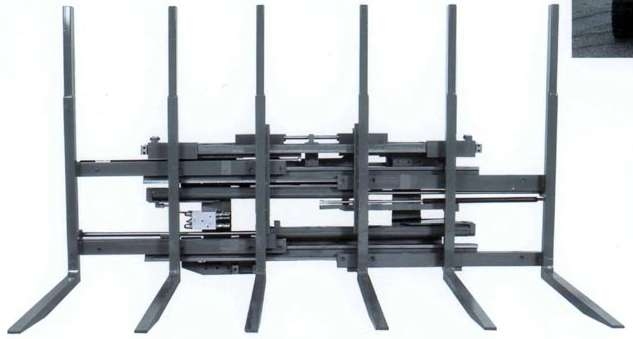

Pallet Handlers handle up to 4 pallets simultaneously.
Brudi Bolzoni Auramo
Homewood, IL 60430
Feb 28, 2005 Able to handle 1â€“3 pallets, KS35FT and KS50FT Triple Pallet Handlers have load capacities of 7,700 and 11,000 lb. Models KS36FKC and KS46FKC, designed to handle 2 or 4 pallets, feature load capacities of 8,000 and 10,200 lb. All models feature all-steel frames, Double-T profile for through-frame visibility, and built-in flow divider that provides equal outer fork movement. Separate sideshift provides constant sideshift range regardless of fork opening.

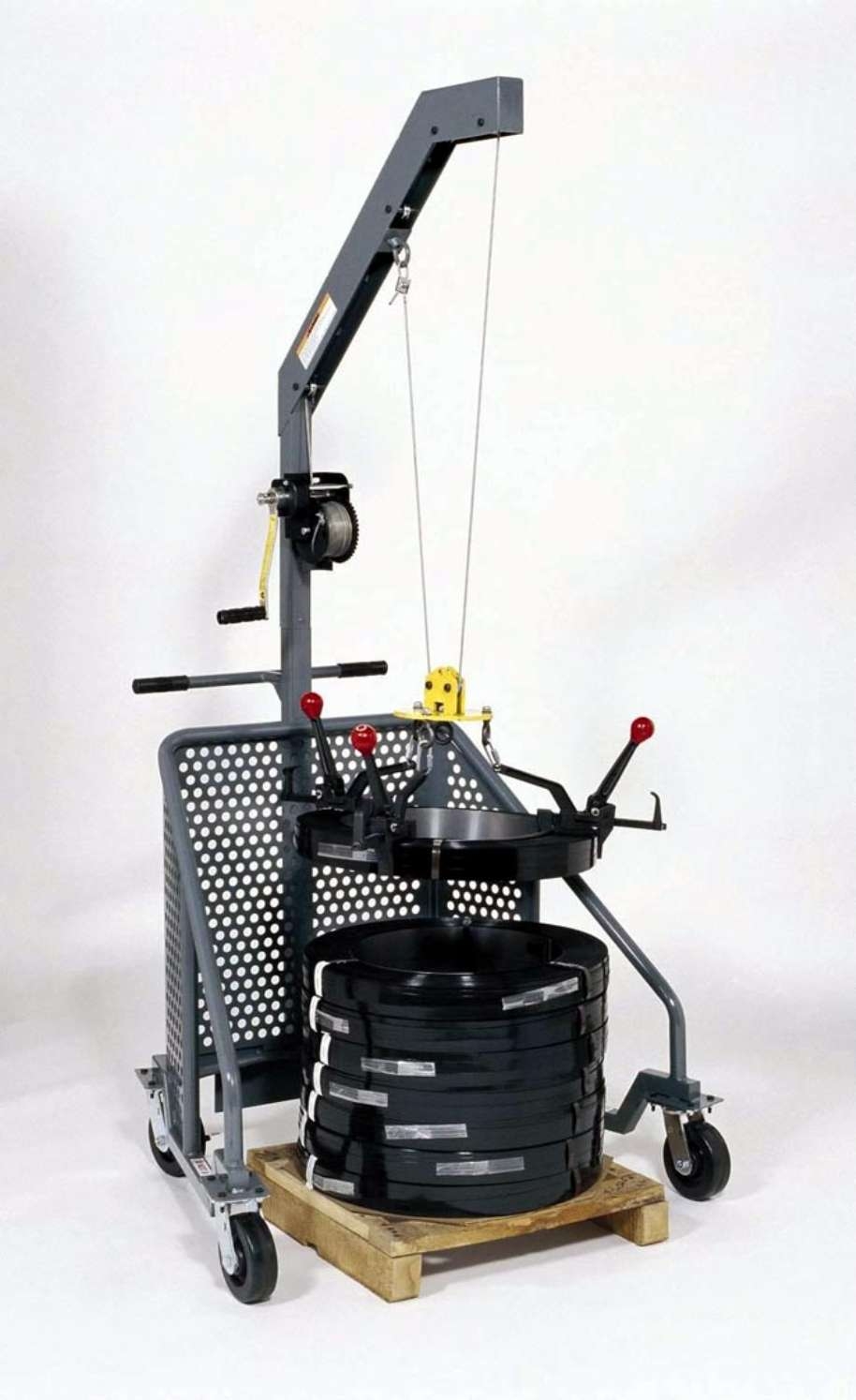

Coil Lifter eliminates manual lifting of strap coils.
Signode Packaging Systems
Glenview, IL 60025 1215
Feb 28, 2005 Strap Coil Lifter is capable of lifting steel coils weighing up to 125 lb and plastic coils weighing up to 55 lb, accommodates vertical and horizontal lifting applications, and is available in stationary and portable models. Portable model features steel cage and toe guard to help protect operators from injury during lifting and transporting of strap coils. Stationary model mounts to floor and is capable of 360° rotation within 4 ft dia.

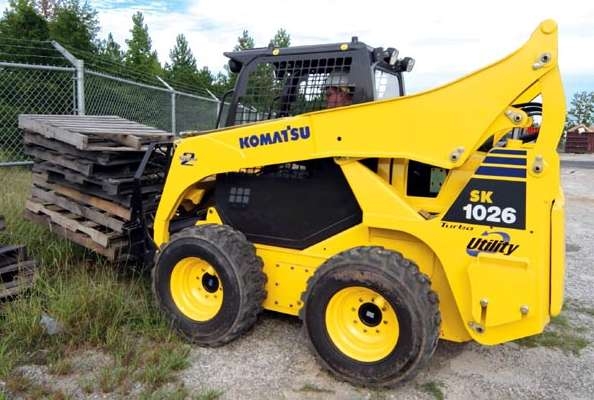

Skid Steer Loader has hydraulic self-leveling bucket.
Komatsu America International Company
Vernon Hills, IL 60061
Feb 27, 2005 Powered by turbocharged S4D98E-2NFD diesel engine running 84 hp at 2,500 rpm, 4-ton SK1026-5 incorporates HydrauMindâ„˘ hydraulic system, automatic power control, and vertical lift loader arm design. Dual-speed transmission boost operation enables speed changes from 6.5 mph work range to 10 mph travel range. Dimensions include 45.7 in. wheelbase and 36.8 in. max reach. Weighing 8,068 lb, unit has 2,650 lb operating load and 5,300 lb tipping load.
Vacuum Cups eliminate ghost marks.
Anver Corp. - Anver.Com
Hudson, MA 01749
Feb 25, 2005 Molded from silicone-free material that resists heat up to 356°F, Nomathaneâ„˘ Vacuum Cups will not leave invisible marks or mold release agents on delicate parts. Cups are 50 Durometer and come in flat, single, and multi-bellows shapes in standard 1/8â€“2 in. OD sizes and custom sizes up to 5 in. OD. Developed for end-of-arm tooling in plastic injection molding industry, cups are suited for applications where products need to be painted or coated after handling.
Pallet Load Stacker uses minimum amount of floor space.
Kolinahr Systems, Inc.
Cincinnati, OH 45242
Feb 25, 2005 Featuring heavy-duty, 2-post steel frame, Model PS520 mounts on both sides of pallet conveyor and holds stretch wrapped loads with positive stop gate. Pneumatic alignment system locates pallets in consistent position, and pneumatic slide arms grab pallet and lift it with electric motor. Machine is controlled by PLC, which can communicate with conveyor, stretch wrapper, and palletizer, making it part of packaging line.
Bulk Filling System features high-lift drum dumper.
Bethlehem, PA 18020 8006
Feb 25, 2005 Bulk Filling System transfers bulk solid materials from drums to machineâ€™s fill head dust-free, fills pails by weight, and verifies fill weight accuracy. Drums are loaded at floor level onto platen that lifts hydraulically to form dust-tight seal between drum lip and gasketed discharge cone. Entire drum carriage elevates hydraulically, then tips, causing discharge cone to mate with gasketted receiving ring on filling machineâ€™s surge hopper lid.
Bulk Bag Conditioner breaks up hardened materials.
Material Transfer & Storage, Inc.
Allegan, MI 49010 0218
Feb 25, 2005 Available as stand-alone unit, with forklift or hoist load, custom-designed Bulk Bag Conditioning Systems return materials hardened and/or lumpy materials to dischargeable state within minutes. Conditioner features 2 hydraulically actuated compression plates mounted on opposing sides that break up material which hardened or developed lumps inside bulk bags. Systems are also offered as modular section in Material Masterâ„˘ Bulk Bag Discharger.
Roller Track System accommodates most wire shelving products.
Clayton, DE 19938
Feb 25, 2005 High-Density Floor-Trakâ„˘ track-and-skate system enables material managers to consolidate and optimize storage of supplies, parts, and other items in high-volume applications. Non-corrosive roller track is comprised of stainless steel and anodized aluminum components. Industrial-grade bearings allow loaded shelving units to glide smoothly over tracks, while shock-absorbing end-stops ensure that shelving is securely braked at end of track line.
Material Handling Valve meets USDA requirements.
Jacob Modular Tubing Systems
Memphis, TN 38175
Feb 25, 2005
Featuring USDA - Dairy acceptance certificate as well as BISSC certification, USDA valve has outboard bearings and thumb bolts for tool-free service. Shaft/flap assembly can also be removed for sanitation, service, and inspection. Product is designed for low-pressure/vacuum conveying, bulk material handling and air flow systems in dairy, food, and pharmaceutical industries where equipment must meet USDA - Dairy sanitary levels or equivalent.
Double Tablet Counter comes with diagnostic software.
NJM/CLI Packaging Systems Int'l.
Lebanon, NH 03766 1403
Feb 24, 2005 Made of stainless steel with polished 316 contact parts, Cremer CF1220D features 2 counting heads and 2-lane filling conveyor in 12 ft footprint. It uses IR detection, which is unaffected by dust, filling up to 110 bottle/min (based on 100-count bottles). Counter features touch-screen control panel and can be programmed with up to 300 product recipes. It handles tablets, caplets, and hard or soft capsules ranging from 2â€“25 mm in diameter.

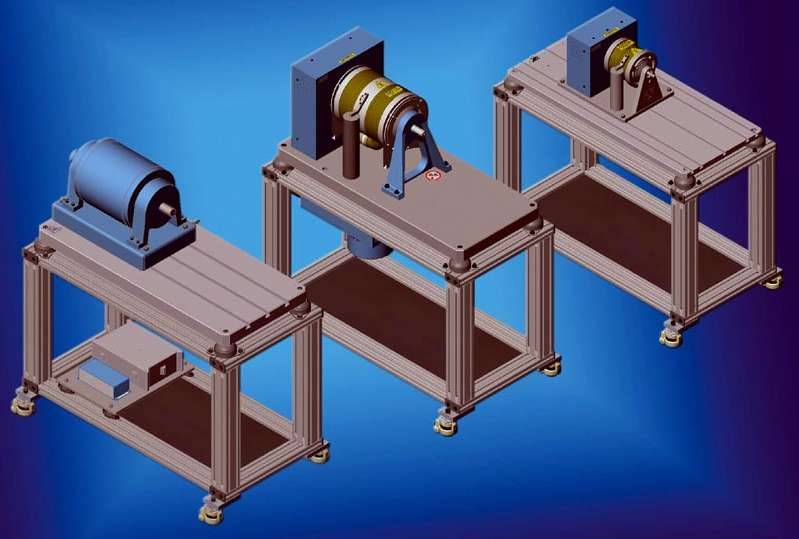

Dynamometer Tables feature casters for smooth mobility.
Buffalo, NY 14224-1322
Feb 24, 2005 Offered in 8 models customizable to testing application, Dynamometer Tables accommodate one Hysteresis/Engine or Eddy-Current/Powder Brake Dynamometer. Corrosion-resistant tables incorporate aluminum stand and can be modified to accommodate up to 3 dynamometers. Dual working heights permit testing from standing or sitting position, and standard options include 19 in. rack mounts, locking drawer, and cabinet.

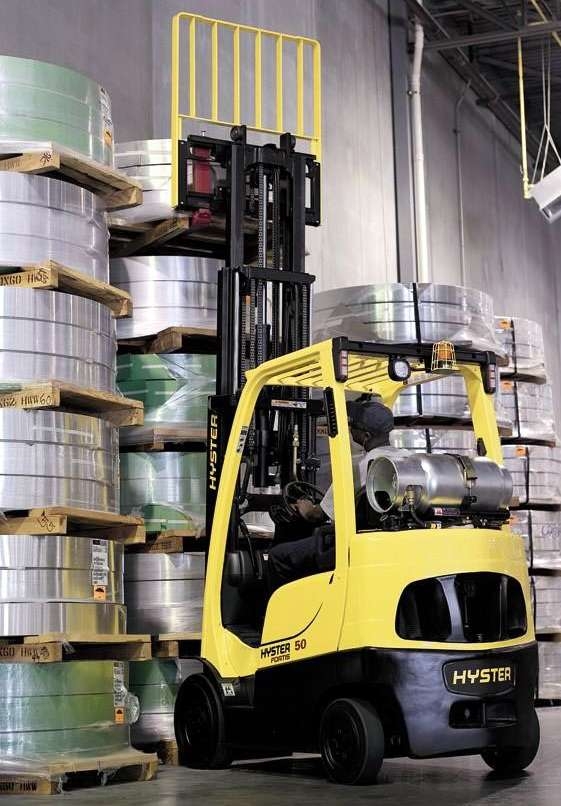

Lift Trucks are built to suit application requirements.
Greenville, NC 27834
Feb 24, 2005
Trucks offer features based on multi-tiered offering of engine-transmission configurations: Fortis(TM), Fortis(TM) Advance, and Fortis(TM) Advance+. Electrical system utilizes Hyster® field-proven CANbus technology, and transmissions are electronically controlled. Magnetically operated, solid-state Hall Effect sensors and switches are 100% sealed from environment. Truck is rated for 200 psi pressure washing and features sealed connectors on all electrical connections.
Collapsible Container uses gravity to dispense small parts.
LINPAC Materials Handling
Georgetown, KY 40324
Feb 24, 2005 ROPAKâ„˘ Hopper Bottom has inclined, smooth interior that leads to 6.25 x 11 in. dispensing chute and adjustable side-mounted sliding gate provides full control over dispensing flow rate. Constructed of HDPE, reusable, RFID-ready product has max weight capacity of 2,000 lb; 45 x 48 in. base with height options of 39, 48, and 50 in.; and respective volume capacities of 25.3, 34.8, and 37 ftł.
