Progressive - Ruesch Machine Co. Inc.    Ringwood, NJ 07456
Aug 10, 2004 Suited for payout of traverse wound wire and strip from up to 1,250 lb reels, Model 605 Rim Drive maintains consistent line height and permits flexibility in stock orientation by allowing material to be paid out from top or the bottom of reel. Unit offers choice of 3 speed and tension control devices, each of which automatically monitor and compensate for payout reel's decreasing diameter while maintaining constant line speed.

Fluid Metering, Inc. (FMI)    Syosset, NY 11791
Aug 10, 2004 Ratio:Matic® Series Dual Head Dispensers and Metering Pump consists of 2 FMI independently adjustable pump heads direct coupled to variable-speed drive. Single rotating and reciprocating ceramic piston accomplishes both pumping and valving functions without valves. Pump-head size combinations allow dispensing ratios from 1:1 to 1,000:1. Product enables dispensing as low as 2 µL per dispense, as well as proportional metering of 2 fluids into one fluid stream at up to 4 Lpm continuous flow.

ITWRansburg Electrostatic Systems    Toledo, OH 43612
Aug 10, 2004 Made of stainless steel/Teflon®, TurboDisk2 Rotary Atomizer is virtually impenetrable to all fluids. It features serrated edge design and dual feed fluid system. High flow regulators and fluid valves allow for simultaneous paint push out while solvent washes feed tube and disk. Fluid section can be exchanged in minimal time due to quick disconnect features. TurboDisk2 is suited for wide range of coating materials, including waterbornes and high solids.

SMC Corporation of America    Tustin, CA 92780
Aug 09, 2004 Modular Filter/Regulator/Lubricator (FRL) Series features port sizes ranging from 10/32 unf through 1 in. in NPT, metric, and G threads. Standard operating pressures are 0–145 psig with proof pressures of 215 psig. Regulator improves relief sensitivity from 14.5 psi to less than 5 psi, while increasing resistance to ozone. Built-in pressure gauge is standard. Lubricator has combination sight glass and graduated drip rate adjustment knob for setting lubrication rates.

American Stress Technologies, Inc.    Cheswick, PA 15204
Aug 09, 2004 Used with XStress 3000 System, PC-controlled X, Y, Z Table positions parts and maps test information from part. User programs movement between each measurement and stores it as template. To retest, user opens template.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Aug 09, 2004 Eagle Series RTX features hydraulic design and Feather Control Reach and Retract Systemâ„¢, allowing operator microscopic control. Double Reach Model RTX30 has 3,000 lb capacity with 180° steering and max lift height of 360 in. Model RTX35 has 3,500 lb capacity and 270 in. max lift height, while Model RTX45 delivers 4,500 lb capacity and 360 in. lift height. All feature 3-stage, clear-view mast with nested channels and side-mounted cylinders for visibility.

ERICO    Solon, OH 44139-2631
Aug 09, 2004 CADDY® BCISN Beam Clamp enables easy installation of 3/8 in. threaded rod for attachment to beam flanges up to ½ in. Without using tools or added nuts, clamp positions on 3/8 in. threaded rod and allows fine tuning and adjustment after rod is locked in place. Standard BC model supports ¼ in. and 3/8 in. threaded rods, S-hooks, electrical boxes, conduits, and bridle rings. Both BCISN and BC are reversible on flat flanges and can be removed when necessary.

ITW Ransburg Electrostatic Systems    Toledo, OH 43612
Aug 09, 2004 Evolver is available in 60° and 90°, single- and dual-head modules, in either HVLP or conventional air spray, with adapters for all types of robots. Four different modular gun configurations allow correct gun to be selected that best fits application. All valves are grounded within manifold, allowing atomizer to apply more conductive solvent-borne materials, and change color sequence during spraying with no loss of tip voltage.

Rittal Corporation    Springfield, OH 45504
Aug 06, 2004 Operating in conjunction with CP-Vertical Pendant Arm systems, Universal Release Handle releases pendant arm, enabling operator to easily reposition control panel to new height or position. Handle can be installed in several locations on enclosure, offering motion control as well as flexible height adjustment.

Skyjack Inc. / Boom Division    Guelph Ontario N1H 1B9, CD   Canada
Aug 06, 2004 Offered with choice of liquid-cooled dual fuel or diesel engines, FULL SIZE Rough Terrain (RT) Aerial Work Platform models 8831, 8841, and 9250 feature proportional joystick control. They have spring-loaded half gate on both sides of platform, hinged railing systems, and grip lug air filled tires. Equipped with 4WD, scissor lifts feature working heights up to 56 ft, capacities to 2,500 lb, gradeability to 30%, and 74 x 168 in. rollout platforms.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089
Aug 05, 2004 Featuring all-steel construction, DU-SOM drum upending attachment allows operator to pick drums from horizontal or vertical positions in rack or other storage applications, remove them, and turn them around safely for transport or use. Mechanical attachment fits any forklift and handles up to 850 lb in 55 gal fiber, steel, or plastic drums. Options are available for handling drums with inserted faucets or spigots.

Labconco Corp.    Kansas City, MO 64132 2696

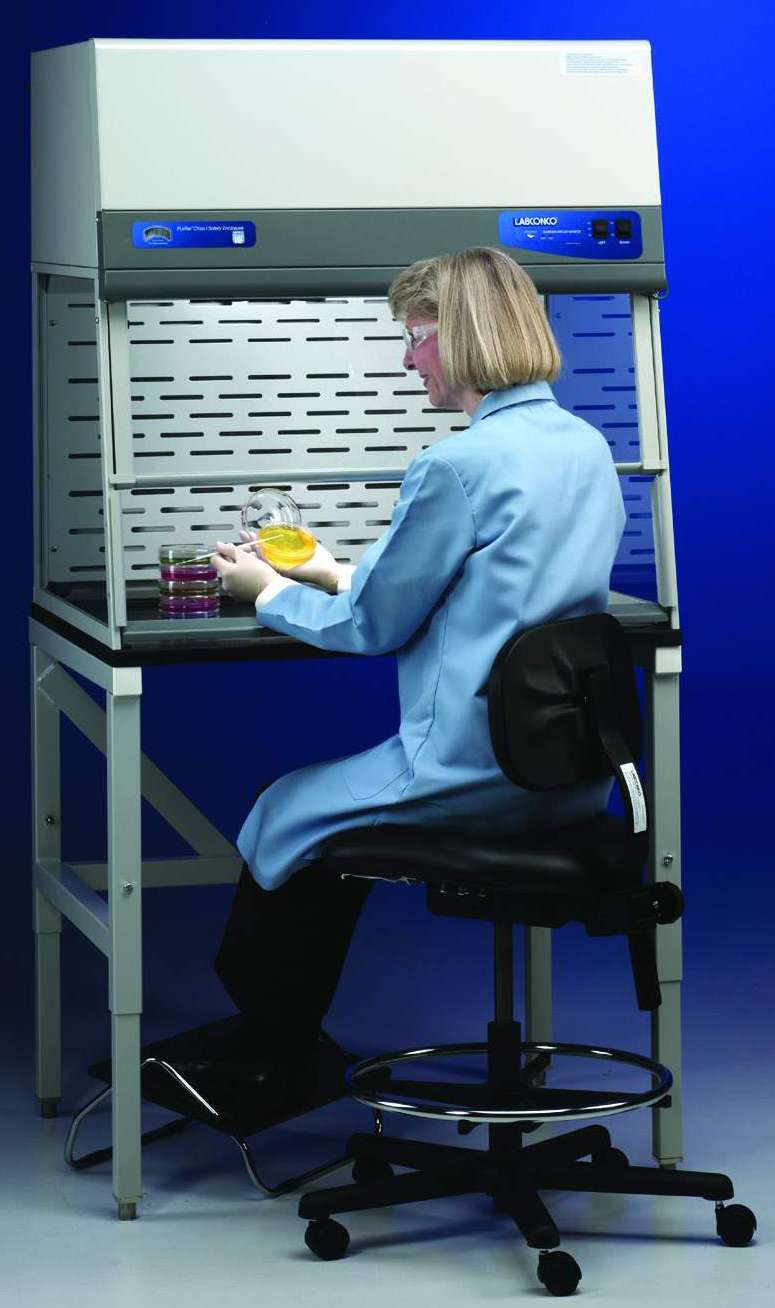

Aug 05, 2004 Available in 2, 3, and 4 ft widths, Purifier Class I Safety Enclosures provide user protection from agents that require Biosafety level 1, 2, or 3 containment. Products incorporate UV light that may be used in conjunction with surface disinfection to ensure thorough decontamination while enclosure is unattended. They also include Exhaust HEPA filter (99.99% efficient on 0.3 micron particles) in addition to Clean-Sweep air foil and rear baffle.

Techno Sommer Automatic    New Hyde Park, NY 11040
Aug 04, 2004 Suited for pick and place operations, SM series aids in handling of ferrous sheet materials when used with magnetic grippers. Cups can be molded of neoprene; blue silicone, which is heat resistant to 200°C; or white, tempered silicone. Ranging in diameter from 1-130 mm and height from 26-73 mm, products can be attached to robot arm with included hollow mounting stud. Torroidal, oval, bellow, and knobbed vacuum cups are also offered.

Strong Hold Products, Div. of Fabricated Metals LLC    Louisville, KY 40209-0043
Aug 04, 2004 All-welded, 12-gauge, Portable Construction Job Site Box includes lifting eyes for transporting by crane, and welded channels for lifting with forklift or pallet jack. Upper portion is provided with 2 adjustable shelves and gas shocks to aid in lifting. Lower portion has adjustable shelf on each side and shelf pockets located on each door.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139
Aug 04, 2004 Stainless Steel and Zinc Tank is suitable for waterborne coatings when used with disposable tank liner. Lid and all wetted parts in lid assembly, including fluid tube, outlet elbow and fitting, and agitator shaft are 300 grade stainless steel. Zinc-Plated Tank features all zinc-plated parts and is intended for solvent-based coatings. Both feature 2.8 gal capacity and meet NFPA33 and OSHA regulations for flammable and combustible materials.

TAWI USA    Willowbrook, IL 60527
Aug 03, 2004 VacuCobra uses vacuum force from oil-free, air-cooled, rotary vane vacuum pump with vacuum of 150 mbar to create constant upwards striving motion. Operator uses fingertip control to move VacuCobra down to attach suction cup to load and can flip suction cup upwards to attach to side of load if necessary. Unlimited horizontal rotation of goods while being lifted is possible using bottom swivel. VacuCobra handles goods weighing up to 80 lb with lifting heights up to 70 in.

Raymond Corporation, The    Greene, NY 13778 0130
Aug 03, 2004 Facilitating pallet entry and exit, Model 112XD incorporates extended tip forks that are enclosed from underneath to provide smoother transition over bottom boards. It travels at 6.4 mph while loaded and 8.8 mph, unloaded. Features include 4-point lift system, shock dampening brushings, component-free undercarriage, and quick-change drive tires. Unit also has adjustable, heavy-duty casters; solid steel pull rods; and box-rail fork construction.

DeVilbiss , ITW Industrial Finishing    Glendale Heights, IL 60139
Aug 03, 2004 Able to attach to standard air and fluid hoses, MSHTE Spray Gun offers feathering capabilities with tapered needle. Spray method produces low pressure atomization with low particulate travel velocity for maximum transfer efficiency and minimal overspray and bounce back. Product is designed for wood finishing applications that require even distribution of body stains, wipe stains, sealers, and top coats.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 30, 2004 Digitally-controlled, Power Feedâ„¢ 10M features 4 drive rolls and optional push-pull capability for aluminum welding. Using Nextweld Waveform Control Technologyâ„¢, each weld mode meets standards for low spatter, weld bead profile, and arc shape. MSP4 user interface panel controls all parameters including weld mode selection, arc control adjustments, weld sequence, limit setting, and lockout. Infrared port allows transfer of data via Palm® OS based systems.

Asymtek    Carlsbad, CA 92008
Jul 30, 2004 DispenseJet® DJ-9000 utilizes method for applying solder ball reinforcement material to semiconductor packages that eliminates need for dispensing secondary underfill in PCB assembly. Unit shoots fluid stream of underfill adhesive as small as 100 µm wide between balls on CSPs and other BGA packages during semiconductor packaging process. Cured reinforcement material relieves stress at ball-substrate interface by reducing geometric stress concentration factor at that point.
