Sealed Air Corp.    Saddle Brook, NJ 07663-5291
May 20, 2005 Suited for shipping sensitive, small parcels, TuffGard Extremeâ„¢ products combine protection of 5/16 in. Bubble Wrap® cushioning with multi-layer, co-extruded film that is moisture-, puncture-, and tear-resistant. Mailers, available in 5 sizes from 7¼ x 12 in. to 14¼ x 20 in., feature fully laminated construction and tamper resistant, self-seal closure. Fine, textured surface can be printed with up to 8 colors.

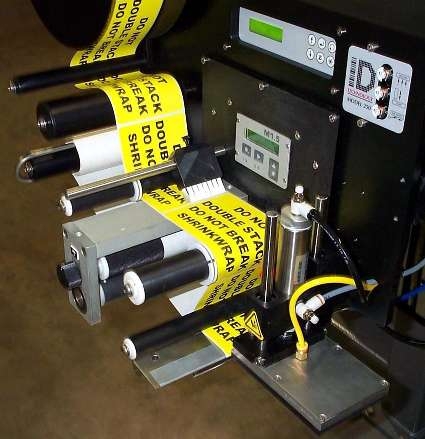

ID Technology Corp.    Fort Worth, TX 76106
May 20, 2005 Model 250a can change from apply-only to variable print and apply labeling. Featuring standard label roll size of 12.5 in. OD x 3 in. ID, unit applies labels from 1–7 in. in top, bottom, side, and corner wrap configurations. Apply-Only Module offers high tack drive roller to prevent label slipping and ensure precise label dispensing at high speeds. It takes place of print engine and is affixed to base unit using standard bolt-on structure.

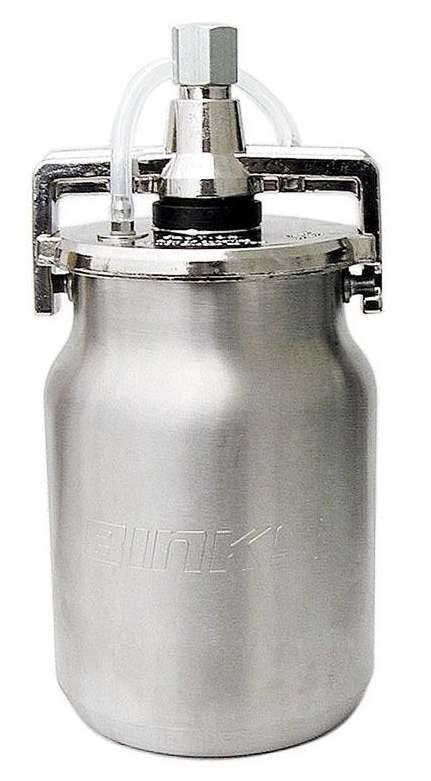

Binks ITW Industrial Finishing    Glendale Heights, IL 60139
May 20, 2005 Stainless steel 1-quart siphon feed cup and 3 pressure assist cups are designed to provide precise fluid pressure control with conventional spray guns. They incorporate air regulator, flare lip cup, and flattened bottom cup design. They also feature proprietary check valve and vent design as well as lid, yoke, and lever design. Interchangeable parts include stainless steel cups, lids, lid gaskets, fluid tube, and yokes.

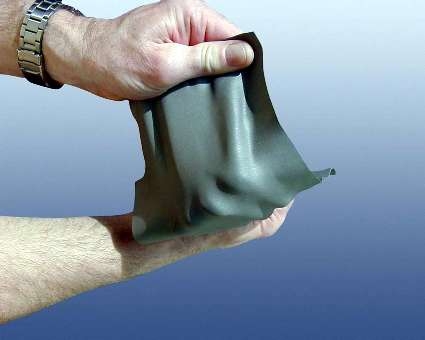

Electrodyne Co., The    Batavia, OH 45103 9736
May 20, 2005 Offering total elongation up to 250%, Reanceâ„¢ SF neodymium iron boron magnet holds tight radiuses without cracking, breaking, or losing magnetic properties. Unit can be produced as thin as .012 in. making it suited for use in cordless power equipment, sensors, guitar pick ups, and xerographic equipment. Reance SF may be custom-formulated to particular magnetic requirements, as well as slit, drilled, die-cut, or punched to customer specifications.

SMC Corporation Of America    Indianapolis, IN 46226
May 19, 2005 Model ASR Pressure Valve consists of regulator with check valve and speed controller, while Model ASQ Flow Valve combines quick supply/exhaust valve and speed controller. Body and one-touch fitting allow 360° rotation. Fixed set pressure type and variable set pressure type are available. Both valves can cut air consumption by operating return stroke at minimized pressure, preventing jerky movement of working stroke and operation delay in return stroke.

Alemite LLC    Fort Mill, SC 29715
May 19, 2005 Made of die-cast aluminum, hose reel contains powder-coated aluminum and corrosion-resistant internal components. It is effective in high-moisture areas, including marine and paper mill applications. Stainless steel reel is suited for areas involving food handling, corrosive environments, metals processing, mines, and general manufacturing. Additional reels include hand-crank reel, electric cord reels, and standard-duty light reel for illuminating work areas.

Stafford Mfg. Corp.    Wilmington, MA 01887
May 18, 2005 Accu-Flange can be machined by user for applications as pulley, cam, or component mounting device, enabling designers to develop custom solution from standard product line. Featuring integral clamp that incorporates double-split design and relief groove, product retains perpendicularity and will not mar shafts. Adjustable unit, available in 6 bore sizes from ½â€“1½ in. ID, can be supplied in steel, stainless steel, and aluminum, with or without keyway.

Flexco    Downers Grove, IL 60515-4200
May 18, 2005 Developed for heavily loaded mainline and panel belts in underground and surface mining, Flexco® R9S fasteners are stamped from 0.135 in. thick 300 Series stainless steel and accommodate belt thickness from 5/8–1 in. Fasteners, part of SRâ„¢ Scalloped-Edgeâ„¢ rivet-hinged conveyor belt fastener system, feature 8-rivet attachment and suit belts with mechanical fastener ratings up to 2,000 PIW running on conveyors with end-pulley minimum diameters of 42 in.

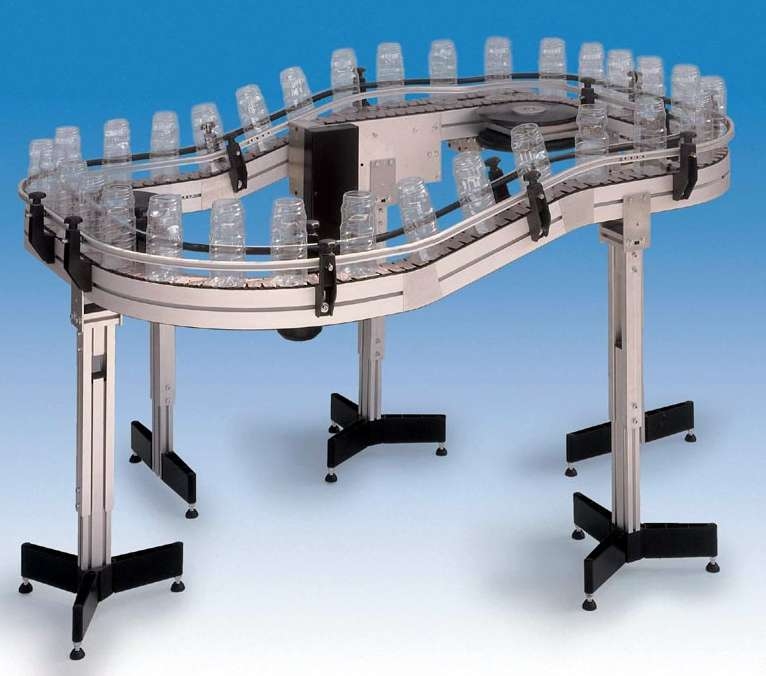

MK Automation Engineering Inc.    Bloomfield, CT 06002
May 17, 2005 Flat Top conveyor, SBF-P 2254, is assembled using rolling and gliding (90° and 180°) curves, straights, inclines, declines, and transfer segments. Offered in 100 and 130 mm widths, product can be reconfigured to handle changing production and product handling needs. Conveyors are available with 3 chain materials, including Acetal glass reinforced polyester and FDA approved Kevlar® reinforced Delrin. Choice of motors and speed control are available.

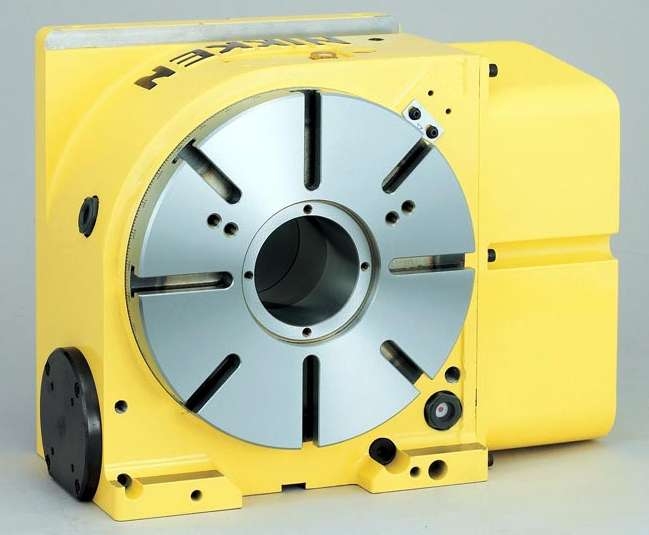

Lyndex-Nikken Inc.    Mundelein, IL 60060
May 17, 2005 Model CNC260 employs thru-hole design with carbide worm system and optional hydraulic braking system. Worm screw consists of V-grade form of carbide, while worm gear is ion nitrided to depth of 0.1 mm and external surface hardness of 68 Rc. Both help to minimize friction and wear. Built with steel way hardened to 58-60 Rc, product features work inertia of 3.2 kgom² and thrust loads of 25,480 N, 984 nom, and 3,332 nom.

FKI Logistex North America    St. Louis, MO 63132
May 17, 2005 Able to sort items of varying weights and dimensions, LogiSort(TM) enables item diverges and merges to and from vertically stacked conveyors. Compact, centralized system, supplied as standalone unit or part of integrated material/baggage handling system, features steel frame, flanged bearing cartridge units for all pivoting and rotating members, and 1045 turned-ground and polished steel shafting in addition to electric motors and gear reducers.

Uson L.P.    Houston, TX 77041
May 16, 2005 Combining eddy current technology with custom fixturing, Sorter provides 100% on-line inspection and sorting of small metal parts. Zetec MIZ23 eddy current tester compares electromagnetic properties of sample with results obtained from testing known good parts. Input/output of Zetec MIZ23 operates flippers on sorter according to test results, which divert defective parts to reject bin. Accuracy is unaffected by orientation of parts entering sorting station.

Stanley Vidmar    Allentown, PA 18105 1151
May 16, 2005 Measuring 59 in. high, Inert Gas Housing Cabinet consists of bank of drawers behind locking front door. When door is closed, neoprene gasket provides airtight seal. To prevent oxidation, user can lower humidity by pumping nitrogen gas or dry air into cabinet. Optional static dissipative finish minimizes danger of static build-up, which can damage electronic components. Cabinet is suited for Class 10,000 cleanrooms and meets MIL-STD-883A standard.

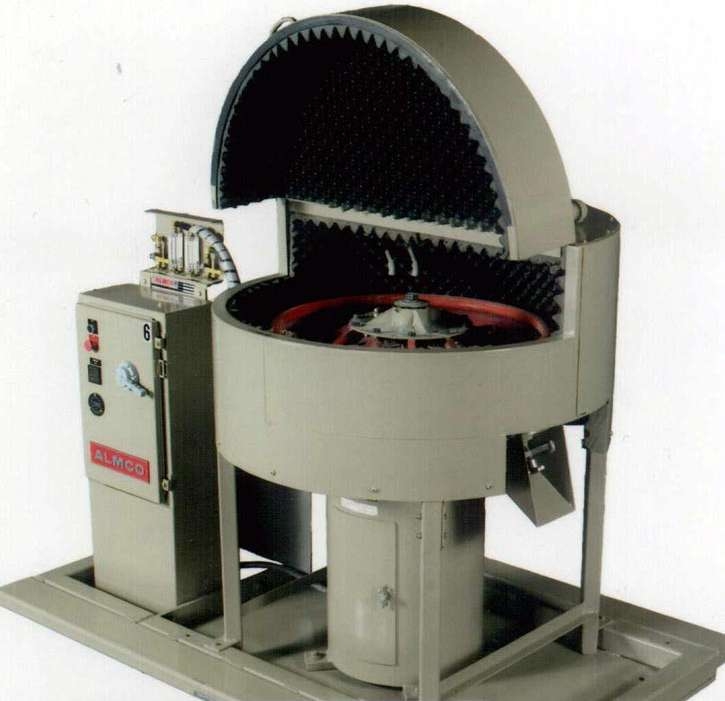

Almco, Inc.    Albert Lea, MN 56007 2751
May 16, 2005 Model OR-3 vibratory finishing machine has rotating urethane divider that creates multiple compartments for individual part deburring, prevents damaging impingement, and eliminates fixturing of metal parts. Featuring 3 ft³ tub, unit occupies 36 x 53 in. footprint and comes with sound hood to keep noise at acceptable level. Offering constant speed of 1,750 vpm, unit enables parts to be loaded/unloaded from rotating mass without stopping machine.

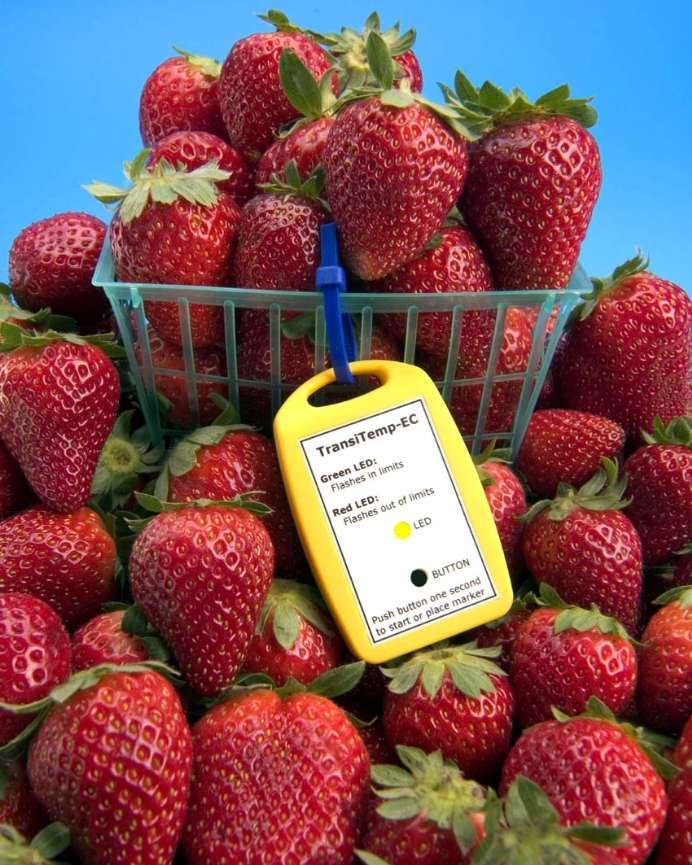

MadgeTech    Warner, NH 03278
May 16, 2005 Transitemp-EC In-transit Temperature Recorder provides record of temperature fluctuations for up to 90 days. Featuring green LED to signal shipment is within preset temperature limits and red LED to indicate an alarm condition, device provides receiver with immediate status of shipment. Recorder can log up to 8,191 measurements in non-volatile memory and then connect to PC and display history of shipment. Push-button start is date and time stamped.

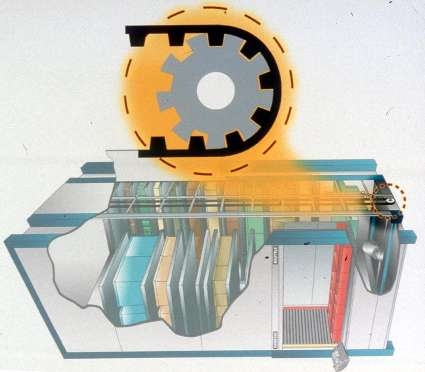

Kardex Remstar LLC    Westbrook, ME 04092
May 16, 2005 Shuttle(TM) XP VLM can handle loads up to 132,000 lb and reach up to 65 ft high to maximize overhead storage cube. Design of steel belted tooth belt drive allows multiple points of fully engaged contact, minimizing ambient unit sound. With no metal on metal moving parts or friction, belts require no lubrications and are not prone to stretching or metal wearing.

Hudson Control Group    Springfield, NJ 07081
May 16, 2005 Featuring full robotic control of manifold, Micro10â„¢ is capable of dispensing to shallow and deep SBS plates without use of spacer or manual adjustment. With 50 mm of vertical travel, manifold moves up and down as microplate is stationary in plate nest and 12 tips dispense liquid into wells of microplate. Unit, equipped with touchscreen operator panel, uses Softlinxâ„¢ scheduling software to ensure proper alignment of dispensing and plate heights.

Brudi Bolzoni Auramo    Homewood, IL 60430
May 13, 2005 With load capacities from 3,800–10,000 lb, Series AR accommodates rolls from 10–72 in. dia. Rack-and-pinion mechanism allows for true 180° operation to minimize roll edge damage. Clamps include controlled long and short arm movement, and check valves installed in clamping and rotation cylinders. Operators can adjust clamping force with optional 4-stage pressure selection valve. With split arm option, users can lift 2 rolls of different diameters at same time.

Hytrol Conveyor Co., Inc.    Jonesboro, AR 72401
May 13, 2005 Utilizing belt designed for tracking on low length-to-width ratio, Zipper Conveyor merges cartons from multiple parallel lines. Floor-supported plow structure spans conveyor width and supports belt plows over conveyor belt and near belt for low profile cartons. Conveyor and plows are direct driven with shaft-mounted gearmotors and variable speed drives.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089
May 13, 2005 Model LD-1 slides directly onto forks of any lift truck with no tools or connections required. Engaging top lift of container, Parrot-Beak® clamping mechanism lifts steel, fiber, and plastic drums weighing up to 850 lb. All-steel unit offers fully-automatic operation and is suited for plants and warehouses handling, stacking, and storing up to 50 drums per week.
