Jergens, Inc.    Cleveland, OH 44110

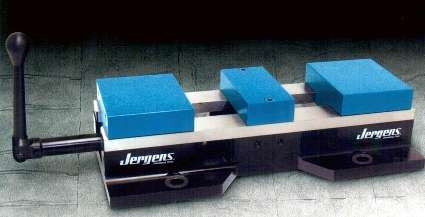

Aug 26, 2005 Available with 4 and 6 in. jaw widths, BallLock Production Vises provide workholding solution for vertical machining centers. Jaw changeovers take less than 1 min, and BallLockâ„¢ Mounting System in base permits 1 min changeover of vises. Base features interlocking jigsaw pattern that permits multiple vises to nest closely together, and flow-through design lets chips and fluids escape. Jaws are machinable and reversible, and rails are hardened and ground steel.

Speedline Technologies Inc.    Franklin, MA 02038
Aug 26, 2005 Benchmark v5.0 for Camalot XyflexPro dispensing system includes Flip Chip Calculator, which determines underfill weight and volume for both die within cavity and standard assembly methods. TurnBack function allows any Dispense Unit or Pump to be reversed, giving precise control of material on needle tip, and eliminating material balling or dripping due to backpressure. Die Edge Detection simultaneously finds all 4 edges of Flip Chip, ensuring pinpoint positioning.

KUKA Robotics Corp.    Clinton Township, MI 48036
Aug 26, 2005 Able to be floor- or ceiling-mounted, self-contained, single-axis KUKA Linear Slide adds 7th or 8th axis when used with another robot. Range of movement is managed by programmable software limit switches, with safeguard of mechanical stops. Driven by brushless ac servomotor with rack and pinion gearing, KUKA KL 250/2, KUKA KL 100, and KUKA KL 1500/2 are designed for robots with payload capacities of 6-16, 30-60, and 100-500 kg, respectively.

Spantech, LLC    Glasgow, KY 42141
Aug 25, 2005 Useful for cooling, curing, and time delays, Spiral Elevator rests stationery on spiral chain and travels up or down at speeds to 250 fpm. Product requires no pressure or controls and employs Variable Frequency Drive as standard. Able to handle products up to 10 in. long, unit is available for clockwise or counterclockwise operation. Feed-in and feed-out have 4 available positions, and product may be ordered with drum diameter to 30 in. and chain width to 9.67 in.

ITW Ransburg Electrostatic Systems    Toledo, OH 43612
Aug 25, 2005 Used in single- or multiple-component applications, RCS 2 is suited for precise electronically controlled gear-pump metering and mixing. It features magnetically coupled metering pumps that eliminate shaft seal leaks and provides absolute on-ratio gear-driven 1, 2, or 3 k mixing and metering control. In addition to solventborne or waterborne materials, system can also be used with rotary atomizers, bells, disks, and electrostatic or non-electrostatic guns.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

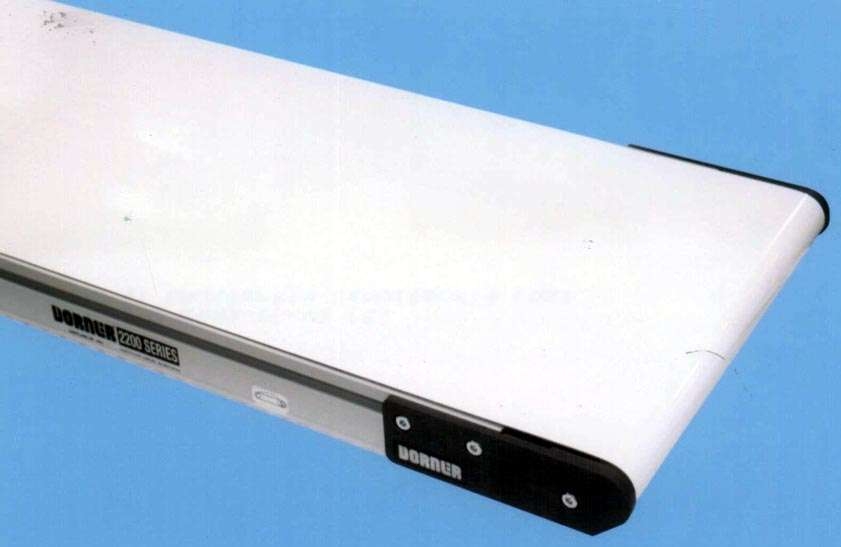

Aug 24, 2005 Series 2200 conveyors feature bearings installed in blind housing hole, which protects them from external concerns that could cause premature damage or corrosion. Engineered to eliminate maintenance, products feature instant belt tensioning as well as V-guide bed plate and belt for positive belt tracking. Conveyors handle loads to 80 lb and come in lengths from 18 in. to 18 ft. They accommodate belt speeds to 276 fpm and widths from 1.75–24 in.

Lee Industries, Inc.    Philipsburg, PA 16866

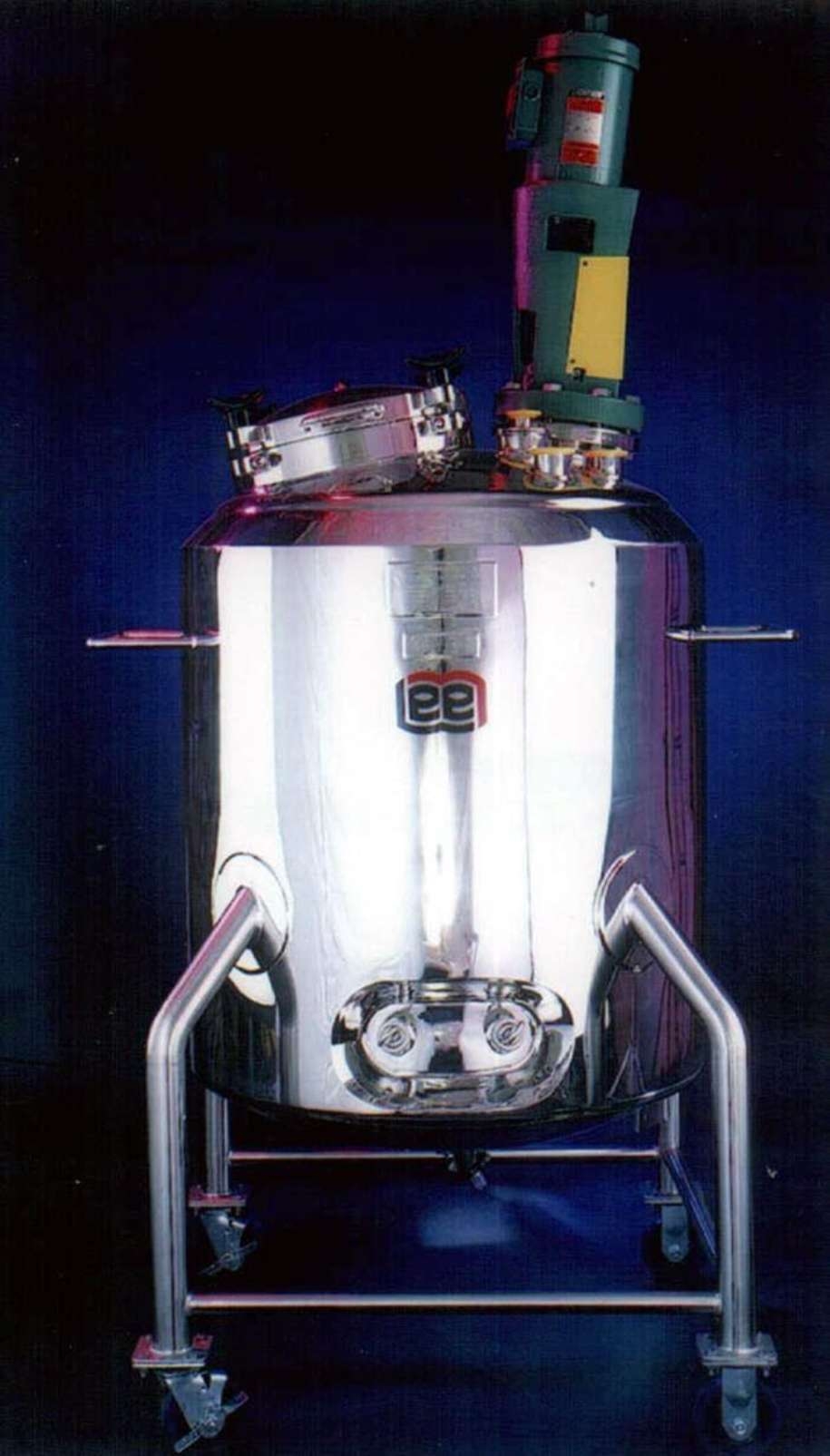

Aug 24, 2005 Custom-fabricated vessels, including agitators and mixers for product transfer or portable processing, can be manufactured in sizes up to 500 gal. Furnished with casters and push handles for mobility, products may be designed as single shell or jacketed with pressure/vacuum rating if required. Quick disconnect fittings can also be furnished to facilitate relocation. Products can be designed with dimensions to accommodate doorway and hallway limitations.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218

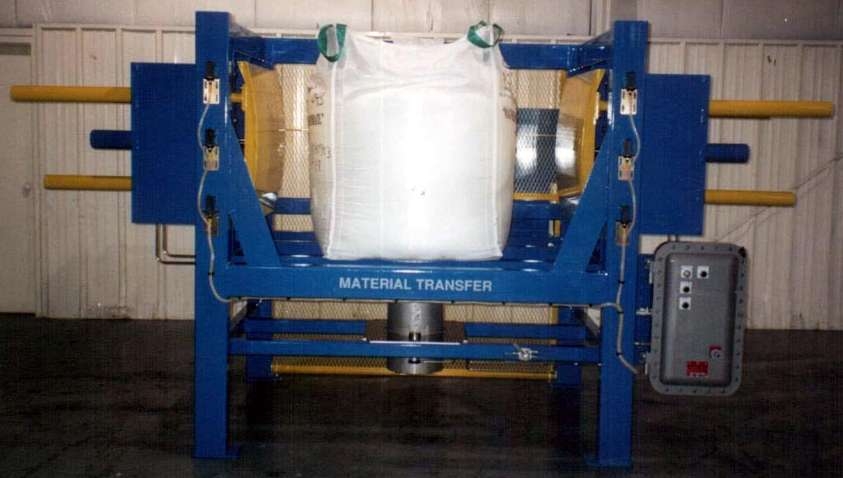

Aug 24, 2005 Material Masterâ„¢ unit hydraulically compresses bulk bags then provides sealed discharge of material. For operation, user loads bag via existing hoist, initiates Sure-Sealâ„¢ pneumatic discharge spout clamping system, and activates hydraulic Power-Floâ„¢ conditioning system to discharge material. Product is available as stand-alone unit, with forklift or hoist load, or as modular section.

Prab Conveyors    Kalamazoo, MI 49003

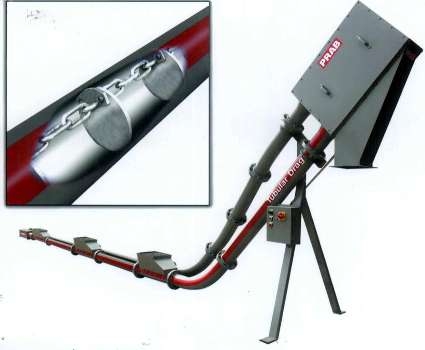

Aug 23, 2005 Featuring single heavy-duty chain design, Tubular Drag Conveyor System conveys and elevates metal chips in one operation. Range of configurations are available that enable conveyor to fit in and around current equipment without need for special foundation work. Multiple inlets and outlets are possible, eliminating need for additional feed chutes and/or feed conveyors. Totally closed system retains oily chips, keeping production floor clean.

Fisnar Inc.    Wayne, NJ 07470

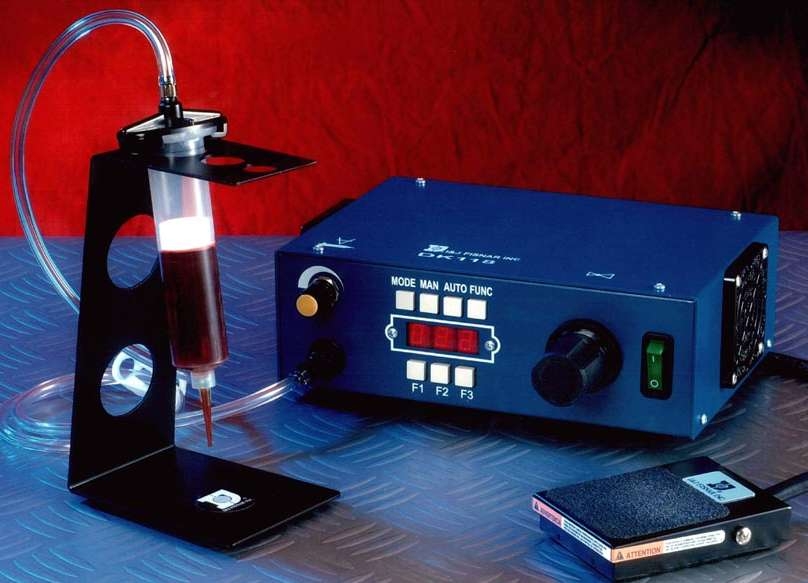

Aug 23, 2005 Featuring Manual and Auto Cycling modes, DK118 Teach and Learn Dispense System incorporates illuminated, 12.7 mm, 3-character display that can toggle between digital readout of regulated air supply pressure and programmed dispense time period. System dispenses exact repeat of set-value and saves setting when system is switched off. Time Settings can be programmed from 0.01-99.9 sec, and 5-24 V I/O connection allows remote control in addition to nominal foot-pedal operation.

Quixxsmart Structures Inc.    Peabody, MA 01960

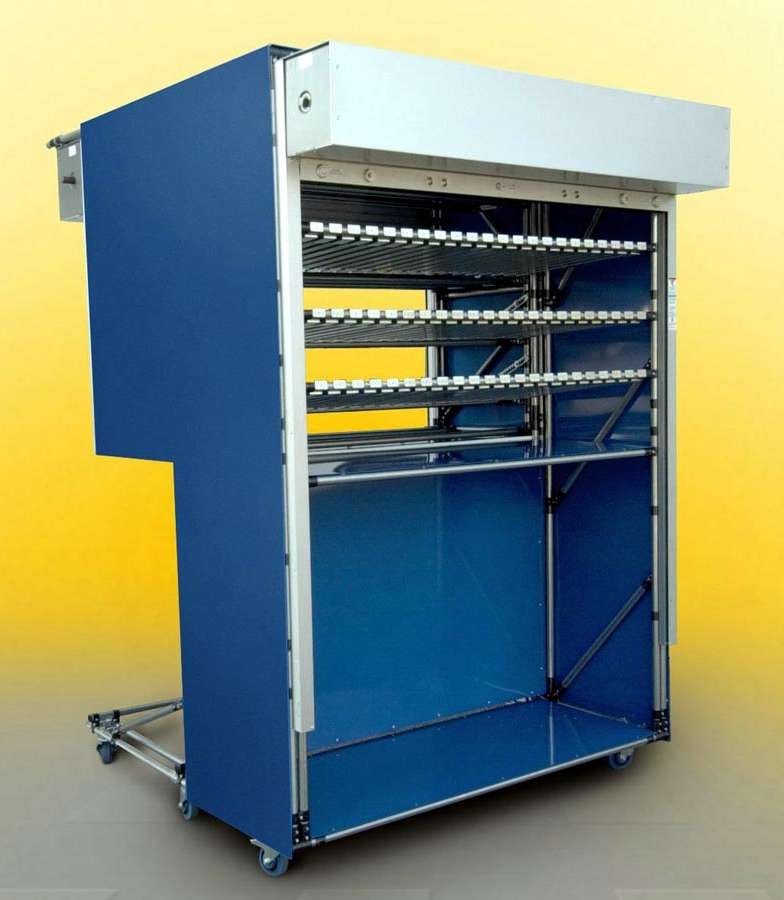

Aug 23, 2005 Suited for unmonitored plant floors, Modular Racking Systems feature metal sides and retractable front and rear shutters, creating totally enclosed structure for light security. Manually operated rolling shutter with key lock further facilitates security of small part inventory. Made of 16-gauge steel tubing with corrosion-resistant zinc coating, systems include height adjustable shelves and total-locking casters with nylon rollers for mobility.

MagneMotion, Inc.    Acton, MA 01720
Aug 23, 2005 Meter-long QuickStick(TM) 100 Linear Synchronous Motor (LSM) modules independently control up to 5 small vehicles and come with embedded position sensors and control software. Connected end-to-end for any length, modules propel, track, and control pallets by interacting with permanent magnet array on each vehicle. Built-in controls regulate speed, acceleration, direction, and permission to advance. It delivers standard positioning within ±0.5 mm.

CDF Corporation    Plymouth, MA 02360
Aug 23, 2005 High-Capacity Aseptic Barrier Bags accommodate 1, 2, and 3 in. fillers with capacities up to 330-gal intermediate bulk size. Using specialized barrier films, bags lock out light and oxygen to extend shelf life. Variety of films can be used, including Barriaâ„¢, a 3-layer lamination, metallized polyester that blocks moisture and oxygen. Aseptic Bags are suited for critical food applications, such as high and low acid products, tomato juice, and fruit juice.

Ridg-U-Rak, Inc.    North East, PA 16428
Aug 23, 2005 Extendo-Max100V has roll-out shelves that employ V roller shelf-guide mechanism that carries full rated capacity of shelves at 100% extension. Unit is offered in 6 heights from 60¼â€“120¼ in. and houses up to 4 independent shelves, each adjustable on 2 in. centers. Suited for storage and retrieval of dies, molds, and industrial components, shelves are available in 2,000 or 3,000 lb capacities and come in 4 sizes from 36–48 in. wide and 36–48 in. deep.

International Dispensing Corporation    Hanover, MD 21076

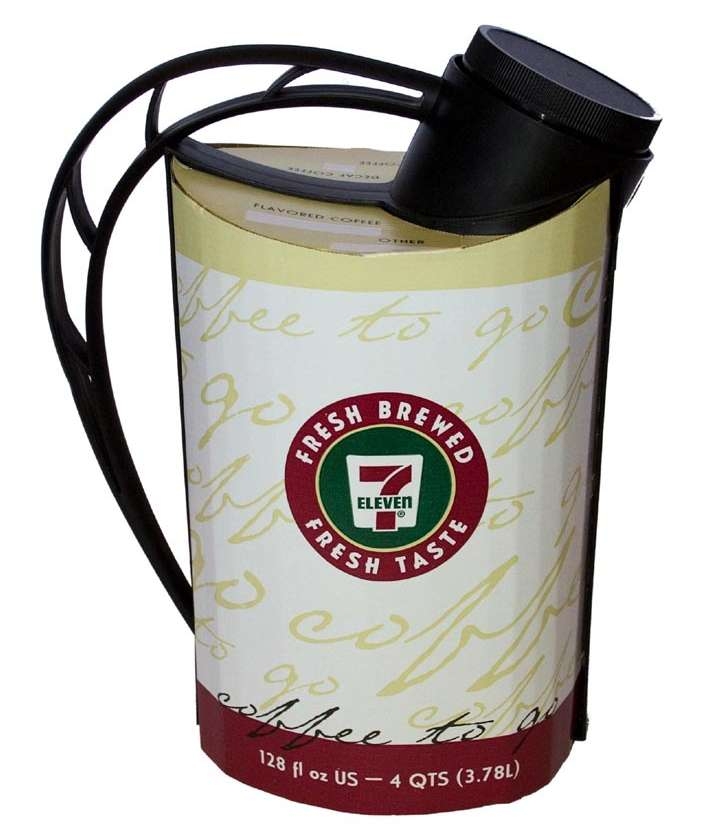

Aug 22, 2005 Intended for transporting coffee, tea, and soup, 128 oz Insulated Carafe features 3 in. screw top mouth. Inner liner maintains constant temperature and can insulate liquids for up to 3 hours after filling. Reinforced plastic carrying handle facilitates pouring, while large corrugated side panels provide marketing and advertising opportunities.

ERICO    Solon, OH 44139-2631
Aug 22, 2005 CADDY® SFCLT Clamps attach fixtures securely to ceiling frame member, and prevent T-bar from twisting and disconnecting at T-Bar intersections in seismic event. Reusable clamps also prevent fixture from separating from T-Bar framework and can withstand force of standard fire hose. Clamps consist of connectors for 2 x 4 ft and 2 x 2 ft light fixtures, as well as end-to-end and side-by-side connections of light fixtures, and for reinforcement of T-Bar main runner joints.

Caldwell Group, Inc., The    Rockford, IL 61109

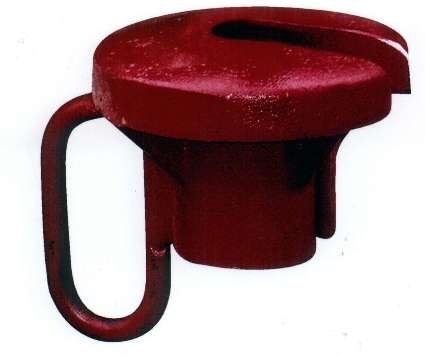

Aug 22, 2005 Designed and manufactured to ASME B30.9 and B30.20 standards, Low Profile Tea Cup Pipe Carriers facilitate handling of concrete water and sewer pipe. Flat lifting plate allows safe attachment without need to insert Tea Cup into hole in pipe. Three sizes are available to handle ¾â€“1 ½ in. cable. Optional spoon handle allows ¾ in. Tea Cup to be guided into small diameter pipes.

Walls & Forms Inc.    Dallas, TX 75374

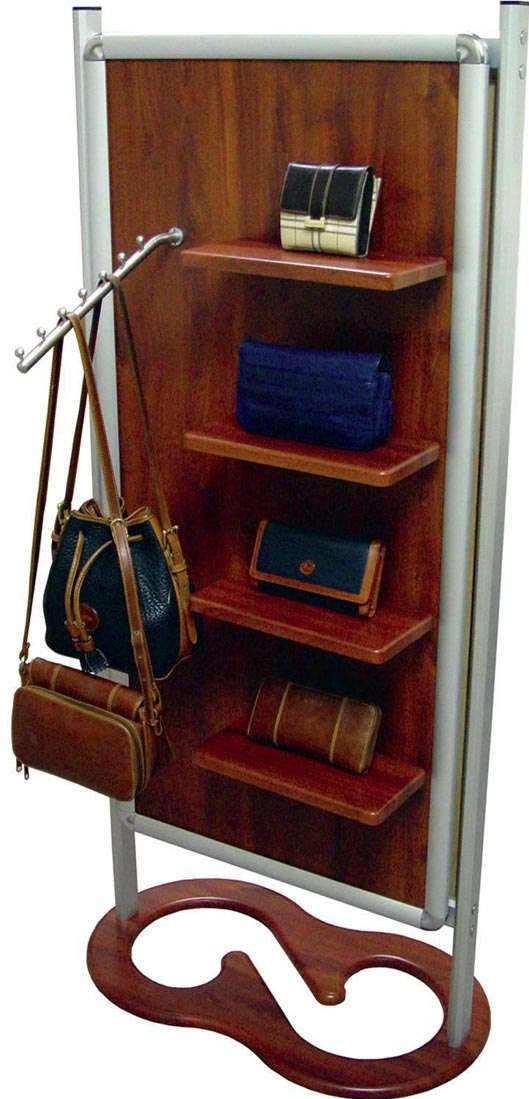

Aug 19, 2005 Available at component level and in prefab format, EuroSign(TM) EuroStand includes 2 DisplayFrames or SekureFrames mounted on white painted face backer boards and matte white polystyrene back board. Solid wood backer allows use of shelves, hanging arms, and similar merchandising methods. Also available in A-Stand configuration as well as with thermoformed bases, product comes in standard size of 60 x 30 x 18 in. and accommodates up to 24 x 36 in. graphics.

ERICO    Solon, OH 44139-2631
Aug 19, 2005 Bronze-alloy ERITECH® EK16 and EK17 have bronze screws and consolidate rebar, ground rod, water pipe, and direct-burial water pipe clamps in one tool. Along with mechanical splicing ability, product can be pre-set on rebar or water pipe and has lay-in feature that secures wire by tightened setscrew. Models EK16 and EK17 install wire in parallel and perpendicular positions, respectively. Able to works with wire from No. 10-2, clamp can also mechanically connect two No. 8 solid wires.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 19, 2005 Metric Aluminum Two-Way and Base Plate Connector Clamps are available in black powder coated finish or natural color with matte shot-blast finish. Clamping bores are machined and designed for metric tubing types GN 990, DIN 2391, DIN 2395, and DIN 2462. Clamp fastener assembly choices include socket cap screws, hex cap screws, or adjustable levers. Applications include vertical or horizontal tube mountings for machine guards, gates or railings.
