Flambeau    Baraboo, WI 53913
Apr 07, 2006 Blow molded in high-density polyethylene, Mini Tank was designed as small overflow bottle and works well in applications where user needs small fluid container with snap cap. Tank can have fittings welded on either end and/or bottom, and has mounting tabs on both sides.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218

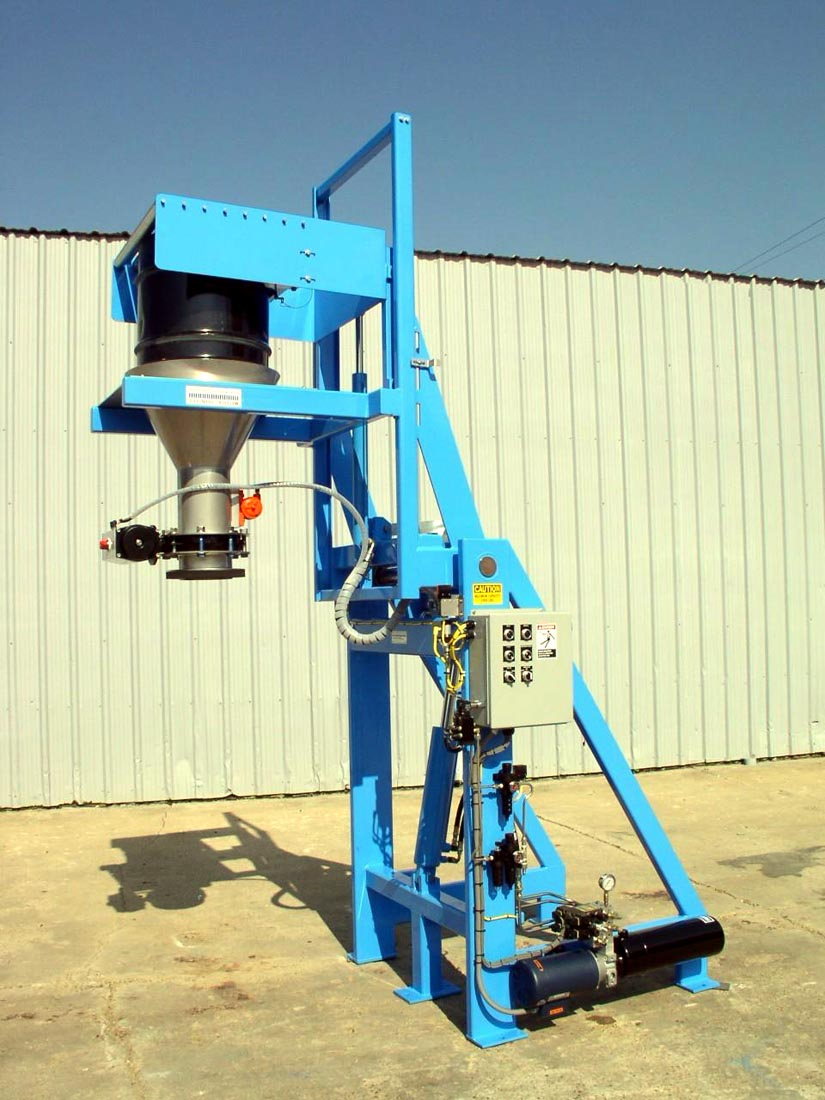

Apr 06, 2006 Lift & Seal System(TM) is designed to discharge drums of non-free flowing powders into existing receiving hopper at 70 in. above floor level. It automatically docks drums inside discharge cone with 60° walls, for safe, dust-controlled discharge. Control Link(TM) Rotation System rotates drum to 180° for maximum product discharge. Unit can be custom designed for application requirements.

Schunk    Morrisville, NC 27560

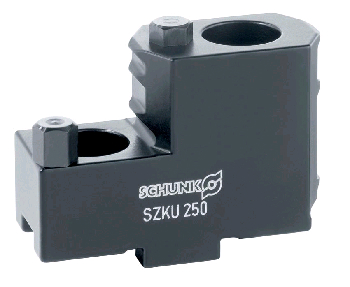

Apr 05, 2006 With 3 rows of clamping blades, Universal Hard Top Jaws aggressively bite into surface of work piece and can be clamped on OD or ID. Exchangeable work piece rest enables adjustment to different clamping depths with same set of jaws. Offered in 5 sizes for lathe chuck diameters 165, 210, 250, 315, and 400 mm, single set of jaws permit user to cover up to 4 clamping positions as well as bar feeding.

DIRAK    Chantilly, VA 20151-1220
Apr 05, 2006 Made of polyamide and zinc die-cast, SNAP-LINE swinghandles offer 4-6 mm compression, single and multi-point latching, and multiple locking options. They are operated by lifting top portion and rotating handle 135° and are available with profile cylinders, standard inserts, and combination of insert/pad lock device. Recommended for use on enclosures for data centers, water- and dust-tight IP65 and NEMA 4/12 versions are available.

Start International    Addison, TX 75001
Apr 05, 2006 With non-stick rollers, TheTapeDispenser(TM) Model TDA080-NS dispenses and cuts foam tapes, duct tapes, and other high-tack tapes to operator's predetermined lengths. Constructed of reinforced metal, unit accepts tapes up to 3 in. wide and can cut pieces from 2-394 in. long with tolerance of ±.04 in. Four operating modes include manual feed, manual feed and cut, auto feed and cut, and interval feed and cut.

Key Technology, Inc.    Walla Walla, WA 99362
Apr 04, 2006 Designed to detect and cut out defects in potato strips at rates to 16,200 lb/hr, ADR® 5 integrates inspection capabilities of G6 electro-optical platform with modular vision engine and trichromatic cameras. Components include Hi-Res Vis/IR cameras, belt conveyor, rotary cutter, and Iso-Flo® vibratory conveyors, combined to facilitate process of aligning, isolating, inspecting, and trimming potato strips. System uses LED light source and air-actuated knives.

BASCO Technologies, Inc.    Clinton, CT 06413
Apr 03, 2006 Suitable to automate and/or validate filling of products in clinical trials, Filling and Stoppering Machine Type 535 handles up to 2,000 containers/hr with fills ranging from 50-100 ml and accuracies of ±0.05%. Stainless steel exposed metal surfaces provide washdown compatibility, and design eliminates product contact with air to prevent contamination. Compact system features cleanroom robot fitted with set of tooling that handles both vacuum filling and vacuum stopper insertion.

Revvo Caster Co., Inc., The    West Seneca, NY 14224
Apr 03, 2006 Offered in 12 twin-wheel models, TwinTech Combi Swivel Casters feature total lock mechanical brake that allows wheels to swivel and rotate freely when in OFF position, and will prevent swiveling and rotation when in ON position. Central locking mechanism provides free swiveling, swivel locked with wheel free, and total locking of both wheels and swivel. Constructed of pressure diecast aluminum shells, casters are offered in diameters of 5 or 6 in. with load capacities from 198-330 lb.

O.BERK Co.    Union, NJ 07083

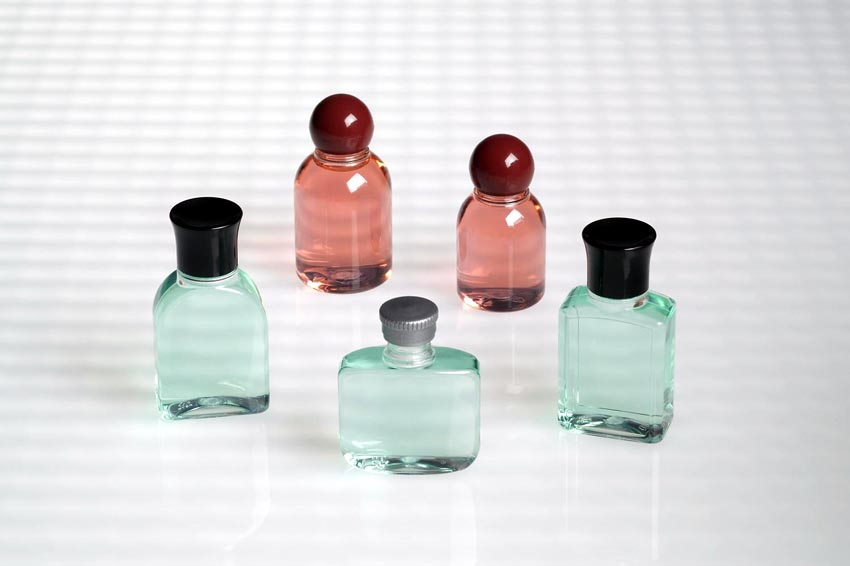

Apr 03, 2006 Amenity Bottles are available in 5 shapes including rounds, oblongs, and rectangles, in sizes ranging from 1-1.5 oz. Featuring disc-top and flip-top dispensing closures, bottles are suitable for lotions, creams, suntan products, moisturizers, and bath products in hotel/motel, salon/spa, aromatherapy, and cosmetics/personal care markets.

Pass & Seymour/Legrand    Syracuse, NY 13221

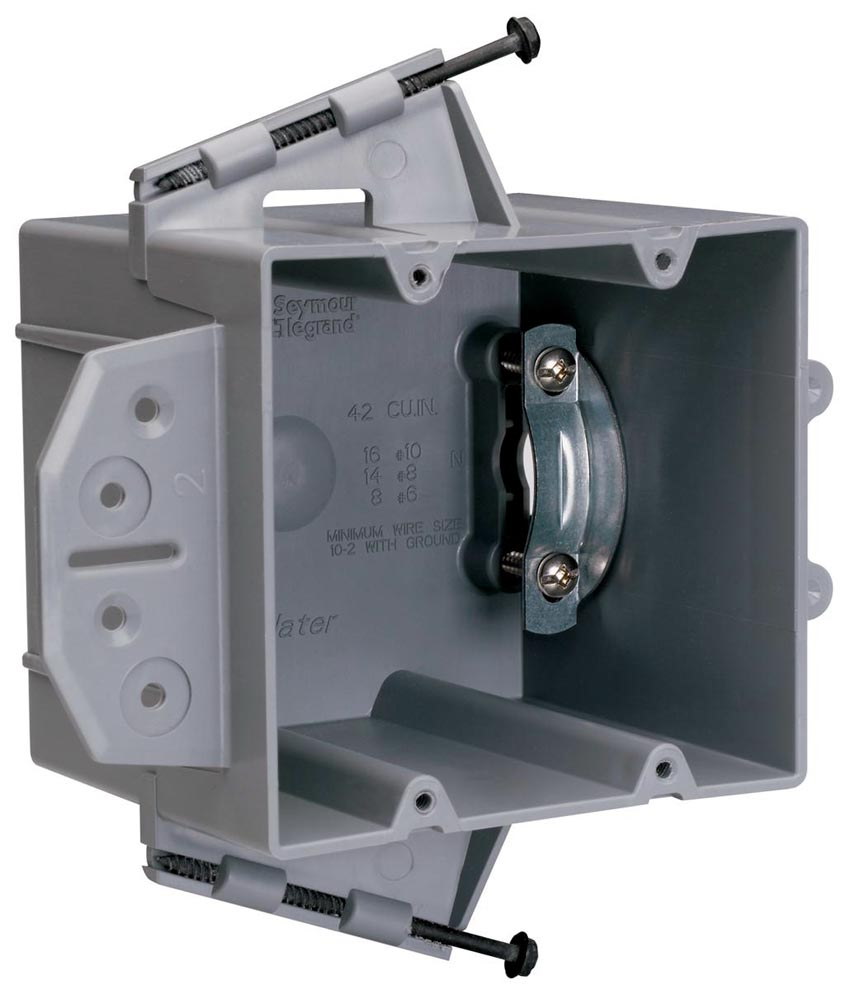

Apr 03, 2006 Suitable for flush mounted power receptacles installed in ½ or 3/8 in. drywall, Range and Dryer Boxes accept twenty-two #14, eighteen #12, or sixteen #10 wires. Bracket countersink allows for mounting with #8 wafer head or wallboard screws. With Height Site alignment guide that centers box on reference mark, box levelers align device at right angle to stud. Stabilizer legs and positioning tab maintain device rigidity during plug insertion and removal.

Hyster Co.    Greenville, NC 27834
Apr 03, 2006 Featuring Auto-Deceleration system and handle with directional control allowing 30° rotation, W50Z series motorized walkie, low lift pallet truck is designed to withstand highly corrosive environments. Standard creep speed function gives operator better visiblity by keeping control handle in up position. Component protection options include Standard Construction package, Cooler/Freezer package, subZERO Freezer package, and Extreme Corrosion/Wash Down package.

ITT Industries Cannon    Watertown MA 02172
Mar 31, 2006 Featuring Canon CoF technology, filter connector provides standard filtering capabilities including individual isolated pin filtering of high-frequency noise, built-in ground plane barriers in the connector inserts, and filtering at face of system boxes. In MIL-DTL-38999 configurations, it meets MIL-STD and MIL-DTL Series III standard for thermal shock, random vibration, humidity, and high altitude. Light weight CoF connector suits military, aerospace, and industrial applications.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Mar 31, 2006 Multipole VE2/MP Stop Gate with SmartStop(TM) technology facilitates sourcing, installation, and set up of power-and-free conveyor stops. It combines functionality of VE2 stopgate with pneumatic solenoid valve, embedded microprocessor, 3 proximity sensors, and LED indicators for control and feedback in self-contained package. Two 3-pin connector plugs provide 6 I/O connections, and error status signals sent to PLC facilitate monitoring and control.

Carr Lane Roemheld Mfg. Co.    Ellisville, MO 63021
Mar 31, 2006 MC-series Mini Clamp Vises allow clear tool access to 5-out-of-6 workpiece sides. Constructed to promote rigidity, products enable machining of complicated workpieces in single clamping operation. Manual and hydraulic versions come with 60 mm wide jaw and 3,400 lb max clamping force. Concentric type comes in 3 sizes, with 60, 100, and 125 mm jaw widths and 3,400-7,800 lb clamping forces.

RF Code, Inc.    Mesa, AZ 85208
Mar 31, 2006 Models 433 MHz Mantis Asset Tag and 433 MHz Mantis Reader offer modular design, tag processing and high throughput, simultaneous tag identification, and optional antenna configurations for application-specific coverage. Units are supported by TAVIS data management platform, and are suited for international container tracking, supply chain, and healthcare asset tracking applications.

Eagle MHC    Clayton, DE 19938
Mar 31, 2006 Hybrid Shelving features open-wire shelves that promote visibility and air circulation, minimizing dust and moisture build-up that could harm stored items. Suited for use as new installation or retrofit to existing shelving system, wire shelves are load-tested to 250 lb and have notched corners that fit around existing posts. Standard widths and lengths range from 15-36 in. and 30-48 in., respectively. Case work series is also available, with lengths from 28-46 in.

Yale Materials Handling Corp.    Greenville, NC 27834
Mar 31, 2006 Available in 3,000 and 3,500 lb capacities, NTA-SB man-up turret truck is powered by service-free ac motors and offers 55 ft max lift height. Features include Smart Guide continuous height sensing, auto deceleration braking system, and soft touch electronic steering. In addition to barrier-free open compartment and direct gear steering, unit features seat-side joystick controls and adjustable operator console for operator ergonomics.

Belden CDT    Fort Mill, SC 29715
Mar 30, 2006 Available for commercial network installation, Belden IBDN Cable Management Solutions help house, store, and protect data hardware and equipment and supply discrete components designed to simplify cable handling and routing. Products include floor- and wall-mount enclosures and racks of standard and custom design; standard or weather-resistant, nylon and Velcro cable ties; and Belden IBDN Surface Raceway System for wire enclosure applications.

OTEC Precision Finish, Inc.    Acton, MA 01720
Mar 30, 2006 Using low abrasive media such as sintered ceramic chips, CF-oil system meets demands for smooth surfaces of workpieces subject to mechanical stress in miniaturized assemblies. It is aggressive enough to remove micro-burrs on work pieces without compromising dimensional integrity achieved through final grinding/honing and requires no water connection. Centrifugal disc finishing machine utilizes PLC automated process and eliminates possibility of corrosion.

Creform Corp.    Greer, SC 29652-0830
Mar 30, 2006 Developed using Creform® System of pipes and joints, compound angle flow rack is suitable for workstations, assembly points, loading posts, kitting locations, and other point-of-use part offloading locales. Flow rack's conveyor surface is sloped lengthwise from load to work area end for gravity fed container flow and second angle leans it toward user for tote presenting. Design can incorporate empty container return lane.
