TAWI USA    Willowbrook, IL 60527
Sep 20, 2005 Featuring water- and dust-resistant design, Clean Room 80 electric lifting aid handles loads up to 175 lb and installs rolls into packaging machines. Stainless steel unit meets sanitation requirements with smooth surfaces and seamless design that resists particle accumulation. With opening for drive belt straight through chassis and all electronics closed-in, hygienic construction allows for the use of alcalic solvents and hosing down.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Sep 16, 2005 Intended for compressed air preparation, Series AS2 FRLs are made of smooth, lightweight polymer with metal connection threads. Individual parts can be exchanged while system is fully assembled. Oil is fed directly into system via hose from reservoir, protecting maintenance unit from becoming fouled by oil. Lubricator is surrounded by polyamide protective guard with large inspection window. Filtration choices include 5, 0.3 or 0.01 micron.

Techno Sommer Automatic    New Hyde Park, NY 11040
Sep 16, 2005 Dual-jaw, sealed parallel grippers in GP1800 Series have flat sided jaws and rounded corners sealed against dirt, fluids, and dust. Along with fully sealed guides, products have 4-sided, rectangular shape and are available with multiple sets of air connections and mounting holes. Strokes are available from 3-30 mm, and gripping forces range from 10.5-979 lbf. Grippers are suited for machining environments where liquids and particles are of concern.

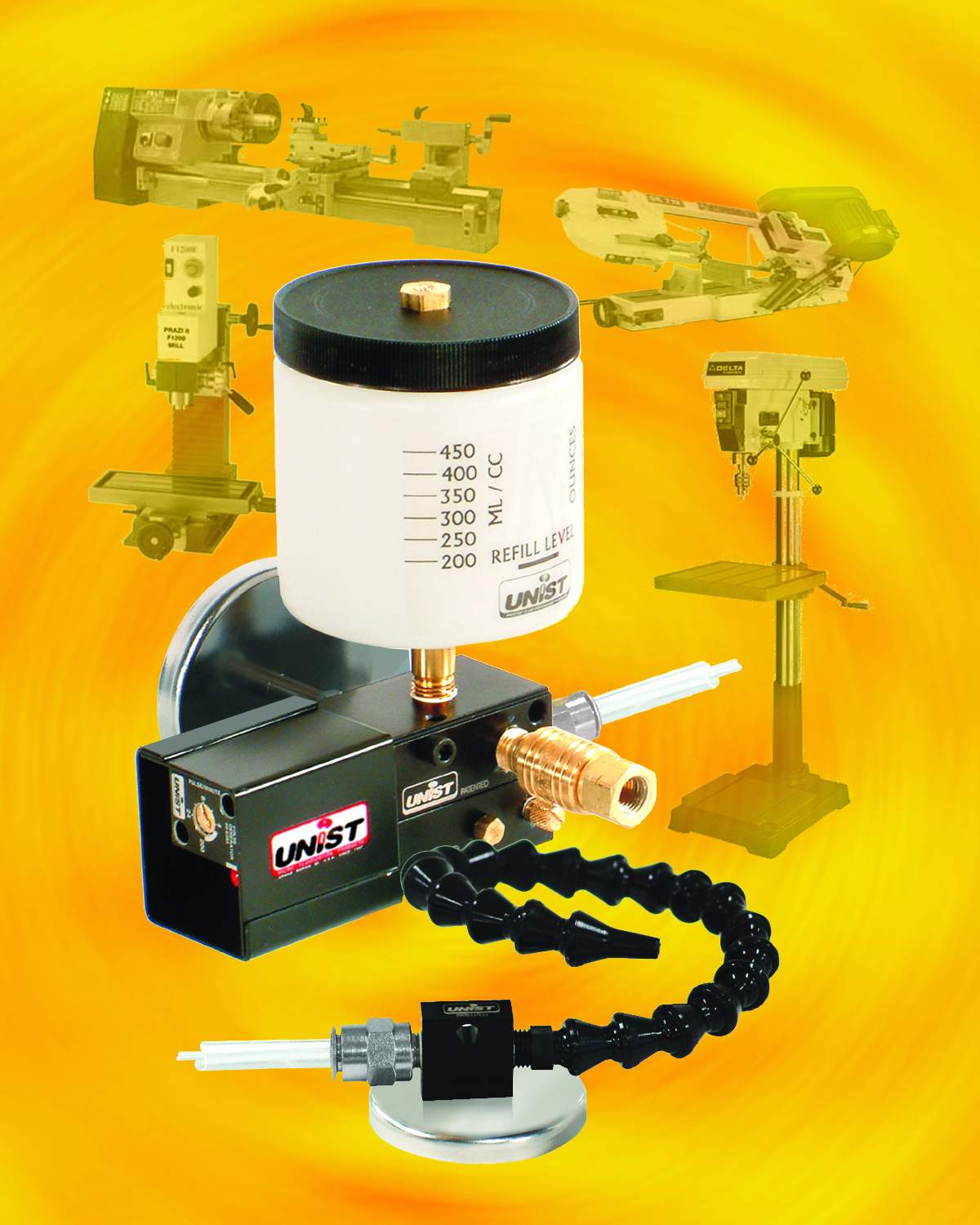

UNIST, Inc.    Grand Rapids, MI 49512
Sep 16, 2005 Uni-Max(TM) Coolubricator(TM) Jr. 210-P serves as entry point for utilizing MQL (minimal quantity lubrication) with high-efficiency lubricants in tool room and production applications. Attached with magnet, cutting tool lubrication system may be moved from machine to machine. It employs adjustable .033 cc/stroke max pump and pneumatic pulse generator for 100 million cycle capability. System is actuated by manual on-off valve.

Techno Sommer Automatic    New Hyde Park, NY 11040
Sep 16, 2005 To shorten production cycle times, SB Series includes 8 rotating jaws for parallel grippers that have ability to grip and turn parts simultaneously. Sizes range from models capable of handling hypodermic needles to those designed to pick-up and rotate heavy parts such as complete automotive engine blocks. While 3 models use synchronous belt drives, 5 models are geartrain-driven. Torques range from 0.09-42.0 lb-ft, and position sensors are available for all models.

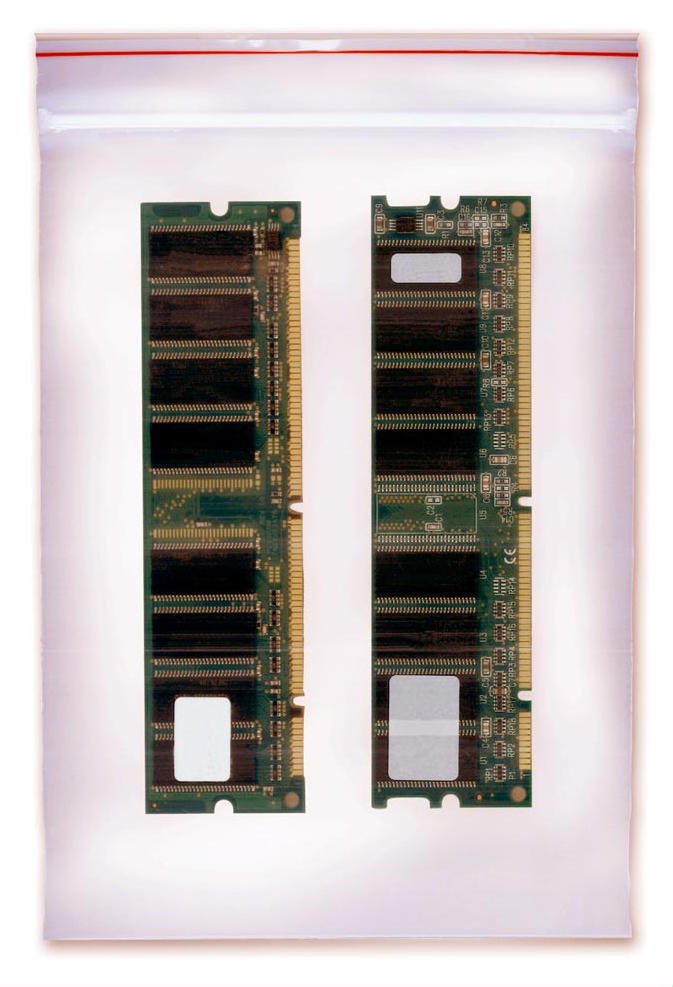

Daubert Cromwell    Alsip, IL 60803
Sep 15, 2005 Designed to protect functionality of delicate electronic components without affecting conductivity, Silver-Guard(TM) poly bags employ clear film that removes all sulfide vapors inside closed environment and eliminates risk of tarnish. Non-toxic, recyclable film, standard in 2 mil, may be placed in direct contact with part without risk of staining or discoloration. Material is offered in rolls and sheeting as well as various sizes of resealable bags.

Capital Safety Group (Australia) Pty Ltd    Silverwater NSW 2128   Australia
Sep 15, 2005 Networks(TM) pre-packaged netting systems protect staff and customers from objects and stock that could fall off pallet racks, conveyors, mezzanines, and shelving. Kits are available for all types of locations including rear, front, or end of racks; over-stock locations; below conveyors; or anywhere product is moved or stored above or around people. They can be installed and relocated as needed.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Sep 15, 2005 Featuring stainless steel frame with no horizontal surfaces, AquaPruf 7400 Series Sanitary conveyor platform can be completely disassembled, without tools, in 3 minutes. Elimination of bolt heads on conveyor means there are fewer areas for loose food particles and bacteria to collect. Solid UHMW wear strips facilitate cleaning, and each piece is identical and interchangeable. HabaGUARD® conveyor belting prevents growth of microorganisms on belt surfaces.

Integrated Sensors, Inc.    Utica, NY 13502
Sep 15, 2005 NavPax Sensor Units integrate 3-axis MEMS gyros, accelerometers, compass, signal processing, and GPS information to provide complete package for real-time, land-based vehicle tracking solutions. They are used as part of RFID-aided warehouse tracking system that tracks position of each forklift, unique cargo identification, and pick-up and put-down locations of inventory with accuracy to 99%.

Mearthane Products Corp.    Cranston, RI 02921
Sep 15, 2005 Durethane(TM) C offers range of electrostatic dissipation properties that eliminate damaging electrostatic discharges in electronic machines. Produced as machinable solid thermoset polyurethane or as foam, formulation can also be used to supply specific charge density on surfaces. Material provides volume resistivity in solid urethane from E5-E10 â"¦-cm at hardness of 5 Shore A to 70 Shore D and in open- or closed-cell foams from E7-E10 â"¦-cm at hardness of 1A-90A.

Robohand, A De-Sta-Co Div.    Madison Heights, MI 48071
Sep 15, 2005 Offered in 3 models, B-Series Grippers cover wide range of applications. Sealed against chips or particles, Model BPW features wide body for handling large and wide parts using long fingers. Heavy-duty Model BRP has hardened tool steel jaws that are sealed to protect internal mechanism from chips and coolant. Low profile Model BRP handles different size parts with same fingers. Jaws and supports are hardened tool steel and body is lightweight hard anodized aluminum.

DTIC Dispensing Technologies    South Lancaster, MA 01561
Sep 15, 2005 Dispensing continuous, uniform bead with 0.1 mil accuracy, EZ-mix®VR Variable Ratio Meter-Mix Dispense System features 4 piston pumps that achieve pressures greater than 2,000 psi. Each pump has stainless steel piston, hard-coated steel cylinder walls, Teflon® seals, and ceramic valves. Pumps are controlled by stepper motors and encoders to provide positive displacement, closed-loop dispensing. Desired mix ratio is user-programmable and can be changed on-the-fly.

Liftomatic Material Handling, Inc.    Buffalo Grove, IL 60089
Sep 15, 2005 In addition to power lift and lower capabilities, ERGO1000-SRJ-PWPL-EX incorporates electrically enclosed, spark-free power drive for moving steel, plastic, and fiber drums around hazardous work areas. It is available in 15 models with capacities up to 1,000 lb and standard lift height of 20 in. Able to negotiate up to 10° inclines with its power system, self-contained product features counterbalanced configuration and Parrot-Beak® clamping system.

Labelmate    Henderson, NV 89014-2002
Sep 14, 2005 Stainless steel Model LD-100RS-SS is rust-proof with ergonomic design suited for both left- and right-handed operators. Cover is sealed to prevent liquids or other materials from entering unit. Supply roll of labels up to 4½ in. wide slides onto core holder, which accepts rolls up to 8½ in. As label is picked from dispenser, next label is automatically advanced. There are no mechanical switches to cause adjustment or operational problems.

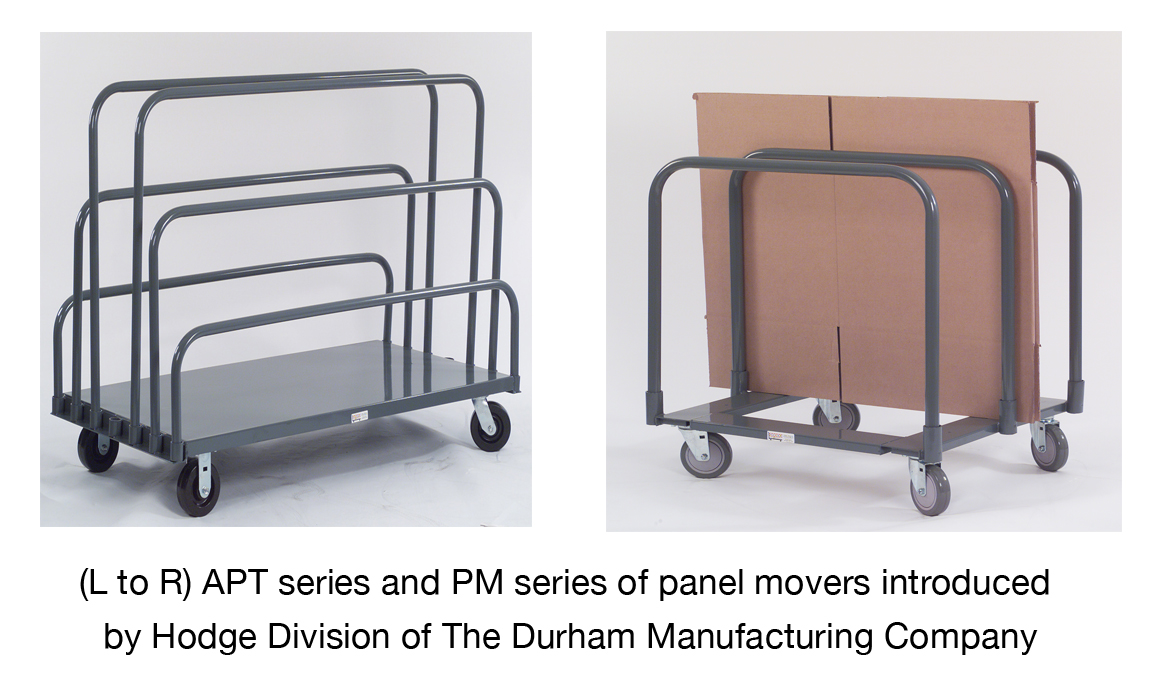

HODGE, A Div. OF The Durham Manufacturing Co.    Springfield, MA 01107-1072
Sep 14, 2005 Comprised of 4 models, APT series offers 2,000 lb capacity and ranges in size from 24 x 36 x 46 in. to 30 x 60 x 46 in. All models have two 12, 24, and 60 in. high dividers; 7 divider pockets; and 14 gauge reinforced steel platform. Featuring steel, wood, or carpeted wood platform, PT series consists of 3 models with 1,200 lb capacity that measure 28 x 31 in. It comes furnished with three 1¼ in. dia, 27 in. high removable tubular steel dividers.

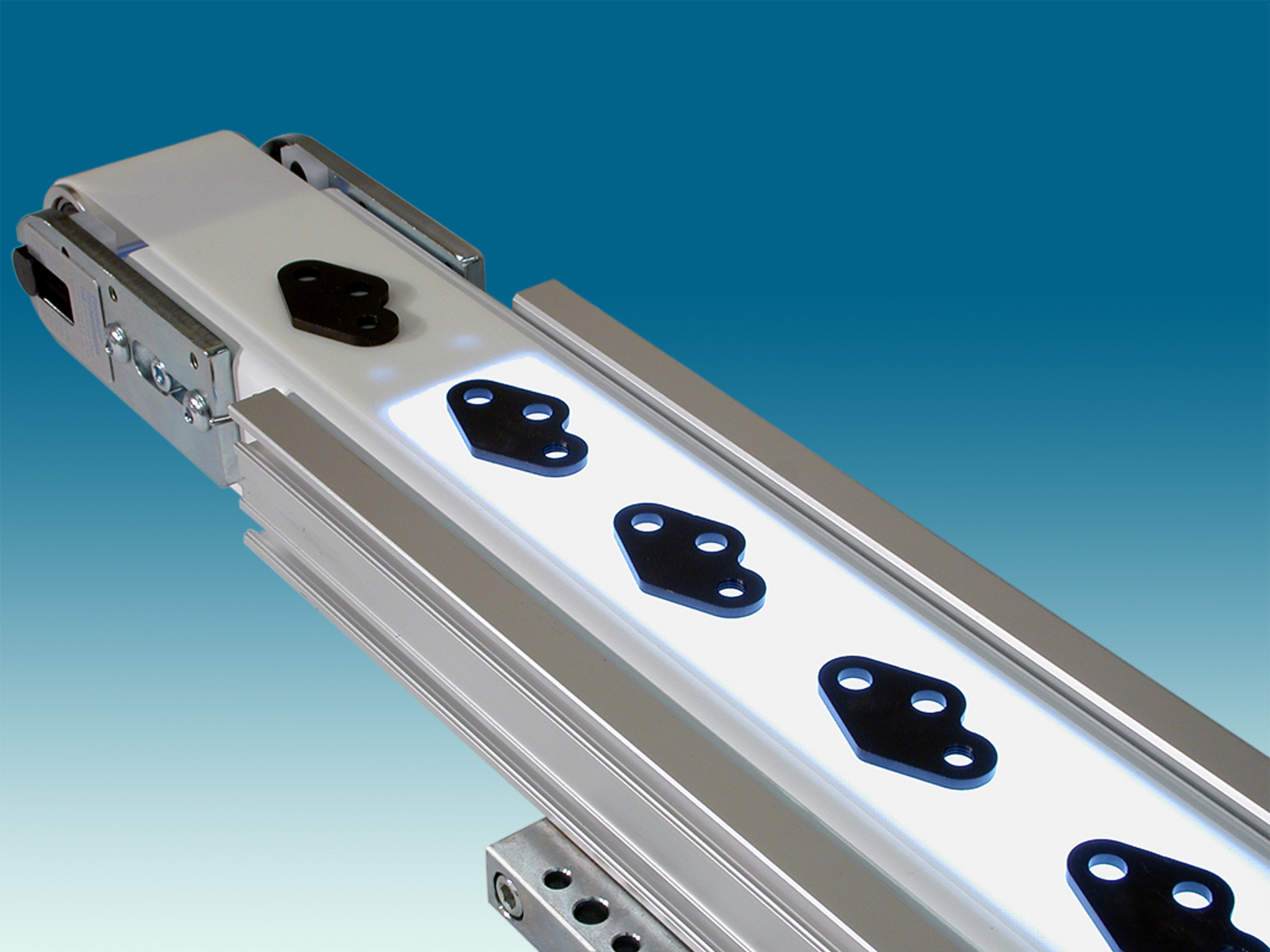

Conveyor Technologies Ltd.    Milford, OH 45150
Sep 14, 2005 Aiding automatic or manual visual inspection, AccuVision Internal Backlit Conveyor uses integral lighting system available in 3,000K, 4,100K, and 6,400K light tones. Light field is available in 5 lengths from 7-32 in., and width can be customized to specific dimensions. Unit has single-piece steel frame and supports belt widths from 2.5-24 in. Compatible with high-speed digital cameras, conveyor is available with fixed-speed, variable-speed, and indexing drives.

Flexicon Corporation    Bethlehem, PA 18020 8006
Sep 14, 2005 Eliminating upper frame components to lift and/or position bag, Half Frame Bulk Bag Unloaders utilize forklift or plant hoist instead. Spout-Lock® clamp ring positioned atop pneumatically actuated Tele-Tube® allows dust-tight connections and unrestricted flow between bag spout and hopper. Flow-Flexer® bag activators raise and lower opposite bottom edges of bag at timed intervals, loosening compacted materials and promoting material flow into bag discharge spout.

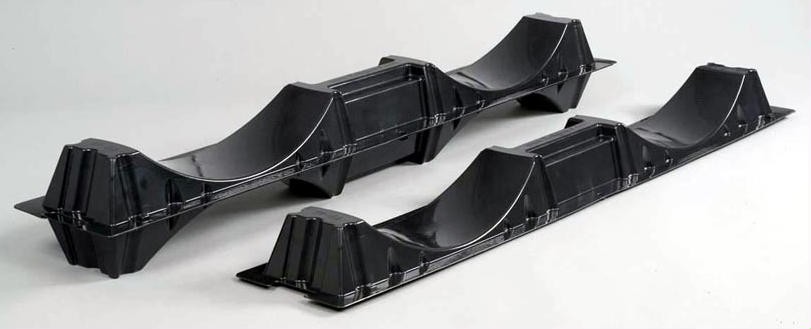

Rollguard Products    Appleton, WI 54911
Sep 13, 2005 Designed for stacking, shipping, and storing sensitive products, Thermoformed Roll Cradle protects rolled and cylindrical materials with 18-22.5 in. dia. Dust-free cradle, made from reusable, recyclable PET, has nestable design with denesting hubs that facilitate separation of stacked units. Locking hubs offer secure alignment when used in back-to-back formation, and locking end tabs ensure cradles remain firmly aligned and attached during loading and shipment.

New Pig Corporation    Tipton, PA 16684 0304
Sep 13, 2005 Able to be used indoors or outdoors, all-weather PIG® Storage Chest provides lockable, movable storage space. Multi-purpose unit, constructed of UV-inhibited polyethylene, has rounded lid that prevents water and debris from accumulating on top and internal, piano-style hinge that helps keep contents dry. Chest is designed not to tip over when lid is raised, even if empty. Product is available with 5 in. rubber or 8 in. pneumatic wheels or without wheels.

RBI Water Heaters    Westfield, MA 01085
Sep 13, 2005 Vertical Glass Lined Jacketed and Insulated or Bare ASME Storage Tanks provide supply of hot water at constant outlet temperature. Cobalt-rich, TRU-Blue glass lining and internal stratification baffle create more usable hot water, while magnesium anode rods eliminate shadowing of protected surfaces. Two-inch R-16 insulation surrounds tank, exceeding ASHRAE standards for standby heat losses. Certified to Section 5 HLW of ASME Standards, tanks feature working pressure of 125 psi.
