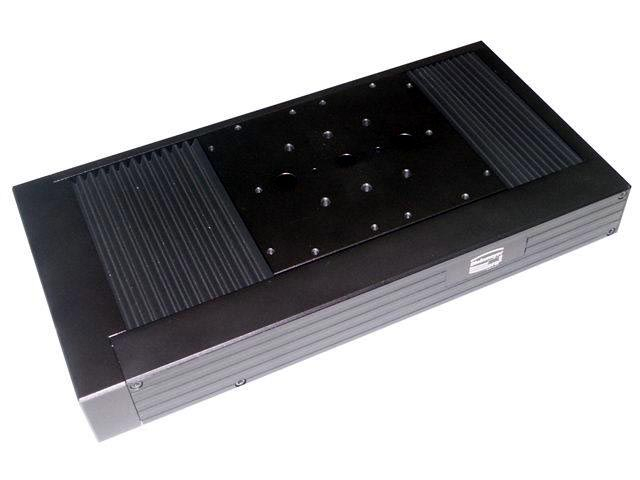

Steinmeyer Inc.    Bedford, MA 01730
Nov 16, 2006 Measuring 40 mm high, single-axis positioning stage model PMT160-DC is available in 5 sizes with strokes ranging from 50-300 mm and straightness/flatness deviation from 0.5-4 microns. Table weights vary from 3.7-6.5 kg, and devices offer positional accuracy of 10-20 µm and repeatability of 0.5 µm, with speeds up to 50 mm/s and accelerations of 0.5 m/s². Standard stage includes backlash-free preloaded cross roller bearings for linear guidance.

Atlas Casters, LLC    Redwood City, CA 94063
Nov 15, 2006 Available in 500 and 1,000 lb models, Leveling Casters allow both caster and precision leveling component to occupy corner of machine for equipment stability. Cold-drawn from pre-tempered SS, units are cleanroom compatible. Leveling component can be adjusted from above or below using standard tools and wrenches. Standard length of travel is 1 in. beyond wheel. Multiple wheel options are available including phenolic and polyurethane with precision bearings.

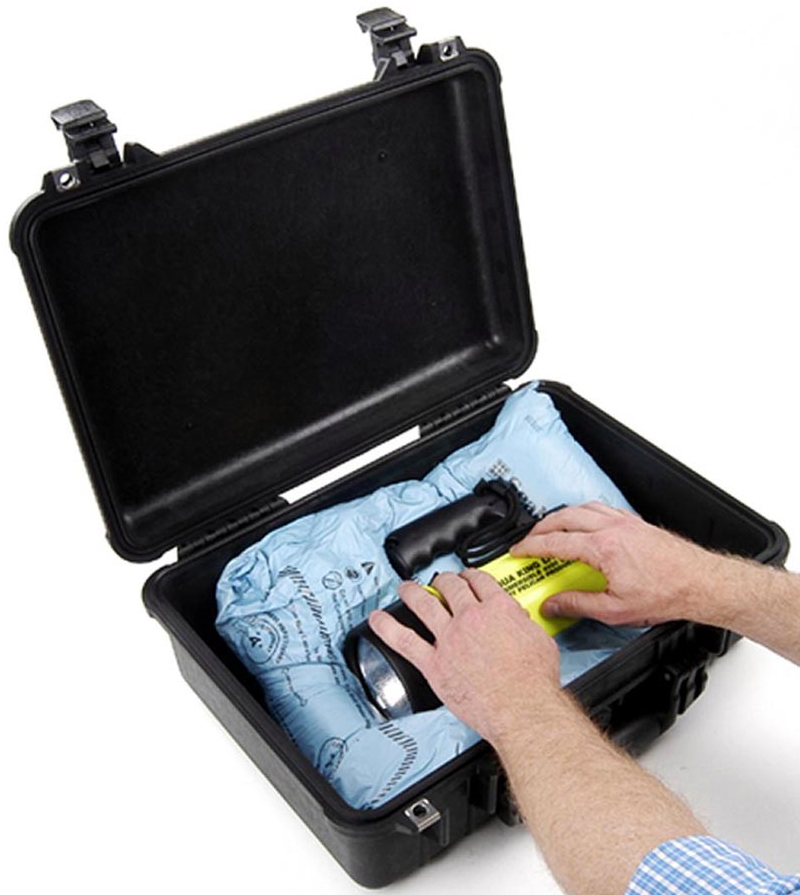

Pelican Products, Inc.    Torrance, CA 90505
Nov 15, 2006 Pelican(TM) Protector(TM) Case models from 1300-1780 are available with ready-made custom foam solution, which sets up in seconds to protect valuables while in transit. When liquids inside packets are mixed, fully recyclable, shock-absorbent foam barrier instantly forms to protect any object within areas up to 20 x 30 in. Cases feature double throw latches and polymer cell-core wall construction for strength. Gore-TEX® pressure equalization valve prevents vacuum lock and keeps moisture out.

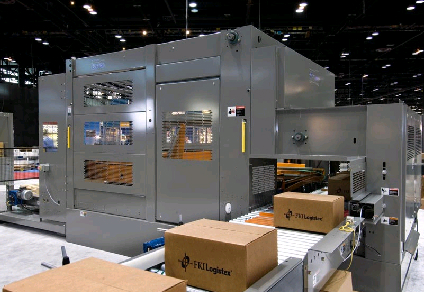

FKI Logistex North America    St. Louis, MO 63132
Nov 15, 2006 Entry-level GS100 Series includes 3 models for complete range of pallet-handling options. Model GS120 offers manual pallet handling, while Model GS130 provides semi-automated pallet handling, and Model GS140 delivers fully automated operation. All feature all-metric designs, pattern utility, and layer-editing functions. Palletizers are suited for wide array of applications, including food, beverage, consumer goods, and general manufacturing.

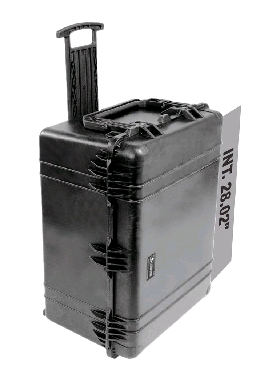

Pelican Products, Inc.    Torrance, CA 90505
Nov 15, 2006 Suited for transporting heavy equipment, Model 1630 includes 2 double-hand side-grips for team lifting, 2 heavy-duty sets of polyurethane wheels with stainless steel ball bearings and nylon hubs, and extension handle. Stainless steel reinforced padlock protectors defend against cutting and theft. Featuring open cell-core wall construction, case has polymer O-ring on lid for dust and waterproof seal, and Pick 'N' Pluck(TM) Foam for interior shock protection.

Timbercon, Inc.    Lake Oswego, OR 97035
Nov 15, 2006 Developed to work in conjunction with tactical, multi-fiber, and outside plant type assemblies, Deployable Reels utilize metal construction with user accessible features to facilitate rapid deployment or recoil of any fiber optic cable assembly. Heavy-duty, lightweight units prevent handling damage and allow for cable testing to be done on reel prior to installation. Multiple sizes, configurations, and mount types are available to suit variety of applications.

Jergens, Inc.    Cleveland, OH 44110
Nov 15, 2006 Combining Ball Lock mounting technology with hydraulic power, quick-change Hydraulic Ball Lock(TM) System delivers speed of hydraulic clamping with positive mechanical lock. Fixture plates are dropped onto manifold-mounted Ball Lock shanks, which are hydraulically unlocked but lock mechanically. Measuring 25 mm x .75 in., shanks will not release unless hydraulic pressure is reapplied. System both locates and locks, with repeatability to ±.0005 in.

Loading Automation, Inc.    Wilmington, NC 28406
Nov 15, 2006 Hydraroll Mark 21 Twin Roller Track System retractable pneumatic rollerbeds have limited opening in quick-release top plate that reduces area for debris to enter and foul roller operation. Roller channels are closed on each end to help prevent any debris from puncturing air bag, which is itself protected with acetal plastic strip. For safe operation, primary and backup pneumatic controls are centralized in stainless steel, weatherproof enclosure.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 14, 2006 Featuring solid, all SS handle with sand-blasted satin finish, Adjustable Levers are available in variety of sizes, in tapped, blind bore, and threaded stud types. Inserts, screws, and springs are also SS, making levers suitable for applications in food processing and chemical industries. Special bores, threads, and stud lengths are available upon request.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Nov 14, 2006 Servo-Flo® 801-HV PD, 2-component meter-mix dispensing system features servo-motor design for consistent and repeatable bead profiles and change of flow rate during dispense cycle, providing dispense results from 0.2-18 cc at 1-to-1 ratio. System can be preset to vary flow rate during dispensing in automated, indexing, XYZ-motion, and robotic processes. Disposable No-Flush(TM) mixers dispense virtually all 2-component materials, including epoxies, silicones, polyurethanes, and acrylics.

Lista International Corp.    Holliston, MA 01746
Nov 14, 2006 Offered in 5 widths and 3 heights up to 84 in., Arlink® 8000 Workstations are suitable for assembly, inspection, testing, rework, packaging, and material transfer. Units are available with supplied conveyor or can be integrated with existing conveyor for workflow management. Definite Positioning System(TM) facilitates relocation or adjustment of worksurfaces, storage, shelving, lights, power beams, and footrests. Worksurfaces are available in standard laminate or static dissipative.

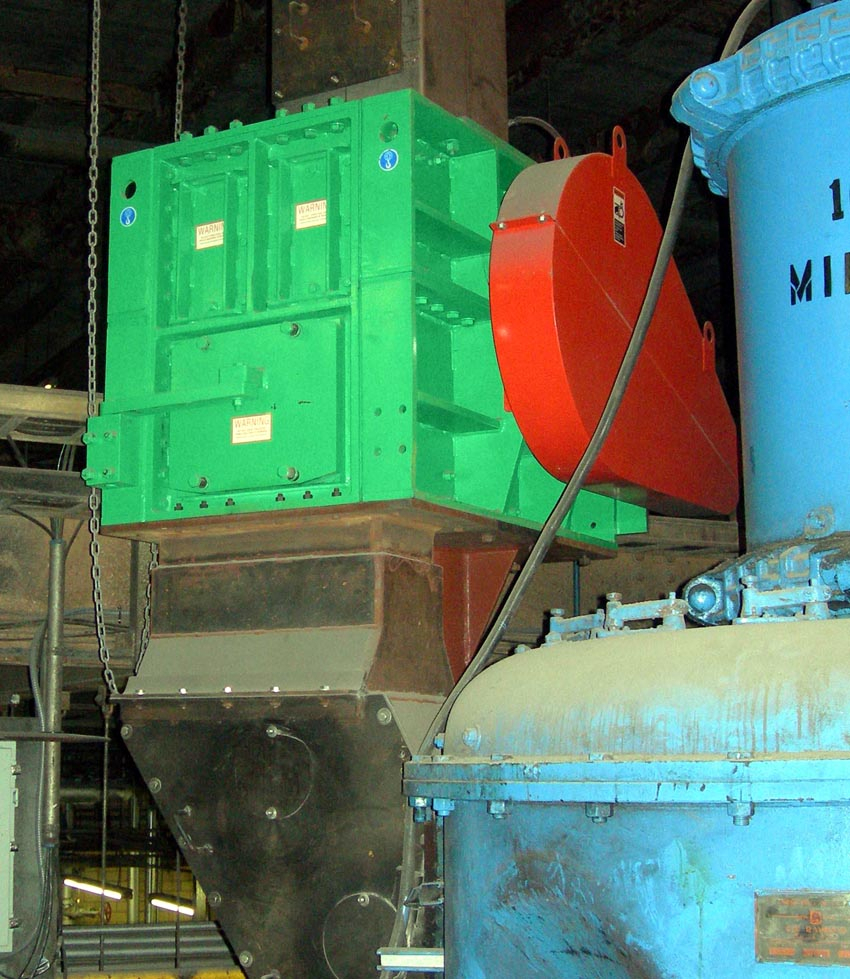

Pennsylvania Crusher Corp.    Broomall, PA 19008 0100
Nov 14, 2006 Designed to eliminate no-coal flow events, Posimetric® Feeder handles materials exhibiting range of characteristics including wet, dry, lumpy, sticky, abrasive, or granular. Positive displacement device operates without surges or partial feeding and incorporates only one moving part, a closed, circular chamber with openings at its input and output points. Material enters, continuously locks up within chamber, and is carried to discharge point at constant rate.

Alimak Hek, Inc.    Houston, TX 77061
Nov 14, 2006 Intended for construction and permanent access in offshore applications, Scando 650 is available in single- or twin-car configurations with payloads of 1,500-3,200 kg/car. Modular vertical transport solution provides lift height of 400 m and speeds up to 65 m/min. It offers various drive units, doors, and gates, and can be configured to fit virtually any customer application.

DE-STA-CO Industries    Madison Heights, MI 48071
Nov 14, 2006 Horizontal Handle Hold-Down Action Clamps, Series 2013, 2017, 2027, and 2037, feature ergonomic handle grip, 2 flanged washers, and spindle assembly. Low pivot points provide perpendicular clamp force while straight downward action helps to prevent movement of workpiece in fixture. Knob on end of open U bar prevents spindle slippage. Design facilitates hand clearance in open position, optimizing safety by eliminating pinch points.

Ekahau, West Coast    Saratoga, CA 95070
Nov 14, 2006 Ekahau Positioning Engine (EPE) v4.0 facilitates deployment and management of Ekahau's turn-key Real Time Location System (RTLS) solution while providing ability to track more than 10,000 objects. Able to complete 600 location transactions per second, server software features probabilistic algorithms that lend to accuracy in locating tracked items or people to within 1 or 2 m. It provides web-based administrator interface, HTTP-XML API, and remote tag management capabilities.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 14, 2006 Accommodating ½ in. round or 7/16 in. square tubing, Cross Blocks for Square and Round Tubes feature stainless steel socket cap screws and hex nuts. Used for mounting perpendicular and horizontal rods, blocks are made of black glass filled nylon plastic that is resistant to oil, solvents, and corrosion, and has maximum heat resistance of 110°C. Cross blocks suit conveyors, packaging equipment, pharmaceutical, automation, and material handling industries.

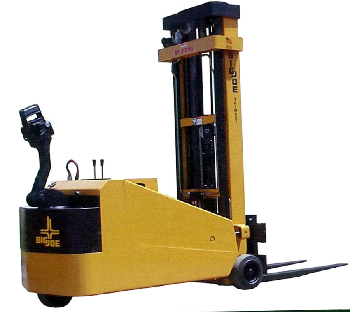

Big Joe Manufacturing Co.    Lincolnwood, IL 60712
Nov 13, 2006 Series PDC-E Walkie Counterbalanced Forklifts are equipped with electronic power steering, which optimizes safety and maneuverability by minimizing steering effort. Lifts also include ac drive, wide view mast, and sloped chassis design for optimal operator visibility.

Hardigg Industries, Inc.    South Deerfield, MA 01373
Nov 10, 2006 MAC Rack Cases shelter gear weighing 20-200 lb with fragility between 50-80 g from vibration, moisture, and impact. Cases feature aircraft-quality, precision-tempered aluminum frame, molded-in stacking ribs for secure stacking, and positive anti-shear locks that prevent lids from separating after impact. Splash and rain-resistant, units protect control consoles, panels, antennas, and communications equipment.

Equipment Solutions, Inc.    Sunnyvale, CA 94086
Nov 10, 2006 Utilizing frictionless/stictionless flexures for zero mechanical noise, Linear Focus Actuators feature 150 nm resolution voice coil stages with central clear aperture from 0.236-0.787 in. Ranging from ±12 to ±24 Vdc at 1 A, voice coil motors offer 0.118-0.394 in. travel, 6.0 lb-ft continuous force, and 30 lb-ft peak force. Actuators are clean room compatible and can be operated in horizontal or vertical orientation.

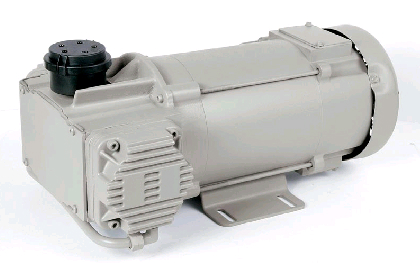

Gardner Denver    Quincy, IL 62301
Nov 09, 2006 Featuring enclosed designs in both motor and compressor sections, TASKAIR(TM) E Series articulating piston units operate at 1,800 rpm, providing up to 150 psi of pressure and max flow of 3.35 cfm. Compressor section features oil-less design utilizing dual cast iron cylinders, stainless steel valves, and PTFE piston rings and skirts. Permanent magnet, TEFC motor is available in 12 and 24 Vdc versions. Applications include air suspension systems, air brakes, and tire inflation systems.
