Blue Giant Equipment Corp.    Brampton, ON L6W 3K2  Canada
Jan 22, 2007 Suited for mid- to high-volume shippers, Mantis Series comes in 6, 8, and 10 ft lengths and 6, 6.5, and 7 ft widths. Working range is 12 in. above to 12 in. below dock level, and 16, 18, and 20 in. lip extensions are available. In addition to capacities from 25,000-40,000 lb, series features yieldable lip that absorbs shocks from backing in trailers; V-grooved maintenance stand; full-operating-range toe guards; and fall safe devices.

Newson Gale, Inc.    Lakewood, NJ 08701
Jan 22, 2007 Bond-Rite EZ makes it possible to establish and verify proper low-resistance (under 10 W) connections in order to safely dissipate static electricity in hazardous locations. Suited for mobile or portable equipment, self-contained device provides and continuously verifies low-resistance bonding connection while displaying healthy condition via flashing green LED on handle of monitoring clamp. It is powered by Lithium Manganese battery, which provides up to 600 hr of continuous use.

Hickory Hardware    Portland, TN 00000
Jan 22, 2007 Suited for various industrial applications, Faultless Eagle wheel is designed with interlocking tread on polypropylene core that promotes adhesion to support load capacities from 600-1,200 lb. Products are specified for -40 to +180°F range and have 90A durometer rating. Available as plain bore, Delrin, roller, or precision bearing, wheels have blue tread color and are suited for use with Faultless 1400-3400 series casters.

Keystone Electronics Corp.    Astoria, NY 11105
Jan 19, 2007 Designed for 8.5 mm diameter fuses, Subminiature Fuse Holders feature barrier design to protect leads from arcing. Thru-hole mounting not only secures placement on PCBs, but also maintains positioning during wave soldering. Low contact resistant tension springs are incorporated, and overall product integrity is ensured by bases manufactured from UL 94 V-0 thermoplastic with gold-plated, beryllium copper springs and tin-plated brass pins.

International Electronic Research Corp.    Burbank, CA 91502
Jan 19, 2007 Designed for military and commercial applications, custom aluminum iZIF(TM) integrates heat frame and circuit board retainer into one unit. No torque wrench or special tools are required, and features include zero insertion/extraction force; uniform clamping force and thermal distribution over entire length; ¼ turn lock/unlock (quick disconnect); and standard 1/8 SHCS-drive (Allen-key) clamping/locking rod. Thermal performance, per length, is rated equal to or under 1.2°C-in/W.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Jan 19, 2007 Offering washdown duty design with continuous welds, Lift and Seal Container Dumper provides dust-tight discharge of chemical powders into 46 in. high stir pot. Container is loaded via pallet jack at floor level, hydraulically sealed to 304 SS pour hood, then rotated 60° past horizontal, creating seal against custom pivoting sealing plate. Once sealed, slide gate is opened, releasing product into stir pot. Dumper can be designed for any size, weight, or discharge height required.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 18, 2007 Designed to eliminate obstructed views as well as back injuries caused by reverse driving over long distances, EFG D30 allows operator to lift loads up to 6,600 lb and turn cabin 30° left or 180° right. Memory System lets operator preset angles of choice, while MULTI-PILOT joystick control integrates all hydraulic functions as well as travel direction switch. Utilizing 3-phase AC motor technology, truck has 12.4 mph max travel speed and 98 fpm lift speed.

Acheson Colloids Co.    Port Huron, MI 48060
Jan 18, 2007 Dag® 183 BMS die lubricant dilution/delivery system features corrosion-resistant mixing and circulation system that ensures concentrated lubricant is well-mixed when entering system and that it exits at consistent dilution ratio. Metering pumps and ultrasonic level sensors create 1:2-1:30 dilution ratios, controlled through PLC. Operator interface is provided through attached touchscreen pendant, and fully-automated system is usable with drums or totes.

Asymtek    Carlsbad, CA 92008
Jan 17, 2007 Featuring stainless steel enclosure, Axiom X-1000 Series is designed for applications that are sensitive to contamination by sub-micron sized particles, such as wafer-level packaging. Configured to minimize particle generation, all pneumatic valves are exhausted to base of machine, and connection to house vacuum avoids downstream particle emissions entering cleanroom. Mass Flow Control and Calibrated Process Jetting control fluid dispensing process in closed feedback loop.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jan 16, 2007 Suited for novice and experienced welders, Magnum® 100SG Spool Gun weighs 3.5 lb and comes as complete kit in cushioned carrying case. It can be used for quick projects and repairs and does not require bulky adaptor module. All combinations of specified aluminum alloys and wire diameters can be fed with same drive roll and linear assembly. Magnum 100SG is recommended for use with Lincoln Electric's Power MIG140C, 104T, 180C, and 180T.

Tiffen Co. LLC, The    Hauppauge, NY 11788
Jan 15, 2007 Carried by handle or shoulder strap, Merlin Travel Bag facilitates ability to mount camera onto Merlin and have it available for instant use. Custom foam insert allows unit to remain upright and accessible while cradling Merlin and camera together for safe travel. Front zippered pocket stores additional cables, tapes, and camera accessories. Rear pocket with fabric closure is provided to carry travel documents and manuals.

Kiva Systems, Inc.    Woburn, MA 01801
Jan 15, 2007 Using mobile robots, CaseFetch allows every case-pick operator access to any pallet in building. With ItemFetchT and OrderFetchT solutions, it offers complete 4-walls product line for dc operations. Pallets entering building are fork-loaded onto mobile pod bases at pick-and-drop locations and transported to storage by mobile robotic drive units. During outbound order fulfillment process, continuous stream of pallet and case reserve pods are fetched by mobile drive units and brought to operator.

Interstate Products, Inc.    Sarasota, FL 34233
Jan 11, 2007 Measuring 59.5 x 73.5 x 68 in., Rotary Top 1646 RTC(TM) features hard cover pallet with easy-lift-pivot-point-axis design and dual entry. Height of retractable cover allows room for storage with drum pumps in place. Cover secures to 7¾ in. high pallet at 4 points, 2 of which are lockable. Constructed of 100% polyethylene, containment unit resists corrosion, weathering, and UV rays and is compatible with most chemicals. Pallet itself offers UDL load rating of 6,000 lb.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Jan 10, 2007 With 6-60 mm high cleats physically molded into belt, AquaPruf 7600 Series End Drive Conveyors feature sanitary design suitable for handling difficult products such as jelly beans, apples, marinated chicken, and chips. Units have continuous TIG welded 304 SS frame with no horizontal surfaces for optimal cleaning. Available in lengths from 36 in. to 40 ft and widths up to 2 ft, conveyors offer speeds to 328 fpm and handle loads up to 20 lb/sq-ft of belt.

PHD, Inc.    Fort Wayne, IN 46899
Jan 10, 2007 To support diverse applications, Series SFM Multiple Position Slide is equipped with modular multi-position stop system that includes optional mid-position actuators and adjustable end stops. Stainless steel band and saddle seal protect bearing system from dirt and contaminants, while optional adjustable cushions offer precise control of slide deceleration. Optional cap-mounted shock absorber is available to absorb end-of-travel kinetic energy.

Flexicon Corporation    Bethlehem, PA 18020 8006
Jan 10, 2007 Hydraulic Bulk Bag Conditioner loosens bulk solid material that solidifies during storage and shipment, facilitating subsequent material discharge. Available as stand-alone unit or integral component of bulk bag discharger, machine uses 2 hydraulic rams with contoured end plates to press opposing sides of bulk bags. Optional hydraulically actuated, variable-height turntable allows in-frame bag rotation and conditioning of bulk bags at varying heights.

Advance Lifts, Inc.    St. Charles, IL 60174

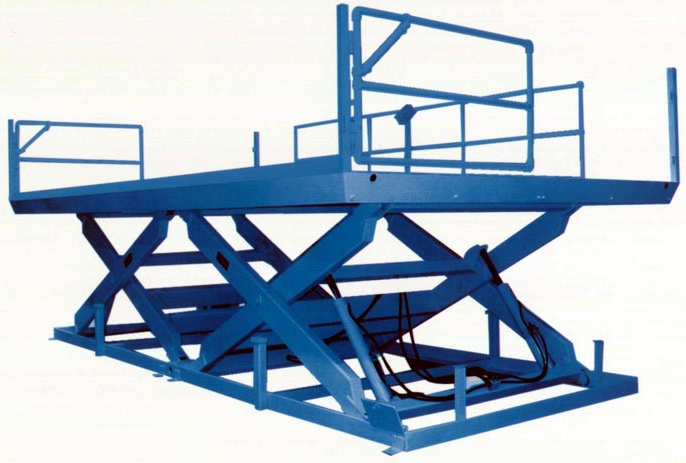

Jan 09, 2007 Closed-loop Position Control option can move platforms to multiple positions with precision and repeatability to ± 1/16 or ± 1/32 in. It requires continuous-duty-rated power unit and consists of linear displacement transducer, proportional hydraulic valve system, PLC, necessary supporting hardware, and proprietary software program. Operation can be initiated automatically or via operator, machine inputs, or network connection.

VACUUMSCHMELZE GmbH & Co.    Elizabethtown, KY 42701
Jan 09, 2007 Designed for use in wind generators, NdFeB-based permanent magnets offer temperature stability up to 230°C and minimal variation in magnetic properties. Products are resistant to demagnetization and exhibit corrosion stability in salty air and damp atmosphere. Use of permanent magnets in rotor of generator minimizes power loss and maintenance, while high pole numbers enable generators to be adjusted to low rotation of rotor blades.

Beyond Products Inc.    Milford, CT 06460

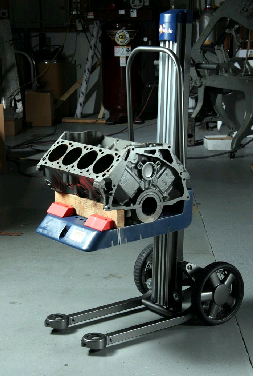

Jan 08, 2007 Electronically powered Mule(TM) Hand Lift maneuvers in tight areas and fits through 28 in. doorways, allowing it to go where forklifts cannot. It provides screw-driven lift of 48 in. with lift speed of 1.5 ips or 27 seconds from bottom to top. Operating from 12 V rechargeable battery that lasts for 90-110 lift cycle per charge, truck is designed to transport and lift up to 350 lb of material while serving as work positioner and customizable workbench.

Thermo Electron Corp.    Waltham, MA 02454
Jan 08, 2007 Suited for life science, clinical, and industrial applications, +4ºC refrigerators and -20ºC freezers come in storage capacities from 700-1,500 L. All units use polyurethane foam insulation and forced-air evaporators to maintain efficient temperature regulation and promote environmental stability. Along with anti-condensing heaters, storage solutions feature digital displays, over/under temperature alarms, battery back-up, internal lighting, and clear glass doors.
