Columbia Machine Inc.    Vancouver, WA 98661
Apr 14, 2006 Suited for companies packaging products in cases that measure as small as 5 in. wide, Palletizer features modular plastic belts that form smooth transitions between metering belts and from belts to row former rolls. Soft turn technology with use of close roll centers allows for accurate turning and eliminates product damage, while overhead reciprocating row pusher positively transfers rows of product.

Ceemco Medical Equipment (formally MED Stainless Steel Products)    Cincinnati, OH 45241
Apr 14, 2006 Manufactured from welded 304 SS, Case Carts come in 28-62 in. lengths and 39-54 in. heights. Antimicrobial finish suppresses growth of destructive microbes, including bacteria, molds, and fungi. Carts include non-marring swivel casters, sealed stainless steel bearings, and sloped floors and drain holes to facilitate cart washing. Other standard features include ergonomically designed handles, shock-absorbing bumpers, and 270° double doors with positive latches.

Gough Econ Inc.    Charlotte, NC 28266
Apr 14, 2006 Swinglink(TM) has buckets that remain in upward facing position while loading and throughout circuit, allowing material to receive maximum gentle handling. When in horizontal position, buckets are overlapped to ensure there is no product spillage, and smooth bucket surface eliminates product trap areas for means of transfer in single plane. Heavy-duty buckets are available in stainless steel, carbon steel, and plastic, and multiple cover options are available.

Advance Lifts, Inc.    St. Charles, IL 60174
Apr 14, 2006 Pit-mounted Dock Lifts are available in variable platform sizes and capacities, making them suited for retail stores, schools, hospitals, and any location that must load or unload wide variety of vehicles with varying truck bed heights. Units feature 58 in. of vertical travel, continuous-duty remote power units, and UL approved electrical controllers.

Worksaver Inc.    Litchfield, IL 62056
Apr 14, 2006 Designed for tractors of 40 hp or less that are equipped with front loader, Model ULF-2046 features overall frame width of 48 in. and forks rated at 2,000 lb. Measuring 1¼ x 3 in., forks are adjustable along 1.5 in. diameter solid steel rod and have usable length of 46 in. They are retained in position by locking collars. All welded frame features see through backstop, allowing operator to see material being picked up.

American-Newlong, Inc.    Indianapolis, IN 46217

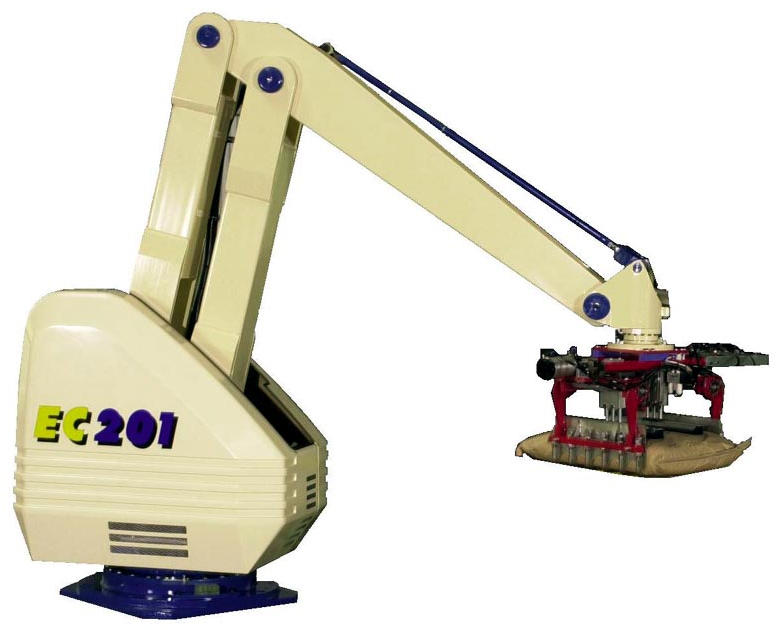

Apr 14, 2006 Featuring 4 axes for maximum flexibility, EC-201 palletizes bags, cases, pails, and other products at rates to 1,600 cycles/hr. Weight of mechanically balanced arm can be supported by one finger, and design results in reduced stress on arm joints, bearings, pivot points, and floor supports. Touch-screen interface lets users change palletizing programs, utilize onboard warning systems, review error occurrences and take corrective measures, and monitor I/O in real time.

Anver Corp. - Anver.Com    Hudson, MA 01749
Apr 13, 2006 Molded from hybrid polyurethane elastomer that provides abrasion resistance, Vacuum Pods are available in different shapes and sizes ranging from 74 x 125 mm to 114 x 139 mm with various holes and patterns. Hold-down clamping suction plates are designed as OEM replacement pads for vacuum clamping systems used on German and Italian woodworking machinery.

Advance Lifts, Inc.    St. Charles, IL 60174
Apr 13, 2006 Equipped with ring bearings, turntables offer end capacity required to handle loads rolled over edge of platform. Incorporated gear drives with variable ac controls deliver precise positioning capabilities. Available in capacities to 10,000 lb, products come with various platform sizes and 3 or 5 hp turntable motors. Standard duty, powered and non-powered turntables are also available for general industrial applications.

Leica Microsystems, Inc.    Bannockburn, IL 60015
Apr 12, 2006 Model EM PACT2 Freezer is designed to help researchers achieve reproducible results for localization and characterization of organelles and subcellular components. High-pressure system allows freezing up to 200 µm into specimen for subsequent sectioning and observation, and menu-driven color touchscreen guides user through fresh to frozen process in 5 sec. After freezing, pressure and temperature curves can be observed, stored, and downloaded to PC.

Cubic Designs Inc.    New Berlin, WI 53151

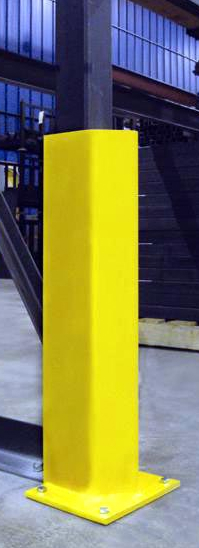

Apr 12, 2006 Featuring triangulated, wrap-around design with all-steel construction, Cubic RackGuards protect rack uprights by deflecting and absorbing impacts from moving in-plant vehicles. Factory welded base plates bolt directly to facility floor, and products come in 12 and 24 in. heights. They are available for installation around rack uprights with standard or seismic footplates and are protected with powder coat finish available in 14 colors.

LPI Lift Systems    Eau Claire, WI 54703
Apr 11, 2006 Offering lift capacity of 350 lb, Model LP5B is equipped with 36 x 32 in. operator platform, self-closing gate, and controls within reach of operator. Height of platform is 10 in. in lowered position and reaches up to 15 ft in raised position. Lift positioning hand controls of Z-axis control up and down movement, while Y-axis controls extension and retraction of platform, and X-axis lift positioning foot control governs left and right movement.

Interroll Corp.    Wilmington, NC 28405

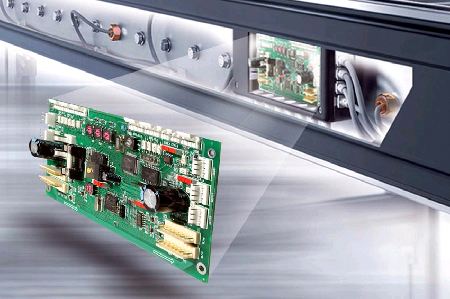

Apr 11, 2006 Interfacing to RollerDrive products, Z Card provides self-contained intelligence to control accumulation in 4 conveyor application zones, including any combination of straights, merge, divert, or transfer. Card offers optional control functionality via CANbus network interface and is also available in IP54 enclosure for industrial applications. Standard package includes cable assembly kit to support interconnect between RollerDrive, photo eyes, and Z card.

Kinetic Systems, Inc.    Boston, MA 02131
Apr 10, 2006 Offering Class 100 cleanroom-compatibility, MK26 utilizes Minus K® negative-stiffness vibration isolators and comes with 30 x 36 in. or 36 x 48 in. tabletop in honeycomb or composite construction. Unit can be customized for various applications where external vibrations would adversely affect operation of sensitive equipment. Adjusted to ½ Hz natural frequency, workstation achieves 93% isolation efficiency at 2 Hz, 99% at 5 Hz, and 99.7% at 10 Hz.

Interroll Corp.    Wilmington, NC 28405
Apr 10, 2006 Featuring nominal current of 0.83A and application speeds up to 315 fpm, High Performance Brush Type (HPBT) RollerDrive suits light or intermittent duty postal, warehouse, or manufacturing applications. Thermal protection eliminates external control needs. HPBT interfaces with company's Z card for zero pressure accumulation solutions. Stainless, plated steel, galvanized, and aluminium materials are available.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Apr 10, 2006 Available with optional plug-in modules for vehicle power and control, TrimTrac(TM) v1.5 locator supports all GSM frequencies to utilize GPRS data rate plans and near universal roaming capability of SMS text messaging. Motion-based reporting minimizes power consumption and recurring communication costs. Along with miniature external GPS antenna, unit features 1 Hz GPS operation, on-board geofence enforcement, multiple runtime meters, and start/stop reporting mode.

Steinmeyer Inc.    Bedford, MA 01730

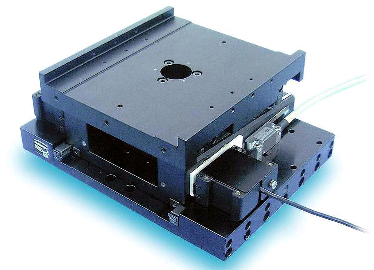

Apr 07, 2006 Made from stable aluminum alloy, Model HT 03-LM offers travel of 3 mm with accuracy of 2 microns and repeatability of 20 nm. It uses piezo linear motor to drive 10:1 ratio wedge, and crossed roller bearings for smoothness of motion. Maximum speed is 25 mm/sec and position feedback is provided by precision linear encoder with 0.1 µm resolution. Stage is suited for semiconductor, fiber optic, medical/life sciences, optical, laser systems, and robotics industries.

Flambeau    Baraboo, WI 53913
Apr 07, 2006 Blow molded in high-density polyethylene, Mini Tank was designed as small overflow bottle and works well in applications where user needs small fluid container with snap cap. Tank can have fittings welded on either end and/or bottom, and has mounting tabs on both sides.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Apr 06, 2006 Lift & Seal System(TM) is designed to discharge drums of non-free flowing powders into existing receiving hopper at 70 in. above floor level. It automatically docks drums inside discharge cone with 60° walls, for safe, dust-controlled discharge. Control Link(TM) Rotation System rotates drum to 180° for maximum product discharge. Unit can be custom designed for application requirements.

Schunk    Morrisville, NC 27560
Apr 05, 2006 With 3 rows of clamping blades, Universal Hard Top Jaws aggressively bite into surface of work piece and can be clamped on OD or ID. Exchangeable work piece rest enables adjustment to different clamping depths with same set of jaws. Offered in 5 sizes for lathe chuck diameters 165, 210, 250, 315, and 400 mm, single set of jaws permit user to cover up to 4 clamping positions as well as bar feeding.

DIRAK    Chantilly, VA 20151-1220
Apr 05, 2006 Made of polyamide and zinc die-cast, SNAP-LINE swinghandles offer 4-6 mm compression, single and multi-point latching, and multiple locking options. They are operated by lifting top portion and rotating handle 135° and are available with profile cylinders, standard inserts, and combination of insert/pad lock device. Recommended for use on enclosures for data centers, water- and dust-tight IP65 and NEMA 4/12 versions are available.
