Revvo Caster Co., Inc., The    West Seneca, NY 14224
Jun 01, 2007 Suitable for moving empty or evenly loaded containers up to 40 ft in length, extra-heavy-duty Towcasters are intended for power towing up to 5 mph. They are offered in sets of 4, 2 swivel and 2 fixed casters, and feature polyurethane-on-cast-iron wheels, locking screws, lifting handle, and ratchet spanner. Offered in 2 sizes, casters come with wheel diameters of 10 and 12 in. with load capacities of 22,000 and 26,400 lb, respectively.

Boise Cascade Corp.    Boise, ID 83728
Jun 01, 2007 AvantEdge(TM) Series release liners for pressure-sensitive applications come in four types. AvantEdge Auto Applying (AA) Label Release features effective light transmission, AvantEdge Label Release is designed for roll and layflat label applications, AvantEdge Graphics Release is compatible in multiple silicone systems, and AvantEdge Tapes & Industrial (T&I) Release is two-sided and coated for industrial casting and composite applications.

Loading Automation, Inc.    Wilmington, NC 28406
May 31, 2007 Automated Trailer Loading System (ATLS) can load and unload all standard, non-dedicated, over-the-road refrigerated; dry freight; and container trailers with palletized or slip sheeted product. Universal loaders handles up to 120, 3,000 lb pallets per hr, and control system can be integrated with WMS or MRP manufacturing computer systems and programmed for variety of custom load balance routines. Once trailer is loaded, complete manifest of loaded product can be printed.

OK International    Garden Grove, CA 92841
May 31, 2007 Operating from 24 Vdc supply, microprocessor-driven DX-350 Series dispenses precise fluid volume with consistent accuracy and repeatability. Offering is comprised of models DX-350 and DX-355, with respective operating pressures of 0-100 and 0-15 psi. Former dispenses range of fluid viscosities while also controlling variation in pneumatic dispense valves. Model DX-355 is designed to meet demands of low-viscosity fluid dispensing. Both feature 0.0080-60.00 sec digital timer.

SERAPID, Inc.    Sterling Heights, MI 48314
May 30, 2007 TBHS Escaping Arc Clamp features temperature-resistant design to accommodate applications where die swelling is an issue. Clamp design prevents die drops when pressure has failed with its mechanical safety detent, accommodates dies of 2-63 tons, and optional sensors detect clamped and unclamped positions. Applications include automated systems where sensing position is required. Escaping Arc Clamp systems are customizable.

Hewlett Packard    Houston, TX 77269-2000

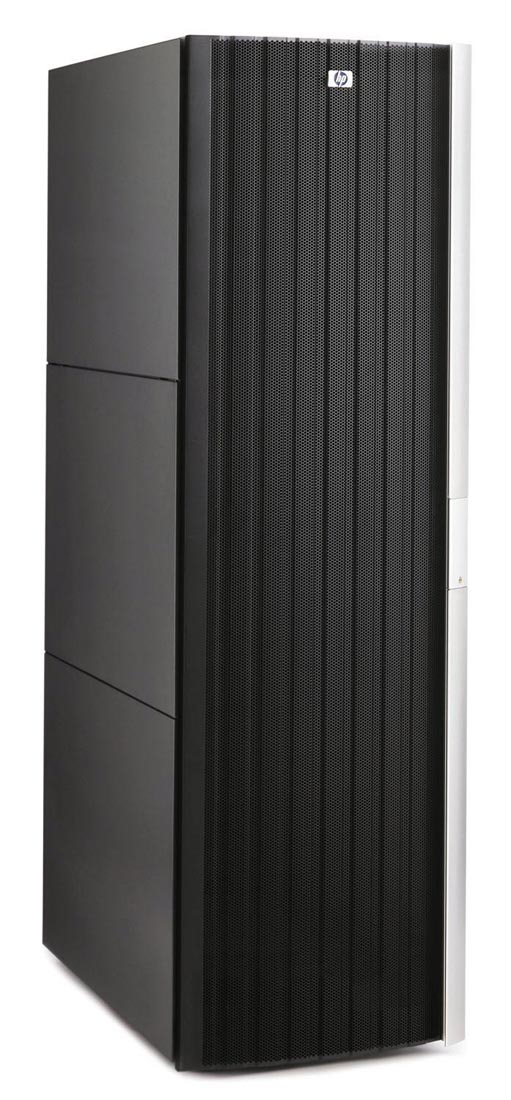

May 30, 2007 HP 10000 G2 Series Racks feature multi-angle door design and fully perforated front and rear doors providing cooling and ventilation. Steel of 7x2 roll frame is folded 7 times, enabling racks to hold net weight of 2,000 lb of static and dynamic loading. Holes in 4 mounting rails allow side-to-side cabling, and for high density environments, units feature cable egresses on top, removable access panel on rear door, and cable management straps.

Slideways, Inc.    Worcester, MA 01605

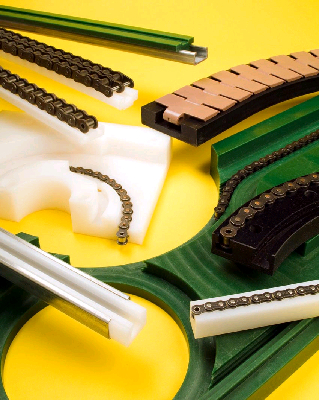

May 30, 2007 Available in single and dual lane configurations, custom-engineered UHMW Chain Guides accommodate all standard ANSI and metric roller-, side flexing-, and link chains. Units eliminate need for lubrication systems and noise associated with metal-on-metal. Manufactured in curved and straight designs and machined with any radius, wear-resistant guides meet FDA guidelines 21CFR178.2010 and 21CFR177.1520 and are USDA compliant.

Novatec, Inc.    Baltimore, MD 21225

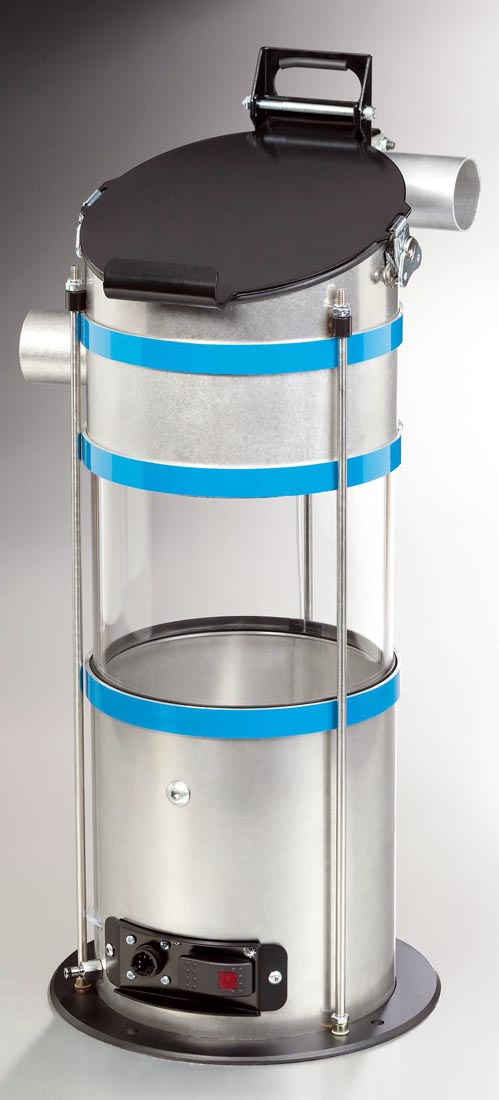

May 30, 2007 GlassVu(TM) loading system provides clear views of filling processes by featuring cylindrical loaders, receivers, and machine-mount hoppers with wrap-around glass mid-sections. Modular in construction and comprised of stainless steel, product offers 5-mm thick borosilicate glass sections. GlassVu(TM) loaders, receivers, and hoppers come in ranging sizes, with standard mini-PLC remote control, and blowback system with accumulator.

Assmann Corp. of America    Garrett, IN 46738 1844

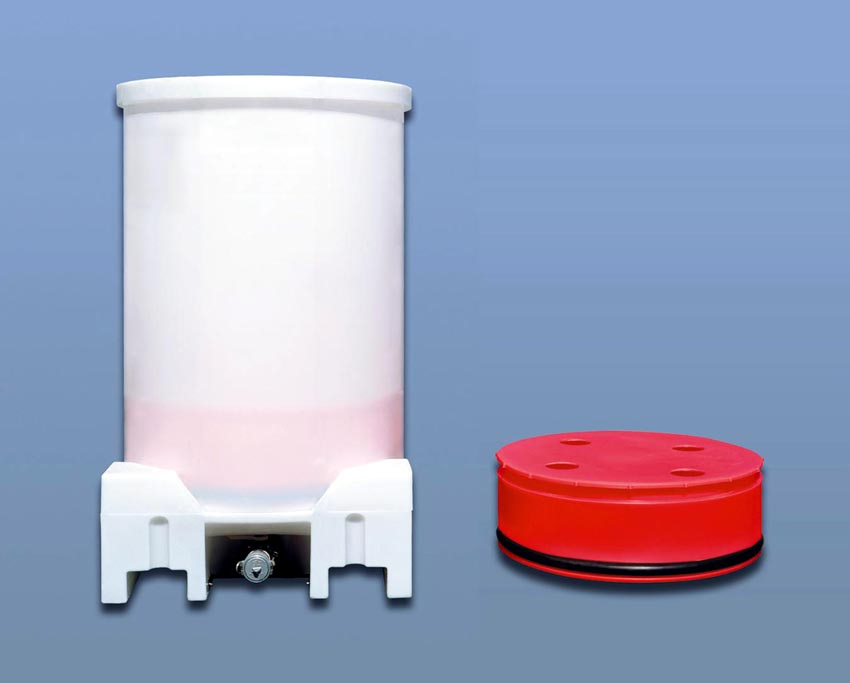

May 30, 2007 Offered as sealed and closed-looped system, 400 gal polyethylene non-pressure piston bin is designed for viscous products up to 500,000 cps. It performs internal transport of viscous materials, protecting them from air, moisture, dirt, and other contamination. Reusable, returnable containers feature forklift pockets for moving, and bin consists of pump-operated system filled and discharged through same 3 in. bottom valve.

Continental General Tire, Inc.    Charlotte, NC 28241

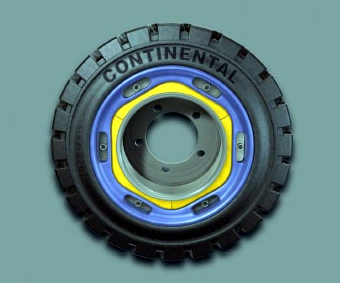

May 30, 2007 Designed for forklifts, super-elastic CSEasy Tires feature reusable, conical adapter between tire and rim that allows mounting with torque wrench. They offer optimum rim seating, high temperature tolerance, and maximized dynamic load capacity for transporting heavy loads. CSEasy Tires can be fitted on-site, ensuring forklift is back in operation within minutes.

Jergens, Inc.    Cleveland, OH 44110
May 30, 2007 Available in top or bottom flange styles, hydraulically activated Swing Cylinders provide single or double-acting operation. Either style can be manifold-mounted, utilizing No. 2 SAE ports, or plumbed conventionally through two No. 4 SAE ports. Offered in 3 sizes with capacities from 1,000-5,000 lb, clamps have non-threaded bodies to facilitate mounting. Piston rotates 90° to right in standard configuration, but may be ordered with 90° left rotation or no rotation.

SKF Motion Technologies    Lansdale, PA 19446

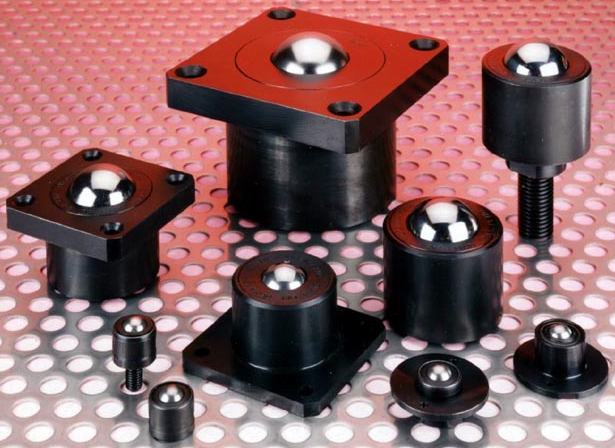

May 30, 2007 SKF® Hevi-Load spring-loaded ball transfer units are engineered to reduce damage caused by shock loads, allow for dimension changes due to temperature, and self-adjust for even load distribution. Recirculating ball system offers capability to handle load capacities to 4,400 lb, with ball either up or down. It employs 12.7-50.8 mm dia load ball that rotates on bed of small balls supported on hardened steel, precision-machined table load pad.

Midaco Corp.    Elk Grove Village, IL 60007 5368

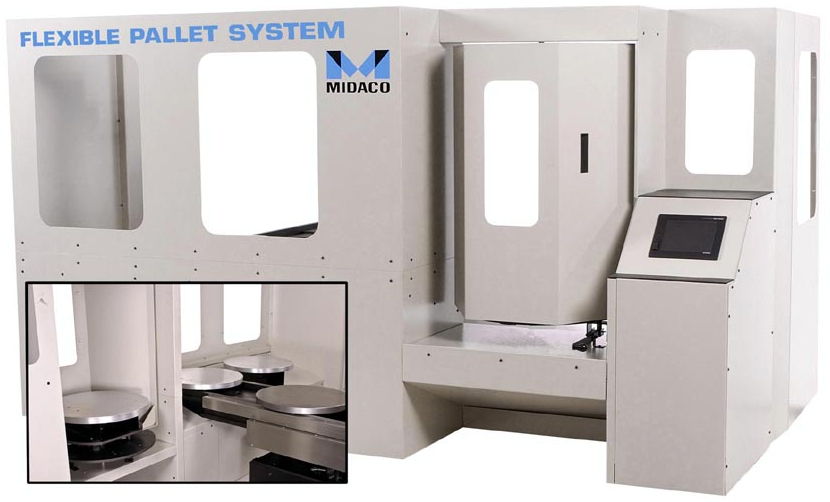

May 30, 2007 Used at 5-axis VMCs and/or 400 mm HMCs, Automatic Flexible Pallet System is adaptable to new or existing machines and allows for unattended, automatic exchange of pallets in seconds. Standard system includes 4 pallet stations, one rotating pallet set-up station, linear guided automated pallet delivery system, touch screen system controller, and four 20 in. dia cast iron or aluminum pallets. Pallet receiver uses purely mechanical clamping system.

Tol-O-Matic, Inc.    Hamel, MN 55340 9499
May 30, 2007 Designed to meet demanding applications, pneumatic MX Rodless Band Cylinder features stainless steel bands that will not expand like elastomer bands. Piston is isolated from applied load and remains isolated even when carrier is subjected to deflection, extending service life of piston seals. Offered with profiled rail, solid, or internal bearings, cylinder comes in inch and metric versions with polyurethane seals, clear anodized aluminum extrusions, and adjustable cushions.

York Industries    Garden City Park, NY 11040
May 29, 2007 Offering small footprints and low belt clearances, Dynamic Pivot, Dynamic Slot, Static Pivot, and Static Slot Belt Tensioners are suitable for any small drive. All tensioners are available in size 4 and size 3, with clamping or sliding bushings. Idler pulleys are offered in aluminum or self-lubricating plastic, in seven different profiles. All specifications are user-configurable.

Parker Hannifin Corp.    Oxford, MI 48371
May 29, 2007 Constructed of 304 stainless steel, Balston Filters remove 99.99% of oil, water, rust, and pipescale particles measuring 0.01 micron and larger from compressed air and other gases. Units are suited for environments that are frequently exposed to aggressive chemical vapors, saltwater vapors of offshore platforms and coastal environments, and oil patch installations. Offered in ¼-1 in. line sizes, filters provide flow capacities of more than 700 scfm.

Drum Lock    Machesney Park, IL 61115
May 29, 2007 Univ-lok lip seal drum locks prevent inadvertent contamination, theft, and mishandling of 55-gallon metal and plastic drums. Utilizing non-sparking metal locks, these guards cover bung openings without removing original seal plugs. Security of protected drums is enhanced by tamper evident pin or padlock. Drum locks are available with specialized tracking and inventory control tags, and in various sizes and colors.

OK International    Garden Grove, CA 92841
May 29, 2007 DX-250 Series Digital Dispenser/Controllers are designed for environments requiring accuracy and repeatability. Controllers operate from 24 Vdc supply and feature digital timers, adjustable vacuums for controlling drips between dispense cycles, an operating pressure of 0-100 psi, and come equipped ready to use. For low viscosity fluid applications, Series DX-255 offers an operating pressure range of 0-15 psi.

Roura Iron Works, Inc.    Clinton Township, MI 48035
May 29, 2007 Steel stackable rotator boxes come equipped with nesting areas to allow 4-way fork entry. Rotator boxes are constructed from 10 ga, 3/16, or ¼ in. plate steel, sized with common base features for stackability, and feature "innershield" welding. Box options include variable height, variable load size, water tightness, lifting brackets, drain holes, additional reinforcing ribs and casters of various sizes and composition.

Schunk    Morrisville, NC 27560
May 25, 2007 With total finger stroke of 11.8 in., Model PFH 150 2-finger parallel gripper is designed for handling large and heavy components. It provides finger opening and closing times of 0.8 sec due to end position damping that also ensures quiet return to end position. Air supply can also be connected without hoses, and unit can be attached on 2 sides in 3 screw directions. Product features pneumatic drive that consists of dual-piston system and is synchronized by rack and pinion.
