Technical Manufacturing Corp.    Peabody, MA 01960
Jul 30, 2007 Available in 3 DOF or 6 DOF, Electro-Damp® PZT provides semiconductor manufacturers with active inertial vibration cancellation system. Frame-mountable, stiff unit features extended stroke piezoelectric actuators, settling time optimized to respond to stage motion, and no soft air suspension. Also suited for use in microlithography, inspection, and metrology tools, product design facilitates installation with no feedforward required.

ConProTec Inc.    Salem, NH 03079 2060

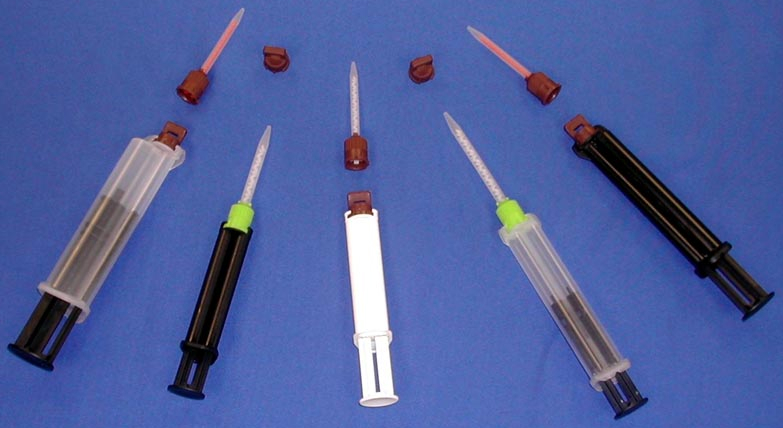

Jul 27, 2007 Offered in 2.5, 5, and 10 mL capacities, double barrel syringes are suited for applications that require nominal amounts of adhesive. Polypropylene products offer 1:1, 4:1, and 10:1 ratios and consist of manual plunger, dual cylinder syringe, and static mixer. Separated cylinders prevent diffusion of 2 components, and interface between syringe, static mixer, and cap optimizes performance while facilitating use. Black versions are available for light-sensitive materials.

Vibro Industries, Inc.    Port Royal, PA 17082

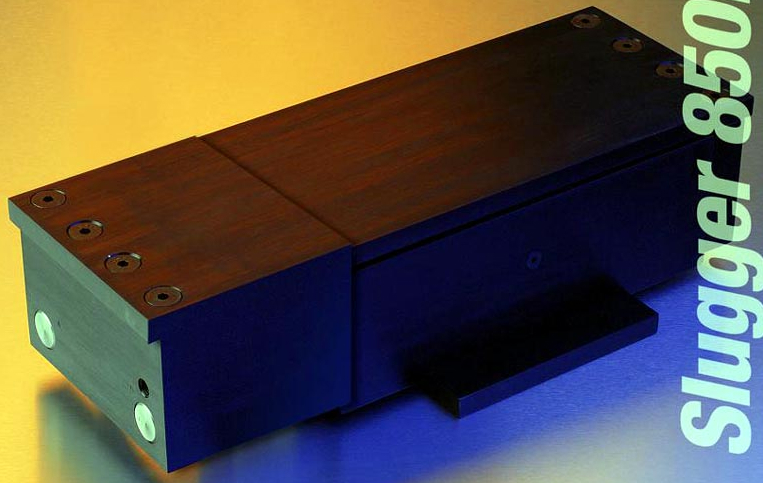

Jul 26, 2007 Featuring 100% oil-less design, air-operated Slugger 850B can move loads up to 500 lb in addition to 100 lb of tray weight. Multiple trays can be mounted to single unit, and rugged-duty system consumes 3.4 cfm air and offers variable 15-40 fpm feed rate. Along with stainless steel bore liner and self-contained, self-cleaning wiper mechanism, construction elements include totally enclosed body, air regulator and filter, and stainless steel sleeves.

ITW    Glenview, IL 60025
Jul 26, 2007 Model FXBC10 has 10 kg capacity and can blast chill product from 70ºC to 3ºC within 90 min to maintain food quality and ensure HACCP food safety law compliance. Chiller enables left-over food from hot servery counter to be quickly and safely chilled for later use with complete confidence in its quality and safety. Suited for restaurateurs, hoteliers, and publicans, it also aids in advance food preparation by chilling larger batches for later use.

California Pacific Lab    Novato, CA 94949
Jul 26, 2007 Manufactured using chemically-resistant HDPE, ECO Funnel Version 3 prevents evaporation of hazardous chemicals from open waste containers in laboratory environment. It features vapor-resistant gasket, solids filter, heavy duty hinge, positive latch, and screw cap. System exceeds EPA, OSHA, and Fire Department Hazardous Materials Regulations and can be incorporated into existing HPLC waste system. Product is available in 2 sizes with variety of screw cap adapters.

Sono-Tek Corp.    Milton, NY 12547
Jul 25, 2007 Intended for food manufacturers, Universal Food Coater features 6 independently controlled, non-clogging ultrasonic atomizing nozzles, which enable complete 360° coverage of food target. Variable width, variable speed conveyor allows flexibility for testing independently and/or in-line with other manufacturing equipment. Coater can provide anti-microbial protection of baked goods, produce, dairy, and meat products, as well as application of nutriceuticals, herbal extracts, and natural flavors.

Ingersoll-Rand Co.    Annandale, NJ 08801
Jul 24, 2007 Featuring open frame design with encased and retained roller bearings, SMB Silver Series consists of 6 models with capacities from ½-5 tons. Units have nickel and chrome-plated exteriors and zinc-plated frame components for corrosion resistance. Double load chain guides ensure proper load chain tracking and smooth operation around load sheave. Offering impact resistance and overload protection, hoists suit variety of material handling and industrial applications.

L.J. Star, Inc.    Twinsburg, OH 44087
Jul 24, 2007 Designed for use with hazardous high-temperature piping lines often associated with steam and CIP/SIP cleaning processes, Sanitary Lock-Out Clamp ensures that only authorized personnel have access to clamp. Hex-head nut that secures clamp is covered by extended shroud, which accepts small combination lock or key lock, preventing hex wrench from reaching head. Formed of 316 SS, clamp comes in sizes from ½-4 in. with custom sizes optional.

80/20, Inc.    Columbia City, IN 46725
Jul 23, 2007 T-slotted aluminum framing system, The Industrial Erector Set, accepts leveling feet. Eight bases made from 304 SS are available with or without floor mount holes, in diameters of 30-120 mm, with load capacities up to 8,800 lb and anti-slip rubber pads. Additional options for feet include choice of stainless steel threaded stems in 15+ different lengths, available in metric sizes from M8-M20 and imperial sizes from ¼-20 to ¾-10.

Lyon Workspace Products    Aurora, IL 60507
Jul 23, 2007 Wire mesh containers feature notched legs that interlock for positive stacking and permit forklift or pallet rack entry. Front drop gate allows access to contents when stacked. Featuring zinc-plated design for visual inventory of stored contents, units are available in 3 standard models that hold up to 4,000 lb each and can be stacked 4 high in 32 x 40 in. area, and 20 x 32 x 16 in. junior size model with 1,000 lb capacity that can stack 3 high.

DEK International GmbH    Zurich Ch-8005  Switzerland
Jul 23, 2007 Consisting of base carrier with consumable foil, Virtual Panel Carrier enables multiple component support and alignment during screen printing and all subsequent assembly processes. Substrates are held in carrier via 4-sided tensioning mechanism and then aligned within carrier using centering system. Parts are referenced using two global fiducials, enabling transfer of VPC throughout all assembly processes.

Richco, Inc.    Morton Grove, IL 60680
Jul 20, 2007 Available in 2 sizes to accommodate different cable thicknesses, FCCB Series Arrowhead Mount Cable Clamps are mounted into pre-driven hole. Tension wings provide extra pressure to board to ensure snug fit. Molded in UL94 V2 rated Nylon 6/6, clamps can be used with flat, ribbon, or round cables.

Richco, Inc.    Morton Grove, IL 60680
Jul 20, 2007 FTH-30 series cable tie holder snaps in place for installation in panel and holds bundle with pre-assembled cable tie. When tail end of cable tie is inserted, tie holder locks it in place. It can also be used as standard tie holder, using ties that are not pre-assembled.

TAK Enterprises, Inc.    Bristol, CT 06010 7400
Jul 19, 2007 Suited for wire and narrow strip applications, feed and cut-off system comes with controller that incorporates 5¾ in. industrial touchscreen. Pro-Pack option enables remote operation/monitoring, and throughput rate is controllable via programmable speed setting capability. Along with direct reading for parts/min run speed indication, Ethernet-expandable system offers password protection for sensitive program areas, batch cutting ability, as well as time- or sensor-controlled cutting.

ASGCO Mfg. Inc.    Allentown, PA 18102

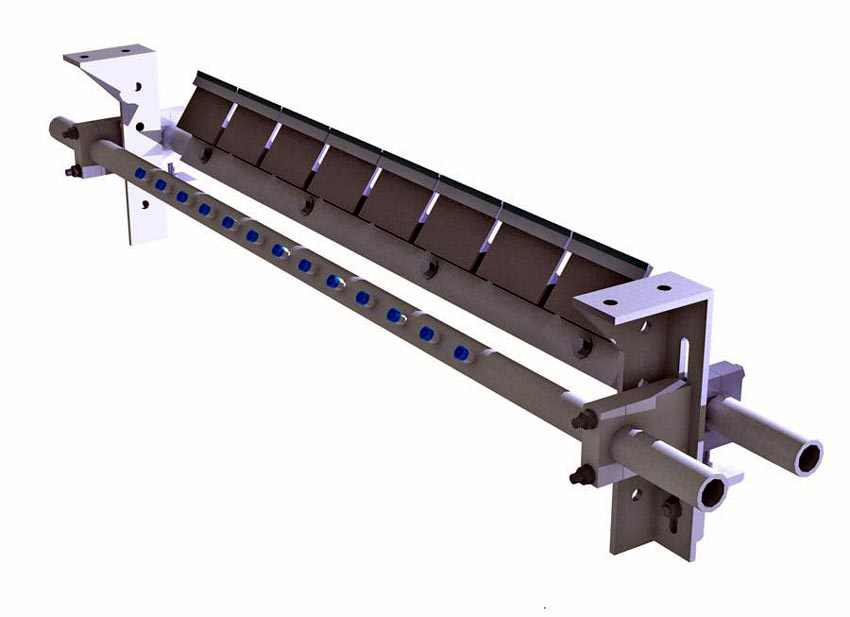

Jul 19, 2007 Razor-Back with Spray Bar sprays streams of water at 30° angle onto conveyor belts out of one row of spray nozzles. Bar features include overlapping spray pattern, fully adjustable sprays, particle suspension and removal, belt moistening, stainless steel construction, tungsten carbide replaceable tips, and spray nozzle size customization.

AGI - American Grippers Inc.    Trumbull, CT 06611
Jul 19, 2007 Able to spread and place up to 12 in. ID seals, AGP-8-OR facilitates part ejection and part seating. Pneumatic parallel gripper offers independent spreading and ejector movements and has 1.5 in. dia through hole. It can be tooled to accommodate all types of rings from .5-12 in. ID, and end of stroke sensing is available. While 8-jaw AGP-8-OR measures 5 in. dia x 5 in. tall, 6-jaw version (AGP-6-OR) measures 2.5 in. dia x 2.7 in. tall and is suited for handling up to 3 in. ID seals.

Nordson Corp., Packaging Systems    Duluth, GA 30097
Jul 19, 2007 Offering alternative to roller coating systems, PWII 350 processes reactive hot melt adhesives such as polyurethane. It offers flexibility with configurable number of modules and exchangeable nozzle assemblies. Coating width and position of head are adjustable, even during production. Featuring closed design to prevent moisture and contaminants from entering, PWII 350 is suited for coating foils and veneers that are applied to profiles of varying shapes and materials.

Advance Lifts, Inc.    St. Charles, IL 60174
Jul 19, 2007 Equipped with 5 hp continuous duty power unit, Heavy Duty Dumpers are available in 2,000, 4,000, and 6,000 lb capacities with dump heights of 36, 48, and 60 in. Carriages are designed to hold bins and/or carts and can be modified for special containers. Extra large side panels provide swing arc protection, while machine-grade, double acting cylinders placed on outside of carriage handle loads at lower pressures.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 19, 2007 Thermo Scientific Multidrop® Combi nL offers high-throughput dispensing for all laboratories across 50 nL to 50 µL volume range and can be used to dispense common reagents, diluents, buffers, solvents, viscose solutions, cells, and beads. It uses pressurized reagent container with valves to provide control of liquid flow at all volumes and can be integrated with automation solutions. PC software control option offers flexibility, functionality, and protocol creation.

Amacoil Inc.    Aston, PA 19014
Jul 18, 2007 Supported on its own end supports and guide rails, flexibly-coupled linear slide load carrier removes twisting and bending forces from Uhing drive and assembly. Design assures that overturning moments and other forces created by payload do not work against axial thrust provided by drive. Slide is available in models SLS and L2 for heavy duty loads that mount on top of drive, while L4 model mounts to back of drive.
