Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Jun 18, 2008 Featuring frontal cutout for ergonomic access to goods, MOD 72E cubes out trucks and trailers to pack payloads of clean linens for delivery or soiled laundry for return in otherwise wasted, empty spaces left above other carts. Extra large cart is rotationally molded of 100% polyethylene for resistance to weather, cleaning agents, and automatic cart washers and dryers. Choice of casters, configurations, and colors is available.

Florida Casters & Wheels    Tampa, FL 33634
Jun 18, 2008 Designed to handle loads from 1,000-1,500 lb, heavy-duty 141 Albion Series features polyspring shock absorbing system. Polyurethane, coil-less design is resistant to corrosion and abuse and prevents debris from jamming spring action. Kingpin-less casters protect cargo from damaging shocks and vibrations.

Totech America Corp.    Las Vegas, NV 89123
Jun 17, 2008 Designed to address challenges associated with IPC J-STS-033 for handling of moisture sensitive devices, XSD Series desiccant cabinets can dry components without oxidation problems. Zeolite drying unit achieves humidity levels of 0.2% RH which combined with integrated precision heating system offers stable profile throughout enclosure. Deploying self-regenerating desiccant, insulated cabinets provide 24/7 data logging and ergonomic touch screen operator interface.

Cardinal Health, Inc.    Dublin, OH 43017
Jun 17, 2008 Providing scalable approach for non-automated hospitals, Pyxis® DuoStation system allows clinicians to safely and accurately dispense both medications and medical supplies from single dispensing machine. It records medications/supplies used for each patient and then transfers that information to hospital's billing system, and also generates reports that can be used to help identify and prevent potential diversion and optimize medication and supply utilization.

Medicus Health    Grand Rapids, MI 49508
Jun 16, 2008 Available in white, blue, grey, black, beige, and red, Wire Shelf Liners can be used to prevent small objects from falling between wires. They also provide physical barrier between items stored on shelves and fluids used during cleaning. Offered in standard shelf sizes up to 72 in. long for both round and square posts, liners are reversible to extend useable life, and can also be customized.

ITWRansburg Electrostatic Systems    Toledo, OH 43612
Jun 16, 2008 Delivering concise and repeatable material flow for up to 8 applicators, DynaFlow CC fluid metering and mixing system is configurable to either 2k meter mix or 1k flow control to meet application requirements. Adaptable solution, acting on commands from interface module, monitors, processes, and routes vital flow control data. Operator interface also permits system control with system configurations and data displays, as well as text and graphic diagnostic computation and display.

Graco Inc.    Minneapolis, MN 55440

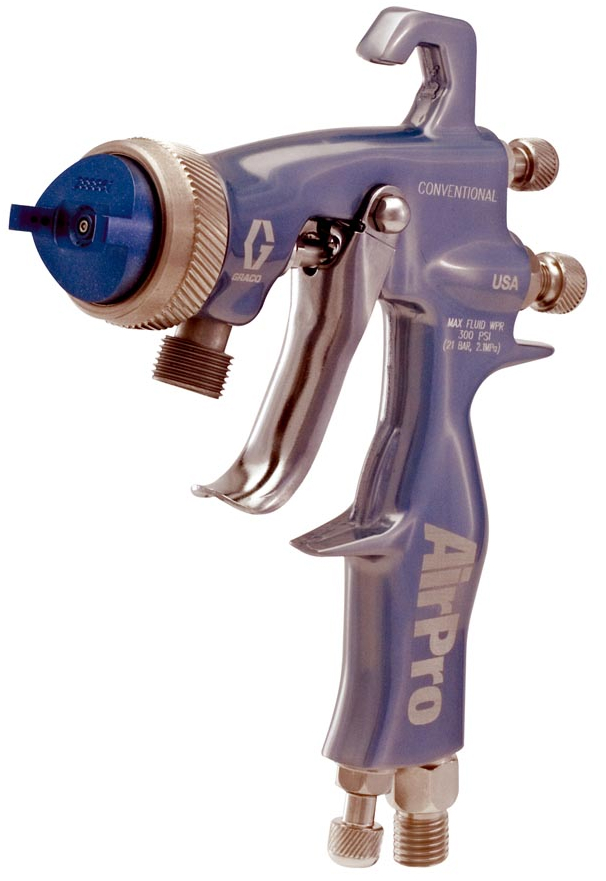

Jun 13, 2008 AirPro Air Spray Guns have air cap and nozzle design that optimizes spray performance and mimimizes air consumption. Guns are weight balanced to enable steady flow rates and feature sensitive trigger pull to reduce operator fatigue. Spry Guns are suitable for automotive, metal, wood, waterborne, high wear, and adhesive applications.

SouthCoast Control Engineering, Inc.    New Bedford, MA 02740

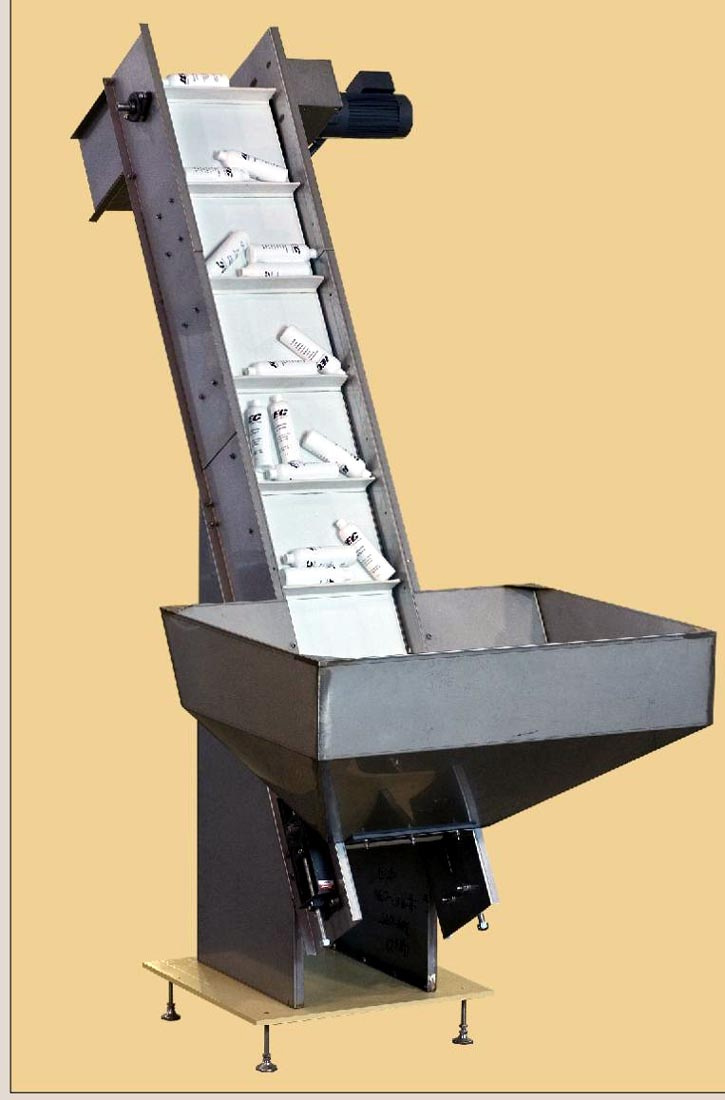

Jun 13, 2008 Designed for packaging, processing, food, and agricultural industries, Elevating Conveyor/Prefeeder can be manufactured in variety of heights and with variety of belting and bin sizes to suit diverse applications. Construction involves standard stainless steel bin with painted mild steel or stainless steel frame and adjustable leveling pads. Bin sizes range from 3-12 cu-ft. FDA-approved belting is standard and washdown tolerant electrical components are available as option.

Kleenline    Georgetown, MA 01833
Jun 12, 2008 Compatible with automated systems for feeding ovens and freezers, KLEENline® Pan Loading System reciprocates at up to 4 ft/sec and is capable of speeds up to 200 ft/min. Shuttle conveyor/pan indexing system is equipped with SEW-Eurodrive conveyor and reciprocator motors and controls with rack and pinion 1 1/8 in. dia reciprocating nose. Loading system is FDA/USDA approved and constructed from 304 stainless steel with 12 in. wide white polyurethane micro-laced belt.

Bishop-Wisecarver Corporation    Pittsburg, CA 94565 0209
Jun 12, 2008 Designed to fit 40 mm series structural aluminum extrusion, Quicktrak® allows trouble-free mounting of signature DualVee® Track. Design creates solid interface between beam, clamp, and DualVee track, retaining components in state of compression, which significantly increases joint rigidity. DualVee track is available in carbon and SS, hardened or unhardened, and in single lengths up to 22 ft. Plating options are also available.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Jun 12, 2008 Enabling bar-fed CNC lathe to run unattended for extended periods of time, Royal Rota-Rack Accumulator indexes each time finished part exits machine, safely collecting finished workpieces. System consists of heavy-duty welded steel turntable, solid-state PLC control, and optional integrated conveyor. All contact surfaces are covered with a high-lubricity UHMW plastic. Turntable has 1 m diameter, providing 850 in.² of usable surface area with payload capacity of 700 lb.

Creative Storage    Kennesaw, GA 30144
Jun 12, 2008 Dura-SAM(TM) (Stand Alone Module) Modular Flow Rack Workstation features Dura-Flo(TM) carton flow track system and rugged design that makes product suitable for destructive environments. Mobile carton flow system is suited for assembly line, parts picking workstations, or anywhere mobile full case or split case picking is needed.

Modern Process Equipment, Inc.    Chicago, IL 60623
Jun 11, 2008 Designed to improve extraction yields and process efficiencies, MPE Rapeseed Flaker prepares oil seed prior to flaking in order to enable higher degree of cell wall rupturing. Flaking rolls have self-cleaning mechanisms that prevent agglomeration build-up. Capable of handling high volumes of material throughput, product is suited for biodiesel applications.

Innovative Picking Technologies, Inc.    Ixojnia, WI 53036
Jun 10, 2008 Pick-MAX Auto(TM) is comprised of multiple dispensers that hold product in vertical stack, which permits replenishment during operation. Each dispenser adjusts to accommodate product sizes from 1 x 1.5 x 25 in. to 12 x 12 x 3 in. Operating at rates up to 1,200 orders/hr, system controls direct dispensers to actuate based on order totes that pass beneath them. Totes incorporate RFID tag that stores requirements for every item in tote, and each pick is confirmed via integrated sensors.

Kabelschlepp America    Milwaukee, WI 53223

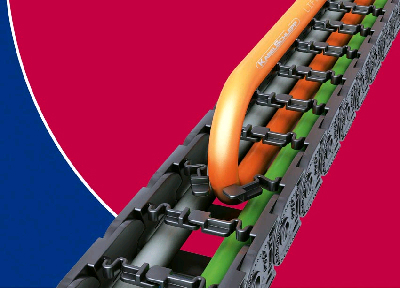

Jun 10, 2008 Featuring clear internal height of 18 mm and overall height of 25.6 mm, EASYTRAX 0320 offers standard bending radii of 28, 38, 48, 75, or 100 mm. Chain body is made of synthetic material reinforced with glass fibers and fitted with flexible, elastic lamella crossbars. When cables are pressed in, flexible brackets swivel forwards instead of downwards, leaving all space inside chain free. Stops are locked in place to stand up to bending or stretching under initial stress.

Aerotech, Inc.    Pittsburgh, PA 15238
Jun 10, 2008 Incorporating non-contact, non-cogging direct-drive technology, ANT-LX Nanotranslation Crossed-Roller Stages come in 25 and 50 mm travel versions with ±0.3 µm accuracy, ±0.05 µm repeatability, 5 g acceleration, 500 mm/s velocity, and max load up to 8 kg. Standardized, universal base-mounting pattern allows integration of 2, 3, or more axes, while 40 MHz electronic circuitry enables positioning speeds of over 500 mm/sec, even at 2 nm resolution.

Americase    Waxahachie, TX 75165
Jun 10, 2008 Configured for 1 gun plus 1, 2, 3, or 4 barrels as well as 2 gun plus 2 or 3 barrels, Blaser Compact Carrying Cases are constructed with .063 premium aircraft quality aluminum and accommodate barrels with scopes attached. Motor-style cases have spring-loaded handle and are powder coated in Blaser Green. Mil-Spec Santoprene Gasket protects contents from dirt, dust, and moisture. Stock compartment is 1.875 in. wide and barrel slots are 2.25 in. wide.

Lift Products, Inc.    Elm Grove, WI 53122 0349

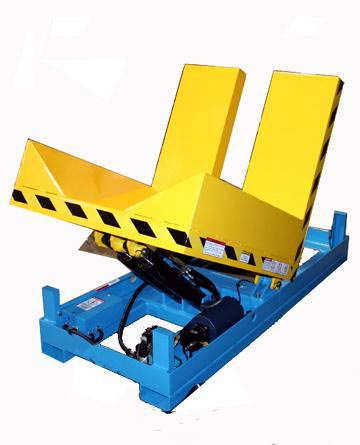

Jun 10, 2008 Max Upender is capable of tilting paper rolls, steel coils, or standard pallet loads of up to 8,000 lb. It is available in standard platforms, U-cradles, split platform and custom platforms.

Rocky Mountain Tool Co., The    Hyrum, UT 84319
Jun 10, 2008 With ability to safeguard products against water, dust, or being crushed during transport, Pelican(TM) 1730 Dual Mode Shipping Case has double throw latches, watertight O-ring seal, open-cell core, and solid walls. Suited for shipping sensitive products such as emergency medical supplies, case includes automatic pressure equalization valve and optional humidity gauge. Designed with fold-down handles and polyurethane wheels for manual moving, it protects contents in -10 to 210°F temperatures.

Sigma-Aldrich Co., Inc.    Milwaukee, WI 53209
Jun 10, 2008 Suited for compound semiconductor manufacturing, EpiVapor(TM) metalorganic vapor phase distribution system provides gas phase delivery of chemical vapors such as trimethylgallium directly to multiple deposition tools. It eliminates need for localized tool bubblers and TCU's by delivering vapors from highly volatile and sensitive pyrophoric liquids directly to MOCVD systems. System's chemical section consists of smoke detector, audible and visual alarms, and watchdog system.
