Hamilton Caster & Mfg. Co., The    Hamilton, OH 45011 4087
Sep 13, 2011 Providing 2,000 lb capacity, Model PB1108 features 2 x 1 ½ x 3/16 in. all-steel frame and 1 in. kiln-dried hardwood deck, which muffles noise and protects load from damage. Heavy-duty industrial cart uses 8 x 2 in. moldon rubber tired wheels with ball bearings that minimize required starting forces to prevent operator fatigue and back strain.

Toyota Material Handling U.S.A., Inc.    Irvine, CA 92623-7419
Sep 13, 2011 Available in 4,000 and 5,000 lb capacities, 8-Series 4-Wheel AC Electric Lift Trucks with compact 27 in. battery compartment support jobs with narrow 12 ft aisles and tight turning radius requirements. Short design, accommodating 36 or 48 V battery, features power keep function, which compensates for battery depletion and corresponding loss of performance. Regenerative braking continually recovers energy, while System of Active Stability(TM) minimizes likelihood of lateral and longitudinal tipovers.

Remstar International, Inc.    Westbrook, ME 04092
Sep 12, 2011 Megamat RS Vertical Carousel features intelligent drive made up of drive track, carrier arms, transportation chain, drive motor, drive chain, and hand crank. Working together, these components minimize wear and tear on unit. Motor and drive chain are mounted as one assembly, and drive chain is automatically tensioned using weight of motor, eliminating need for frequent chain retentioning. In emergency situation, plug-in crank handle can be used to access desired carrier.

Techno-Omil    New Hyde Park, NY 11040
Sep 09, 2011 Maintenance-free for first 1.5 million cycles, 2-finger parallel grippers of OPP2-.... Series feature heavy-duty T-slot design. Series is comprised of 9 grippers and offers strokes from 12-72 mm, gripping forces from 420-8,410 N, and operating pressure from 2-8 bar. Housings are hard anodized and made from hard-coated aluminum alloy.

Unifiller Systems, Inc.    Delta, BC V4G1N3  Canada
Sep 09, 2011 Using Pro 2000 Low Level Depositor with Agitator, small to large companies can portion consistent and uniform products such as soup, chili, or stew. System features 36-gallon hopper, tool-free setup, full wash down design, and choice of depositing nozzles. Pro 2000 works well as standalone machine or can be added into conveyor system for large volume production.

Accuride    Santa Fe Springs, CA 90670
Sep 07, 2011 Designed to accommodate applications such as utility and emergency vehicle storage, toolboxes, and industrial equipment trays and drawers, RoHS-compliant models 9301, 9307, and 9308 are offered with carriage bolt holes that provide for single-tool installation. This facilitates mounting while also reducing labor time. Located adjacent to existing mounting holes, square carriage bolt holes accommodate No. 10 carriage bolt or M-6 fasteners.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 07, 2011 Designed for deburring, polishing, and other finishing operations, Model KVF3 Vibratory Finisher has 3.3 ft³ capacity steel tub with cast urethane lining. Integrated ¾ hp, single-phase, 110 Vac motor powers vibratory action, while steel construction provides ruggedness and design promotes quiet operation. Measuring 36 x 27 x 36 in., finisher has 500 lb capacity and comes with casters for portability.

Aven, Inc.    Ann Arbor, MI 48108

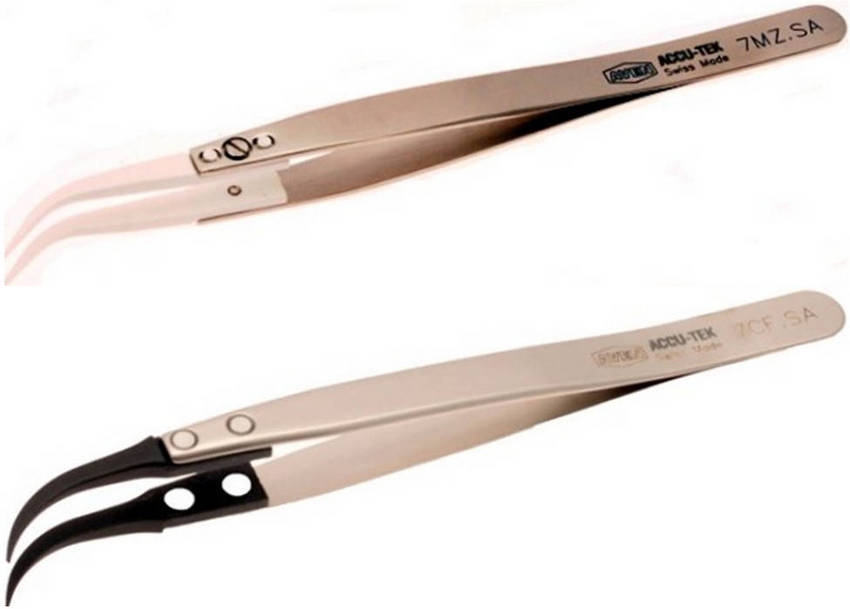

Sep 06, 2011 Measuring 5.25 in. long with 1.7 in. extra fine bent tips and stainless steel body, Zirconia Ceramic Tip Tweezers avoid contamination, static discharge, and electromagnetic induction. Units resist heat to 1,500°C, can be sterilized with microwaves, and are suitable for soldering applications. Measuring 5 in. long with 0.02 in. wide, curved fine tips, Carbofib Tip Tweezers handle delicate parts without scratching, electrostatic discharge, or other damage.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301
Sep 06, 2011 Used to organize heavy, bulky items in diverse environments, Stak-N-Store is available in clear material in 17½ x 10 7/8 x 12½ in., 15¼ x 19 7/8 x 12 7/16 in., and 17½ x 16½ x 12½ in. sizes. Corners and curved upper lips add strength, side ribs promote stability when stacked, and width of hopper front facilitates access to items. Supplied with handles, stackable bin, also available in blue, gray, red, and white, has 75 lb storage capacity.

ID Technology Corp.    Fort Worth, TX 76106
Sep 06, 2011 To minimize downtime, IDT Model 252 integrates Centerline Modularity(TM) design, which creates identifiable reference point for default calibration in product identification machinery. Process identifies and catalogs all possible points of adjustment in machine, then eliminates as many as possible. Using touchscreen interface for programming, applicator includes hot-swappable rewind motor module and plasma-coated air assist tube that eliminates label sticking.

Cleveland Vibrator Co., The    Cleveland, OH 44113
Sep 02, 2011 Constructed in mild or stainless steel, GWT Series offers solution for filling, weighing, compacting, and conveying containers of bulk solids. Packers mount below conveyor rollers, allowing bags, drums, trays, or other containers to be transported directly onto grid top deck. Available in range of deck configurations with rotary electric or air-cushioned piston vibrator drives, GWT Series offers optional weigh readout, PLC interface, and set points for automatic or semi-automatic operation.

Walter Surface Technologies    Windsor, CT 06095
Sep 01, 2011 Able to clean stainless steel at rates from 3-6 fpm without toxic pickling pastes, SURFOX employs conductive application pad that simultaneously cleans and passivates parts. System produces flawless finish on stainless steel and mirror-like finish on chrome. It offers controlled dispersion of cleaning fluid and supports Surfox H and T electrolyte cleaning solutions for standard and heavy-duty jobs. Passivation tester, stainless steel grade ID tester, and marking kits are included.

CropCare    Lititz, PA No
Sep 01, 2011 Equipped with 1,000 gal total drain tank, TR1000 enhances productivity by reducing refill trips for farmers that spray mid- to- larger-sized acreages. Agricultural sprayer features, as standard, Big Wheel Axle assembly, PTO or Hydraulic-driven pump, and adjustable wheel base from 62-120 in. Examples of available options include automatic rate control, freshwater rinse with power wash system, chemical induction, safety lighting, hydraulic boom height adjustment, and GPS systems.

TKF, Inc.    Cincinnati, OH 45203
Sep 01, 2011 Designed to handle cartons and other smooth-bottom unit loads, 4-strand Valu-Lift(TM) consists of lightweight interlocking molded polymer flights with steel connecting pins. Conveyor lifts at max speed of 118 fpm and can operate in up, down, or reversible mode. Standard net lifting heights range from 8-14 ft, and maximum unit load is 21 in. L x 16 in. W x 22 ft H. For safety, current sensing relay instantly shuts down conveyor if it is overloaded.

Zoneworks    Milwaukee, WI 53223
Sep 01, 2011 Available in 3 design options for blast freezer cells, Blast Freezer Curtain Wall offers safe alternative for food processors to bring foods to optimal temperature in order to maintain their freshness, safety, and integrity. Barrier can be operated by one person and is made of insulated sliding panels in tubular steel frame. Each panel consists of 18 oz industrial vinyl fabric surrounding layer of anti-microbial polyester batting and slides open/closed on track-and-trolley system.

FIPA, Inc.    Atlanta, GA 30318
Aug 31, 2011 Suited for cylindrical workpieces, 3-finger parallel grippers bring workpiece to defined position via self-centering gripper fingers and provide secure grip. Stroke spectrum ranges from 2-10 mm, and gripping forces range from 20-720 N. Parallel grippers for especially long strokes cover range from 20-200 mm and gripping forces from 20 to ~500 N. They are used, for example, in systems for handling of plane injection molded parts. Both grippers accommodate sensors for detecting piston position.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Aug 31, 2011 Eliminating need for servo drive motor or material flow meters in dispensing system, Pneumatic Servo Dispensing (PSD) system uses positive rod displacement metering principle for optimal dispensing precision. Integrated pneumatic drive motor and servo package provides precision of metered volumes, accurate flow control, and consistent bead profiles. Pneumatic cylinder and positive displacement meter are assembled into single compact metering module for floor, robot, or pedestal mounting.

Aven, Inc.    Ann Arbor, MI 48108
Aug 31, 2011 For delicate assembly tasks, specialty tweezers feature tips designed for precision, safety, and durability. Models with zirconia ceramic tips and stainless steel body avoid contamination, static discharge, and electromagnetic induction. These 5.25 in. tweezers with 1.7 in. tips resist heat to 1,500°C. Also available, tweezers with carbofib tips feature soft, composite material that prevents scratching, ESD, and other damage. Curved, fine tips are 0.02 in. wide, and overall length is 5 in.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Aug 31, 2011 Featuring industrial-grade, stainless steel housing, USA-manufactured VersaLift(TM) can be used on flat or round, non-flexing steel in horizontal lifting orientation. Unit has built-in lift capacity test function, which helps user determine if load is safe to lift. With optional bolt-on lift bracket, flat parts can be lifted in vertical orientation without additional equipment. Embedded RFID chip tracks history of any maintenance and/or calibration performed on unit.

Totech Europe B.V.    Dronten 8253  Netherlands
Aug 30, 2011 Designed to exceed challenges associated with IPC J-STD-033B.1, Series XSD 1400 and XSD 700 replace vacuum oven baking of taped on reel components. Units combine dual-wall insulated steel and glass design with U5002 Dynamic Series closed loop Zeolite dryer, delivering humidity levels below 0.5% RH and vapor content of less than 0.6 g.m³. Cabinets dry PCBs and other moisture sensitive devices without oxidation and inter-metallic growth induced by high-temperature baking.
