Tusk Direct Inc.    Bethel, CT 06801
Aug 24, 2007 ERL double rail guide system features steel shafts that can be staggered on mounts in order to extend length indefinitely. Guide rails consist of 2 precision hardened and ground shafts, 12 mm in dia, predrilled with M5 threaded holes and spaced 100 mm apart. Dual shafts are pulled together by aluminum support block design, ensuring they are parallel to less than or equal to 0.02 mm/1 mm. Support blocks have 2 holes spaced 28 mm apart and can be set at increments of 100 mm apart.

Schunk    Morrisville, NC 27560

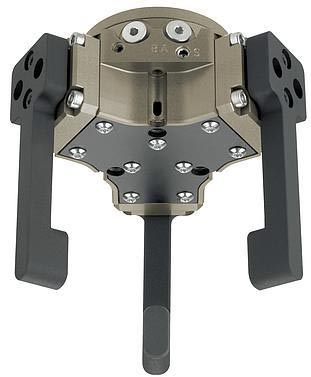

Aug 23, 2007 Sealed to IP67 requirements, DPZ-plus sizes 40 and 50 are designed for automated handling of small, round components in dirty or underwater environments as well as those with abrasive dust. Base jaws consist of external circular guide with wiper seal and internal multi-tooth guide, and vent part prevents differences in pressure. Circular piston drive offers respective gripping force of 51 and 65 lbf in DPZ-plus 40 and DPZ-plus 50, on strokes of 2.5 or 4 mm per finger.

Schunk    Morrisville, NC 27560

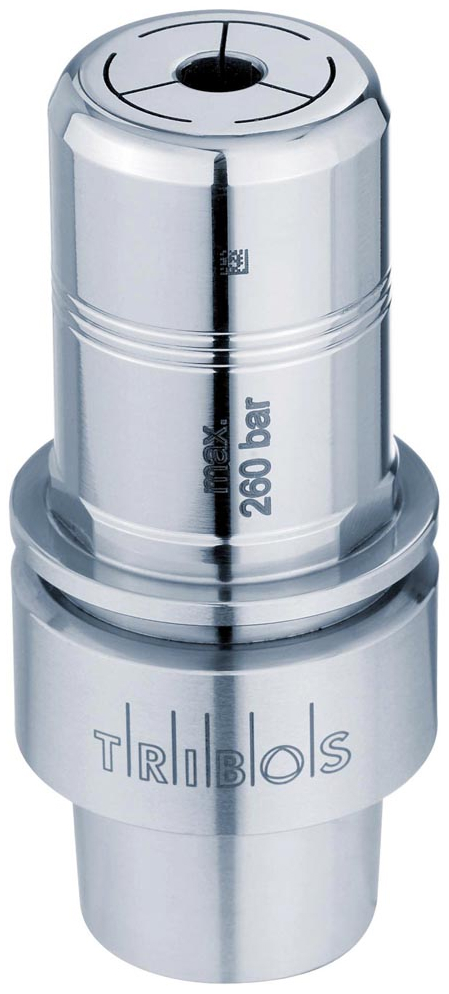

Aug 23, 2007 With feed rate of up to 20 m/min, maintenance-free TRIBOS-RM is suitable for cutting at speeds up to 50,000 rpm while offering run-out accuracy of less than 3 microns. Elastic forces of material are used to clamp tool shank. Together with corresponding reduction inserts, clamping process can be done within 30 sec via either manual or automatic device. Basic counter balance is ensured to be less than 4 g/mm due to rotational symmetric design.

SKF Motion Technologies    Lansdale, PA 19446
Aug 22, 2007 Supplied as complete, ready-to-mount units, SKF® miniature slides deliver smooth motion and precision guidance for linear motion applications requiring short strokes. There are 4 basic sizes (7, 9, 12, and 15) with widths from 17-32 mm and lengths from 26-165 mm. All are manufactured from corrosion-resistant stainless steel and hardened to optimize endurance and performance. Depending on application, slides achieve accuracies up to 2 microns over stroke of 100 mm.

BriskHeat Products(BH Thermal Corp.)    Columbus, OH 43201
Aug 22, 2007 Able to quickly heat/cool parts to reduce cycle times, BriskHeat Vacuum Curing and Debulking Table features heated/cooled lid that raises and lowers vertically to expose entire working surface. Design provides 360° table access, and full-color touchscreen interface allows precise control over ramp rate, soak time and temperature, cooling rate, and automatic vacuum control. Uses include vacuum curing, molding, bonding, hot drape forming, ply compaction, and debulking.

Reelcraft Industries, Inc.    Columbia City, IN 46725
Aug 22, 2007 Including external swivel for added safety that reduces likelihood of fire hazard resulting from gas leak, Model STW3450 OLP welding cable reel holds 50 ft of ¼ in. twin welding hose for use with oxygen/acetylene gasses. Features include snap ring that exposes seals if they require replacement, UV-stabilized polypropylene outer casing that is corrosion, acid, and alkali resistant, and high-grade spring steel drive spring.

Wagner Casters & Wheels, Div. of E.R. Wagner Mfg. Co.    Hustisford, WI 53034
Aug 21, 2007 With max load rating of 300 lb, 6 x 2 in. Navigator Wheel(TM) features load-rated springs inside wheel hub that reduce pushback effect of wheel as it impacts objects such as doorjambs, cords, and carpet divider strips. This allows cart to transition over rough terrain while protecting load. Available with gray thermoplastic rubber or red polyurethane tread, wheel is equipped for ½ in. axle and interchangeable with 2 in. wide heavy-duty casters.

Fulton Machinery, LLC    Phoenix, NY 13135
Aug 21, 2007 Designed to eliminate in-running nips that can produce and iron in web wrinkles, Vacuum Roll Assembly is capable of up to 5 pli tension isolation at 180° wrap, regardless of web width. Unit includes anti-friction pillow block bearings, vacuum rotary union, flex hose, 5 hp blower with exhaust, and mounting stand. Offering maintenance-free operation, assembly has drilled and ground shell with nickel-plated OD and incorporates external grooving pattern with drilled holes.

Hernon Mfg., Inc.    Sanford, FL 32771
Aug 21, 2007 Suited for low-volume production and repair operations, Autobonder 2101 features fully grounded foot pedal and syringe holder that allow for hands-free operation. Disposable syringe can be hand held for more precise dispense control and works with range of disposable needle sizes. Along with integrated pressure gauge and pressure regulator, features include variable vacuum control; clean, no-drip operation; and 6-function, digital timer adjustable from .01 sec to 9,999 hr.

Coxreels    Tempe, AZ 85283-4323
Aug 20, 2007 Suited for combustible environments where static buildup could ignite spark and subsequent explosion, hand crank SDH Series is configured to handle galvanized or stainless steel cable, in 100 or 200 ft lengths of 3/32 in. dia, covered with vinyl coated wire rope, totaling 5/32 in. dia. Integrated drag brake/reel stop prevents free wheeling and cable uncoiling during storage or transport, while FDA compliant C-PEP(TM) composite grommet style cable guide allows even wrapping.

Air Cylinders Direct    Mt. Pleasant, TN 38474
Aug 20, 2007 Capable of strokes up to 32 in., ESH Series features slide body of hardcoat anodized aluminum and air cylinder with stainless steel body and rod. Guided linear motion device, offered in bore sizes from 5/16-3 in., has steel/stainless steel guide shafts, polyurethane bumpers, and adjustable shaft collars. Alignment coupler offers 360° of float, eliminating side-loading of cylinder, and precision bearings are sealed with self-aligning and self lubricating rod wipers.

Waterloo Industries, Inc.    Waterloo, IA 50704 2095
Aug 20, 2007 Magnum® Facility Storage Units include floor cabinets, wall cabinets, and workbenches. Along with V-Rib design, floor and wall cabinets have respective load capacities of 4,800 and 1,200 lb. Former has 4 adjustable, 800 lb-capacity shelves with retaining strip to keep contents in place when tilted, while latter has 2 adjustable 300 lb capacity shelves. With adjustable bench height from 36-39 in., 6 ft workbenches handle up to 8,000 lb and have sealed MDF top with T-molding edge band.

Vista System    Sarasota, FL 34234
Aug 17, 2007 Post and Panel sign system is composed of 2 posts that support center sign frame via end cap. Oval-shaped, free-standing metal base is also available with formed metal supports. Both styles allow sign to be placed in any desired location without bolting it down, although permanent installation method is also available. Product is suited for directional or messaging purposes in areas such as lobbies, show rooms, and trade shows.

SYMETIX    Walla Walla, WA 99362
Aug 16, 2007 PulseScrubber(TM) features fully unattended and gentle operation, continuously receiving, handling, and discharging softgel capsules. Used at nutraceutical and pharmaceutical manufacturing facilities, system has 91 x 13 in. footprint and uses FDA-accepted, low-lint absorption media manufactured from cellulosic fibers that are hydraulically entangled. Unit is based on Key Technology's Impulse(TM) electromagnetic vibratory conveyor and has oil-free, solid-state electromagnetic drive.

Integral Technologies, Inc.    Indianapolis,, IN 46256
Aug 16, 2007 Interfacing with DS video management system software, DigitalSENTRY ControlPoint enables seamless and progressive migration from basic analog to hybrid or pure IP environments as customers' security needs, resources, and infrastructure grow. Program's interface speeds search of live, recorded, and archived audio and video, while export wizard downloads digital recordings. Critical data can be accessed, monitored, managed, and archived from desktop or remote locations.

SAS Automation, Ltd.    Xenia, OH 45385
Aug 15, 2007 Available in 0, 14, 20, and 30 mm sizes, WSL TR Long Angle Clamp allows for top mounting of gripper arms or holders to frame profile which are adjustable parallel and perpendicular to frame. Screw head points out from profile, enabling clamps to be mounted close together, while reversible profile locator allows for diverse tool location placement without compromising thickness/strength of head clamp.

Distech Systems, Inc.    Rochester, NY 14606
Aug 15, 2007 Weighing less than 1 ton, Model DS1100-MTL-TD can be moved from one machine to another with pallet jack. In addition to feeding parts directly from conveyor or tray, 7-axis robot can load or unload auxiliary equipment during machining. Robot can also transfer parts to secondary operations such as washing, inspection, or marking. Two drawers will accommodate tray up to 18 x 24 in., and trays can be wire, injection molded, vacuum formed, or heat-treated.

TNA Australia Pty Ltd    NSW 2127  Australia
Aug 15, 2007 Suited for food industry, roflo® handles product with optimal care to minimize product damage and flavor loss. Use of servo-driven system results in smooth operator motion, and mechanics provide precise control over handling of wide product range. Configurable to meet application demands, system makes it possible to use single pan lengths over 100 m with master drive and any number of slave drives. Programmable conveyors support variable length of stroke to 200 mm.

Elma Electronic Inc.    Fremont, CA 94538
Aug 15, 2007 Suited for medical products, industrial enclosures, and various commercial applications, Type 35 Variety Case allows exact sizing of enclosure. Aluminum extrusions are cut to any specified length, and can accept tapped strips, sealing cords for EMC, optional direct mounting of panel or PCB, grounding terminals, or screws. Enclosures have conductive inner surface and sufficient contact points for EMC, and removable side panels that allow access to inside components.

Anver Corp. - Anver.Com    Hudson, MA 01749
Aug 14, 2007 Fully integrated, ergonomic Anver VB4 consists of electrically operated, variable-speed hoist and constant air flow vacuum pump that can be located up to 150 ft away and provides positive holding power without drift. With this system, one person can position porous loads on and off pallets, skids, and shelves. In addition to maneuverable knuckle handlebar with 2-hand safety release mechanism, system features vacuum gauge and quick-release capability.
