Essemtec Ag      Switzerland
Dec 20, 2012 Designed for Paraquda and Cobra pick-and-place machines, PC-TF16-24 hyQ Feeder facilitates SMD reel setup by automatically threading tape and cover tape. Integrated tape pull-back system actively prevents jamming, while cutter shreds tape and cover tape into small pieces. Both 7 and 13 in. reels can be installed and pocket depth can be up to 13 mm. Programmed via pick-and-place machine or at remote feeder setup station, PC-TF16-24 hyQ offers feeding time of 60 ms for 4 mm.

NBE    Holland, MI 49424
Dec 20, 2012 Compliance-ready at start-up, integrated system conforms to specific, regulated processes and practices of wash-in-place (WIP) applications. Powered infeed conveyor and 2,000 lb capacity container lift carriage are complimented by 304-2b stainless steel custom discharge hood, surge hopper, and vibratory conveyor structurally designed with angled-plane, rounded-radius framework, and finished plate to reduce solids build-up and accelerate moisture removal.

Techno Sommer Automatic    New Hyde Park, NY 11040
Dec 20, 2012 Operating off standard shop air at up to 90 psi, Sharpshooter Lubrication System can place drop of lubricant at up to 1 m away with pinpoint accuracy. Pressurized tank generates internal pressures up to 750 psi. When pulse is generated, fixed drop size is dispensed. Up to 8 dispensing nozzles, available in 4 sizes ranging from 5–100 mm³, can be attached to one tank. Extension hose up to 2 m in length allows for dispensing nozzle to be placed around corners and in hard-to-reach spots.

GN Thermoforming Equipment    Chester   Canada

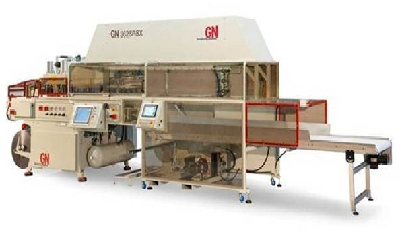

Dec 17, 2012 Used with GN 3625DX, 3021DX, and 4532D contact-heat, in-mold cut thermoformers for production of plastic packaging, Model RSX features rotating head that turns products 180° for de-nesting and can stack any configuration that thermoformer delivers. X/Y axis is positioned in center of sheet line for optimized handling and transfer of parts at high speeds.

Ergodyne Corp.    St. Paul, MN 55108
Dec 17, 2012 Made of 1680D ballistic polyester, Arsenal® 5850 Buddies Tool and Equipment Carrier features 25 interior pockets, elastic straps that keep tools vertical, heavy-duty YKK zippers, ID pocket for business cards or labels, carry handle, and shoulder strap. Arsenal® 5875 and 5876 Buddy Organizers, constructed of 600D polyester, are 2-pocket color-coded clamshell systems with screened mesh material for visibility, YKK zippers, and  web strap for securing to bag or body.

Coxreels    Tempe, AZ 85283-4323
Dec 14, 2012 Supporting operating pressures up to 5,000 psi, HP1125 models feature external fluid path configured with electroless nickel plated steel 90° full-flow NPT swivel inlet and chemical resistant AFLAS seals. Additional elements of construction include one-piece, all-welded A frame base for maximum stability; low-profile outlet riser; and open drum slot design that provides non-crimping, flat, smooth hose wrap. High-pressure option is available for ½ and ¾ in. models.

FIPA, Inc.    Atlanta, GA 30318
Dec 14, 2012 Pneumatically controlled magnetic gripper is suited for integration within electronics-free environments, often found in sheet forming plant, and is compatible with FIPA gripper construction kit. Product keeps work piece in place, even when compressed air supply is lost, and design ensure secure handling of flat, ferromagnetic work pieces with and without boreholes or cutouts. Optional PNP and NPN magnetic sensors are available to monitor piston position.

NewAge Industries Inc.    Southampton, PA 18966
Dec 14, 2012 Available in 12 sizes from 1/8–2 in. ID, Nylobrade® Braid-Reinforced PVC Hose offers NSF-51 and NSF-61 certification for use with food equipment materials and potable water. Hose's ingredients are non-toxic and conform to FDA and USP Class VI standards. Offering mirror-smooth interior surface for optimized flow, flexible hose provides corrosion, abrasion, and chemical resistance.

Quantum Fuel Systems Technologies Inc    Irvine, CA 92614
Dec 14, 2012 Pre-assembled, quality tested, and fully validated natural gas storage modules and system assemblies leverage Q-Lite™ carbon-composite gaseous fuel storage technology and are designed for accelerated integration onto variety of vehicle platforms. Products foster intelligent lightweight systems that maximize on-board fuel storage and contribute to improved fuel economy, handling, and emissions. Advanced natural gas storage systems also lend to weight reduction and increased fuel storage.

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540
Dec 13, 2012 Designed to mount to back of all Kurt and industry-standard 6 in. vises, SideWinder™ provides vertical workholding for second operation machining in same setup. Kurt Anglock® design minimizes jaw deflection, enabling vise to distribute clamping force evenly and precisely across full jaw surface. Constructed with 80,000 psi ductile iron body, vise features max jaw opening of 2.500 in., jaw width of 2.500 in., jaw height of 1.063 in., and workstop adjustment range 0–4.313 in.

AutomationDirect.com    Cumming, GA 30040-9905
Dec 12, 2012 Suitable for wash down applications, NITRA® F-Series is constructed of corrosion-resistant 300 series stainless steel with Teflon-based rod and pivot bushings, and urethane rod wiper that keeps wash down solutions out of cylinder. Non-repairable, round body units have 250 psi operating pressure and are interchangeable with other brands. Available with bore sizes from ¾–2 in., double acting cylinders feature stroke lengths from ½–18 in. and offer nose, rear pivot, and double-end mounting options.

WAGO Corp.    Germantown, WI 53022
Dec 12, 2012 Accommodating 14–6 AWG conductors, touch-safe 811 Series is available in 1–3 poles, with optional coupling kit for multi-pole configurations in field. Class CC model supports branch-circuit applications with up to 200 kA SCCR (30 A, 600 V), while Midget style achieves 100 kA SCCR (30 A, 750 Vac/1,000 Vdc) for supplemental protection. Featuring DIN-rail mount clip for installation and removal, lever-actuated devices replace traditional screw-based terminations with CAGE CLAMP® Spring Pressure.

Megger    Norristown, PA 19401
Dec 12, 2012 With clamps that accommodate up to 39 mm diameter cables and up to 50 mm wide flat earth tapes, DET14C and DET24C accurately measure earth resistance in multiple loop systems without breaking earth connections. Products feature CATIV 600 V safety rating and can measure ground resistance over 50 mΩ to 1,500 Ω range and true RMS ground leakage current from 0.2 mA to 35 A. Model DET24C adds optically isolated USB interface and can calculate Max, Min, and Ave values of periodic measurements.

Modern Process Equipment, Inc.    Chicago, IL 60623
Dec 11, 2012 Designed for transporting pet food products, Chain-Vey handles everything from raw ingredients to finished, ready-to-package goods. Transportation is engineered to be gentle and efficient for all phases of production process, while flexible design and footprint fosters placement within virtually any configuration. Features include dust-tight, enclosed design; clean-in-place capabilities; and automated wash cycles for sanitary conveying needs.

Anver Corp. - Anver.Com    Hudson, MA 01749
Dec 10, 2012 Featuring interchangeable, custom-made, concave-shaped suction pad with soft sponge rubber sealing pad, VFP Series below-the-hook vacuum lifter lets one person handle domes and spheres. Only rubber touches load, and capacity is 2,000 lb max. Powered by compressed air, product has all-welded steel frame, requires 8 in. of headroom, and includes vacuum gauges, audio-visual alarm to signal fractional vacuum leakage, and adjustable handlebar with built-in controls.

M&h Plastics Inc    Winchester, VA 22603
Dec 10, 2012 Available in 200, 250, and 400 ml sizes, Fusion bottles feature slimline shape with contemporary feel and softly curved lines. Design promotes grip, and all sizes take same snap-on flip top cap (Ref 8443), which comes with active hinge that lets user open closure and dispense product with one hand. Flat flip top cap enables bottles to be inverted and used as tottles, and different colors are available for bottles and caps.

Count On Tools    Gainesville, GA 30501
Dec 07, 2012 Designed for loading tape-and-reel components onto compact modules for prototype and high-mix/low-volume applications, StripFeeder .mod System features removable rails that can be mounted to accommodate wide array of tape sizes. Rails align with precision pin locaters and lock down tightly with magnets to guarantee stable, repeatable application. Rails are available in 0.5, 0.7, and 1.125 in. heights for deep pocket components, as well as 0.25 in. for paper tape components.

Newport Corp.    Irvine, CA 92606
Dec 07, 2012 Developed to accelerate loads having higher rotational inertia, RGV100HL employs direct-drive technology and is compatible with XPS-DRV02 driver. Precision glass scale encoder ensures 0.0003° repeatability and 0.0001° min incremental motion, while brushless DC torque motor with rare earth magnets optimizes available torque to deliver rapid point-to-point motions. Integrating bearings with motor, stage has footprint of 115 x 115 mm and offers 360° travel with 0.01° on-axis accuracy.

Columbus McKinnon Corp.    Amherst, NY 14228
Dec 07, 2012 Available in various capacities with both underhung and top-running trolleys, Explosion Proof Yale Global King is suited for Division 2, Class 1 (Group B, C, and D) applications and offers such options as special enclosures, metal clad (MC) electrical cable and sealed fittings, intrinsically safe control stations, and explosion proof rated motors. Heavy-duty disc brakes, rated at 200% torque, provide positive stops and load holding.

FSR Metal Products    West Paterson, NJ 07424
Dec 05, 2012 Mounted to wall close to ceiling in locations without drop ceilings or where space above drop ceiling is limited, Top Shelf provides unobtrusive and secure enclosure with which to hold up to 4U of audio, video, and network equipment. Multiple mounting locations for power as well as signal connections facilitate installation, steel frame ensures secure equipment mounting, and plastic cover allows wireless signals to pass in and out of enclosure unobstructed.
