DJ Products, Inc.    Little Falls, MN 56345

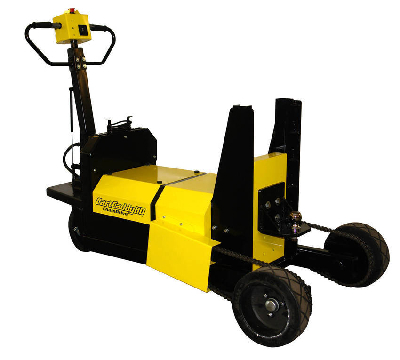

Apr 23, 2009 Featuring 6 hp motor that can provide up to 1,600 lb of horizontal push/pull force, chain-drive CartCaddyHD replaces need for lift truck in heavy cart and equipment pulling applications. Unit gets traction by transferring weight from load to drive wheels with 5,000 lb electric lift kit. Mover is suitable for carts with casters or carts on rails that go straight forward or backwards.

Automation Devices, Inc.    Fairview, PA 16415

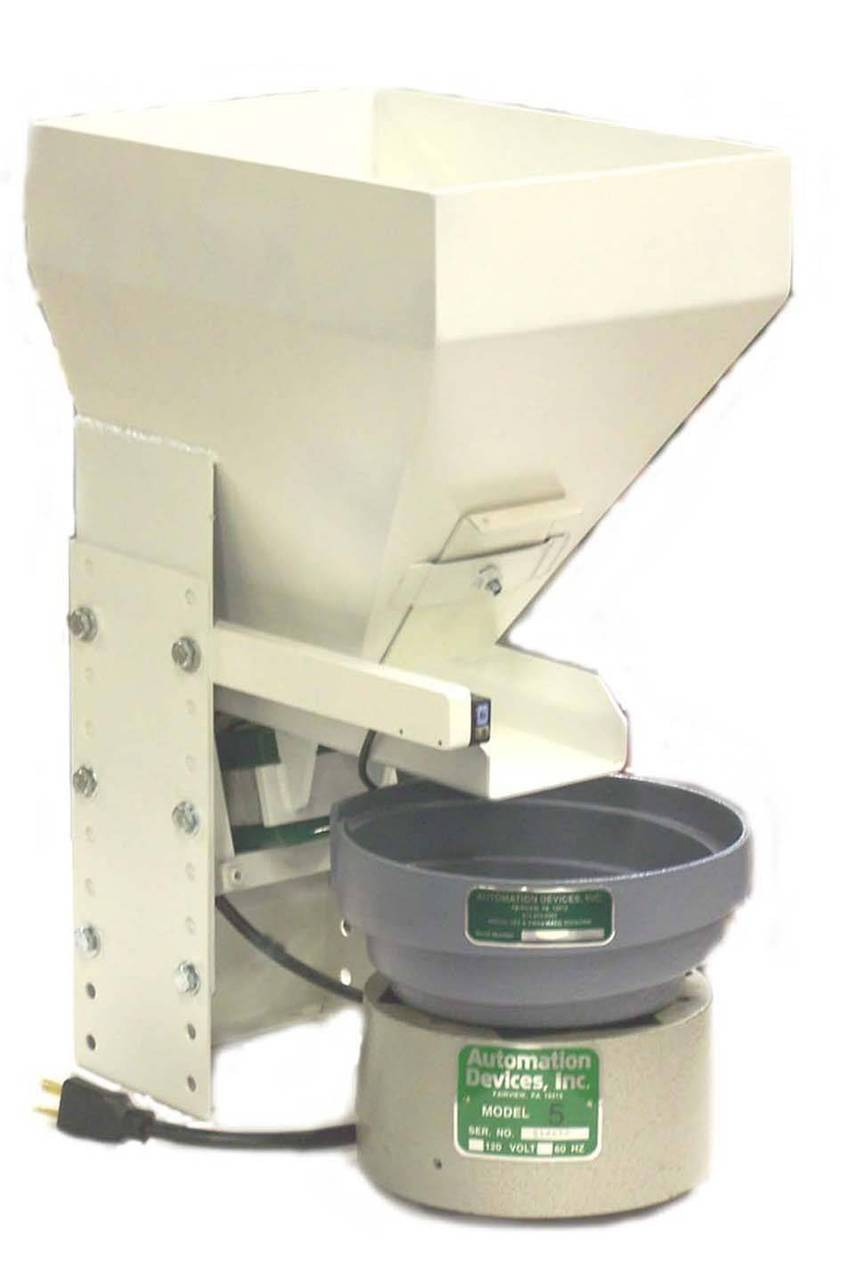

Apr 23, 2009 Featuring ¼ cu-ft capacity, 5500S Side Pan Feeder Hopper has fully adjustable discharge height of 5-11 in. and operates on 115 or 220 V, 60, or 50 Hz. Discharge tray overhangs unit by 5¾ in. and hopper can be mounted to base plate using provided mounting holes. Optional level control switch can be used to turn device on/off and provide predetermined level of parts in feeder bowl.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Apr 23, 2009 Designed for Class I, Division I service under a 108 in. ceiling height, Sanitary Material Master(TM) features sanitary 316L stainless steel construction with round horizontal tubes, no tube penetrations, welded stand-offs, and continuous TIG welds for thorough cleaning. Seal-Master(TM) bag spout chamber with gull wing doors provides discharge spout access, while Sure-Seal(TM) actuated bag spout clamping system allows for dust-tight product discharge.

GAO RFID Inc.    Toronto   Canada
Apr 23, 2009 Operating at 433 MHz, GAO124018 is powered by internal battery and designed for asset tagging applications on metallic surfaces or plastics containing high metal content. RF signal is transmitted at pre-set time-intervals for duration of tag's life, which is 5 years at rate of 1.5 sec. Encapsulated in molded plastic case to withstand harsh environments, tag offer configurable settings such as Site/Vendor ID, Tag ID, transmission, repetition interval, and alarm functions.

Schenck AccuRate    Whitewater, WI 53190

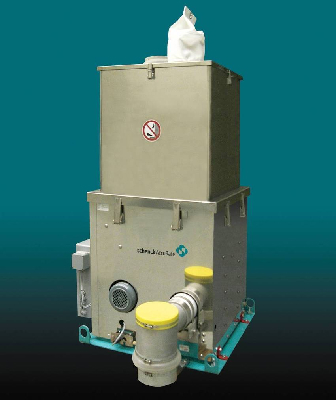

Apr 22, 2009 Intended for extruder manufacturers and compounders, ProFlex® C Model 6000 comes equipped with asymmetric flexible PUR feed-hopper and 8-point external agitation system that can be adjusted without influencing screw speed. Angular cut discharge nozzle optimizes accuracies by minimizing pulsation at low speeds. Integrated, dual strain gauge load cell-based multi-point weighing system serves as heart of ProFlex® C 6000 loss-in-weight metering capability.

Oil-Rite Corporation    Manitowoc, WI 54221 1207
Apr 22, 2009 Molded in single piece of translucent polypropylene, 1 Pint Reservoir resists elements making it suited for engines in outdoor equipment, generators, and general transport. Reservoir includes single piece molded plastic float switch and hand-rotated connection cap that adapts to differing engine designs and assembly processes. Venting system in cap permits air into reservoir and allows fluid to drain, while silicon umbrella valve seals against back flow.

Star Industries    Fort Worth, TX 76117 1706
Apr 22, 2009 Designed to utilize full capacity of forklift, Universal-fit Lift Hook Model 1370 has fork pockets that accept 7 in. wide x 2¾ in. thick forks. Fork pockets are spread to 34 in. on center, while hook point is located at standard 24 in. load center. Lift Hook is secured to carriage with attached high strength safety chain and grab hook, ensuring it will not slide off forks when load is being raised. Heavy duty 10K swivel hook with keeper and screw pin anchor shackle are included.

QC Industries    Batavia, OH 45103
Apr 22, 2009 Automation Series conveyors accept Pivot(TM) drives, which can be rotated to almost any position as application requirements change to avoid product on conveyor belt or obstructions caused by integrated machines. Timing belt inside guard transfers torque from motor to conveyor's drive pulley. Pivot drive package works with any standard QC Industries AC or DC gearmotor, including compact and quiet brushless DC motors. They are capable of belt speeds up to 400 fpm.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Apr 21, 2009 Suited for landscaping, construction, and agricultural applications, JLG® 619A has 6,000 lb capacity at maximum reach height of 19 ft, while 723A allows 7,000 lb at height of 23 ft. Both models feature all-wheel steering along with single joystick control design. Controls include standard lift/loader mode feature allowing operator to switch primary function of x-axis from controlling telescopic function of boom to controlling tilt or dump function of attachment.

Graco Inc.    Minneapolis, MN 55440
Apr 21, 2009 Featuring NXT air motor, small ram bulk supply systems transfer sealants and adhesives from 5, 7 and 16 gal containers. Graco L20c supply system suits low-volume applications of low-viscosity materials not requiring extra pressure, while Graco S20 is designed for low-volume in-plant applications of medium to high-viscosity materials. Models come with Graco Check-Mate® pumps featuring disconnect coupler, cartridge throat packings, and optional MaxLife® coatings on rods and cylinders.

Elscint Automation    Pune 411026  India
Apr 20, 2009 Ensuring lightweight plastic pen caps are fed in correct orientation, Vibratory Bowl Feeder provides high speeds of more than 100 pieces/min for 40 mm length caps. Unit features gravity chute designed to maintain clip orientation. Bowl is made of cast aluminum with Elscinthane PU coating in green color, while tooling is made in stainless steel with full argon welding.

Birchwood Casey    Eden Prairie, MN 55344 2138
Apr 20, 2009 Available in integrated programmable hoist and 110 gal tank line to automatically process iron and steel components with high quality black oxide finish, TRU TEMP® finishing system produces 4,000-6,000 lb of finished parts/8 hr shift. System can be programmed to process up to 3 part loads concurrently, for maximum throughput of 5 loads/hr. TRU TEMP finish produces durable satin-black magnetite coating of 0.5 microns in thickness, with no effect on material hardness.

Techno Sommer Automatic    New Hyde Park, NY 11040
Apr 20, 2009 With up to 4 mm stroke/jaw, and 0.5 Nm of torque for rotation, DGP404 Series of parallel grip and rotate modules are designed for high-load automation applications that require parts to be sorted and rotated 90 or 180°. Separate pneumatic connections for grip and rotate cylinders allow grip function to operate independently from rotate function. Offered in 6 different models for inside and outside gripping, each unit has magnetic position sensor slots built into housing.

CINTEC America Inc.    Washington, DC 20015
Apr 20, 2009 Measuring 3 ft 3 in. x 14 ft 3 in. x 12 ft 3 in. when inflated and weighing 127 lb, Hexagon Water Dam is designed to provide additional rapid water storage for fire fighting appliances where main water supply is unavailable. It allows bouser or tanker to empty water into unit and leave location to refill. With ability to withstand uneven ground and gentle slopes, unit suits applications in remote and rural fire response locations.

MeadWestvaco Corp.    Luke, MD 21540
Apr 17, 2009 Based on Aria X-fitment engine, Aria® Airless and Prelude(TM) Airless feature 32 mm container with 15, 20, 30, 40, 50, or 75 ml piston. Both have snap-on closure and Pure Path(TM) metal-free fluid path system, which eliminates risk of corrosion and discoloration since no metal comes in contact with formula. Available in 15, 30, and 50 ml bottle sizes, Pearl(TM) Mini Airless offers metal-free dispensing system based on Rolling Bellow Technology(TM), a 100% silicone, single-component engine.

QComp Technologies, Inc    Greenville, WI 54942
Apr 16, 2009 With integrated controls, line of glass handling conveyors include straight conveyors used for precise and non-marking transportation of flat glass, while pop up transfer conveyor provide 90° transfer from one straight section to another. Cantilevered finger unit allows for bottom side glass placement with integrated robot tool, where as tilt top conveyor helps in inspection and manual load/unload of conveyor. Skewed roller with side-guide conveyor moves glass to one side of conveyor.

UFP Technologies, Inc.    Kissimmee, FL 34744
Apr 15, 2009 Suitable for sales professionals, Custom Carrying Cases are used for displaying, presenting, protecting, and transporting products. Company's foam fabrication capabilities allow for corporate branding, such as company logos or colors, to be incorporated in case solution.

Stanley Vidmar    Allentown, PA 18105 1151
Apr 15, 2009 Ranging in height from 11 ft 2 in. to 13 ft 10 in., Motorized Parts Carousel maximizes floor space by fully utilizing vertical space. One worker can rotate shelves, locate desired inventory item, stop at proper position, and safely remove stored product at floor level. With overall max capacity of 13,000 lb, carousel generally has 10-18 shelves that are configurable to end-user storage requirements. Application examples include spare parts, stock rooms, and file storage.

Caldwell Group, Inc., The    Rockford, IL 61109
Apr 15, 2009 Model 20HC High Capacity Lifting Beams are available in 9 models with 10, 15, or 20 ft spreads and capacities of 50, 65, or 80 tons. They come standard with 2 additional spreads on 12 in. increments, lifting shackles, built in stands, and pin bail.

Rixan Associates, Inc.    Dayton, OH 45459
Apr 15, 2009 Offering repeatable positioning for automated operations, swivel stand systems RSS-1000 and RSS-2000 allow robot to swivel out of way for access during set-up or maintenance. Mounting pattern can be set to custom specifications with various heights and arm lengths available. Featuring gear clamp for fast release, RSS-2000 will index every 3° over entire 360° rotation.
