Terex Corp.    Westport, CT 06880
Oct 02, 2009 Available in 3 Runabout model heights of 12, 15, and 20 ft, Genie® QuickStock(TM) Lift comes in both Retail and Warehouse versions. Retail model, with 53 x 29.5 in. footprint and zero inside turning radius, offers capacity up to 500 lb and can maneuver through tight aisleways. It includes non-marking tires, dual platform swing-gates, dual flashing beacons, and obstruction sensing pad. Warehouse version offers same features with exception of beacons and sensing pad.

Key Technology, Inc.    Walla Walla, WA 99362
Oct 01, 2009 Featuring 1,520 mm wide scan area and up to 7 cameras and 2 lasers, Manta 1600 is suited for vegetable and fruit production lines. Using color and/or Vis/IR cameras, system recognizes each object's size and shape as well as millions of subtle color differences to remove defects based on user-defined reject standards. System can be equipped with FMAlert(TM) quality monitoring capability, which enables it to capture and save digital image of every object defined as foreign material.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 01, 2009 Featuring swivel brackets made of chromium-nickel plated stainless steel with bolt hole fitting, LIXR-VKHT has heat-resistant Blickle Hotline® special solid black rubber wheel. Caster features double ball bearing in swivel head, strong central kingpin, Teflon®-coated stainless steel axle tube, and zinc-plated bolted wheel axle. Metric caster withstands temperature from -22°F to 500°F and temporarily up to 535°F.

Bunting Magnetics Company    Newton, KS 67114 0468
Sep 29, 2009 Suitable for products with poor flow characteristics, RotoGrate features motorized rotating grate magnet, which removes ferrous metals from materials such as cocoa, flour, or starch. System is available in food grade and self-cleaning options as well as standard design. Users can order ceramic, Alnico, or rare earth magnets to get holding force right for application.

Kardex Remstar LLC    Westbrook, ME 04092
Sep 28, 2009 Using C3000 controls, CubeStar®-equipped Shuttle® VLM measures each tray profile to nearest inch, determining exact storage requirement. Control system determines best position in machine based on least amount of space used and fastest retrieval position. Items are automatically scanned to verify height of contents on each tray. Since Shuttle VLM can accommodate both fixed and variable height objects, it is suited for organizations with materials that vary in height.

A&H Engineering and Manufacturing, Inc.    Cerritos, CA 90703

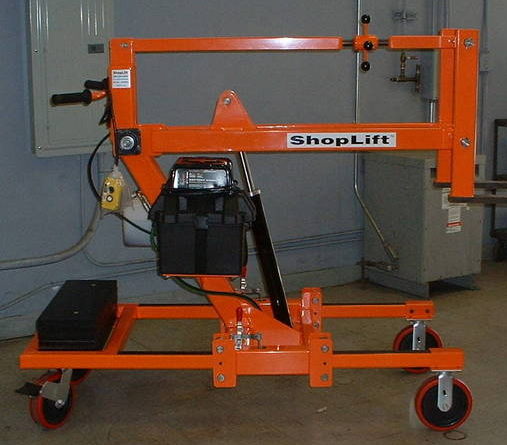

Sep 28, 2009 Shop Lift(TM) can fit through most standard doorways to deliver payloads safely to machine, storage rack, pallet, loading bay, or onto truck. At 61 x 28 x 72 in. and 700 lb, it is driven by 12 V electric-powered hydraulic pump with built-in battery and charger. Unit features 18 in. long steel forks with 9 in. load center, adjustable from 8-18 in. wide and with tilting to 15º. Hydraulics are rated to 1,200 lbs while molded polyurethane or cast steel 8 in. dia wheels ensure quiet operation.

Proper Storage Systems, Inc.    Seguin, TX 78155
Sep 28, 2009 Roll-out shelving designed, air powered, pneumatic press brake die storage unit can accommodate upper and lower die units on same shelf securely and safely. Each roll-out shelf is 36 in. deep with widths of 8-16 ft. Products have either 3 or 4 roll-out shelves with up to 18 in. of clear space between shelves, and each roll-out shelf has weight capacity of 6,000 lb. Storage unit comes with automatic safety interlock that locks in all other shelves when shelf is rolled out.

ESS Technologies, Inc.    Blacksburg, VA 24060
Sep 25, 2009 Along with infeed design that delivers tubes directly into zero-backlash turret, Monoblock Filler/Capper for Micro-Tubes and Micro-Vials features capping station and magnetic stainless steel clutch system. Servo filling and capping design allows MB 120 to handle 100+ micro-tubes per minute (MTPM), and color touch screen is used to adjust pump fill rates as well as servo controls for diving nozzles. While MB 60 fills up to 60 MTPM, mechanical, single-pitch MB 40 fills up to 40 MTPM.

Sidel, Inc.    NOrcross, GA 30092
Sep 25, 2009 Model AQ-HC ensures regulation of packaging lines by varying operating speed of other machines in order to adapt to production needs, compensate for machine shutdown, and manage continuous flow of products. Ultrasonic sensors are used upstream for precise detection of flows, while downstream, use of mechatronic drive system enables quick, smooth variation of conveyor speeds. It is capable of handling wide range of container types and formats in different configurations.

1stSource Products    Jeffersonville, IN 47130

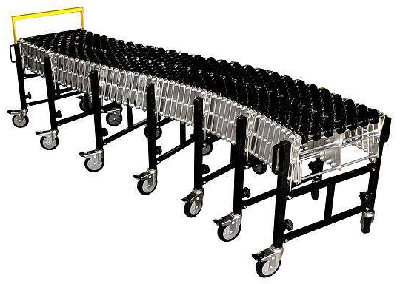

Sep 25, 2009 Suited for light- and medium-duty applications, 1stFlex(TM)200 has tubular steel frame and resin skate wheels with internal steel ball bearings. Internal structure minimizes friction while optimizing load bearing capacity (90 lb/ft). With same frame, 1stFlex(TM)300 has 300 lb/ft capacity and employs heavy-duty steel skate wheels with 10,000,000+ revolution service life. Both models, offered in 12-24 ft lengths and 18-24 in. widths, can be adjusted for heights from 18-40 in. via knob.

Komatsu America Corp.    Rolling Meadows, IL 60008
Sep 25, 2009 With net horsepower of 272 hp and operating weight of 51,850-52,150 lb, WA470-6 offers dump clearance of 10 ft, 5 in. when equipped with 5.5 Yd³ general purpose bucket. It is powered by EPA Tier 3 emission certified Komatsu SAA6D125E-5 diesel engine with Electronic Heavy Duty Common Rail fuel injection system that optimizes fuel combustion. Large cab features wide pillar-less flat glass for front visibility, low-noise design, and built-in ROPS/FOPS structure for operator protection.

Morey Corp., The    Woodridge, IL 60517
Sep 24, 2009 Rugged TRAX MT-13 GPS tracks assets and also provides monitoring of key sensors and enable some control via multiple inputs and outputs. Compact, rugged enclosure is designed to IP65 standards and incorporates internal GPS and GSM antennas. Device includes SAE J1455 tested external back-up battery, voltage monitoring, low battery notification, and message buffering. It is suited for delivery and service fleets, rental equipment, and sub-prime lending and theft recovery.

Curtis Industries, LLC    Worcester, MA 01606
Sep 24, 2009 Designed for small pick-up trucks and UTVs, Sno-Pro Fast Cast 550 1/3 Yd poly hopper spreader features lightweight, polymer hopper with steel structural parts that can be used on various types of material including both salt and sand. Spreader weighs 300 lb, features quiet, 5.5 hp Honda gasoline engine, and enables operators to service small hard to reach spaces. Adjustable gate flow control and material deflectors with spreading width of 4-24 ft are standard.

Pelican Products, Inc.    Torrance, CA 90505
Sep 24, 2009 Watertight and crush-resistant, 1170 Case has high-impact, heat and chemical resistant polymer shell and features stainless steel hardware and double-throw latches that can stand up to 400 lb of pull force, yet open with light pull. Tongue-and-groove lid construction and polymer o-ring create watertight seal, while built-in automatic pressure equalization valve keeps moisture out. Product is available in black, silver, orange, yellow, and desert tan.

Northfield Precision Instrument Corp.    Island Park, NY 11558

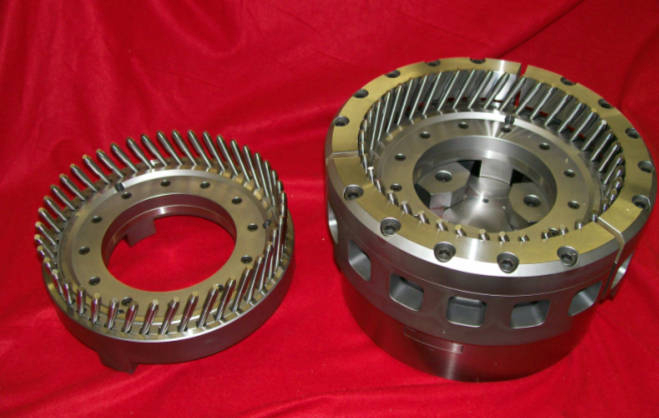

Sep 24, 2009 Developed to grip OD of 9 in. dia helical gears, Pitch Line features pins mounted in loose fitting housing so they can float. Pins pick up pitch diameter, and jaws grip OD of pins. Because pitch is measured over pins, gripping is performed in same manner as measuring. Models include through-hole, high-speed, and quick-change chucks, available in SAE or metric sizes from 3-18 in. (76-457 mm) with accuracies from 0.001-0.00001 in.

Kinetic Systems, Inc.    Boston, MA 02131

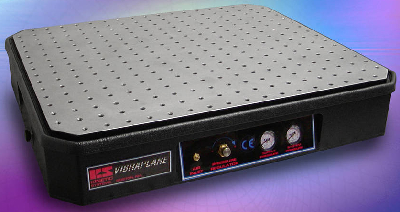

Sep 22, 2009 Weighing 40 lb, ELpF (Ergonomic Low-Profile-Format) benchtop system provides vibration isolation for sensitive devices. Self-contained solution uses 16 x 19 in. tabletop, has 3 in. profile, and supports loads up to 100 or 300 lb. Designed for use in laboratories and Class 100 cleanrooms, self-leveling and active-air isolation give platform 1.75 Hz (vertical) and 2.0 Hz (horizontal) natural frequencies. Isolation efficiencies are 95% (vertical) and 92% (horizontal) at 10 Hz.

Nexen Lift Trucks Ltd    Suffolk NR32 1UL  United Kingdom
Sep 22, 2009 Offered in 2-3.5 ton capacities, X-Range is comprised of 7 models powered by choice of Kubota/Yanmar or Nissan/GM engines. There are also 3 packages with multiple drivetrain configurations. Constructed with one-piece chassis, trucks integrate Smart Dash engine monitoring system and fully floating driver's cell, which is attached to chassis using anti-vibration dampers. Low center of gravity promotes torsional rigidity and stability, and machines are fitted with rubber-mounted steer axles.

Aven, Inc.    Ann Arbor, MI 48108

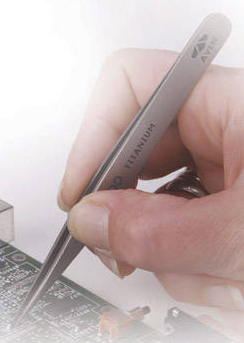

Sep 22, 2009 Ranging from 4.25-5 in. long, 9 styles of lightweight titanium tweezers with purpose-configured tips are optimized for strength, endurance, and avoiding contamination. They will not shed microscopic particles and are truly non-magnetic. Suited for semiconductor device fabrication and other clean room operations, tweezers exhibit resistance to abrasion as well as corrosion and are heat-tolerant to 800°F. Tensile strength maintains tip integrity without re-sharpening.

Harrington Hoists, Inc.    Manheim, PA 17545 1754
Sep 18, 2009 Available with standard 20 ft of lift, industrial grade, SHB ultra-low trolley hoists are designed for industrial lifting applications where space is limited and for demanding environments. They include drive train that minimizes effort required to operate, maintenance-free and lubed-for-life sealed ball bearings, and grade 100 heat-treated manganese alloy load chain resistant to abrasion and wear. Cast trolley wheels fit on both tapered and flat flanged beams.

C.P. Bourg Inc.    New Bedford, MA 02745
Sep 18, 2009 Utilizing suction paper transport system and gear-drive system, BST-e Suction Tower Collator feeds offset or digital printed material in sheet sizes up to 14.5 x 23.5 in. into Bourg BME Booklet Maker. System is controlled entirely through color touchscreen operator console of booklet maker. Paper pile height in each of 10 pockets accommodates 3 in. stack of paper stock from 60-350 gsm. For optimal paper feeding, up to 5 BST-e towers can be linked together.
