Boge American, Inc.    Powder Springs, GA 30127
Nov 04, 2009 Boge CL 10 and CL 20 screw compressors feature high-performance damping and lamellar graphite casting which ensure silencing that produces sound pressure levels as low as 59 dBA. Featuring compact design suitable for workshop environments, devices are available in standard pressure of 150 psi and with output capacity range from 37-79 cfm. Components and parts are accessible from one point, simplifying service and maintenance.

AMOT Controls Corp.    Houston, TX 77064
Nov 04, 2009 Suited for underground mining or similar applications calling for Group 1 certification, Chalwyn SVX electronically operated air intake shutdown valve has non-sparking zinc alloy body and solenoid cover. Failsafe valve helps to prevent potential explosions from diesel engine ignition wherever there is combustible gas, vapor, or dust hazard. Designed for air intake diameters from 1½-8 in., butterfly valve can be flange or hose mounted.

Instron    Norwood, MA 02062-2643
Nov 03, 2009 Available in 1, 2, 5, and 10 kN options, 2712-04x Series features fully enclosed self-centering mechanism suitable for gripping plastics, metals, textiles, paper, and foil. Dual-action gripping force allows operator to maintain axiality of loading without having to adjust for changes in specimen thickness. Additional features include air valve to open and close grips, lock nut that removes backlash, and large throat area, which offers room for operator fingers and minimizes pinching.

Techno Sommer Automatic    New Hyde Park, NY 11040
Nov 03, 2009 Available in 8 different sizes starting at 12 x 10 x 26 mm, MGW800 Series is suited for assemblies and multiple pick-and-place applications. Grippers offer grip torque up to 39.36 lbf-in. and stroke per jaw of 37.5°. Miniature size allows manifolding through bottom mounting surface, eliminating side air fittings. Jaw position, whether opened or closed, can be sensed through use of magnetic sensors, providing positive feedback.

Schunk    Morrisville, NC 27560
Nov 03, 2009 Measuring 10 x 10 in. and suited for 5-axis machining centers, UNILOCK NSA SF achieves precise centering using 4 short tapers on corners, which also compensate for torques and tilting moments. Single clamping module generates 16,860 lb of force. UNILOCK NSA SF is failsafe, using 4 spring driven form-fit, self-locking clamping slides into centering sleeve that can be monitored. To unlock clamping modules, standard air supply pressure of 6 bars is sufficient.

Jescraft    Bogota, NJ 07603
Nov 03, 2009 PRO-LITE carts are available in 16 models, and in varying widths of 20, 24, and 28 in. and 3 bumper styles. All 12 in. deck models have load capacity of 3,200 lb and range in weight from 60-70 lb, while 18 in. decks can carry up to 3,600 lb and weigh 70-80 lb. Non-marking, 8 x 2 in. elastomer swivel casters offer maneuverability over all types of surfaces. Units are offered with 2 types of decks; heavy-duty steel plate or replaceable, impact-resistant ¼ in. thick UHMW polyethylene.

QComp Technologies, Inc    Greenville, WI 54942
Nov 02, 2009 Able to accommodate less than perfect pallets, plug-and-play Automated Pallet Dispenser utilizes integrated scissor lift and feed conveyor to dispense or stack pallets, and provides area for stacked pallets to be staged in front of downstream processes. Designed to integrate with QComp palletizers, dispenser includes wide chain to protect pallets, Rockwell Micrologix PLC, and Panelview Plus 600 HMI.

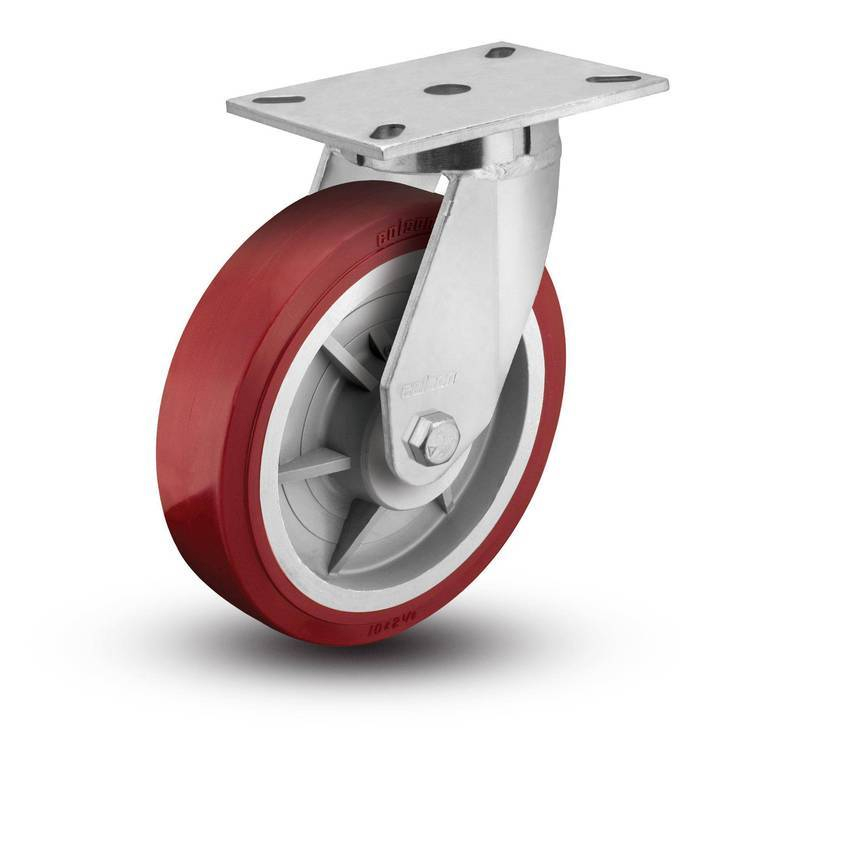

Colson Caster Corp.    Jonesboro, AR 72401
Nov 02, 2009 Enforcer fork casters feature kingpinless design with single-ball raceway, providing tight tolerance and limited play in swivel motion. Mid- to heavy-duty products offer side-lock and tread-lock brakes on 4 and 6 series, which can also include extended lead for towline applications and DirtBan seal in upper raceway. Tread-lock brakes are available for 7 and 8 series products.

SAS Automation, Ltd.    Xenia, OH 45385
Oct 30, 2009 Distributing force evenly over entire contact area, Internal Diameter Gripper (IDG) is designed for heavy, fragile, and irregular shaped parts. Product grips and releases on command. Rubber strips ensure secure grip, while customizable nose adapter can be used for locating or part stabilization.

OK International    Garden Grove, CA 92841
Oct 30, 2009 Soldering and rework system, MX-500, is available with MX-PTZ precision tweezer hand-piece that is ergonomically designed to meet requirements for reworking small electronic components, including 0201. Tweezers enable user to remove and replace components, with targeted application of heat, to soldered connections of devices while mechanically gripping component for removal. Tweezer-action and dual-position pitch adjustment enable operator to size pincer-action to component width.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379
Oct 29, 2009 Available for retrofit to existing 3½ in. Davis-Standard extruders, Hinge-Roll Feedsection offers uniform, consistent feed rate and adjusts automatically based on feed strip size. Feedroll and interior of feedsection are accessible by unfastening 2 swing bolts and lowering attached swing-down cartridge by means of electro-mechanical cylinder. Belt drive eliminates lubrication requirements and belts automatically loosen for feedroll removal.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Oct 29, 2009 Used to dispense anaerobic flange and gasket sealants from 50 ml tubes, Loctite® 50 ml Tube Squeeze Dispenser provides smooth and consistent adhesive flow. Ergonomic, trigger-controlled dispense gun eliminates tube squeezing and provides controlled positioning of adhesives. Manually operated dispenser incorporates pivoting tray that facilitates tube changeover. Design completely empties tube, reducing adhesive waste and conserving material expenditure.

Modern Process Equipment, Inc.    Chicago, IL 60623
Oct 29, 2009 Capable of moving products without use of air, Chain-Vey(TM) Conveyor transfers particle blends without risk of segregation or breakage. Suited for products including ground coffee, dried foods, material chips, and activated carbon, unit is available in sizes of 4, 5, and 6 in., and can convey up to 300 ft. Sealed tube contains aroma and allows for air-tight conveying, while self-cleaning feature eliminates cleaning between change-over.

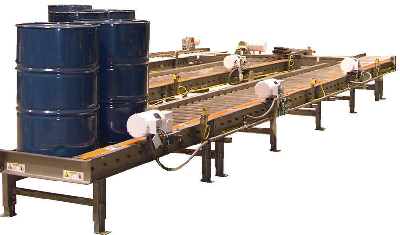

Specialty Equipment    Houston, TX 77055
Oct 28, 2009 Built with 304 stainless steel rollers, bearings, sprockets, chains, frames, and supports, chain-driven conveyors transport, accumulate, and transfer loads such as drums, pallets, or IBCs at 500-5,000 lb. Rollers and scalloped guard are both sealed with UHMW splash guards and seals, and speeds of up to 60 fpm can be reached when handling drums up to 750 lb. Conveyors are available as complete system that interfaces with drum dumping system using individual powered accumulation zones.

Stanley Vidmar    Allentown, PA 18105 1151
Oct 27, 2009 Comprised of removable, adjustable pallets and captive lifting and handling device, STAK base model enables one operator to manage loads weighing up to 4,000 lb in less than 250 sq-ft. STAK Max, offering all features of STAK, can be built up to 24 ft high and each pallet can accommodate loads up to 2,500 lb. STAK Max 5000 offers all features of STAK Max, but provides pallet load capacity up to 5,000 lb each, with vertical height up to 24 ft.

Eriez Magnetics    Erie, PA 16506
Oct 26, 2009 Offering sanitary alternative to screw feeders, Model 26C enables linear, exact feeding of large quantities of bulk materials. AC-operated unit is capable of feeding up to 4 tons/hr and features totally enclosed, dust and moisture resistant electromagnetic drive, which maximizes coil life. Hi-Vi Magnetic Drive Circuit, powered by alternately opposing and attracting magnetic forces, minimizes maintenance since there are no sliding or rotating parts.

Mason Box    North Attleboro, MA 02761
Oct 23, 2009 Available in sizes from 1 7/8 x 1 7/8 x 9/16 in. up to 18 x 13 x 3 1/8, Mason Custom Shipping Boxes provide burst strength of 150 lb/in². They feature rigid cardboard construction with 2 wire tabs that come up from bottom half, fit through top, and fold over to secure it. Lightweight, reusable, and recyclable boxes can be supplied with precut open- or closed-cell foam inserts to cradle and protect all types of fragile products during shipping and storage.

Richco, Inc.    Morton Grove, IL 60053
Oct 22, 2009 Designed to hold corrugated/convoluted tubing to surface, HLCC features internal rib that spans diameter of clip, providing secure fit around indent found in tubing. Clamp's internal locking feature is engaged once it is closed, and provides strong retention force. Locking top is releasable for maintenance or replacement, and fir tree fix accommodates wide range of panel thicknesses.

JMR Electronics, Inc.    Chatsworth, CA 91311
Oct 21, 2009 Featuring transfer rate of over 1.4 Gbps, BlueStor(TM) RED Video Storage Server is suited for recording/streaming digital video imagery captured on RED ONE digital camera or used in SD/HD/2K and 4K post-production workflows. Unit is 4U rackmount, 16-bay RAID system with dual quad-core processors, dual PCIe RAID controllers, and Quadro FX5600 SDI graphics card as well as USB/Firewire/dual GigE/E-SATA ports. System has 24 Gb DDR3 ECC memory and, using 2 Tb disk drives, can scale up to 32 Tb.

Memory Protection Devices    Farmingdale, NY 11735
Oct 21, 2009 Measuring 5.08 mm high x 29.0 mm long, Model BC2032-E2 has UL94V-0 plastic body and nickel-plated stainless steel pressure contacts with pc pin tails that are unequal in size so holder is polarity protected against insertion errors. Built in circuit protection eliminates drawbacks associated with standard CR2032 battery holders as holder prevents insertion of battery when upside down.
