Columbia Okura LLC    Vancouver, WA 98661
Apr 02, 2010 Capable of performing 1,800 cycles/hr, A1800 palletizing and depalletizing solution has payload capacity of up to 310 lb and operating range of 350°. It can stack more than 28 bags/min and incorporates touchscreen interface for pattern programming and operation. Design and minimized maintenance requirements ensure optimal uptime.

Coval Vacuum Technology Inc.    Raleigh, NC 27606

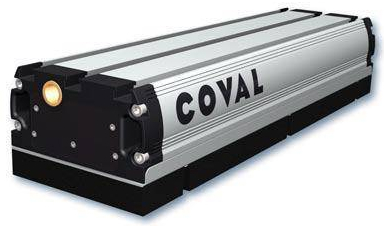

Apr 02, 2010 CVG series combines multi-stage vacuum generator, integrated vacuum check-valves, vacuum gauge, and foam gripper mat into one aluminum housing that comes in 4 lengths from 400-1,200 mm. Multi-stage generator comes in 4 interchangeable sizes, making it possible for user to configure vacuum gripper to meet porosity and surface quality requirements of products to be gripped. Due to integral check-valve system, machine can grip products of different shapes, sizes, porosities, and weights.

DE-STA-CO Industries    Madison Heights, MI 48071
Apr 02, 2010 Featuring modular frame design in 18 in. increments, Modular Tabletop Conveyor Series provides multiple-station chassis for assembly of complicated products. For 3, 4.5, and 6 in. links, overall width of conveyor is approximately 13.5 in, accommodating linear and rotary parts handlers. Tapped holes along length of conveyor receive custom or standard tooling plates, while open backbone allows electrical, pneumatic, and mechanical components to pass through.

Schunk    Morrisville, NC 27560
Apr 02, 2010 Designed as modular system with fixed central section and large through hole, Type RST-P can cycle either to left, to right, or alternate without requiring any modifications. Cycle type can be changed in any order, any number of times, and angular adjustment can be defined with spacers to 4, 6, 8, or 12 steps. Hydraulic shock absorbers dampen end positions in both directions.

Videx, Inc.    Corvallis, OR 97330

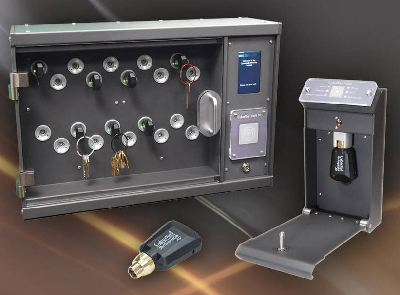

Apr 02, 2010 Built with metal housings, CyberKey Vault and CyberKey Vault20 provide secure access to key cabinet, secure access to individually programmed keys, and audit report of each key's lock opening and unauthorized attempts to enter. When employee needs key, RFID card or correct PIN must be entered to open cabinet and entered again to request key to be programmed and released. When employee returns electronic key to cabinet at end of day, audit trail of key and lock activity is downloaded to software.

Northfield Precision Instrument Corp.    Island Park, NY 11558

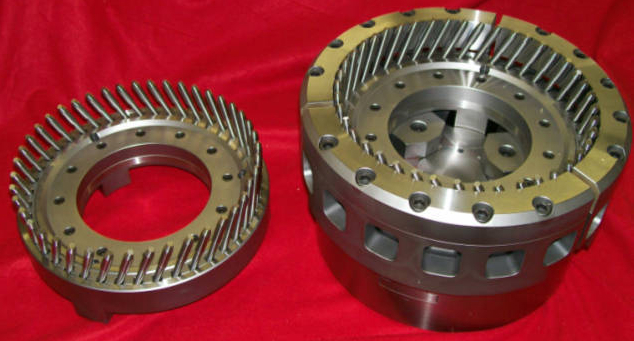

Apr 02, 2010 Designed to grip OD of 9 in. diameter helical gears, MG Mini-Gear Pitch Line Chuck features pins mounted in loose fitting housing so that they can float. Pins pick up pitch diameter, and jaws grip OD of pins. At 10 in. dia, Northfield model 1000 air chuck features 2 pin cages: one for left hand helix, and one for right hand helix. Pin cages are changed out by removing 3 mounting screws.

Douglas Machine    Alexandria, MN 56308 3399
Apr 02, 2010 Capable of running product heights from ¾ to 4 in., Velocity® II gently forms stacked product pack patterns without interruption, delivering continuous flow at speeds to 600 products/min. Intelligent programming accurately counts products and automatically adjusts product flow rate to prevent jams. Featuring servo controls for quick tool-free changeovers, stacker supports numerous pack patterns and does not require pre-stacking or priming, resulting in rapid startups.

EPSON Factory Automation/Robotics    Carson, CA 90746
Apr 02, 2010 Able to be controlled from PC-based RC520 and RC420 controllers, EPSON EZ Modules come in 1-, 2-, and 3-axis configurations with speeds up to 1,500 mm/sec. Sizes range from 400-1,000 mm for first axis, 350-750 mm for second, and 200-400 mm for third. Along with linear bearings and ballscrew that are lubricated for life, features include absolute encoders, precision ground ball screws, and belt seals. Servo control optimizes manipulator performance.

EPSON Factory Automation/Robotics    Carson, CA 90746
Apr 02, 2010 With reach of 791 mm, EPSON Pro Six PS3-AS00 comes equipped with Sigma III AC servo motors, EPSON servo control system, and EPSON RC520 PC-based controller. Unit features rigid design for smooth, high-speed motion with precision position settling. Two Pro Six robots can be controlled from one RC520 controller or 1 Pro Six robot and 2 E2 SCARA Robots can be controlled from one RC520. Available in floor, wall, and ceiling mounted configurations, robot meets ANSI/RIA 15.06-1999 safety standard.

Industrial Conveying (Aust) Pty Ltd    Victoria 3552  Australia
Apr 01, 2010 Consisting of trommel and associated conveyor systems, custom Waste Handling System almost completely eliminates manual intervention. Used for primary sortation of co-mingled products, 2-stage trommel sorts beverage containers such as plastic, glass, and ferrous items. Stage 1 uses small diameter holes in screens to take fines out of system, while Stage 2 has larger diameter holes to separate containers and paper. Any paper/cardboard product in mix is conveyed away to secondary sorting system.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Apr 01, 2010 Capable of palletizing cases, trays, bags, or totes, Model 72AE incorporates extended accumulation table that allows continuous layer forming during completed layer transfer and stacking, achieving volume of up to 35 units/min. Energy-efficient electric motors provide smooth operation, while all layer patterns and pallet configurations are programmed for simplified startup and control. Offering automatic product changeover, unit facilitates product configuration via touchscreen panel.

Winkle Industries    Alliance, OH 44601

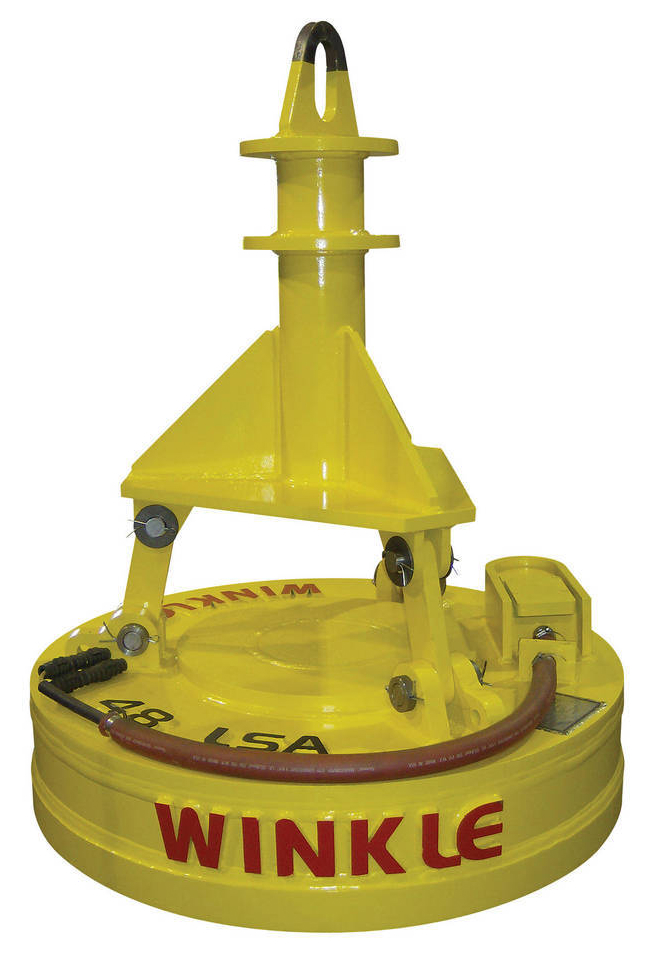

Mar 29, 2010 Permanent tower, placed directly on top of magnet, lets operators combine grapple and magnet on-the-fly. It accommodates DSG/ELSA/LSA/DSA/EDSA magnets and most other makes/models of scrap magnets. With tines closed around tower, magnet is suspended below grapple. This provides operator with clear view of magnet for placement and facilitates operation. Tower can be grasped by grapple tines while operator is in cab, leaving operator with having to attach electrical line for generator.

Schunk    Morrisville, NC 27560

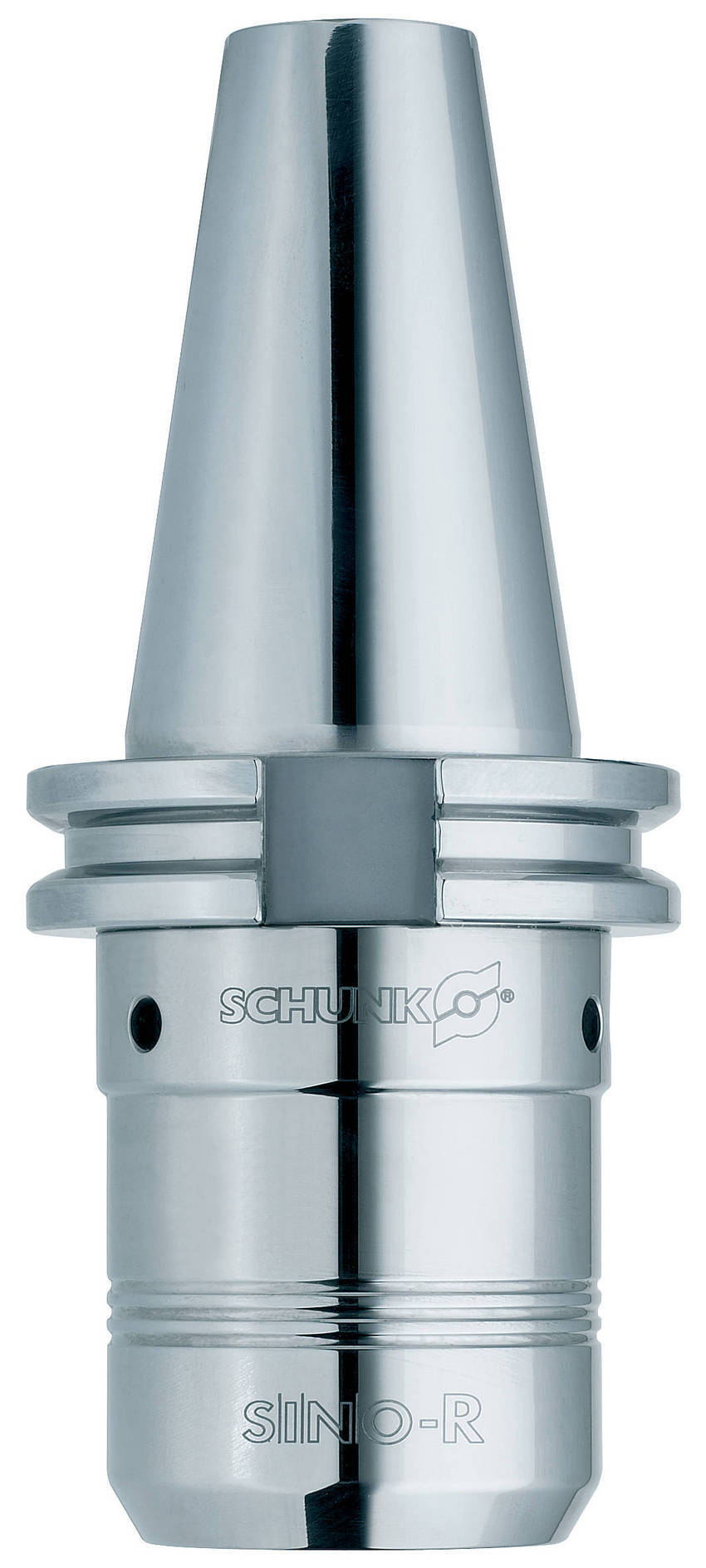

Mar 29, 2010 Universal toolholder SINO-R uses solid body as pressure medium that enables clamping of cutting tool with actuation wrench. Intermediate sleeves allow nearly all common tool shank diameters to be clamped. Maintenance-free device has maximum torque transmission of 627 lb-ft at clamping diameter of 1.25 in., and is precision-balanced standard to 6.3 G at 15,000 rpm. High radial rigidity/dampening ensure smooth running of tool.

HK Systems    New Berlin, WI 53151
Mar 26, 2010 Designed to handle and sort packages ranging from 6-36 in. in length, MB100 offers rates exceeding 100 packages/min, enhancing pre-sorting, value add, kitting, pre-shipping, and shipping activities. Sorter is suited for automated transport of small products in wide range of industries such as parcel (small and flat), media (CDs, DVDs, books), food and beverage, wine and spirits, e-commerce, retail, and manufacturing.

Rotary Lift    Madison, IN 47250
Mar 26, 2010 Designed for general service work, Y-Lift(TM) Model YA12 can be used for 4-wheel alignments on wheelbases from 71½ to 158 in. Hydraulic cylinder, locking mechanism, and position sensor are all located inside runways to protect against damage. Providing 12,000 lb capacity, drive-on hinged lift is ETL/ALI certified to meet ANSI/ALI ALCTV-2006 safety standards. It is compatible with all alignment instrumentation, including 3D and camera wheel alignment systems.

EXTRUSION DIES INDUSTRIES    Chippewa Falls, WI 54729-1443

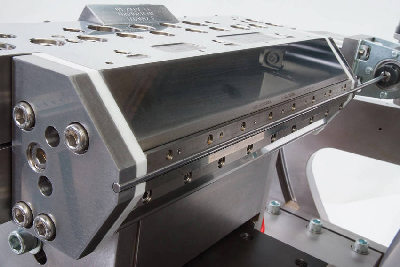

Mar 24, 2010 Available as stand-alone system or as component of completely integrated, computer-controlled coating station, Slot Die for coating continuous-web substrates accommodates line speeds up to 2,000 fpm and achieves coat weights as low as 0.5 mil. Die includes system for adjusting cross-direction coat weight profile and device that eliminates streaking and makes clear application of pressure sensitive adhesives possible.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Mar 24, 2010 Consisting of 18 compact, low-profile circular wire rope isolators, V10Z69 Series mounts feature multiaxial shock and vibration protection, corrosion-resistance, and maintenance-free operation. Cables are manufactured from SS and mounting plates of aluminum. Units are stocked in 1/16, 3/32, 1/8, 3/16, and ¼ in. dia cable. They suit military and industrial computer, electronics, medical equipment, generator, motor, and pump applications.

MPI Label Systems    Sebring, OH 44672
Mar 24, 2010 Label applicators with All-in-One Touch Computer provide control platform and simplified user interface. Systems include 15 in. LCD as well as silent, fanless design that withstands heat and rugged environments. Two serial, 4 USB, and Ethernet ports are included for expansion. Various mounting options are available and product can also be configured to include mounting stand, labeling software, printer applicator, and conveyor.

Morse Watchmans    Oxford, CT 06478
Mar 24, 2010 Suitable for mounting under cabinets or on counter tops, 6-module horizontal KeyWatcher® system provides control over who can remove key and is interoperable with various access control systems. System comes with bottom-mounted control box and can be used with remotely mounted keypad and display box. Designed to resist abuse and wired with tamper-proof mechanism, KeyWatcher cabinet is secured using built-in keypad and up to 2,000 assignable user codes with PINs.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Mar 23, 2010 Maintenance-free DF-C Cyclone Separator features flow-path that reduces differential pressure drop to minimize energy consumption. Air flow is generated by centrifugal forces then water, in form of droplet or condensation in aftercooler, is removed along with solid and liquid aerosols from 5-10 µm. Immersion-lacquered coating of aluminum die-cast housing interior optimizes air flow and provides corrosion protection. Product is available in 6 sizes.
