Schunk    Morrisville, NC 27560
Jun 16, 2010 Available in 200, 240, and 300 sizes, 2-Finger-Parallel Gripper type JGP and 3-Finger-Centric gripper type JGZ are equipped with pneumatic oval piston drive and feature dimensions suited for space-constricted applications. Integrated jaw guidance consists of rigid T-slot, ensuring precise and fail-safe handling of application at hand. Offering all essential functions, grippers can be reliably controlled using inductive proximity switches or magnetic C-slot switches.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Jun 15, 2010 Model DPH-400W 4 in. dia diaphragm chucks feature stops with 3 small air detect holes for part seating conformation - air is pumped through holes, and when part rests on the stop air pressure rises, tripping pressure switch that starts machining process. Four clover adapters have grooves for CAM follower to snap into to orient chuck when stopped, and 8 passage rotary union actuates all four chucks independently when mounted to 4 spindle Theilenhaus machine.

Keystone Electronics Corp.    Astoria, NY 11105
Jun 15, 2010 Fuse holders incorporate 2 receptacle terminals made from brass with tin over nickel plated finish that are pre-assembled to a UL rated 94V-0 glass filled nylon base. Receptacle contacts hold the fuse securely, assuring positive connections and low contact resistance. Mini, Standard, and Maxi versions suit 30, 40, and 60 A applications, respectively, and are compatible with various Littlefuse and Bussman blade fuses. A 2-in-1 thru-hole mount version for Standard and Mini fuses is also available.

Kabelschlepp America    Milwaukee, WI 53223

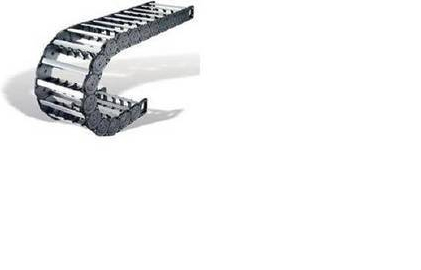

Jun 15, 2010 Series MC 1300 cable carrier is available with 87 mm inner height in 1 mm width increments for custom fit. Robust construction handles tough ambient conditions, and pivot point locking bolts facilitate installation as well as adding or removing sections of track. Along with low-friction aluminum stays, carrier offers variety of cavity partitioning and hose/cable separation options. It is suited for applications where carrier is installed on its side and for high transverse accelerations.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Jun 14, 2010 Optimized for automation, flexibility, and performance capabilities, DustPruf(TM) 2300 and 5300 Series integrate SmartSlot(TM) technology into frame to facilitate integration and add-ons without debris collection concerns. Streamlined frame design virtually eliminates all catch points where particulates or debris can collect, promoting manufacturing process cleanliness and efficiency. As result, conveyor performance remains stable and surrounding environments will be cleaner.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Jun 11, 2010 Comprised of PLC control, 1 m dia welded steel turntable with 850 in.² usable surface area and 700 lb payload capacity, and optional integrated conveyor, Rota-Rack® enables any bar-fed CNC lathe to run unattended for extended periods. It indexes each time finished part exits machine, and all contact surfaces are covered with UHMW plastic for optimal workpiece protection. Height-adjustable from 11-50 in., universal design enables use with any CNC lathe equipped with parts catcher.

Scheugenpflug, Inc.    Atlanta, GA 30339
Jun 11, 2010 Model A310 includes 7 in. full-graphics touchscreen display as well as automatic maintenance alerts dispensing and vacuum pumps. Allowing processing parameters to be transferred from material process database, system also integrates self-calibrating filling level sensor, container illumination, timer, and LED material pump indicators. Unit is designed for processing all types of dispensing masses, including abrasive materials.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Jun 10, 2010 Rotationally molded from 100% waterproof polyethylene for strength, durability, and washdown resistance, MOD 71P Laundry Cart is set atop powder coated, full-perimeter steel base. Industrial-strength casters roll smoothly over variety of flooring, allowing it to roll easily in and out of elevator doors and up and down narrow hallways. Slim profile helps maintain exit route access for safety and OSHA compliance. It is offered in 16 standard colors and with various customization options.

Target Technologies International    Burnaby V5A3H4  Canada
Jun 10, 2010 Made from cross-link, closed-cell, and co-polymer virgin foam, Shock 'n Drain pads provide the base layer for artificial/synthetic turf. Performance characteristics meet FIFA and UEFA requirements, and GMAX rating will stay consistent over 8-12 year period. Available in rolls to facilitate installation, shock attenuation pads are 100% recyclable and may qualify for LEED certification points.

Strong Hand    Los Angeles, CA 90660
Jun 09, 2010 Designed to hold workpieces from outside, 90° Corner Magnet(TM) leaves unobstructed space inside workpiece for welding. Boomerang-shaped magnet consists of 90° Magnet Square in reverse, with 90° edges on inside walls. Outside edge provides 60° clamping surface, while corner relief provides necessary clearance for clamping around overlapping flanges, lips, or edges. Measuring 3½ in. high, product is useful for holding flange in place for tack welding to pipes or tubes.

Metalfab, Inc.    Vernon, NJ 07462-0009

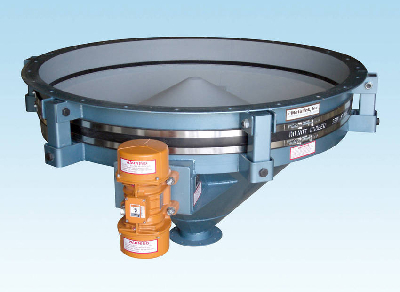

Jun 07, 2010 Available in range of sizes from 2-16 ft dia, Bin Activators incorporate dual baffle design that delivers continuous flow of dry materials without plugging, jamming, or bridging. Units have endless beaded flexible sleeve measuring 7/16 in. thick with 3-ply reinforcement that will not puncture, slip, or leak. Vibrator and motor are combined in single sealed enclosure with no belts to slip or break. Solid steel suspension arms, bolted at 90°, can support up to 500,000 lb.

Wilson Tool International Inc.    White Bear Lake, MN 55110
Jun 07, 2010 Available for Wilson American Precision and WT Style Precision(TM) press brake tooling, ExpressRail(TM) accelerates setups and changeovers for press brake fabricators. System automatically clamps and seats tooling along full length of beam in one operation via one touch of wireless pendant control. Featuring low-profile design that will not interfere with open height required for larger parts, clamping system is treated with Nitrex(TM) for corrosion resistance.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jun 04, 2010 Fitted with 4-point contact preloaded ball bearings, SRT-03 Rotary Table offers low and high speed windings up to 1,000 rpm, 0.2 arc-sec resolution, and 5 arc-sec accuracy. Encoder is mounted directly to rotor for positioning accuracy and to eliminate backlash, positioning delays, and maintenance requirements. Providing peak torque of 10 Nm, table can be used as flexible indexer or to replace mechanical transmissions such as gearboxes and timing belts.

Intelligrated    Mason, OH 45040
Jun 04, 2010 Capable of speeds up to 30 cases/min, Alvey GS100 series suits large, multi-line palletizing projects or smaller operations interested in converting from manual to automatic palletizing. Manual Alvey GS120, semi-automated Alvey GS130, and fully automated Alvey GS140 all offer pattern utility function and touchscreen operator interface terminal that let operators create, store, and change patterns. Footprints accommodate facilities with limited floor space.

ERA Industrial Sales    Commack, NY 11725
Jun 04, 2010 Suitable for extreme environments, Armor Plated Universal Mounts feature bonded-in steel wear surfaces that eliminate need for machining radius in support structure. Series 56422 All-Attitude holder-style mounts includes 3 models with max load ratings of 4.5, 7, and 10 lb, based on 0.036 in. double-amplitude input. Damped silicone elastomer provides vibration isolation over temperature range of -65 to +300°F. Unaffected by ozone, fungus, or high humidity, mounts meet requirements of MIL-E-5400.

Interroll Automation    Jeffersonville, IN 47130
Jun 03, 2010 Employing positive chain drive, American Style Curve complies with mechanical specifications laid out by parcel carriers and airport consultants. Unit operates at speeds up to 350 fpm, has load bearing capacity of 50 lb per linear foot, and emits less than 71 dBA during operation. Removable unitized steel slider bed cassette and Clipper® non-unibar laced belt connection are standard, and belting and power unit may be selected to accommodate unique requirements.

Logic Supply    South Burlington, VT 05403
Jun 02, 2010 Powered by Intel® Atom(TM) or Core(TM) 2 Duo processor, SL1UR Rackmount system supports full customization. Type of I/O, level of cooling, PCI expansion, extra storage, surface mounting, and power source can all be configured to meet unique application requirements. Case may also be fitted with automotive power supply and solid state drive and accommodates range of Mini-ITX mainboards as well. Multiple networking ports, legacy I/O, and HD A/V outputs are available.

Elscint Automation    Pune 411026  India
Jun 02, 2010 Available in widths of 150, 200, 300, and 400 mm, Elevator Feeder has hopper capacities ranging from 75-200 L and suits bulk feeding of light metallic parts. Height of elevator is adjustable along with degree of inclination, while integrated level sensor controls feeder and provides start/stop operation. Constructed of extruded aluminum, feeder features modular plastic inclined conveyor belt, geared motor, and can be supplied with optional variable speed controller.

Bilsing Automation North America    Clinton Township, MI 48036
Jun 02, 2010 With ability to exceed 1 million cycles, single-jaw Model GT30 provides clamping force of 650 N and piston diameter of 32 mm, while Model GT40 has 2 dynamic jaws with 1,000 N capability and 40 mm piston diameter. Both provide quick opening/closing at 0.2 sec/cycle. Available in rear or lateral mount configurations, grippers offer numerous choices in clamp tips and jaw shapes. For added precision, optical or induction sensor can be included.

Jervis B. Webb Co.    Farmington Hills, MI 48331
Jun 02, 2010 Featuring drive wheel technology to move load along conveyor path, friction drive conveyor system utilizes conventional I-beam that eliminates need for custom track sections. Able to negotiate inclines and declines, conveyor can travel up to 240 fpm and can move loads up to 2,500 lb, while light-duty model moves as little as 250 lb. Variable frequency drives allow speeds to be adjusted as needed. Unit also offers simplified maintenance and installation.
