Tooling Column System features open design.
Modern Industries, Inc. (mPower)
Erie, PA 16512
Oct 19, 2006
Incorporating principals of structural engineering, ModLoc(TM) Columns feature strong exterior structure with aluminum alloy or steel construction. Manifold and support brackets securely connect with fixture plates to form precise, integrated, rigid structure. SpeedLoc locator/fastener system allows endless configuration of columns, while open design permits hydraulic and electrical access to multitude of tooling and fixturing components.
Mounting Kits reduce setups times for CNC machining.
Carr Lane Manufacturing Co.
St. Louis, MO 63119
Oct 18, 2006
Zero Point Mounting Kits contain all required components to create quick pallet change system for CNC machinery. Speedy Module plates, mounted onto machine table or tooling block, clamp onto nipples attached to bottom of existing fixture plates. Attaching nipples to all fixtures lets users change pallets in seconds. Module plates can also be mounted to inspection machines, making it possible to transfer parts from machining to inspection while maintaining same data points.
Retorquer reapplies cap torque after induction sealing.
NJM/CLI Packaging Systems Int'l.
Lebanon, NH 03766 1403
Oct 18, 2006
Beltorque(TM) handles round, oval, square, and rectangular containers with 5 in. diam caps at speeds up to 300 cpm. With SS cabinet, support frame, and polycarbonate front guard with keyed interlock, unit also features optional color touchscreen control panel, PLC-controlled torque monitor, and reject system. Offered in single-station and optional two-station models, Beltorque is suited for pharmaceuticals and personal care products.
Solid Carbide Tools offer small bore profiling.
Thinbit Cutting Tools
Fort Wayne, IN 46898
Oct 13, 2006
Allowing customers to cut intricate ID forms, MICROBIT® Tools provide small bore profiling and back turning down to 0.125 in. minimum bore. They are available in 1/8, 3/16, ¼, 5/16, 3/8, and ½ in. shank diameters with neck lengths of 0.375, 0.625, 0.750, 1.00, 1.250, and 1.750 in., respectively. All are offered with variety of coatings including TiN, TiCN, TiAIN, and Diamond.
Card Guide Tool fabricates card guides in any length.
Mate Precision Tooling
Anoka, MN 55303
Oct 11, 2006
Available for most CNC turret presses, Continuous Card Guide Tool includes polished tool steel inserts, steel spring upper and lower stripper mechanism, and interchangeable replacement parts. Designed for fast punching, unit produces initial form; then, during return cycle of punch press, integral stripping springs remove work piece from assembly. Punch press incrementally advances sheet and process is repeated until desired card guide length is formed.
Twin Rotary Vibratory Screens employ dual vibratory motors.
Gough Econ Inc.
Charlotte, NC 28266
Oct 10, 2006
Used in applications requiring lengths in excess of 5 ft and widths over 18 in., twin rotary vibratory feeders/screens are suited for feeding, conveying, screening, and elevating material. Four coil springs, located on frame assembly, minimize vibration transfer and ensure gentle handling of material. Since product weight is typically in suspension, self-propulsion energy promotes optimal efficiency. Material is processed at speeds from 50-3,500 ft³/hr.
Stress Relief System offers manual and automatic operation.
Bonal Technologies, Inc.
Royal Oak, MI 48067
Oct 10, 2006
Meta-Lax Model 2700-CC sub-harmonic stress relief system uses Windows OS and incorporates software that adds 2 manual modes to 2 existing automatic modes. While giving operator control over entire process, manual modes also expand capacity to use vibrations to address applications other than stress relief and weld conditioning. Data entry on certification sheet includes metric conversions to clarify information about workpiece and stress relief certification.
Case Liner runs up to 18 cycles/min.
O/K International Corp.
Marlborough, MA 01752
Oct 09, 2006
Superliner SL220 makes bags with adjustable length from rolls of continuous gusseted tubing. Bag is opened and placed into case, crate, drum, or tray with neck cuffed over edges, providing hygienic container ready for filling with food or non-food products. Along with stainless steel conveyor and Allen Bradley controls with self diagnostics, machine incorporates dual roll holder that facilitates loading and changing of film rolls.

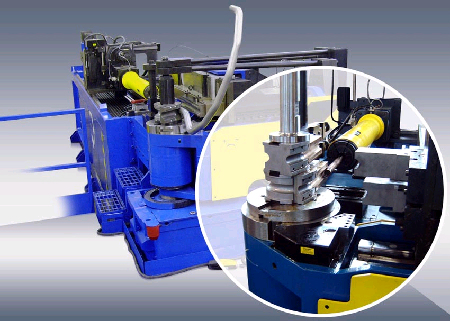

CNC Tube Bender targets small-batch/JIT processes.
Madera, CA 93638
Oct 04, 2006
Offering programmable control over rotary draw bending process components, all-electric, multi-stack Breeze-100 will cold-bend demanding materials, such as 100 mm/4 in. titanium tubing. Bends of up to 180° can be made with repeatability of ±0.05 mm of distance between bends and ±0.05° of bend angle. Unibend Control Software includes automatic set-up routine, which will sense and clamp tube. Users have complete control over bend operation and can modify various parameters.
Turning Center features 3 turrets, each with Y axis.
Methods Machine Tools, Inc.
Sudbury, MA 01776
Oct 04, 2006
Combining turning and milling operations, Super NTY3 features three 6,000 rpm milling motors that can simultaneously machine 2 flat surfaces on one spindle and one surface on the other. Each turret holds 12 driven or 24 stationary tools. Accelerating Y axes have travels of 2.44 in., and up to 29/20 hp is available for shaft/work turning with synchronized spindles. Super NTY3 has max turning diameter of 6.89 in., max turning length of 23.5 in., and bar capacity of 1.65 in.
Carton Endloader handles bagged frozen foods up to 1 kg.
Charlotte, NC 28273
Sep 29, 2006
Featuring 3 head vacuum carton feeder and long carton magazine with motorized hopper, Model SL903 has running speed of up to 130 cartons/min. It handles large pack size range and accommodates size changing. Handwheels adjust carton flight chains and pockets of infeed conveyor. Automatic end-load machine is constructed of stainless steel with machine guards designed for access and visibility.

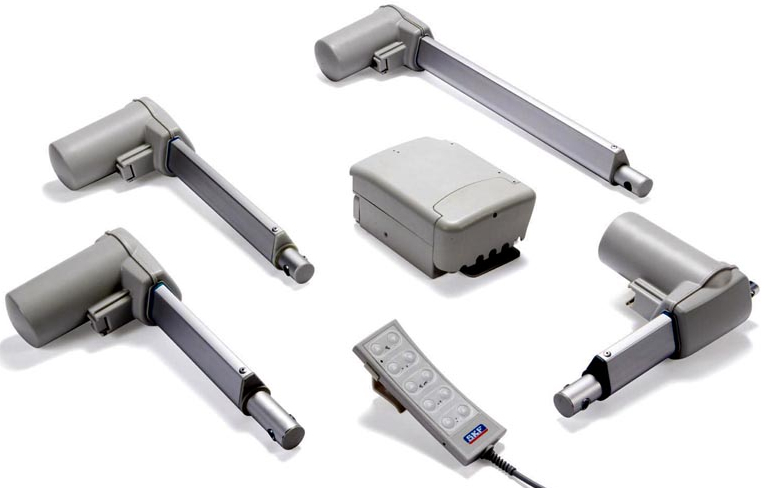

Compact Actuator Systems position and adjust hospital beds.
SKF Precision Technologies, SKF USA Inc. (Russell T. Gilman)
Grafton, WI 53024 0005
Sep 27, 2006
Incorporated into standard or platform beds, modular CAJ actuator systems enable safe, power-driven positioning and adjustment in hospital, clinic, and rehabilitation settings. They integrate linear actuators, telescopic pillars, control units, and control panels and offer whisper-quiet, maintenance-free operation. Able to push loads up to 6,000 N, actuators deliver necessary HiLo (height adjustment) support as well as back, leg, and knee support.
Packaging Machine eliminates lane jams.
Portland, CT 06480
Sep 22, 2006
Operating at speeds from 100 to 1,600 bottles/min, Zero-Gap infeed packaging machine incorporates precise geometry and sensors to ensure continuous container supply to downstream lanes and grouping section. Line pressure and handling properties make system suitable for compressible or hot-filled PET, lightweight glass, and aluminum. Compatible with variety of platforms, it can be programmed to handle round containers of all sizes.

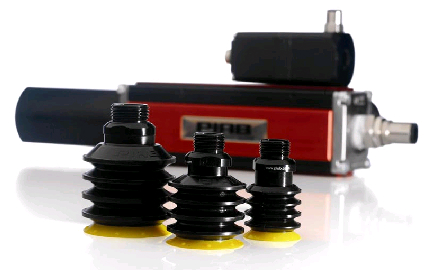

Bag Handling System offers solution for packaging industry.
PIAB Vacuum Products
Hingham, MA 02043
Sep 20, 2006
Plastic Bag Handling System combines P6010 COAX® vacuum pump with cruise-control feature and BL-3P suction cup. Vacuum pump is based on multi-stage ejector technology and uses cruise control to automatically maintain pre-set level of vacuum. Made of DURAFLEX®, suction cup is situated directly at point of suction and provides enough strength for high initial flow applications while still providing softness and flexibility to seal uneven surfaces.
Testing Machine is designed for process spectroscopy.
Columbia, SC 29208
Sep 20, 2006
Using Multivariate Optical Computing(TM), SpectrInline Pharma Version 1.1(TM) performs real-time, in-line testing of tablets, blending of powers, and testing of liquids and powders. It detects concentrations of less than 0.25% and implements auto-calibration technology for optimal signal stability. Solution meets pharmaceutical industry's intrinsic safety requirements and is suited for control and product testing in various industries.

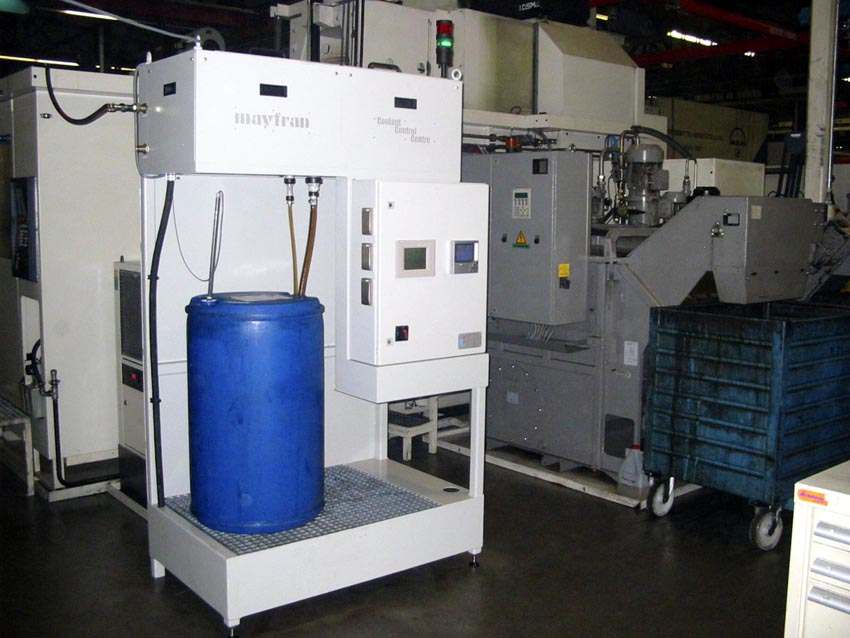

Coolant System monitors volume and mix ratios.
Cleveland, OH 44143-0038
Sep 19, 2006
Mounted to machine coolant tank, Coolant Control Center (CCC) provides continuous real time in-line monitoring of coolant, measuring coolant concentration, PH, conductivity, temperature, and volume. System features PLC for coolant correction and programming routines for precise maintenance of machining fluids. Measuring 16.92 x 38.89 x 11.92 in., CCC has ¾ in. water inlet union and works with 220 V 2-phase electric connector or 400 V 3-phase power hookup.
CNC Vertical Hobbing Machine optimizes dry machining.
Rochester, NY 14692 2970
Sep 18, 2006
Based on single-piece frame cast from polymer composite material, Genesis(TM) 130H can be installed and re-located with no special lifting equipment. Direct-drive spindle motors eliminate need for mechanical adjustments, while cam-driven double gripper loader enables part load/unload times of 2 sec. Work area is isolated from machine frame to minimize thermal expansion from contact with hot chips. Stainless steel cutting chamber with steep inclination ensures that chips fall clear of work area.
Ultrasonic Cleaning Equipment restores electronic components.
Simi Valley, CA 93065
Sep 18, 2006
E Series 2000 Electronic Cleaning Station and Optimum 6500 Electronics Drying Chamber use less water, making them suitable for restoration of tube-style TVs and monitors and computer routers. E Series 2000 has exhaust blower to ventilate harmful vapors from inside chamber through filter and air gun that removes heavy surface contaminants. Optimum 6500 uses dual blower system and heaters to maintain temperature and humidity for drying components after wet cleaning.
Bag Filling & Closing Machine produces aseptic IV bags.
Courroux 2822 Switzerland
Sep 14, 2006
Type 529 Semi-Automatic IV Bag Filling and Closing Machine is used for aseptic packaging of infusions, parenteral drugs, and other pharmaceutical and biotech fluids. It handles bags from 100 mL to 10 L made of EVA, PVC, PP, and other materials, producing up to 2,000 aseptic bags/hr. Contact parts are 316L SS or FDA-approved synthetics and can be autoclaved. Modular unit enables integration of up to 4 additional filling/closing stations.
CNC Gear Grinder rough and finish grinds in one operation.
Drake Mfg. Services
Warren, OH 44485 1147
Sep 12, 2006
Equipped with menu-driven control featuring Gear Smart(TM) programming, 5-axis Model GS:G² allows part changeovers in 15 min or less. It can grind from Mod 0.5 to 8 from 25-250 mm pitch diameter to AGMA 12 specification. Machine includes CNC contour diamond roll dressing, constant surface speed as wheel wears, infinitely variable wheel and work speeds selectable for roughing and finishing, and CNC controlled helix and work rotation.
