Climax Portable Machine Tools Inc.    Newberg, OR 97132
Nov 14, 2006 Featuring heavy-duty spindle, Model LM6000 offers metal removal rates up to 7.0 cu-in./min with 8.0 in. dia cutter and 25 hp hydraulic power unit for fast milling, even in vertical orientation. Machine has rigid, welded steel bed to minimize sag and torsional twisting. With feed rate of 0.4-20.0 ipm, LM6000 offers X-axis travels from 48-144 in., Y-axis travels of 24 or 36 in., and Z-axis travels of 4 or 8 in. Single pendant provides power control to 3 axes and spindle.

Mate Precision Tooling    Anoka, MN 55303
Nov 10, 2006 With Mate Pilot(TM) Tool Calibration System, users can verify and restore angular and concentric alignment of punching stations of most thick turret punch presses, including those with eccentric turrets. System features interlocking design with spring-loaded lock pawl mechanism, and tricolor LED indicator lights for 1¼ in. B, 2 in. C, 3½ in. D, and 4½ in. E stations. LEDs indicate when system is not yet aligned, and when it is aligned angularly and concentrically within 0.012 and 0.0003 in.

Danray Products LLC    Rockford, IL 61107

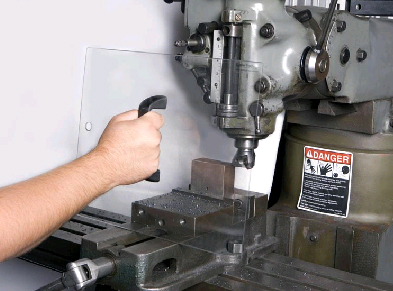

Nov 09, 2006 Portable Shields can be used on metalworking and woodworking machinery such as milling machines, drill presses, lathes, and any other machines that need hand-held or attached shield to safeguard personnel from point-of-operation hazards as well as flying chips, sparks, and coolant. Shields comply with OSHA 29 CFR 1910.212 and applicable ANSI B11-series safety standards for machine tools. All are furnished with storage hook and fasteners.

Centricity    Girard, OH 44420
Nov 09, 2006 Utilizing Feedscape(TM) I.D. feeding technology in conjunction with MS Series(TM) Indexer, VERSA-STACK lets users create stacks of various sub-assemblies. Feedscape isolates and feeds each component directly from bowl feeder or spring feeder, and guides them on series of indexing pins positioned on outer edge of indexer dial plate. Once stack is complete, escapement deposits stack to final fixture, pick-and-place unit, or robot. Each stack arrangement can be different from previous one.

Mitee-Bite Products Inc.    Center Ossipee, NH 03814

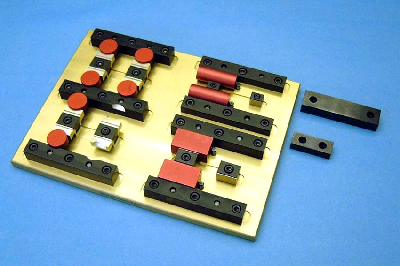

Nov 08, 2006 Available in variety of sizes and lengths, low-carbon, precision ground Locating Rails include mounting holes and socket head cap screws. Users mill slot in fixture plate to locate rail and drill and tap mounting holes. Height of rails can be adjusted by depth of slot. Steps can be machined on rails to hold work piece above fixture plate, or radius can be machined to match contour on machinable clamps for irregular shaped parts.

Pitney Bowes    Stamford, CT 06902
Nov 02, 2006 Utilizing servo-powered technology to speed mailstream operations, Model HPI-72C performs 2-up continuous roll-fed or fan-folded applications and can be integrated with APS(TM) Advanced Productivity Series and FPS(TM) Flexible Productivity Series inserting systems. Suitable for mail operations with high page count applications, cutter's fast-motion control allows input to process odd-page-count accumulations without throughput degradation.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Nov 01, 2006 Featuring dampening mechanism that eliminates chatter, Anti Vibration X-Bars produce fine finishes at up to 6x length of diameter. With shank sizes ranging from 0.500-1.000 in. dia, bars are coolant thru and available with CCMT, TCMT, and TPMT style inserts for variety of chipbreakers. They are suited for deep hole boring, step boring, bottom facing, and copying.

Rockford Systems, Inc.    Rockford, IL 61109 2695
Oct 31, 2006 Designed for protection against exposure to rotating chuck, flying chips, and coolant splash, lathe shields come in sliding, crosslide-travel, small and large steel, as well as transparent versions. All shields have polycarbonate window that promotes visibility into point of operation, and various mounting rods, hinges, and brackets are available for mounting to lathe headstock. Frames can be fabricated of steel or impact-resistant, transparent polycarbonate and extruded aluminum.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Oct 25, 2006 Narrow-frame, spring rewind N600 Series accommodates dual hoses for separate materials such as gases and liquids or air and coolant. Non-sparking ratchet assembly locks reel at desired length of hose payout, and pull on hose unlocks reel for spring motor to retract it. Declutching arbor is included to prevent damage from reverse winding. Compact mounting base, along with narrow frame, allows reel to fit in limited-space work environments.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Oct 23, 2006 Speroni STP-34, STP-35, and Esperia tool presetter machines includes automatic mechanical clamping HSK spindles that apply tool clamping force of 440 lb to seat HSK tooling into presetter. Integral spindle design can accommodate tooling in dedicated sizes of HSK 25 to HSK 80, and spindles are completely field retrofittable to existing Speroni tool presetter machines.

Elsner Engineering Works, Inc.    Hanover, PA 17331
Oct 23, 2006 Model WCM-30 automatically converts up to 30 finished seasonal Christmas crackers and bonbons per minute for party goods marketplace. It accommodates varying widths and diameters of crackers as well as varying sizes of toys, jokes, and hats that are contained within cracker. Sequential operation provides industry-required staged production, while PLC ensures repeatability of product. Each machine can be customized based on user requirements.

Dapra Corporation    Bloomfield, CT 06002
Oct 19, 2006 Designed for 90ºcutting, SSPM Series feature inserts with positive cutting geometry for smooth cutting action and fine pitch for aggressive metal removal. Offered in toughest, medium, and hardest carbide substrates, inserts are available from 2-6 in. diam. Applications include suit face milling, profiling, slotting, step milling, plunge roughing, and interpolation of cored holes.

Modern Industries, Inc. (mPower)    Erie, PA 16512
Oct 19, 2006 Incorporating principals of structural engineering, ModLoc(TM) Columns feature strong exterior structure with aluminum alloy or steel construction. Manifold and support brackets securely connect with fixture plates to form precise, integrated, rigid structure. SpeedLoc locator/fastener system allows endless configuration of columns, while open design permits hydraulic and electrical access to multitude of tooling and fixturing components.

Carr Lane Manufacturing Co.    St. Louis, MO 63119

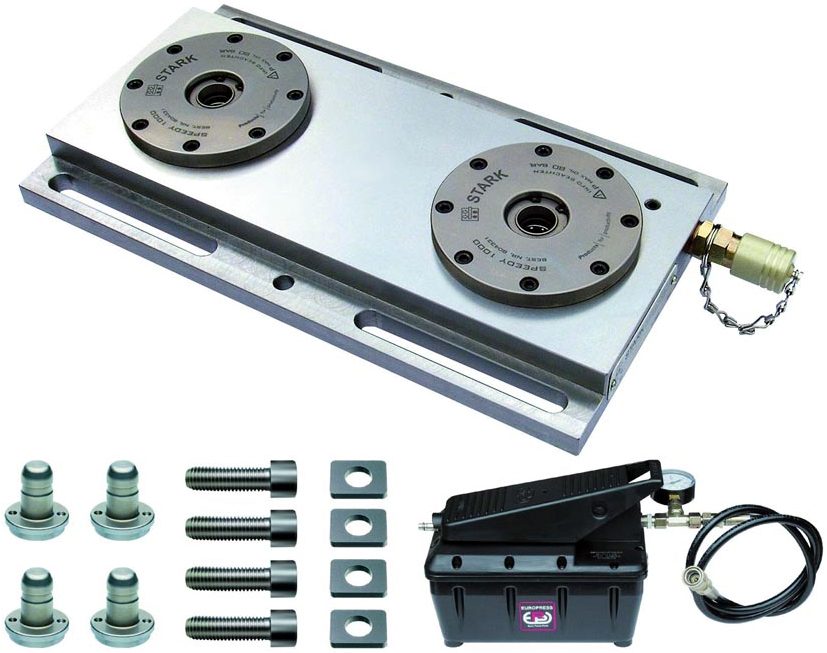

Oct 18, 2006 Zero Point Mounting Kits contain all required components to create quick pallet change system for CNC machinery. Speedy Module plates, mounted onto machine table or tooling block, clamp onto nipples attached to bottom of existing fixture plates. Attaching nipples to all fixtures lets users change pallets in seconds. Module plates can also be mounted to inspection machines, making it possible to transfer parts from machining to inspection while maintaining same data points.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403

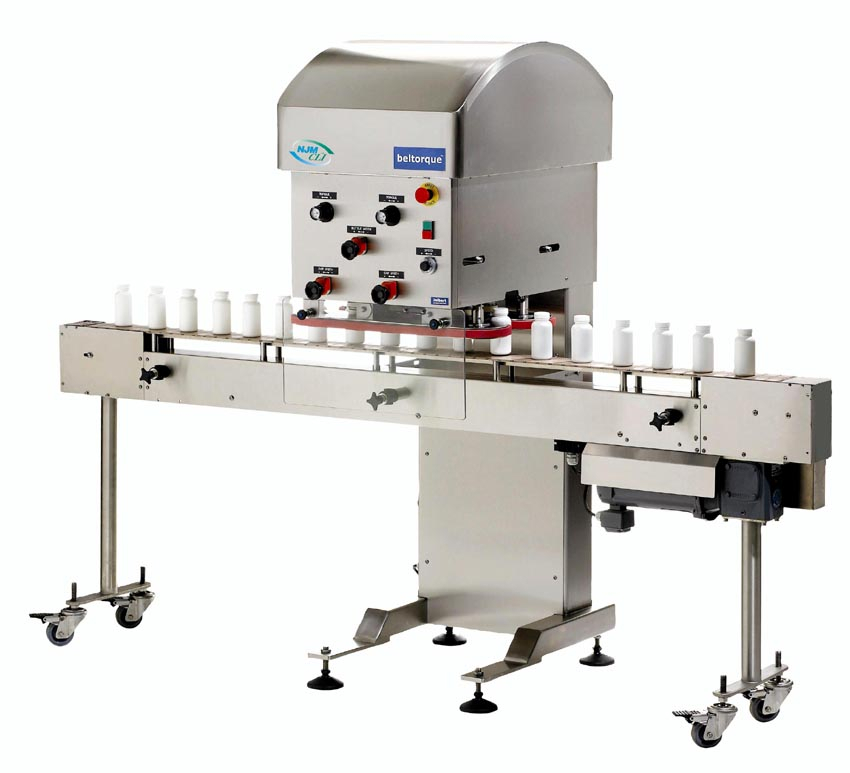

Oct 18, 2006 Beltorque(TM) handles round, oval, square, and rectangular containers with 5 in. diam caps at speeds up to 300 cpm. With SS cabinet, support frame, and polycarbonate front guard with keyed interlock, unit also features optional color touchscreen control panel, PLC-controlled torque monitor, and reject system. Offered in single-station and optional two-station models, Beltorque is suited for pharmaceuticals and personal care products.

Thinbit Cutting Tools    Fort Wayne, IN 46898
Oct 13, 2006 Allowing customers to cut intricate ID forms, MICROBIT® Tools provide small bore profiling and back turning down to 0.125 in. minimum bore. They are available in 1/8, 3/16, ¼, 5/16, 3/8, and ½ in. shank diameters with neck lengths of 0.375, 0.625, 0.750, 1.00, 1.250, and 1.750 in., respectively. All are offered with variety of coatings including TiN, TiCN, TiAIN, and Diamond.

Mate Precision Tooling    Anoka, MN 55303

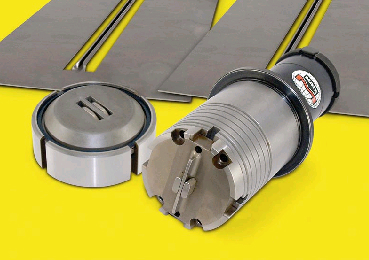

Oct 11, 2006 Available for most CNC turret presses, Continuous Card Guide Tool includes polished tool steel inserts, steel spring upper and lower stripper mechanism, and interchangeable replacement parts. Designed for fast punching, unit produces initial form; then, during return cycle of punch press, integral stripping springs remove work piece from assembly. Punch press incrementally advances sheet and process is repeated until desired card guide length is formed.

Gough Econ Inc.    Charlotte, NC 28266
Oct 10, 2006 Used in applications requiring lengths in excess of 5 ft and widths over 18 in., twin rotary vibratory feeders/screens are suited for feeding, conveying, screening, and elevating material. Four coil springs, located on frame assembly, minimize vibration transfer and ensure gentle handling of material. Since product weight is typically in suspension, self-propulsion energy promotes optimal efficiency. Material is processed at speeds from 50-3,500 ft³/hr.

Bonal Technologies, Inc.    Royal Oak, MI 48067

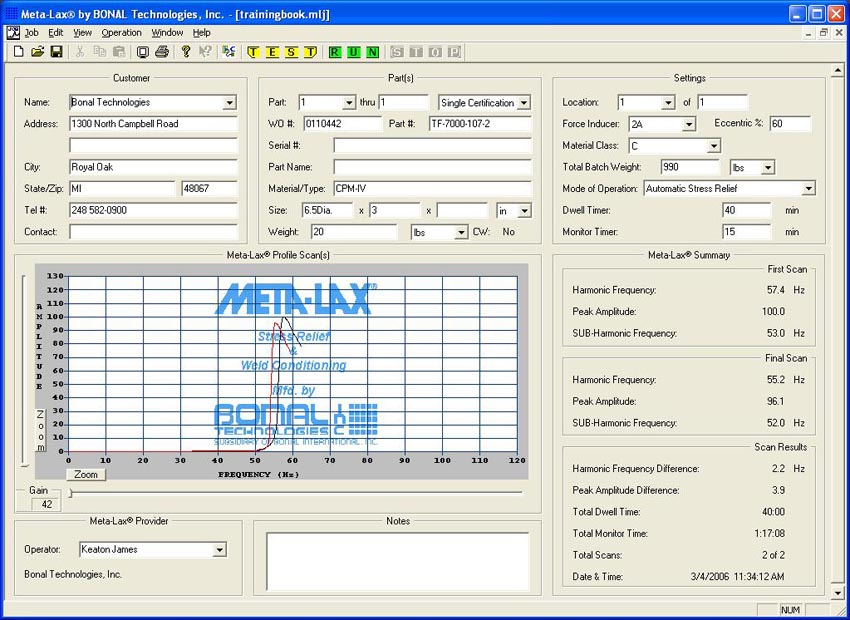

Oct 10, 2006 Meta-Lax Model 2700-CC sub-harmonic stress relief system uses Windows OS and incorporates software that adds 2 manual modes to 2 existing automatic modes. While giving operator control over entire process, manual modes also expand capacity to use vibrations to address applications other than stress relief and weld conditioning. Data entry on certification sheet includes metric conversions to clarify information about workpiece and stress relief certification.

O/K International Corp.    Marlborough, MA 01752

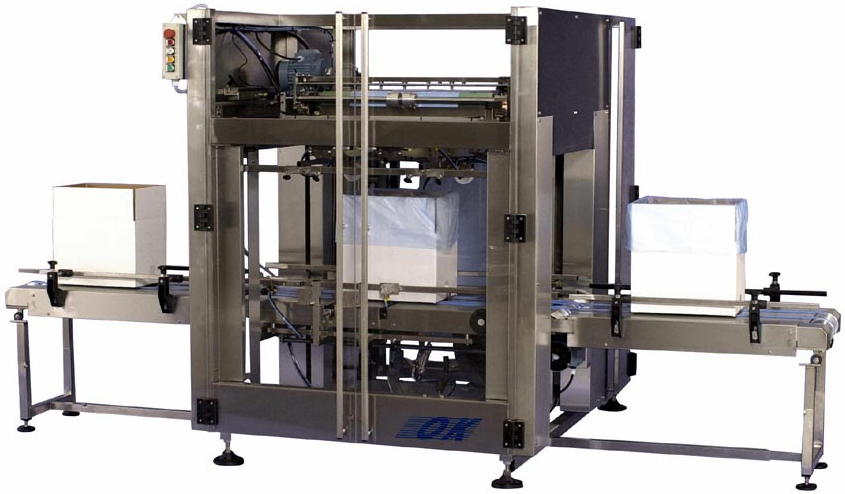

Oct 09, 2006 Superliner SL220 makes bags with adjustable length from rolls of continuous gusseted tubing. Bag is opened and placed into case, crate, drum, or tray with neck cuffed over edges, providing hygienic container ready for filling with food or non-food products. Along with stainless steel conveyor and Allen Bradley controls with self diagnostics, machine incorporates dual roll holder that facilitates loading and changing of film rolls.
