MAG IAS, LLC    Erlanger, KY 41018
May 13, 2008 Offering simultaneous 5-axis contouring, HyperMach H4000 provides contained cutting of parts up to 2 x 4 m. Machine offers choice of 30,000 rpm 60 kW/80 hp HSK63A spindle or 20,000 rpm 85kW/115 hp HSK100A spindle. Water-cooled motors power table/pallet receiver at speeds up to 2,000 ipm. High-speed ball screws drive Y and Z axes, while spindle carrier rotates at 150°/sec in A and C axes. Model H4000 comes standard with 96 tool automatic tool changer, field-expandable to 190 tool capacity.

GE Sensing    Billerica, MA 01821

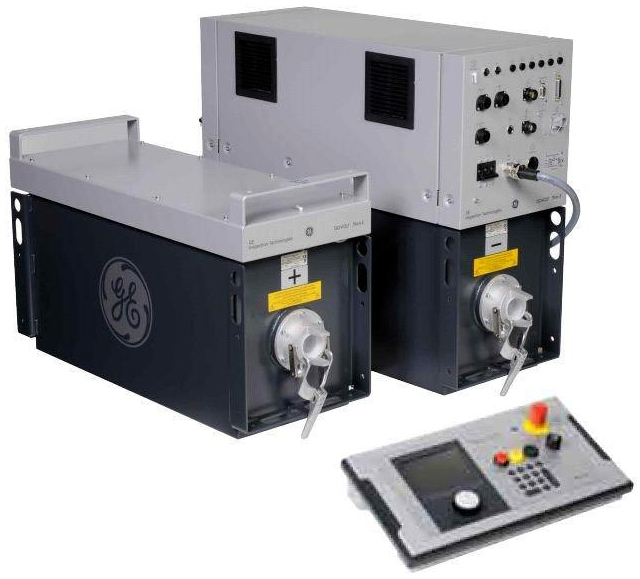

May 13, 2008 Along with output of 4.5 kW and max tube current of 45 mA, ISOVOLT Titan E features control platform designed to facilitate use via fully graphic screen, dynamic menu guide, and consistent method of operation. Machine also incorporates data-supported programming function for setting-up, archiving, and activating application-specific exposure programs and failsafe operation. Generator, tube, and cable are continuously monitored and displayed for safety.

Strippit Inc.    Akron, NY 14001-1321

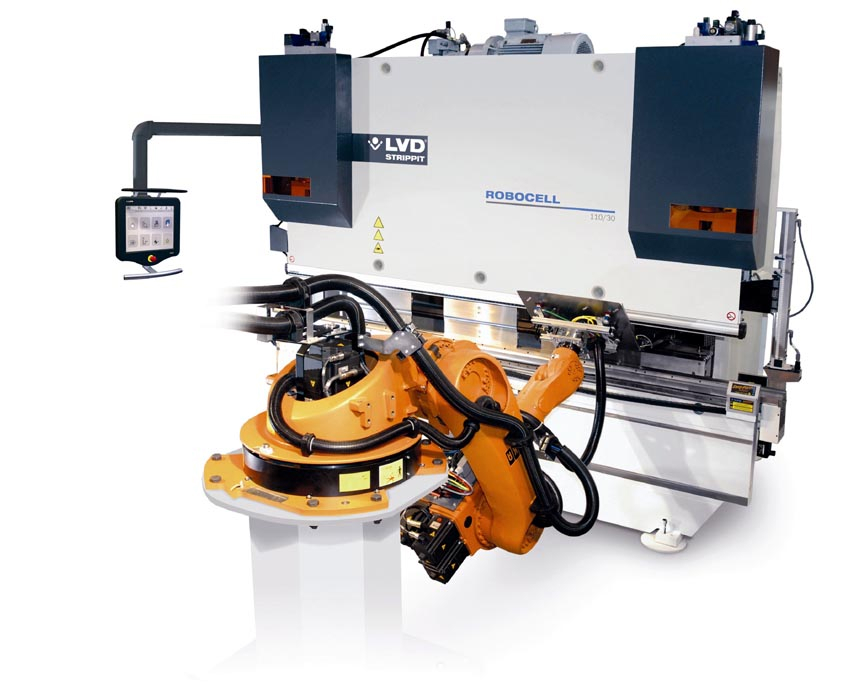

May 13, 2008 Combining PPEB or Easy-Form® Series CNC press brake with multi-axis Kuka robot, RoboCell handles small to medium-sized components in capacities of 80-110 ton bending force and 2.5 or 3.0 m table configurations. It can automatically load, form, and stack finished parts in unmanned process. Easy-Form® Laser system tracks parts during bending, providing real-time angle measurements. All functions are controlled through instructions from integrated off-line programming software.

Shini USA    Willoughby, OH 04094
May 12, 2008 With tangential feed and power tilt adjustable hopper, Model SG-3690 Central Standard Rotor Granulator has 14 x 35 in. cutting chamber with 2 x 2 cutting blades and 3 x 2 rotating blades. Noise-free granulator features open welded steel rotor blade cutting design that cuts plastic into small, cleanly balanced granules with minimal amount of dust. Available in 460 or 230 V, it can be used beside the press for grinding sprues, runners, and rejected parts.

Horn Machine Tools, Inc.    Madera, CA 93638
May 09, 2008 Utilizing Windows-based Unibend Control Software, Breeze 150 offers programmable control over rotary draw bending process, with max bending torque of 814,269 lb-in. and 6 in. OD capacity. Bends up to 180° can be made with repeatability of ±0.1° of bend angle and plane of bend. Machine includes swing-away wiper die system, and split tooling to aid bending of square section tube. Stack height of 24.8 in. allows user to store multiple toolsets on machine for rapid changeover.

Herbold Meckesheim USA    Smithfield, RI 02917
May 09, 2008 Suitable for dry or wet operation, horizontally fed SB Series granulate containers made of Polyethylene Terephthalate (PET) and other recyclable plastics. Horizontal feeding screws force materials from hopper to adjacent cutting chamber at steady, even pace instead of depending on materials to fall directly into blades, which reduces fines and dust. Granulators can also be used for secondary size reduction of pre-shredded plastics.

Georg Fischer Piping Systems    Tustin, CA 92780
May 08, 2008 Incorporating electrofusion technology, Electro Plus® fuses 2 thermoplastic parts together by electrical heat resistance. With hand-held user interface, operator can place power unit on floor while using cables and hand-held unit on ladder with pipe and fittings. Product enables user to fuse multiple joints in one fusion cycle, and includes 1-button repeat fusion cycle for same-size joints. Operating from 14-113°F, machine requires 100-130 Vac or 200-250 Vac, 60 Hz AC rms.

CML USA, Inc.    Davenport, IA 52804
May 08, 2008 Capable of bending wide range of profiles and materials to centerline radius as small as 4 times diameter of workpiece, Ercolina CE35 Angle Rolls offer capacity of 1½ in. schedule 40 pipe and 1½ in. angle iron. Units are designed to operate in vertical or horizontal position with roll speed up to 20 fpm. All include remote foot pedal for hands-free operation. With single-phase 220 V connection, machines are suited for shop and jobsite fabrication.

Molecular Imprints, Inc.    Austin, TX 78758-3605
May 08, 2008 Enabling both development and pilot-production of patterned media applications, Imprio® HD 2200 offers fully automated, double-sided disk patterning and throughput of 180 disks/hr. Step and Flash Imprint Lithography process leverages Drop-on-Demand technology, which places low-viscosity resists only where needed, eliminating waste of consumables. Since S-FIL technology consists of liquid, room-temperature process, it does not encounter thermal distortions.

Herrmann Ultrasonics, Inc.    Bartlett, IL 60103
May 07, 2008 In addition to welding water- and air-tight seams, ROTOSONIC Machine can be equipped to cut fabric while sealing cut edge to prevent material from fraying or unraveling. Rotary Sonotrode and rotating anvil wheel prevent material drift and bulking during bonding process. Utilizing ultrasonic technology to actuate Ultrasonic stack at 30 kHz with up to 1,200 W, machine is suited for welding medical blankets, boat covers, tents, outdoor wear, and protective clothing.

Kason Corporation    Millburn, NJ 07041

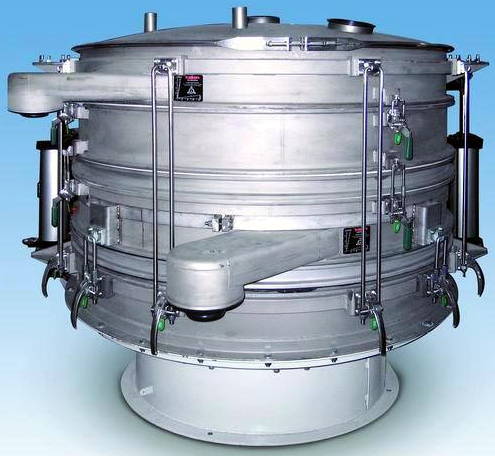

May 07, 2008 Vibroscreen Gap-Free Classifier offers non-metallic material contact surfaces and quick-cleaning features designed to eliminate contamination of ultra-pure products. This 60 in. dia unit is configured with 3 screening decks for removing oversize particles and de-dusting material, while separating on-size material into 2 size fractions. Other features include gap-free screen frames, quick-release U clamps, radius corners, domed lid, and continuous ground and polished welds.

Del City    Menomonee Falls, WI 53051

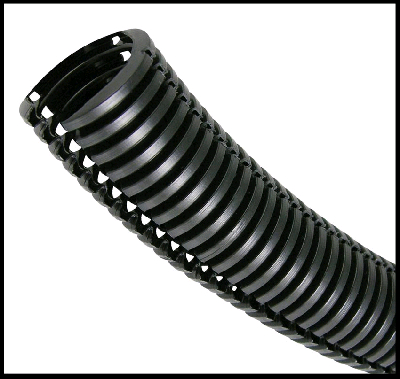

May 07, 2008 Available in ½, ¾, and 1 in. ID sizes and variety of lengths from 50-8,500 ft, Slotted Loom is perforated with small holes along entire length to drain excess moisture from cable assemblies. Unit is manufactured from nylon material for high heat resistance with operational temperature range of -40 to 300°F. Loom is suited for applications such as marine, construction, agriculture, and other areas where high moisture is cause for concern.

Schunk    Morrisville, NC 27560

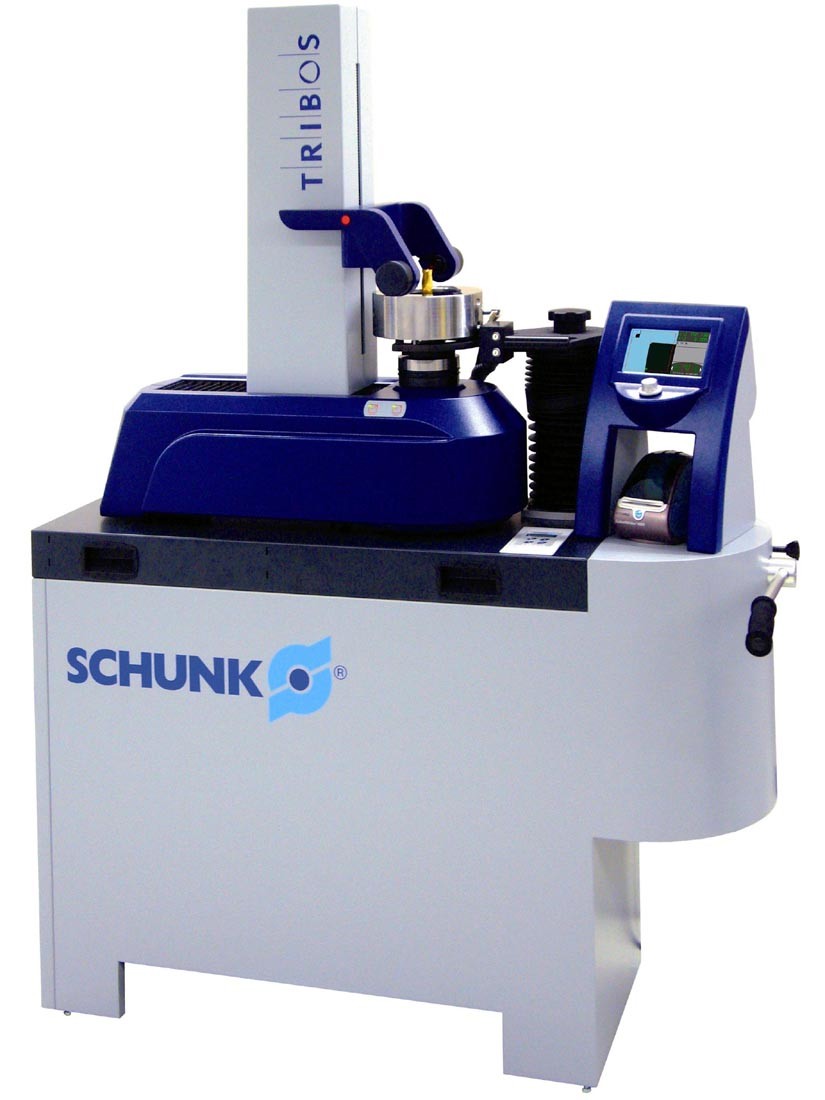

May 06, 2008 TRISet optical tool presetting and measuring device allows user to measure, check, and adjust tools before using them. Tools can be clamped, measured, and adjusted outside CNC machine, resulting in no downtime. Menu operation is via knob/push button, and length, diameter, cutting edge angle, and radius are detected with ImageController1 image processing. Setting devices are available in 2 measuring ranges: Z=400, D=400 mm; and Z=600, D=400 mm.

Atlas Vac Machine Div., Planet Products Corp.    Cincinnati, OH 45242
May 02, 2008 Model 18:30S can provide over 10,000 lbf on large format (18 x 30 in.), Silverstone-coated sealing platen. In addition to PLC for temperature, dwell time, and pressure management, sealer includes standard secondary IR thermal sensing that provides packaging engineers with platen temperature information needed during validation. Optional Direct Force Sensing System provides reading of force (lbf) exerted by tray sealer press against seal tooling on every stroke.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Apr 30, 2008 Constructed with cast iron C-frame and cross-table design, FORM 20/30 is built for stiffness and can withstand temperature fluctuations of workshop environments. It has integrated tool capacity for 4-6 positions, and continuously measuring glass scales on all axes promote positioning and cutting accuracy. Solution can be integrated into data network via LAN and incorporates Advanced Power Generator, rated 72/103 A, that delivers consistent surface finish quality.

ACE Production Technologies    Spokane Valley, WA 99216
Apr 29, 2008 LTS200 Lead Tinning System is programmable, automated machine that safely reconditions component leads for Hi-Rel and/or, RoHS applications. It features central fluxing station with 2 solder pots, one mounted on either side of fluxer, and pallet holder that accepts variety of component-specific pallets. Machine can be programmed to handle all leaded parts and operator can create and add routines as well as specify and control withdrawal rate from final solder bath.

Rush Machinery, Inc.    Rushville, NY 14544
Apr 29, 2008 Intended for carbide tool and carbide rod manufacturing industries, Auto-Cut CNC Carbide Rod Cut-Off Machine automatically loads and cuts .055 to 1 9/16 in. diameter rods, up to 16 in. long, from large capacity magazine. It comes with CNC controls with touch screen operator interface, which enables users to set rod diameter and length parameters, as well as flood coolant system.

Graco Inc.    Minneapolis, MN 55440
Apr 29, 2008 Reactor IP, designed for rigid and flexible in-plant polyurethane foam processing, features local control module that allows up to 25 programmable shot settings and 5 shot sequences. Available in Reactor IPH-25 or IPH-40 hydraulic models with flow rates of 25 or 50 lb/minute, precision dispenser is suited for insulation of coolers/containers, pre-formed foam block for housing, solar panels, wall/floor panels, and pipe insulation.

Fluid Research Corp.    Tustin, CA 92780
Apr 23, 2008 Signature Triple utilizes computer-based platform and progressing cavity pumps to meter, mix, and dispense 3 components simultaneously while being controlled from remote location. System is designed to address non-paint applications involving triple-component reactive materials.

Ingredient Masters    Cincinnati, OH 45230
Apr 23, 2008 Designed to sequentially introduce dry and liquid materials to mixer, Batching System is based on Super Sack bulk material handling system, which incorporates multiple air-actuated dispensing hoppers, robotic scale cart, and support structure. Dispensers are polyethylene with capacities from 3.5-105 cu-ft. Controlled via Allen Bradley PLC and PC, system can store unlimited number of recipes, each date-stamped with most recent revision or approval.
