End-Rolling Attachment extends thread life.
CJWinter Machine Technologies
Rochester, NY 14611
Mar 11, 2004
Suited for thread rolling applications on CNC tuning centers and Swiss and Multi-Spindle machines, Model 190 features single-piece front-plate design that provides thread roll protection. Utilizing engraved scale, it features micro-adjustable thread pitch diameter and permits on-the-machine adjustments. Roll-locating mechanism that consists of single carbide bushing for each roll eliminates use of needle bearings. Attachment comes with ¾ in. square shank holder.
CNC Forming Center gives precision to part bends.
Cincinnati, OH 45211 0111
Mar 11, 2004 Autoform+ CNC Forming Center combines press brake platform with PC-based control. Bend simulation graphics provide visual instructions and guidelines, while screen displays show each step and change in part shape produced with full 360° rotation. Fast Part Programming format allows jobs to be programmed, run, and edited from one screen and Autoform+ software provides calculations of ram reversal position and gage allowance values.
Ventilator Kit controls mold and disease in classrooms.
Burbank, CA 91504
Mar 09, 2004
Unit Ventilator UVC Kit improves classroom air quality by preventing spread of viral and bacterial infections and eliminating mold and associated odors. Kit contains UVC Emitter(TM), power supply, and all hardware components necessary to retrofit unit ventilator with UVC. Installed emitters irradiate UVC energy to eliminate surface contaminants and reduce airborne microbial contaminants. It fits most ventilator brands, including blow-through and draw-through coil styles.

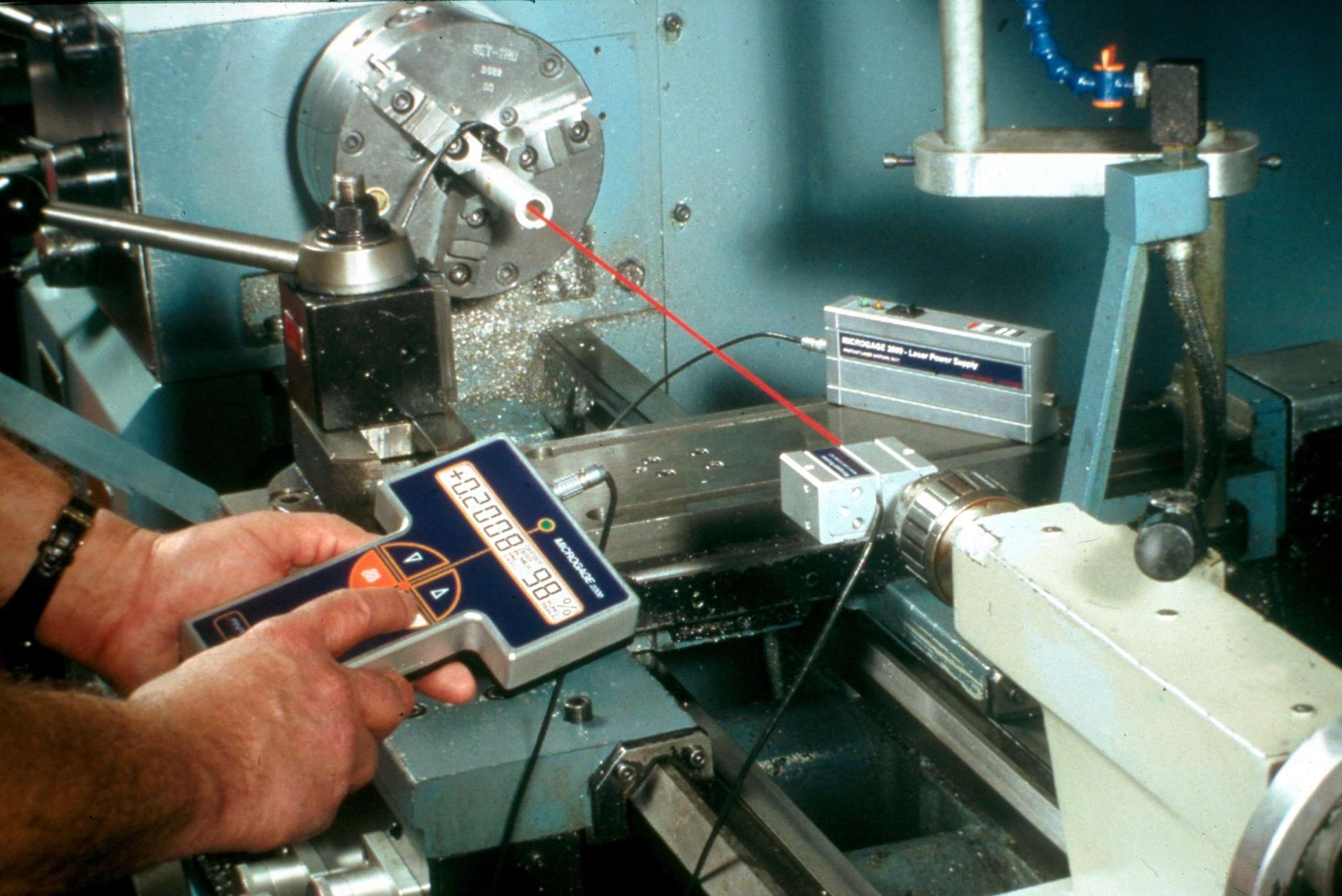

Alignment Kit operates over distances of 80 ft.
Pinpoint Laser Systems
Peabody, MA 01960
Mar 04, 2004
Microgage Spindle and Shaft Alignment Kit consists of laser that is mounted to drive shaft, spindle, or gearbox flange, which projects precise reference beam along centerline. Digital target receiver catches laser beam and provides measurement reading to show if receiver is off-center. System measures misalignments as small as 0.0001 in. Angular errors can also be measured and eliminated. System can be attached to laptop or PC for printouts and record keeping.
Coil Winding Machine winds transformers rated up to 100 KVa.
Bridgeport, CT 06608
Feb 19, 2004 Model 9204 accommodates work as large as 50 in. OD x 12 in. high. Modular design comprises powered winding and taping heads as well as 3 work rotation rollers and support rollers, each with their own gear motor. Machine handles round solid wire up to AWG 3 and rectangular wire up to 1/8 x ¾ in. Taping head winds polyester and Nomex tape as wide as 1½ in. Model 9204 allows toroidal transformers to be used in place of lamination type transformers.
NIR System suits powder blending applications.
Bohle, L.B., Inc.
Bristol, PA 19007
Feb 17, 2004 Fully Integrated NIR System monitors blend homogeneity and end-point determination during powder blending operations in real-time. Fully closed, turnkey system eliminates physical sampling requirements and incorporates NIR spectroscopy with 21CFR Part 11 compliant software that remotely transfers immediate, reliable data to PC. System employs vibration-resistant design and prevents contact with potent products during testing.

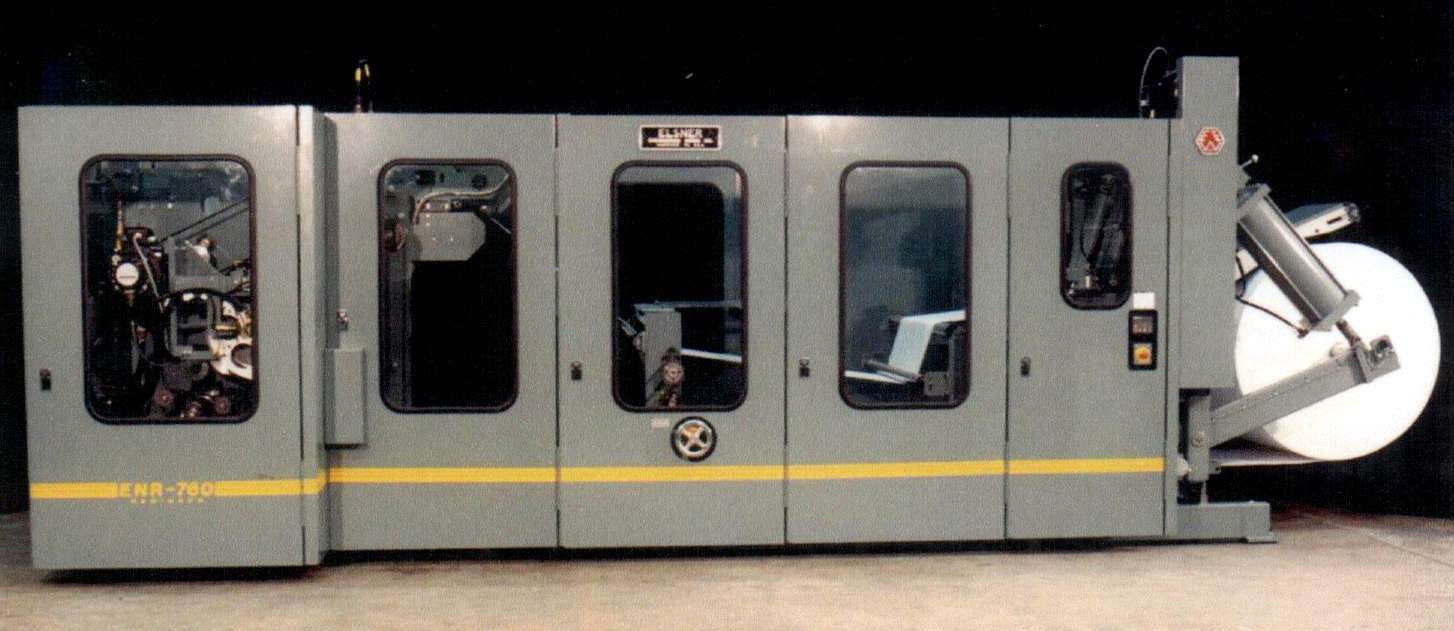

Perforator Rewinder handles nonwoven products.
Elsner Engineering Works, Inc.
Hanover, PA 17331
Feb 11, 2004 Series ENR allows user to unwind, perforate, slit, and rewind set count of nonwoven product sheets per roll. Model ENR-760 will produce four 7 in. wide finished rolls/log at up to 15 logs/min, which provides 60 finished rolls/min. Model ENR-1000 will produce six 7 in. wide finished rolls/log at up to 15 logs/min, which provides 90 finished rolls/min. Rotary shear perforator is servo controlled for infinite pitch length adjustment from 6â€“24 in.
Sanitary Crusher employs bidirectional cutter teeth.
DELUMPER ® Div., Franklin Miller Inc.
Livingston, NJ 07039
Feb 06, 2004
DELUMPER® S4 Series reduces sticky, caked, or wet solids to desired output size without over-working, churning, or heating material. Teeth rotate through heavy bar grating creating low friction, self-clearing, crushing action. Suited for pharmaceutical, food, dairy, and pigments industries, ultra-sanitary crusher offers clean-in-place capability, cantilevered design, and polished finish. Access door permits cleaning of cutting chamber's interior.
Unload System offers conveying rates up to 40,000 lb/hr.
Premier Pneumatics, Inc., A Member of the K-Tron Process Group
Salina, KS 67402
Feb 05, 2004
Single-blower, vacuum-pressure, Rail Unload System unloads powder, pellets, and granular material from railcars. One blower powers both sides of system, drawing material from railcar to Premier Cyclone to separate product from conveying air. Aerolock(TM) rotary valve meters product into pressure side of system for final delivery to storage tank. PLC control provides manual start/stop operation, automatic shutdown, and selector switch for 7 destinations.
Joining System joins PVDF acid waste pipe and fittings.
Orion Fittings, Inc.
Kansas City, KS 66117
Feb 04, 2004 Electrofusion joining system joins polyvinylidene fluoride acid waste pipe and fittings from 1½â€“6 in. using Rionfuse electrofusion processor built into shock-resistant, splash-proof case. System utilizes fusion coil made from heavy-duty stainless steel coil wire which can be rotated 360° in socket to aid in installation. Able to be interfaced with PC, product ensures leak-free joints and has internal memory that keeps track of date and weld number.
Scaler suits underground mining industry.
Paul Wever Construction Equipment Co., Inc.
Goodfield, IL 61742-0085
Feb 03, 2004 Mine Scaler Conversion package, available with 2 boom arrangements and Custom Conversions, is suited for unique scaling needs. Able to be integrated on new-wheeled excavator or pre-owned model, unit features hydraulically rising cab that tilts forward and backward. Users choose which tool to use: pick, hammer, or grinder. Unit has load shock system on hydraulics, separate tank and cooler circuit to run tools, and lighting package for night work.
Screw Machine is offered with 2 optional attachments.
Davenport Industries, LLC
Rochester, NY 14611
Feb 02, 2004 Servo B, 5-Spindle Automatic Screw Machine features optional Servo Pickoff and 2-Station Back Working Attachments that allow users to incorporate multiple machining operations after part is cut off. Speed of servo motor-controlled pickoff spindle can be matched to speed of work spindle, facilitating part transfer. After part pickoff, spindle can be adjusted in speed and direction to fit desired machining parameters. Back working tool length is 1 in.
Hands-On Seminar addresses rotational molding process.
Association Of Rotational Molders
Oak Brook, IL 60521
Feb 02, 2004 Advanced Seminar in Rotational Molding is a 3-day seminar covering polymer grinding, molding operations, effects of mold release agents, effects of molding with pigments/foam, post mold operations, advanced rotomolding concepts, and computer simulation of rotomolding. Attendees will receive hands-on experience using laboratory rotational molding equipment and will be able to conduct trials.

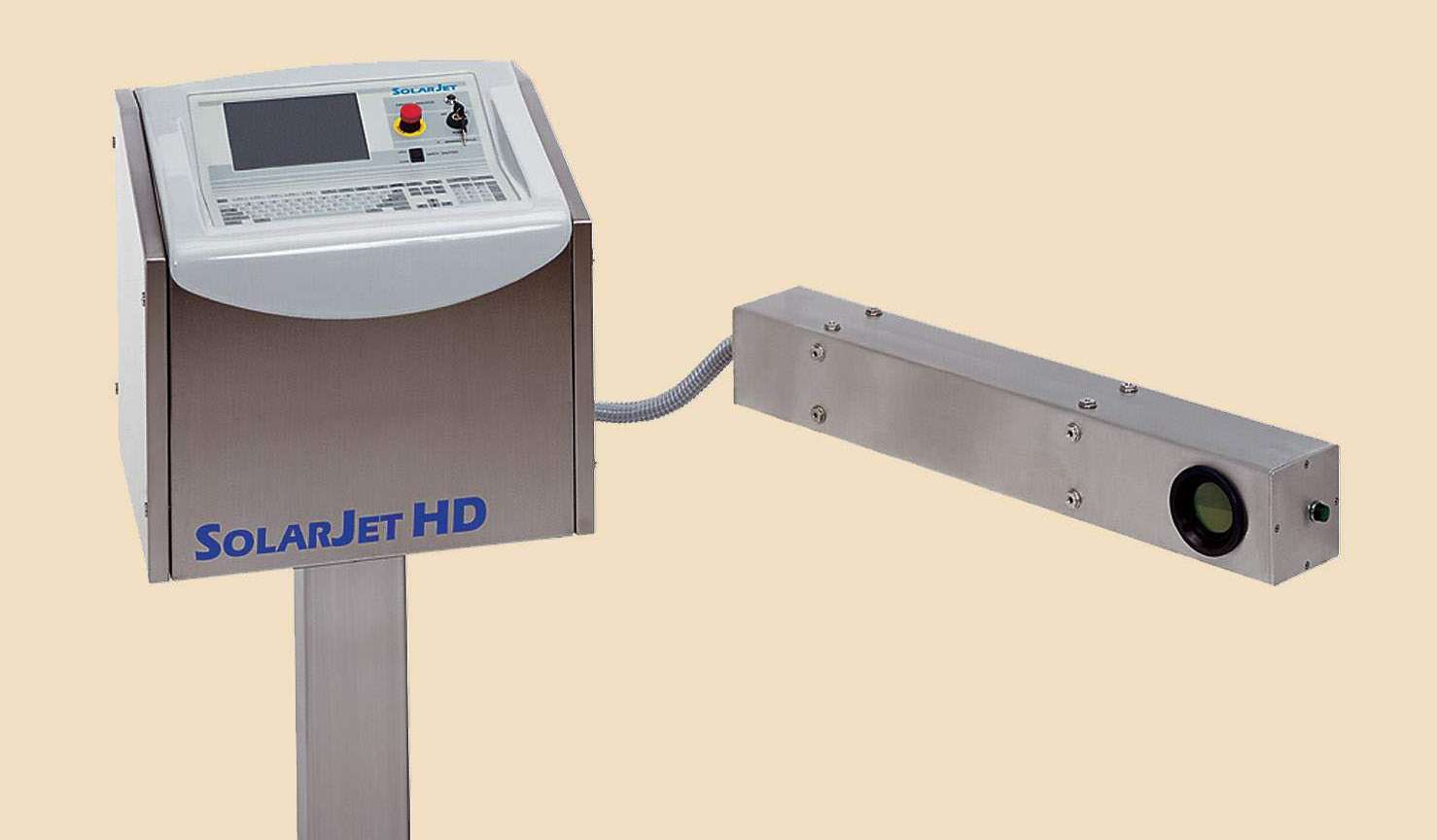

Vector Laser Coder marks products in demanding environments.
Weber Marking Systems, Inc.
Arlington Heights, IL 60005 4457
Jan 29, 2004 SolarJet HD marks products and packages found in wet, dusty, environments. Permanent text, bar codes, and graphics as small as 0.020 in. high can be marked on substrates like paper, cardboard, foils, coated metals, plastics, wood, and glass. The 50 W, CO2 laser can mark up to 1,000 characters/sec at product delivery speeds up to 1,060 fpm. Five lenses allows marking fields from 2.0â€“7.8 sq in. Unit integrates with sealed, SS controller mounted on floor stand.

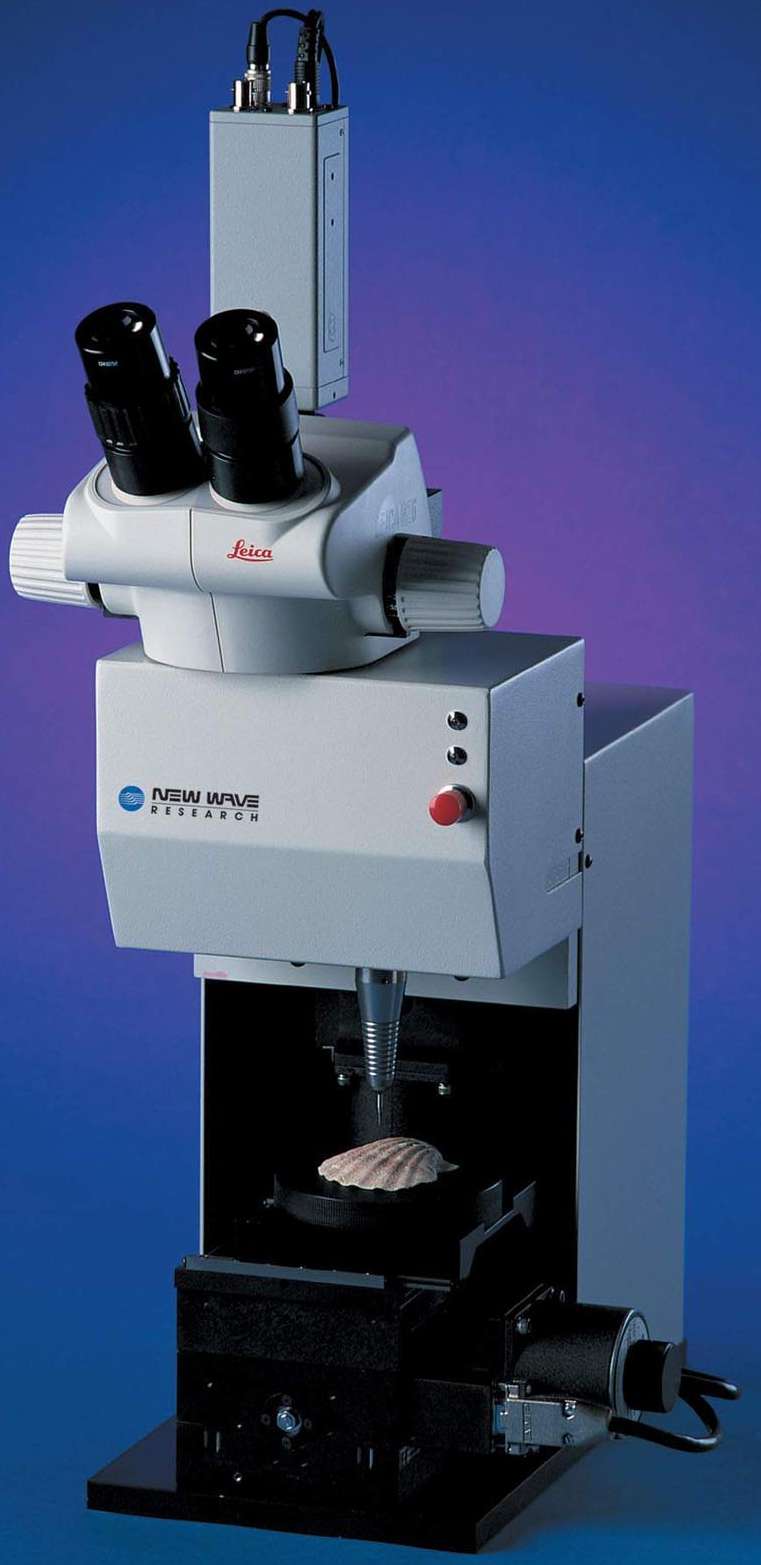

Micromachining System offers submicron positioning.
New Wave Research
Fremont, CA 94539
Jan 29, 2004 MicroMill allows operator to draw precise patterns, cuts, characters, and holes on-screen and view work-piece throughout process. Submicron stage resolution on 3 axes allows accurate micromachining over 2 in. in all directions. Machine provides CNC and 3D digitizing capabilities and incorporates automated height gauge, stereomicroscope, and color CCD video camera. It comes with computer, flat screen monitor, and Windows XP-based software with GUI controls.
Direct Drive Separator suits vegetable oil refining.
Westfalia Separator, Inc.
Northvale, NJ 07647
Jan 26, 2004 With gas-tight design suited for miscella refining and biodiesel production, RSE 300 uses 4,800 rpm motor and inverter with VFD drive, eliminating need for gears, clutches, and belts. Design has 50,000 kg/hr capacity in refining and degumming and minimizes number of necessary bearings.
Conveyorized Coater/Dryer offers speeds up to 20 ipm.
Paterson, NJ 07501 1799
Jan 19, 2004
Model 4246 dip coater and infrared dryer system dip coats printed circuit boards in protective conformal coatings, and dries coatings at rates between 2-20 ipm. Stainless steel dip tank includes recirculation and filtration system to maintain quality of conformal coating. Dryer section consists of 6 Glenro Radplane(TM) Series 36 low-temperature electric infrared heaters, which are regulated in single zone and offer total connected power of 18 kW.

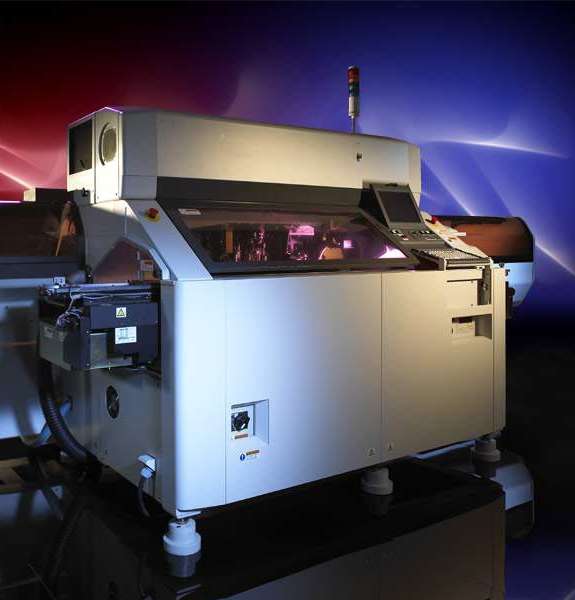

Placement Machine offers speeds of up to 48,000 cph.
Universal Instruments Corp.
Binghamton, NY 13902 0825
Jan 13, 2004 Model 4797R HSP measures 3,100 x 2,155 mm and can handle boards up to 610 mm x 460 mm. It includes twelve 5-spindle, direct-drive placement heads and UCT53 software for offline programming. Three-sigma accuracy is 0.08 mm for MELFs and small chips, and 0.05 mm for leaded components. Machine accepts up to 72 unique components on standard 8 mm tape feeders, or 96 unique components with dual-track feeders. Minimum placement tact time is 0.075 sec.
Case Packer offers vertical and horizontal packing options.
Sanger, CA 93657
Jan 12, 2004 With servo-controlled motions, DP 260C combination case packer is designed for flat and vertical case/tray packing of products packaged in flexible bags. Reaching speeds up to 240 bags/min (flat packing) and 70 bags/min (vertical packing), unit employs compact design with single infeed conveyor. It accommodates multiple pack patterns and offers PLC changeover option from flat to vertical packing via the touch of a button.

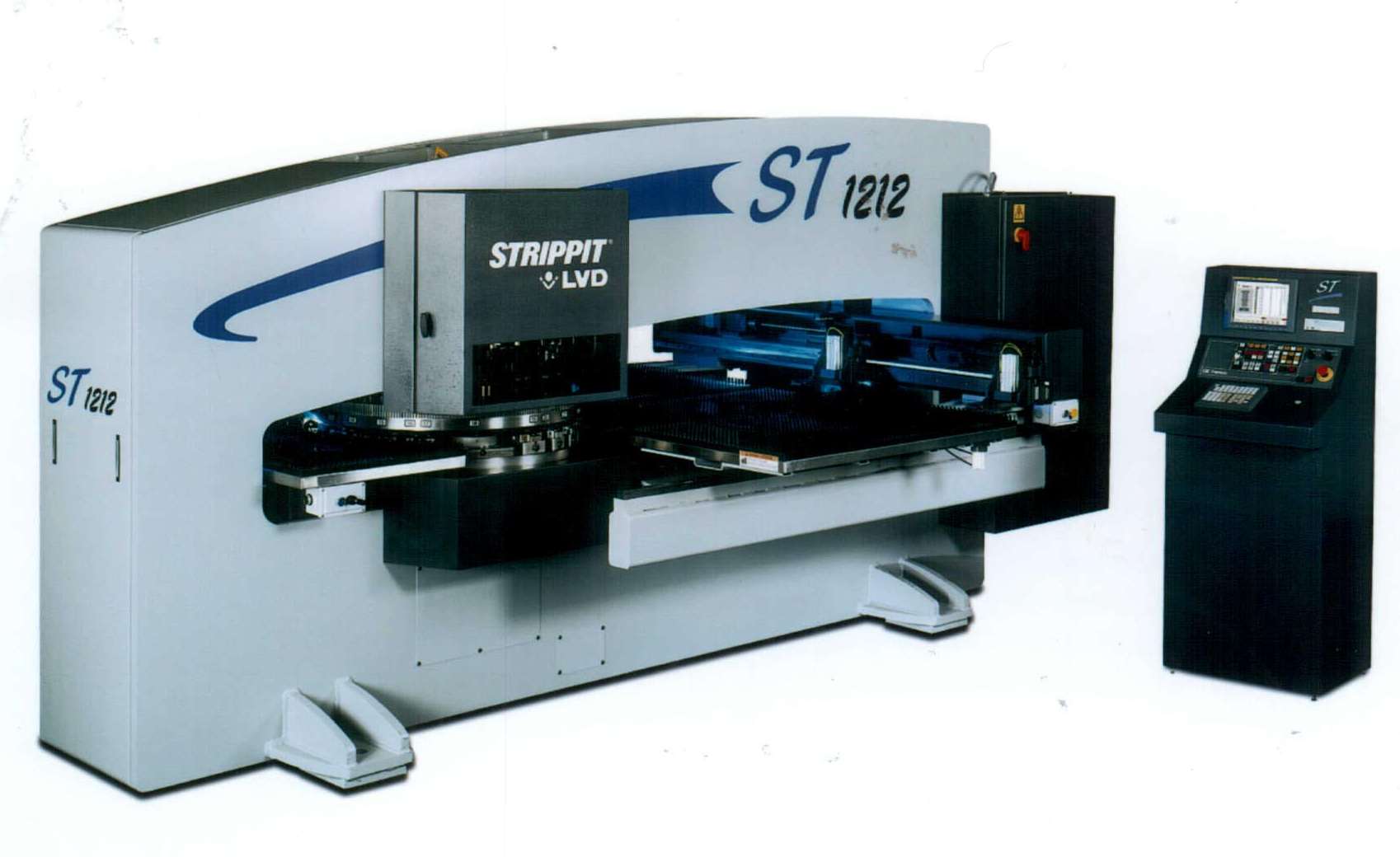

Turret CNC Punch Presses offer thin-style configurations.
Akron, NY 14001-1321
Dec 16, 2003
Delivering up to 360 hits/min, Model ST 1212 handles workpieces up to 49.2 x 49.2 in. Model ST 1225 offers 330 hits/min and accepts workpieces up to 49.2 x 98.4 in. Finished part accuracy is ±.004 in. for both. Presses include high/low, servo-controlled, hydraulic ram system that delivers 20 tons of punching force; PC-based GE Fanuc control; 26-station turret with four 3.5 in. stations; and Smart Stroke® feature that calculates optimum ram hover height.
