Ultra Tech Machinery, Inc.    Cuyahoga Falls, OH 44224

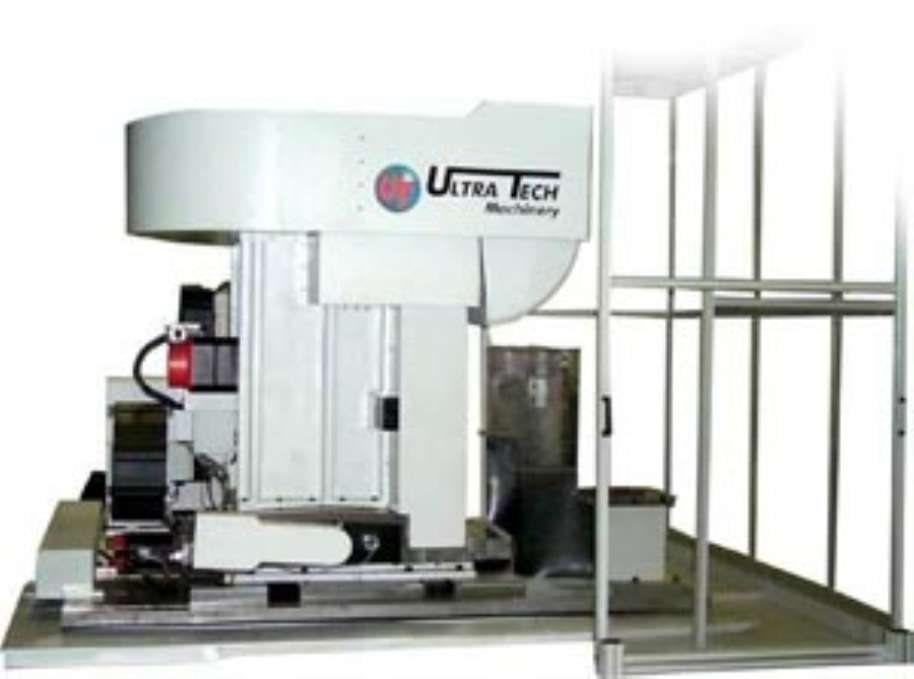

Oct 14, 2004 Configured in 510 mm working cube, 3-axis E-Series PowerModule is rated for 20 hp. Equipped with roller rail linear ways, slide lubrication system, precision ground ball-screws, over-travel and home limit switches, unit also offers robust 6,000 rpm, 40-taper spindle with automatic drawbar, and cable carriers for all axes. Options include 20-tool automatic tool changer, Fanuc 21i CNC control, 10,000 rpm spindle, and indexable turret.

Ultra Tech Machinery, Inc.    Cuyahoga Falls, OH 44224
Oct 14, 2004 Developed for plier grinding applications, CNC Rotary Deburr/Grinding Machine consolidates 3 stations on single dial. Hand operations or single station rotary belt grinding operations can also be performed. Standard features include belt speed of 4,000-7,500 fpm, self-contained coolant system with filtration and magnetic separator, speed modification capabilities at each station, real-time head position and pressure monitoring, and Ethernet capability.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Oct 13, 2004 Twist-in Fast Setup Work Support system aids in setup of press brake jobs that need work support. Featuring quick clamping adjustment handles, product enables work supports to be positioned and clamped without requiring use of wrench. Separate adjustment handle for each axis allows left/right, in/out, and up/down positioning. Features include two 15 in. support arms and modular, 12 in. steel track sections that attach to front of bed.

Sunnen Products Co.    St. Louis, MO 63143

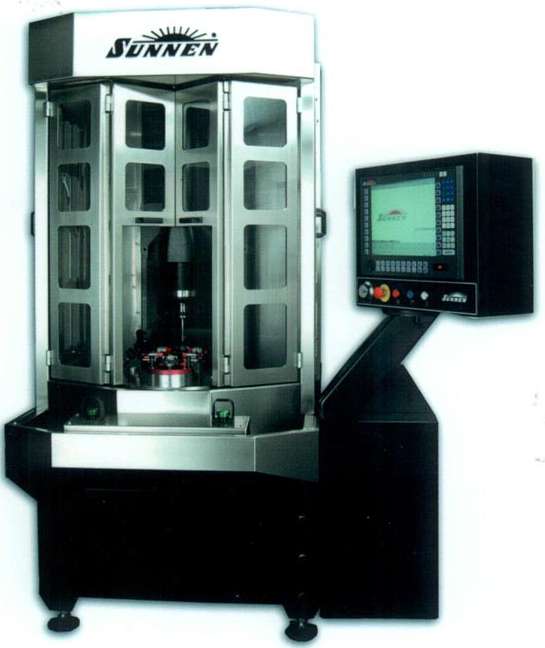

Oct 08, 2004 Equipped with industrial touch screen color display, SV-200 and SV-1000 utilize Windows®-based control system with drop-down menus and unlimited storage capacity for job setups. Both feature servo-controlled, linear tool stroking system that produces true vertical stroke and lets operators obtain consistent Crosshatch pattern throughout entire length of bore. Model SV-200 hones bores from .75–8 in., while SV-1000 hones bores from .120–2.56 in.

Sunnen Products Co.    St. Louis, MO 63143

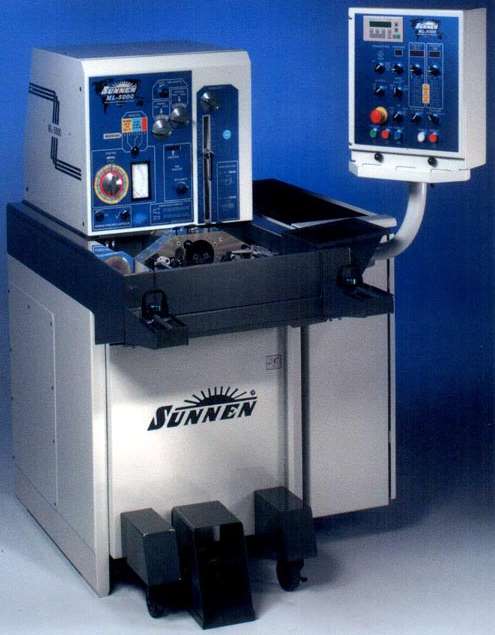

Oct 08, 2004 Horizontal power stroked ML-5000 comes with Programmable Stroke Control, which eliminates taper by allowing honing tool to dwell or short stroke at either end of bore. Cycle Time Control feature ensures consistency by adjusting feed pressure to optimize abrasive performance. With base constructed of reinforced structural steel and cast iron, machine offers optional automatic control of bore size, finish, and geometry.

Sunnen Products Co.    St. Louis, MO 63143

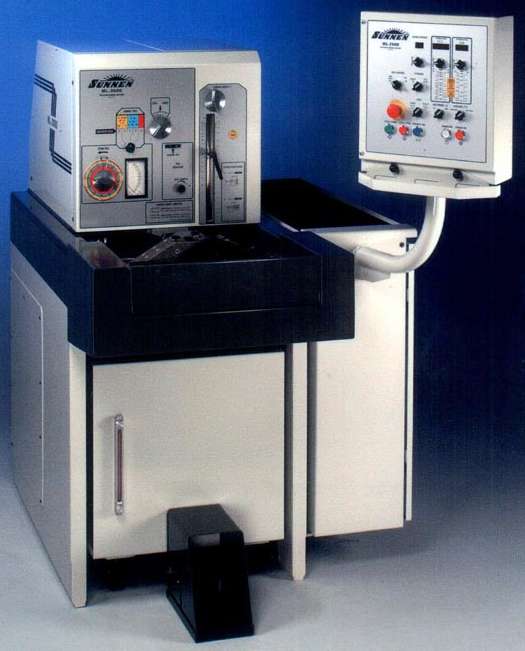

Oct 08, 2004 Power stroked ML-2000 features zero shutoff, simplified coolant system, and machining platform that is constructed of reinforced structural steel and cast iron. Moving components are isolated from the base to eliminate vibration problems. Equipped with computer control that facilitates set-up, there is no need to change belts or pulleys. Machine also offers optional automatic control of bore size, finish, and geometry.

United Grinding Technologies, Inc.    Miamisburg, OH 45342

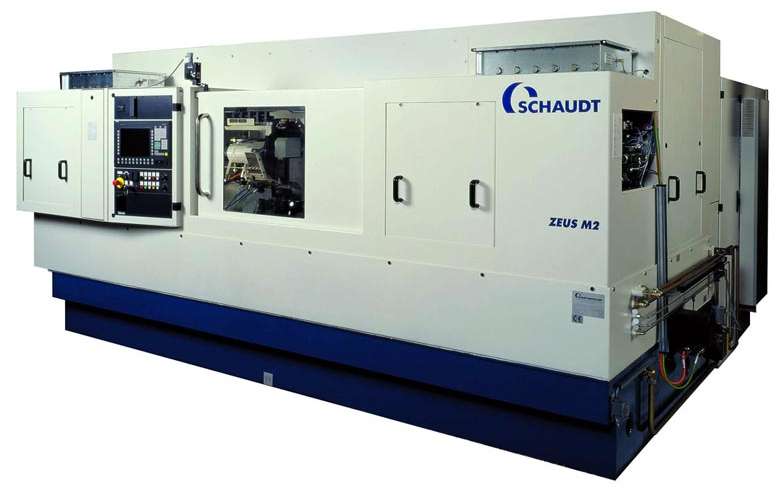

Oct 06, 2004 Designed for volume production of round and non-round shaft parts, Zeus M has grinding length to 950 mm, max diameter of 430 mm, and center height of 220 mm. Product handles workpieces up to 80 kg and combines cylindrical, non-round, plunge, and high-speed peel grinding (HSP) in one machine. It employs polymer Granitan machine bed, galvanic-bond and ceramic-bond CBN grinding wheels, and 130 mm rotary diamond dressing.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Oct 05, 2004 Offering 20 x 18 x 8 in. XYZ travel in compact floor-stand system, multi-sensor SmartScope® Flashâ„¢ 500 features AccuCentric® 12x zoom lens, which is automatically calibrated at every magnification change. Optical assembly moves in X-axis across angled steel crossbeam, while part moves in Y-axis on servo-driven stage. Granite platform ensures proper damping and structural integrity. Illumination sources include LED SmartRingâ„¢, coaxial surface illuminator, and LED backlight.

PSI Peripheral Solutions Inc.    Mississauga, ON L5L 5Z4  Canada
Oct 05, 2004 AutoSlip system prints up to 6-page packing lists and/or invoices and folds and inserts them into adhesive packing slip pouch. Equipped with applicator to attach adhesive packing slip pouch to cartons as they move along conveyor, product can also produce print-on-demand laser printed documents via attached printer. Document barcode, exposed through pouch, eliminates shipping errors.

Cimline, Inc.    Plymouth, MN 55447-4721

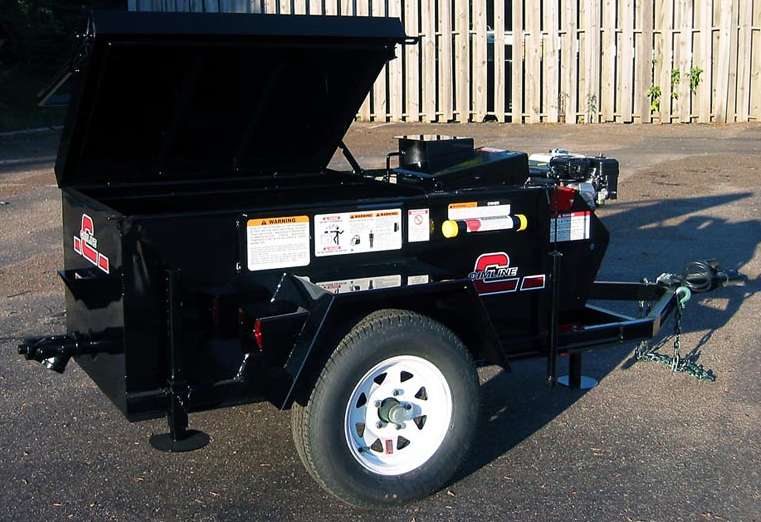

Sep 29, 2004 Suited for gravity feed cracksealing, 90 and 115 gal HeatWaveâ„¢ models feature auger type sealant agitator powered by Honda 4 hp engine that results in uniform heating. Trailer-mounted HW 115 is suited for larger pavement maintenance projects, while HW 90 is used for medium-sized jobs. Both models feature spigot engineered to prevent sealant clogging and tube-fired heating system constructed of 2 heavy-duty, single-pass flues.

ThyssenKrupp AG      Germany
Sep 28, 2004 Single-spindle GENIUS 500 combines speed of linear motors along X and Y axes with force of ball screw along Z axis. It features XYZ travels of 630 x 630 x 1,000 mm, 500 x 500 mm pallet with 800 mm clearance diameter, and 16,000 rpm spindle with output of 25 hp/37.5 kW. Acceleration forces are resolved in vertical plane directly through walls of machine base, into machine foundations, enabling accelerations of 2.5 g and velocities up to 180 m/min.

Neopost    Hayward, CA 94544
Sep 28, 2004 Modular IJ105 outputs up to 217 letters/min and features touch screen and keyboard system to facilitate navigation. Able to process mail pieces of varying thickness, system includes static weighing platform for parcels, and in-motion weighing platform that automatically prints correct postage. It holds 6 preset memorized jobs and utilizes HP inkjet technology to ensure 2D IBIP postage indicia.

Dapra Corporation    Bloomfield, CT 06002
Sep 27, 2004 Available for ball-nose, square-shoulder, and toroid milling, screw-on modular heads allow greater effective reach than solid end mills. Close tolerance mounting minimizes runout. Heads have standard wrench flats, so no special metric wrenches are needed.

Axon Corp.    Raleigh, NC 27603
Sep 26, 2004 Capable of speeds to 500 bottles per minute, EZ-100 HSX bands caps up to 50 mm in diameter and has optional feature that allows system to operate with modulating conveyor speeds as based on downstream production needs. Continuous motion tamper evident banding machine has footprint and single head design that allows it to fit into tight spaces. Unit can be integrated with existing lines or supplied as complete applicator turnkey system.

ANCA Pty Ltd    Bayswater North VIC 3153  Australia

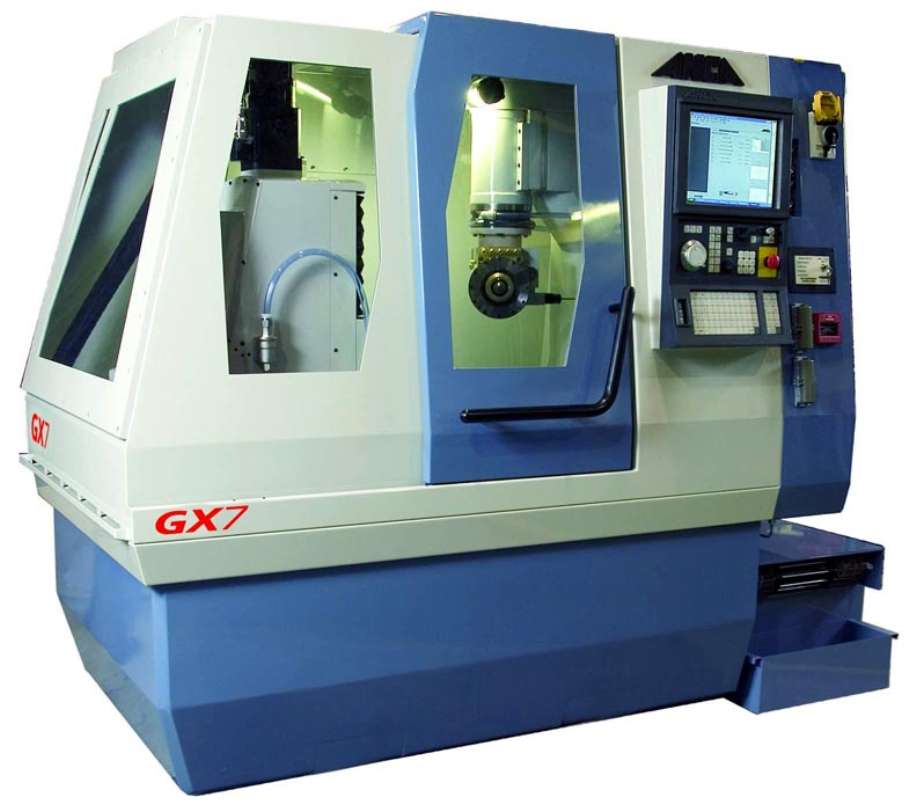

Sep 23, 2004 Model GX7 entry-level CNC tool and cutter grinder handles single tool jobs as well as batches of tools with different types and geometries. Able to grind variety of tools in one set-up, product has polymer concrete base, direct-driven linear and rotary axes, and 5DX CNC. Direct driven A-axis can also be used as spindle and run at 600 rpm, and each wheel pack has its own dedicated programmable coolant outlet. All axis saddles are made from single-piece casting.

Anatech Ltd.    Denver, NC 28037
Sep 22, 2004 Hummer 6.6 facilitates coating of samples prior to scanning electron microscopy. With 4 in. diameter stage, unit accommodates up to 12 SEM pin stubs and up to 100 mm dia substrates.

Joraco, Inc., Toggle-Aire Div.    Smithfield, RI 02917

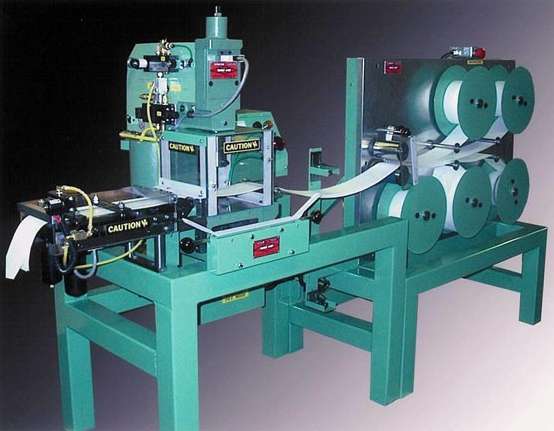

Sep 22, 2004 Custom Press Feed Payout System features 3-ton Toggle-Aire® press and integrated air feed with gear-driven payout system for handling up to 5 plies of material from 5 separate reels. Featuring programmable 24 V PLC, motorized system feeds, aligns, die-cuts, punches, or assembles combined delicate materials and pulls through finished product at speeds to 100 SPM with ±0.001 in. accuracy. System is suitable for use with papers, films, and foils.

Hydromat Inc.    St. Louis, MO 63043
Sep 22, 2004 Equipped with Quick-Set Vision System, Hydromat Presetter measures, sets, and verifies all tools before placement in application. Measuring range is 248 mm for Z-axis (length), 248 mm for X-axis (radius), and 238 mm for swivel diameter. Upgradeable productivity tool includes 20x magnification camera system with in-screen measurement optics and 12 in. flat-screen, color monitor with 35x magnification, 0.005 mm display accuracy, and ± 0.01 mm measuring accuracy.

Drake Mfg. Services    Warren, OH 44485 1147
Sep 21, 2004 Able to handle workpiece diameters from 6–36 in., GS:H machines accept operator-entered workpiece and material parameters and GearSmart software calculates feeds and speeds. Products utilize Fanuc control, million-count encoders on all axes, servo-driven hob, and direct-drive linear axes. Pre-loaded ground ball screws provide consistent tooth spacing, and CNC provides data storage for hob life management, part definition, hob geometry, and process data.

Drake Mfg. Services    Warren, OH 44485 1147

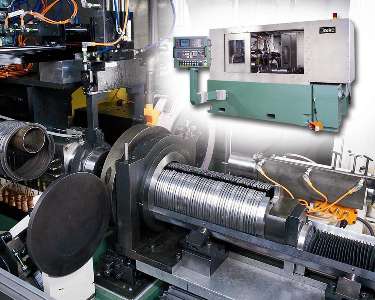

Sep 21, 2004 Ring Profile Grinder, Model GS:RP grinds external profile of up to 10 piston rings at a time. Compound hydrostatic work head maintains ring compression while grinding, eliminating effects of base deflection. Linear scales and serial pulse encoder feedback provide resolution of .000004 in. Machine includes CNC controls and PartSmartâ„¢ operator interface. Dressing forms, grind paths, and process parameters are pre-calculated and stored in memory.
