Pat Mooney, Inc.    Addison, IL 60101
Sep 26, 2012 When amount of incoming bar is less than 90 mm + cut length, Nishijimax NHC-100ND automatically shifts length setting device to NC-controlled gripper vise on out feed side of saw blade, which will continue gripping until final bar end is 30 mm. System is equipped with 15.5 hp induction motor that drives saw blade spindle via reduction gearbox. Saw blade feed rate is controlled via AC Servo Motor with encoder, Mitsubishi programmable servo drive, and precision ball screw.

NTC America Corporation    Novi, MI 48377
Sep 24, 2012 Comprising 3 models, TLH Series features fiber optic beam delivery with 2, 3, and 4 kW power options. Five-axis, 3D fiber laser processing machines provide X, Y, and Z axis travel up to 177, 45, and 20 in., respectively, with positioning and cutting accuracy of 0.0015 in./19.68 in. With controllable optical head angles of +720° on C axis and rotation of +135° on A axis, systems are suitable for cutting thin gage mild steel, aluminum, or stainless steel, and work best with materials less than 3/8 in.

Pat Mooney, Inc.    Addison, IL 60101
Sep 24, 2012 Along with 15.5 hp induction motor that drives saw blade spindle via reduction gearbox, Nishijimax NHC-100ND Cutoff System comes with remnant reduction device to decrease amount of remnant in auto cycle. Feed rate is set automatically, input chip load is maintained via NC Saw Spindle Feed Axis, and constant torque is maintained throughout RPM range. Other features include powder metal saw blade brake, gearbox oil chiller, and hydraulic, 4-point material clamping system.

Hyde Tools, Inc    Southbridge, MA 01550

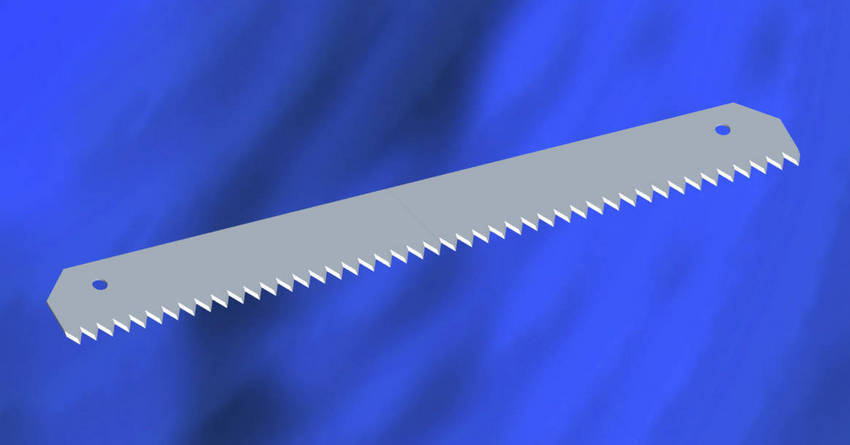

Sep 21, 2012 Available in sizes from 2–48 in. long, V-Tooth Serrated Straight Blades deliver clean slicing for food processing, converting, foam, rubber, plastics, and other packaging manufacturing applications. Guillotine blades cut through range of soft to medium-firm products and materials, reducing waste resulting from tearing and crumbing. Produced in range of steel alloys, blades come in standard, variable height, and multi-tooth configurations as well as scalloped or wave-edged designs.

Pat Mooney, Inc.    Addison, IL 60101
Sep 18, 2012 Suited for aluminum and other non-ferrous metals, PMI-455 Series CE NC Automatic High Production Cutoff Saws have hydraulically driven saw blade feed for maximum saw blade stability. Worktable moves 2 mm forward and backward after cut is complete and saw blade is retracting to ensure smooth finish. To prevent distortion of thin wall profiles, saws feature pneumatic clamping system with adjustable clamping pressure. Cutoff programs are managed via Mitsubishi NC controls.

JENOPTIK Lasers & Material Processing    07745 Jena   Germany
Sep 14, 2012 Comprising robot, laser, electrical cabinet, and rotating table, JENOPTIK-VOTAN® BIM 3D Metal Cutting Machine can be moved via forklift and is suited for highly automated environments. Optical fiber is located only in stationary robot shoulder and laser beam path is totally integrated. During cutting process laser light is guided by means of mirrors inside robot arm. Laser cutting head, weighing only 5 kg, contributes to accessibility into tight locations.

Pat Mooney, Inc.    Addison, IL 60101
Sep 14, 2012 Danobat iDS 5A comes with Intellicut Software, which stores material speed and feed information. Once these are set, operator only needs to select material grade and type of saw blade to automatically achieve proper blade speed and production parameters. This eliminates errors while promoting productivity. Designed for torsion-free travel, saw employs 15.5 hp motor and offers cutting capacities to 20.500 in. (round) and 20.500 x 23.625 in. (rectangle).

Pat Mooney, Inc.    Addison, IL 60101
Sep 12, 2012 Intended for iron and steel applications, FMB Mitre Bandsaws combine advantages of circular cold saw, variable blade speeds from 52-396 fpm, and capacity of traditional bandsaw. Swivel saw head cuts 0° to 45° left and 0° to 60° right, while vise slides on linear guide rails facilitate setup of miter cuts. Blade size is 11 ft 3 in. x 1 in. x .035 in., and FMB Saturn+G+V Model features Hydraulic Cutting Control. Respectively, saw motor and coolant motor perform at 2 and 1/8 hp.

Pat Mooney, Inc.    Addison, IL 60101
Sep 11, 2012 Suited for aluminum and other non-ferrous metals, PMI-455 Series features pressure-adjustable, pneumatic clamping system. Type A Upcut Saw, where saw travels through workpiece from under worktable, measures 98.5 x 51.25 x 79.5 in., employs 10 hp motor, and offers 3,200 rpm saw blade speed. At 138 x 82.67 x 73.23 in., Type L Horizontal Saw features saw traveling horizontally on linear guideways. Machine employs 15 or 20 hp motor and offers variable saw blade speeds from 1,500-3,500 rpm.

Esco Tool    Medfield, MA 02052
Sep 10, 2012 Available to fit MILLHOG® end prep tools covering tube range from 7/8-3 in. OD, ESCO Membrane and Overlay Removal Head features proprietary inserts shaped like golf tees, rather than screws, that tap into place and can be rotated to utilize 360° cutting edge. As head rotates, holding forces of inserts are multiplied, which minimizes vibration and heat. Head can also hold beveling blade.

Bullet Tools    Hayden, ID 83835
Sep 05, 2012 Magnum Rigid Foam Cutter(TM) provides insulation installers with non-motorized cutting solution for rigid foam insulation sheeting, reducing jobsite noise, electricity requirements, and foam dust. Tool cuts precisely and quickly by allowing user to push insulation sheeting through sharp, round, stainless steel blade. Pressure of foam sliding across cutting table turns blade, eliminating need for motor. Features include aircraft grade aluminum frame, steel tracks, and resin-coated table.

Quaker Chemical Corporation    Conshohocken, PA 19428
Aug 29, 2012 Suitable for use with gray cast iron and alloy steels, QUAKERCOOL® 3511 can operate within range of 125-750 ppm hardness while demonstrating optimal foam control and fines handling. Bio-stable coolant was formulated without any secondary amines, chlorinated or sulfurized compounds, or phenolic ingredients. Product delivers corrosion protection characteristics to ensure rust-free parts, and exhibits optimal tramp oil rejection properties to extend bath life.

Walter USA, Inc.    Waukesha, WI 53188
Aug 21, 2012 Indexable grooving and cutoff inserts are available with Tigerotec® Silver PVD aluminum oxide coating, which offers high-temperature wear resistance to promote tool life. Optimized surface structure lowers friction on cutting surface; sharp, defined cutting edges can be achieved due to coating's thinness; and smooth surface helps prevent build-up on cutting edge while promoting process reliability. Four grades - WSM13S, WSM23S, WSM33S, and WSM43S - accommodate range of applications.

JENOPTIK Lasers & Material Processing    07745 Jena   Germany
Aug 06, 2012 Robot-based 3D metal cutting laser machine, JENOPTIK-VOTAN® BIM, features 5 kg laser cutting head, robot arm with optical fiber located solely in stationary shoulder, and completely integrated laser beam path. During cutting process, laser light is guided via mirrors; immobility of laser fiber preserves its condition, reducing maintenance and replacement costs.

ESAB Welding & Cutting Products    Florence, SC 29501
Aug 03, 2012 Integrated Plasma Cutting Machines have SmartCycle(TM) Technology that streamlines process control and machine motion. Columbus III programming and nesting software, which identifies process improvements and inserts appropriate programming codes into nest, is included. Featuring position encoder for Z-axis control, Smart Voltage Height Control adjusts vertical torch position from CNC. Automated system also allows torch to retract partially and reposition to next height to minimize cutting time.

Walter USA, Inc.    Waukesha, WI 53188
Aug 03, 2012 Designed to exceed stringent coolant criteria in metalworking, ValCool(TM) VPLFC Cutting Fluid provides foam control properties, suited for high pressure systems rated 1,000 psi and up. Heavy-duty, non-chlorinated, semi-synthetic formula optimizes tool life and surface finish, and helps boost overall system cleanliness, rejecting tramp oils and maintaining stable pH levels. Product is available in 5 gal pails to 55 gal drums.

ESAB Welding & Cutting Products    Florence, SC 29501
Aug 03, 2012 Enhanced Hole Technology(TM) maximizes hole-cutting quality on plasma cutting machines, with upgrade that avoids replacement of CNC and plasma systems. Included with product are PT-36R plasma torch, torch lifter upgrade, and Columbus III programming and nesting software. Users can produce plasma cut holes on mild steel up to 1 in. thick, for hole sizes down to 1:1 ratio without manual intervention. Product also makes use of Vision PC controller and SmartFlow 2 plasma controller.

Munson Machinery Co., Inc.    Utica, NY 13503
Aug 02, 2012 Equipped with direct-coupled, gear-reduced drive that rotates shaft at speeds down to 10 rpm, Model SCC-15-SS reduces hard materials and friable products into controlled particle sizes down to 20-30 mesh. Rotor design is comprised of cutter bits attached to helical array of staggered holders, called interconnected parallelograms, which continuously cut and crush materials against twin, stationary bed knives. Cutter's 15 in. throat width accommodates up to 30 parallelograms with 60 bit inserts.

Reed Manufacturing Co.    Erie, PA 16512
Aug 01, 2012 Available for Saw It® Pneumatic Saw, Blade Guides are available in 21 and 30 in. lengths. Units reach across pipe section being cut and stabilize blade so that it does not whip and vibrate, extending blade life, squaring cut, and helping to eliminate accidental blade breakage. Providing power and reciprocating motion to blades, Saw It(TM) is suitable for cutting plastic, steel, and stainless steel pipe.

Behringer Saws, Inc.    Morgantown, PA 19543
Jul 30, 2012 With cutting range of 47.2 x 20.0 in. and bilateral miter of 30° off of 90° on both left and right side, Model HBP-510/1208G meets stringent demands in construction industries and steel trades. Torsion-resistant saw frame is designed with rotary, swivel-action bearing for smooth miter angle adjustments, and is inclined 8°, optimizing number of blade teeth which contact material being cut. Powered by 17.7 hp gear motor, saw utilizes ball screw for precise downfeed control.
