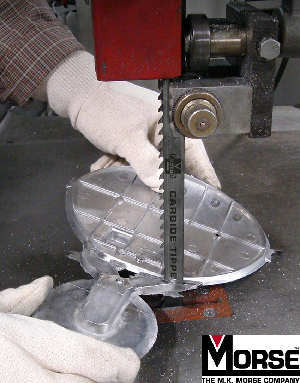

Morse, M.K., Co., The    Canton, OH 44711
Apr 02, 2007 Engineered with steel backer, M-FACTOR(TM) Saw Blades are available in ½, ¾, 1, and 1¼ in. sizes. Submicron grade carbide tip is paired with aggressive triple chip tooth geometry for tough abrasive applications such as aluminum castings, composite materials, and non-ferrous metals. Accepting high feed force, blades provide smooth finish and extended service life.

Doringer Cold Saws, Inc.    Gardena, CA 90248
Mar 22, 2007 Featuring factory set programmable controls, 14 in. Model D-350 FA makes trim cut to insure accuracy, then follows programmed instructions until completed and automatically turns off. Controller can be linked to communication port or interfaced with other controllers. Material feeder system uses servomotor with absolute feedback and ball-screw linear module. Offering 0.002 in. accuracy/ft of travel, system feeds at 12 ips and has unlimited multi-strokes.

SAS Automation, Ltd.    Xenia, OH 45385
Mar 20, 2007 Providing downstream automation for injection molders, Lift Degater is custom-designed using lift tables, rotary tables, and stationary cutting presses. Robot transports part to machine and sets it into part-conforming nests located at top of degater. Part is trimmed by several cutting tools that match to nests, and waste trim is dropped directly into container. Finished molded part is lowered on lift table to be removed by packer, who is protected from lift by safety light curtain.

Universal Laser Systems, Inc.    Scottsdale, AZ 85260
Mar 15, 2007 PLS line of CO₂ laser cutting, marking, and engraving systems feature materials-based print driver that gives users choice between automatic or manual control over power, speed, and other system settings. All 4 models feature industrial design with built-in storage space and keypad/display interface. Units are also available with optional HPDFO(TM) optics which allows for direct marking onto uncoated metals such as steel, chrome, iron, and titanium.

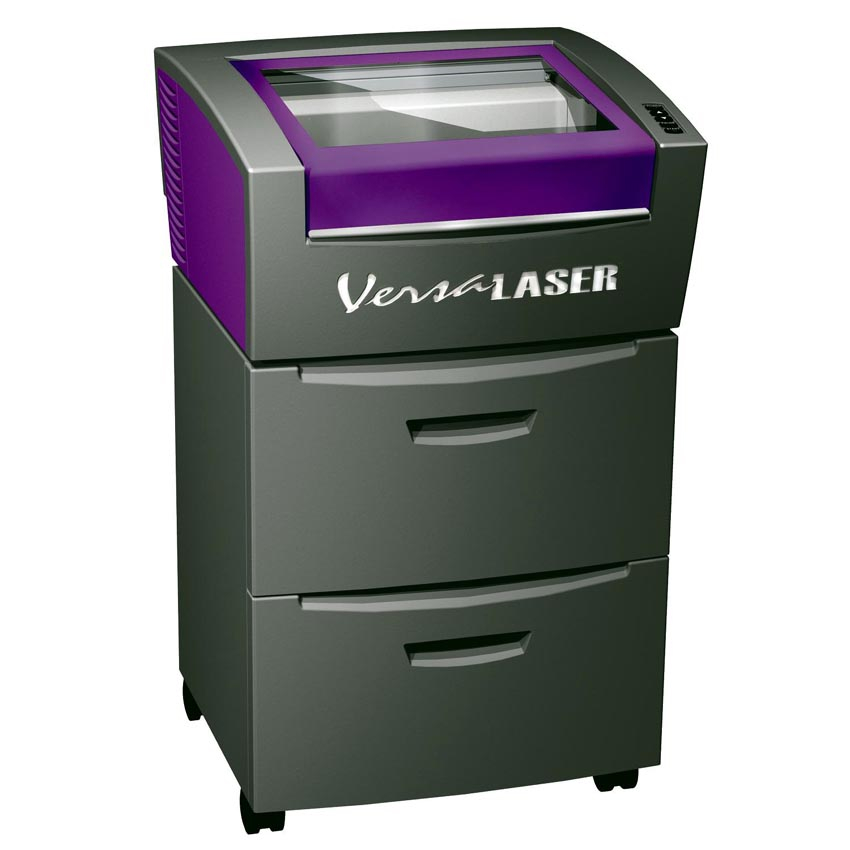

Universal Laser Systems, Inc.    Scottsdale, AZ 85260
Mar 14, 2007 VersaLaser(TM) computer-controlled CO₂ laser cutting, marking, and engraving system runs like a desktop printer from Windows® based graphic software and can transform images or drawings on computer screen into real items made out of variety of materials. Unit is available with optional HPDFO(TM) optics which allows for direct marking onto uncoated metals such as steel, chrome, iron, and titanium.

The Eraser Company, Inc.    Syracuse,, NY 13221
Mar 13, 2007 Designed to meet all tube cutting needs, FTC1 Flexible Tubing Cutter cuts material from ¼ to 1 1/8 in., while LFTC1 Large Flexible Tubing Cutter handles material from ½ to 2 1/8 in. Units are capable of processing variety of material types including tygon, radiator hose, flexible PVC, polyurethane, and silicone as well as nylon, PTFE, FEP, PFA, polyethylene, polypropylene, rubber, vinyl, and polystyrene.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
Mar 08, 2007 With solid hinge-type design suited for prototype or limited production work, Model C315/350V single-phase saw offers infinite control over blade speeds from 24-105 rpm. Double vise assembly, with 6¼ in. max opening, is mounted on slide assembly for optimal workpiece positioning and provides holding power on both sides of cut for burr-free operation. Components include 14 in. HSS blade, 3-phase TEFC motor, totally enclosed transmission, and 24 V controls.

Inkcups Now    Danvers, MA 01923
Mar 02, 2007 Using CO₂ laser technology and Imperial Printing Plates, Cobalt 350 plate making and engraving system produces high resolution pad printing plates directly from computer without use of film positives. XY motion of laser print head enables etching of images up to 25 x 18 in. Unit measures 44.3 x 28.3 x 39.6 in., and comes in Class 3R enclosure with interlocked safety switch. Product also features up to 42 ips speed settings and adjustable power and frequency.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Feb 27, 2007 Integrated dampening of CoroMill® 390 enables vibration-free machining when used with cutting tools working in deep cavities and pockets. It can also be used with Coromant Capto®, which results in further stabilization of machining process. Cutters are also available with integrated seat and hardened steel cutter bodies with diameters from 20-40 mm.

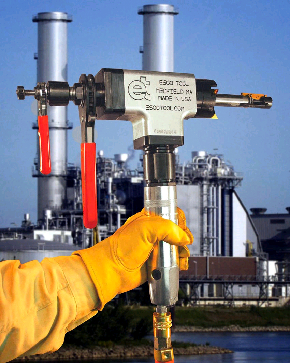

Esco Tool    Medfield, MA 02052
Feb 21, 2007 Powered by 2/3 hp pneumatic motor, Mongoose MILLHOG® machines stainless steel and other highly alloyed materials. Designed for beveling any angle of prep on water wall boiler tubes, unit requires only 2¼ in. clearance and can bevel tubes from 5/8 in. ID to 3 in. OD. Tool features EscoLock(TM) rigid blade lock system with TiN-coated bits, dual-opposed tapered roller bearings with right angle gears, push-pull clamp and release mechanism, and permanently attached wrenches.

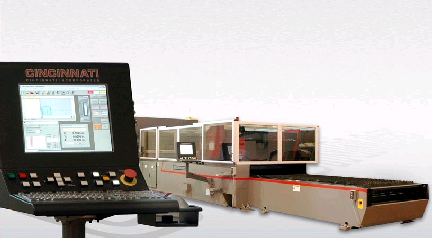

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Feb 19, 2007 Combining 5,000 W GE Fanuc laser resonator and 10,000 ipm linear motor drive, Model CL-850 cuts through 18 ga steel at 1,000 ipm and up to 1 1/8 in. mild steel plate. Windows XP Professional-based control provides intuitive menus so virtually anyone familiar with PCs can operate machine. Available with 5 x 10 ft or 6 x 12 ft cutting table, Model CL-850 features dual pallet design that allows one table to be unloaded/reloaded while second table is being processed.

RIDGID    Elyria, OH 44035
Feb 02, 2007 Opened to optimal cutting position via spring-loaded handle, RIDGID® PC-1375 requires no twisting or ratcheting to cut through plastic pipe or tubing made of PVC, CPVC, PEX, polyethylene, polybutylene, or rubber hose. X-CEL(TM) blade provides single-stroke cutting and minimal cut force, and raised ridges on lower handle are ½ in. apart to facilitate measurements and promote grip. Constructed of heavy-duty aluminum, tool has 1/8-1 3/8 in. OD capacity.

Dapra Corporation    Bloomfield, CT 06002
Feb 01, 2007 Toroid Cutting Tools include 12 Shell Mills in ODs from 2-8 in. and come with round, square, high-feed, and octagonal insert geometries for optimal application versatility. Octagonal Inserts have 8-sided geometry for general face milling capabilities. Their 45° lead angle promotes feed capacity for face milling, profiling, helical interpolation, and chamfering.

Thermal Dynamics Corp.    Chesterfield, MO 63017
Jan 30, 2007 Series XT-300 and XT-301 are offered with SpeedLok attachment design, which facilitates user installation and precise locking of consumable cartridge assembly into torch body. To accelerate changing of consumable parts, only one-half turn is required to fully engage and lock cartridge retainer ring onto torch body. SpeedLok design is also available as retrofit by replacing torch head and retainer ring on consumable cartridge.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jan 29, 2007 Made of hardened steel, ASI DIN rail cutter has 4 separate cutting slots for handling popular DIN rail types. Its 1 m gauge with end stop ensures accurate cut lengths from start to finish. In addition to lever action that minimizes required operator force, cutter features bench-top design for location placement flexibility. Burrs and sharp edges are eliminated due to clean cut die design, which also eliminates need for secondary filing or grinding.

DoAll Company    Des Plaines, IL 60016
Jan 26, 2007 Model C-230 DGSA cuts rounds up to 9 in. dia and rectangles up to 11 x 6½ in. at 90°, and incorporates head that swivels 45° left or 60° right. Dual output band motor drives 1 in. blade at 115 fpm using 1½ hp output or 230 fpm with 2 hp output. Other features include adjustable hydraulic head feed control, band brush, double tapered bearings on swivel support, manual quick-lock vise, and built-in coolant system. C-230 DGSA has a cast-iron saw arm and swivel base.

Bystronic, Inc.    Elgin, IL 60123
Jan 17, 2007 Occupying 20 ft², ByVention laser cutting machine handles material up to 5 x 10 ft and is capable of round-the-clock operation. It has integrated safety system and operating area completely accessible without photoelectric barriers. Also available, Byjet waterjet cutting machine is available with shuttle table and swing arm loader as well as rotary axis. It supports multiple cutting heads and employs constant height sensing feature. Parts are produced with minimal kerf angles.

Tiffen Co. LLC, The    Hauppauge, NY 11788
Jan 15, 2007 Comprised of 5 models, Saunders Professional M3 Series Trimmers handle delicate laminates, tissues, films, and photographic and digital printing papers as well as heavier cardboard and litho plates. Baseboard features all-metal construction, and blade housing covers cutting blade completely to promote safety. Cutting blade is self-sharpening, and extruded aluminum alignment scale is factory-locked to be perfectly square to blade edge. Max cut ranges from 12-48 in.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jan 03, 2007 Equipped with 15 A, 5.5 max motor HP, 14 in. model D28715 chop saw cuts 4½ x 4½ in. square pipe, 4½ x 6½ in. rectangular pipe, full steel bundles, and up to 5 in. round pipe. Saw has stamped steel base, allowing welding of out-feed tables to base of tool to support materials being cut, and pivot bracket for durability. Weighing 39 lb, unit includes heavy-duty lock-down pin, carrying handle, and adjustable spark guard.

TRUMPF Power Tools    Farmington, CT 06032
Dec 27, 2006 Featuring 8 kW of power, TruDisk 8002 integrates cooling unit and beam switches and provides up to 6 fiber outputs standard. Modular laser can process nearly any material, including reflective materials such as copper and aluminum. It can weld 10 mm deep in construction steel with welding speed of 1 m/min or 3 mm deep at 20 m/min. Design does not exhibit any thermal lens effect, which makes beam source insensitive to adjustments.
