United Grinding Technologies, Inc.    Miamisburg, OH 45342
Jun 28, 2005 With center height of 175 mm, Studer S31 universal cylindrical grinder offers between-centers grinding length of 650 mm or 1,000 mm, wheel size of 500 x 63 x 203 mm, and chuck capacity between centers of 130 kg. Dual wheelhead arrangement presents 2 external grinding wheels for rough and finish grinding in same setup, while alternate configuration is left/right with internal grinding for universal applications which allows OD, face and ID grinding in one setup.

Rex-Cut Products, Inc.    Fall River, MA 02720
Jun 15, 2005 Non-loading Rex-Cut® Quick Change Discs are constructed with multiple layers of non-woven cotton fiber impregnated with aluminum oxide or silicon carbide grains. For use on flat or contoured surfaces, construction ensures products constantly reveal fresh abrasives as they grind. Discs, offered in 1, 1½, 2, and 3 in. sizes, are rigid enough to get into corners and are available with various grits and bonds.

Makita U.S.A., Inc.    La Mirada, CA 90638
Jun 09, 2005 Suited for continuous use, GA7001L employs 15 A motor capable of no-load speeds to 6,000 rpm. Unit weighs 7.5 lb and offers all-metal, tool-less, rotating gear housing that can be positioned at 90° intervals. Along with electronic speed control, unit features soft start capabilities and ac/dc switch that lets users operate grinder with alternate power sources. Zig-zag varnish and labyrinth construction seals motor and bearings from contamination.

Makita U.S.A., Inc.    La Mirada, CA 90638
Jun 09, 2005 Grinder series includes 4 in. 9553NB, 4 in. 9553NBK kit, 4½ in. 9554NB, 4½ in. 9557NB, 5 in. 9558NB, 4½ in. 9557PB with paddle switch, and 5 in. 9558PB with paddle switch. All units use 2 ball bearings allow for smooth power transfer and feature all-metal gear housing that can be rotated 90° left and right. Labyrinth construction seals motor and bearings from contamination. Select models are available with ac/dc switch and are rated at 6.0 or 7.5 A.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Jun 02, 2005 Suited for cellular or lean manufacturing, Profimat MC traveling column machine provides multi-axis grinding and is available with integrated automatic tool changer that can switch wheels in 8 sec. Four production profile models feature grinding range/table clamping area of 700 x 400 mm to 1,000 x 600 mm. Rated at 60 kW, variable-speed main spindle achieves speeds to 8,000 rpm. Maximum cutting speed of 170 m/sec is suitable for CD or IPD as well as CBN applications.

Ingersoll-Rand Co.    Annandale, NJ 08801
May 19, 2005 Model G1 offers 0.4 hp, making it suited for light material removal, while Model G2 provides 0.8 hp for heavier-duty grinding, cutting, cleaning, and polishing. For heavy material removal, Model G3 offers 1.35 hp and fully adjustable power with internal contamination-free air controller. Models G2 and G3 feature angle head option rated for 2,000+ hr of use. All include D-shaped handle, 1-nut removal, and replaceable cylinder. Straight and angle configurations are available.

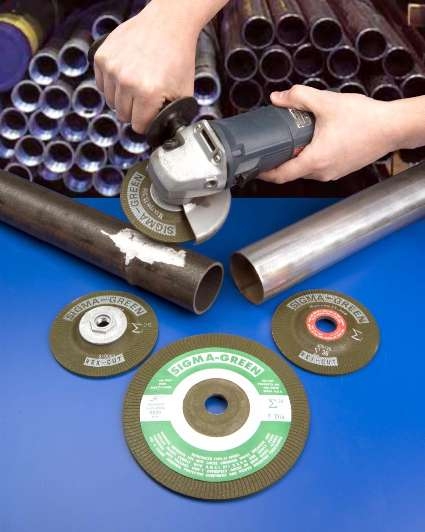

Rex-Cut Products, Inc.    Fall River, MA 02720
May 18, 2005 Sigma Green Grinding Wheels provide metal removal on stainless steel, inconel, titanium, and other highly alloyed materials. Virtually contaminant-free, units contain only 0.035% iron and less than 0.1% of iron, chlorine, and sulfur combined. Featuring zirconia-ceramic grain and bonding that helps prevent corrosion, wheels grind out cracks and blend butt-, pad-, fillet-, and window welds. Sizes include 4, 4½, 5, and 7 in. dia to fit right angle grinders.

Num Corp., Schneider Electric    Naperville, IL 60563 1452
May 04, 2005 Axium Power CNC system addresses all aspects of cylindrical and surface grinding process. Embedded grinding/dressing cycles are governed by menu-driven data entry as well as wizard-guided wheel and diamond origin setup. Cylindrical grinding process allows for full OD/ID grind cycle for 2-axis grinding machines and provides inclined axis capability by tilting grinding head or table. For surface grinding, machine offers full grind cycles for 3-axis machines.

Modern Process Equipment, Inc.    Chicago, IL 60623
Apr 20, 2005 Utilizing Platinum Series Burrs™, Series GPX Grinders produce batch sizes as small as 1 lb, and are designed to grind 350–600 lb/hour. Dial allows selection of any desired coffee grind, with end result being ability to achieve full range of grinds for variety of coffee production applications.

Buehler, Ltd.    Lake Bluff, IL 60044
Apr 19, 2005 Programmable PowerProâ„¢ Series prepares specimens using Zaxisâ„¢ Macro Material Removal System, which enables operators to remove material from specimens by desired depth. Two horsepower base motor and 10 or 12 in. dia platen allows up to 10 specimens to be simultaneously prepared. Mineral cast base is corrosion proof, non-conductive, and chemically inert. Additional features include LCD screen with backlighting, and dual or variable platen speed up to 400 rpm.

CDCLarue Industries, Inc.    Sand Springs, OK 74063
Apr 14, 2005 Hum-B allows users to stand upright during operation. Equipped with 6,000 rpm Dewalt grinder, 12-segment diamond wheel, and 5 in. caster wheels, unit features gas-filled shocks for level grinding. Product, suited for use on concrete, stone, or masonry, is also equipped with 150 W halogen light, 2 in. vacuum port, and Dust Grabber shroud, providing 99% dust-free performance with no suction lock.

CS Unitec, Inc.    Norwalk, CT 06850
Apr 07, 2005 Equipped with diamond grinding wheel, EBS 125 walk-behind, 5 in. concrete grinder removes epoxy, paint, and other coatings. It performs concrete finishing and surface preparation with 14 A motor. Walk-behind cart eliminates need to bend over and work on hands and knees. Power outlet on cart accommodates grinder plug, letting user activate grinder via on/off switch on cart handle. Grinder can also be used hand-held without cart.

Tap Magic, A Div. Of The Steco Corporation    Little Rock, AR 72202
Mar 30, 2005 Usable as stand-alone or booster fluid, Tap Magic Xtra-Foamy is suited for use on all metals up to 45 Rockwell hardness. Foamy consistency provides visibility so that users can gauge application rate and fluid presence. Offered in 17 oz aerosol can, product contains EP-X3 proprietary additive and eliminates metal hardening during cutting operation. Single application stays with tool and workpiece for cuts of long duration.

Roll Grinding Solutions, Inc.    Worcester, MA 01610
Mar 30, 2005 Portable Roll Grinder mounts directly onto framework of calender equipment to let users grind rolls in their own bearings without hand or block grinding. Eliminating need to remove rolls, self-reversing, traversing grinder can redress calender rolls in-place up to 240 in. long. Grinder can achieve tolerances to 0.0005 in. on diameter, concentricity, and straightness, with finishes as fine as 12 RMS, depending on grit of grinding medium.

Blaser Swisslube Inc.    Goshen, NY 10924
Mar 17, 2005 Mineral oil-free Synergy 15â„¢ cutting fluid is suitable for machining and grinding hard metals and copper alloys when oil free coolant is required. It can be used with hard or soft water, provides foam control, and achieves long term sump life without use of bactericides.

Even Cut Abrasive Co.    Cleveland, OH 44103
Mar 15, 2005 Radially mounted around metal shank or hub, Flap Wheels are manufactured from aluminum oxide resin bond abrasive. Wheels for hand-held power tool applications are supplied with 1/8 or ¼ in. straight round shanks or ¼â€“20 quick change threaded shanks. Shank mounted flap wheels range from 3/8–3 in. in diameter and 3/8–2 in. in width, while flap wheels with metal hubs range from ½â€“10 in. in diameter and 1–3 in. in width. Grit sizes from 40–320 are available.

Landis Gardner, A UNOVA Co.    Waynesboro, PA 17268
Mar 03, 2005 Optimized for use with CBN abrasives, Landis LT1-1200 CNC shaft grinder features cast iron bed; linear motor driven, hydrostatic wheel feed system; motorized, hydrostatic spindle; and linear-guided foot stock with rotary dresser. It uses PC-based open architecture control and accommodates 80–350 mm dia wheels. Manual or automatic loading machine operates at speeds up to 200 m/sec, grinding camshafts, crankshafts, pins, and concentric diameters in one set up.

Saint-Gobain Abrasives, Inc.    Worcester, MA 01606
Feb 28, 2005 Chargerâ„¢ Plus Wheels feature blend of zirconia alumina and aluminum oxide. Type 27 1/8 in. and ¼ in. thick grinding and cutting wheels are available in 4, 4½, 5, 6, 7 and 9 in. diameters with both 7/8 and 5/8-11 center holes. Type 28 saucer wheels are available in 7 and 9 in. diameters, ¼-in. thickness with 5/8-11 center holes. Wheels are suited for weld, metal fabrication, foundry, construction, pipeline, and petrochemical applications.

TRUMPF Power Tools    Farmington, CT 06032
Feb 24, 2005 For emission-free beveling, TKF 1100 produces oxide-free, clean K, V, X, or Y edges. Portable power tool features quick-release tool changer, tool-less sheet thickness adjustment, and dial-selectable beveled edge height. Bevel angle of 30°, 37.5°, or 45° is changed using guide bracket options. Tool can remove 0.35 in. beveled edge of steel or 0.43 in. of steel in one cutting stroke on sheets up to 0.98 in. thick. Cutting direction can be changed in seconds.

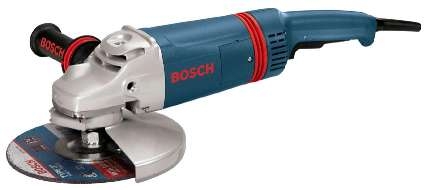

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Feb 10, 2005 Series 1800 incorporates vibration absorbing rings in 3-position, side-assist handle and between main trigger handle and motor housing. Seven inch Models 1873-8 and 1873-6 feature 3 hp motor and operate at 8,500 rpm and 6,000 rpm, respectively. Models 1893-6 and 1894-6 are 9-in. grinders operating at 6,000 rpm with 3 hp and 4.5 hp motors, respectively. Models 1853-5 and 1853-6 are 7 and 9 in. large angle sanders operating at 5,000 and 6,000 rpm respectively.
