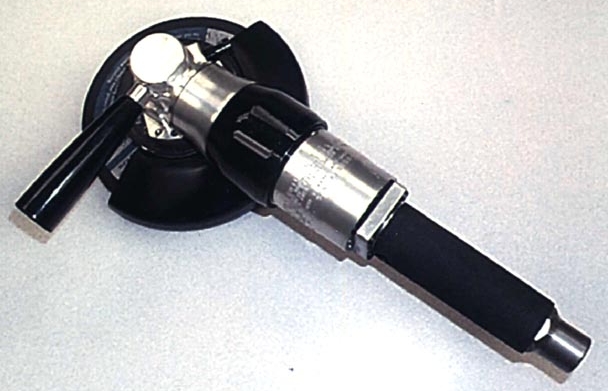

Grinder performs high-speed material removal.
T.C. Service Co.
Willoughby, OH 44094
Aug 16, 2002 Pneumatic, right-angle TOP CAT® Model 520RA grinder incorporates 1,500 W, 2 hp motor rated for speeds between 4,000 and 8,000 rpm. Available in Type 27/28 configurations with 7 or 9 in. grinding wheel, it can serve as Type 01 cutoff tool with available 10 in. cutoff wheel guard or as sander with 5, 7, or 9 in. sanding pad. It includes spiral-bevel gears, throttle-type safety lever, indexable guard, built-in handle isolator, and push-button spindle lock.
Pipe Milling End Prep Tool has oversize ID clamping system.
Medfield, MA 02052
Aug 12, 2002 Air-powered Commander Millhog® Model C-314 offers dual opposed tapered roller bearings for smooth operation. Oversize clamp ribs fit into pipe ID and have 6 contact points to spread radial load and minimize vibration. Fully portable, it pulls thick chip without cutting oils on pipe from 3.75 in. ID to 14 in. OD Providing 1 mandrel and 7 sets of clamps, model unit has 3 hp air motor that develops over 2,000 lb-ft of torque at cutting bit.

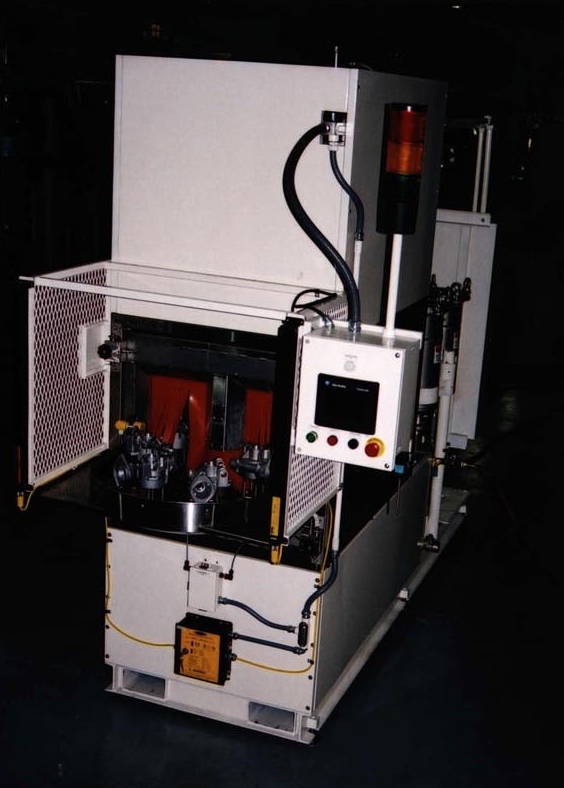

Carousel Wash System is adapted for de-oiling and chip removal.
Guyson Corporation of U.S.A.
Saratoga Springs, NY 12866
Jul 31, 2002 Cell-Mate 200 is fitted with carousel return-to-front conveyor. It is built on rigid steel chassis with fork lift channels for relocation. Stainless steel fabrication of solution tank and process chambers provides resistance to corrosive, aqueous chemistries. High-impact, V-spray nozzles surround component in first process chamber, while second chamber utilizes multi-adjustable air knives that deliver heated, turbo-blown air.

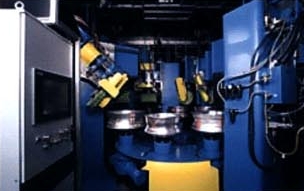

Finishing System polishes 24 in. D by 14 in. W wheels.
Ultra Tech Machinery, Inc.
Cuyahoga Falls, OH 44224
Jul 19, 2002 CNC 12-axis Finishing Machine features adjustable head angle, variable speed buffing spindles, and closed loop positioning. Adjust-on-the-fly technology continuously adapts to each part being finished, allowing automatic processing of parts with minor variations to same consistency. Reinforced steel, 8-station main index table includes independently adjustable table speed, bi-directional operation, automatic part clamping system, and integral table locking system.

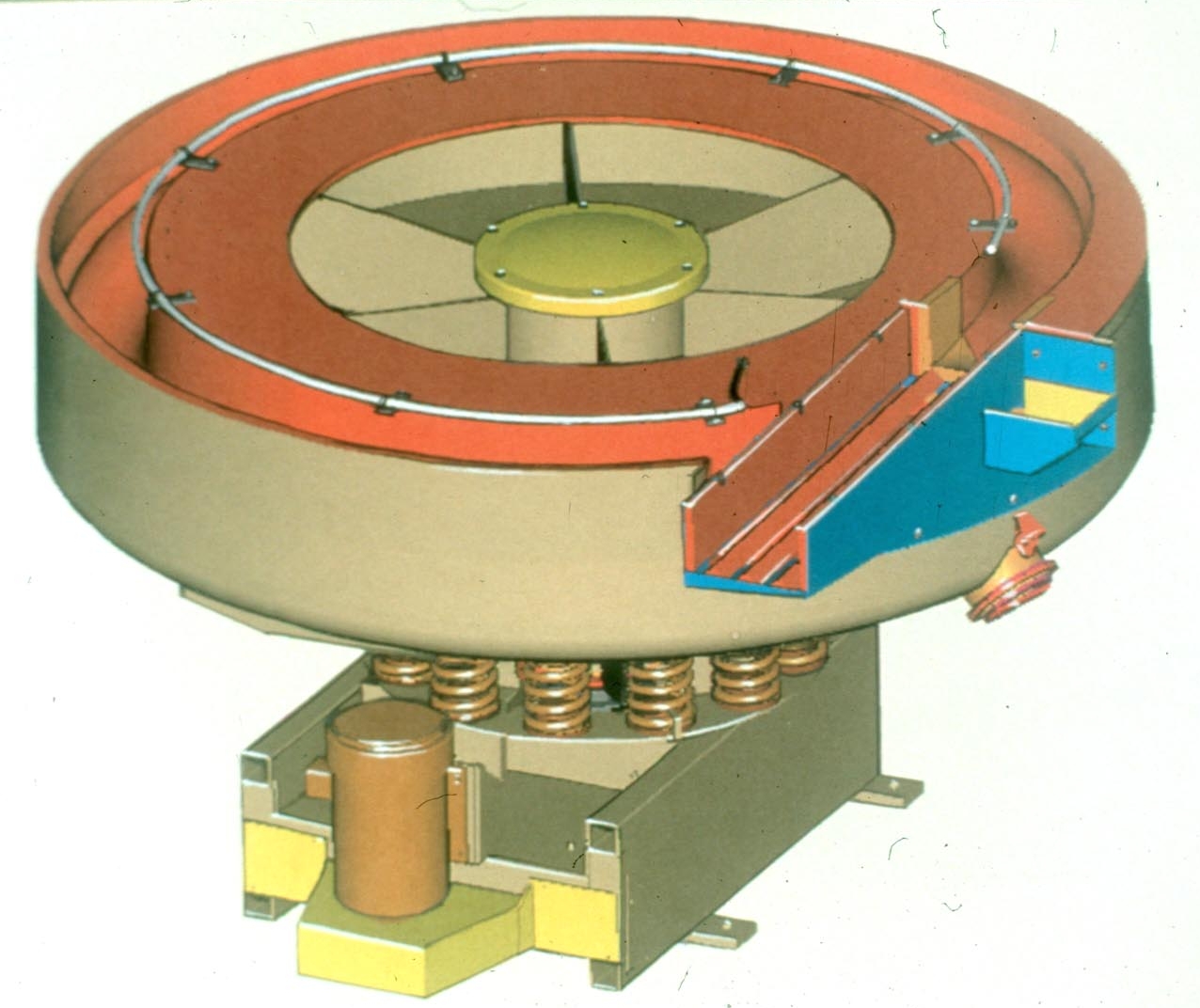

Deburring Machine provides continuous operation.
Albert Lea, MN 56007 2751
Jul 18, 2002 Model XLR-22 automated, continuous, through-feed machine features round-bowl design and is used for deburring and finishing metal parts. Radius channel is 22 ft long and 8½ in. wide, assuring constant media mass depth and media action. Time cycles from 4 to 8 min with variable amplitude and vibrations per min offer flexibility. With parts automatically loaded into machine at specific metered intervals, XLR-22 is suitable for in-line applications.
Fanout Buffer includes 2:1 MUX input.
Micrel Semiconductor Inc.
San Jose, CA 95131
Jul 17, 2002 Model SY89830U fully differential PECL/LVPECL 1:4 fanout buffer operates down to +2.3 V. Model SY100EP15V, rated at 3.3V/5V, offers one input as single-ended while other input to MUX is differential. It also includes VBB reference voltage for single-ended inputs or AC-coupled applications. Each fanout buffer includes synchronous enable function that forces all outputs into fixed logic state without possibility of short, runt pulses.

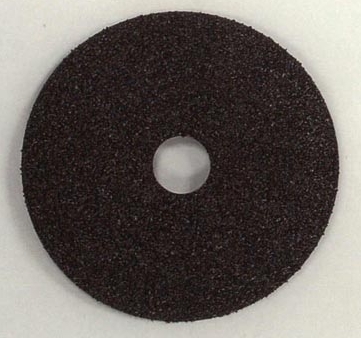

Discs provide cool cutting action.
Worcester, MA 01610
Jul 15, 2002 Cyclone Resin Fibre Discs are coated with abrasive grains and bonded with heat-resistant finish. Premium Aluminum Oxide Disc is suited for light, general purpose grinding of various metals. Aluminum Oxide Open-Cut Resin Disc grinds aluminum, non-ferrous metals, and malleable materials. Island Pattern grain configurations eliminate loading. Premium Alumina Zirconia suits stainless steel grinding. Ceramic Grain Disc grinds and finishes all types of carbon steel.

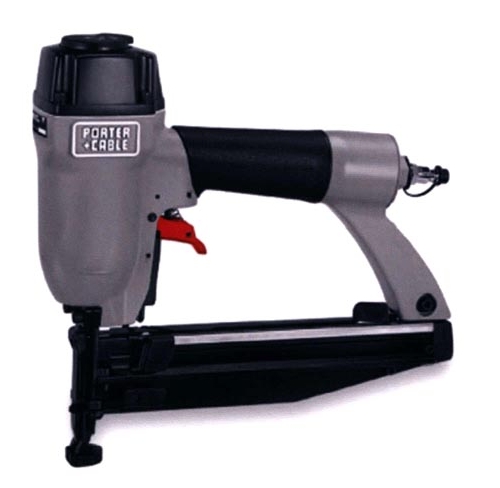

Nailers drive finish nails up to 2 1/2 in. long.
Jackson, TN 38302
Jul 02, 2002 Model FN250B uses 16 ga finish nails between 3/4 and 2 1/2 in., while Model DA250B fires standard 15 ga angled finish nails between 1 and 2 1/2 in. long. Both include internal piston catching mechanism, tool-free adjustable depth control with over 45 pre-set detents, tool-free 360° adjustable exhaust, Teflon cylinder, restrictive trigger, and non-marring rubber nose tip with on-tool storage.

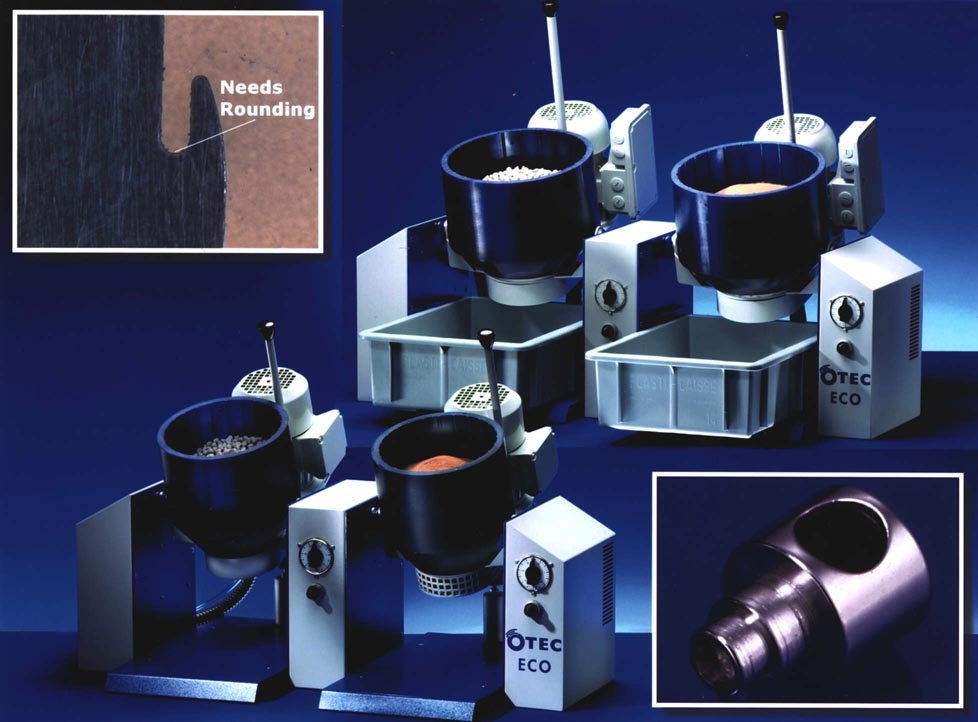

Deburring Machine offers plug and play operation.
OTEC Precision Finish, Inc.
Acton, MA 01720
Jun 24, 2002 ECO benchtop deburring machine offers compact footprint and requires only 115 volt, 60 Hz single phase power input. It is available with 5 liter and 9 liter processing barrels in single or twin configurations. System can be used for dry or wet processing and has optional dosing pump. ECO is suitable for small job shops, cell production within larger manufacturers, and just-in-time processes. ECOmini is designed for wet or dry, truly small scale use.
Variable-Speed Finishing Systems are custom designed.
Abbott Ball Co.
West Hartford, CT 06133 0100
Jun 20, 2002 Open-face barrel designs provide variable cascading, and are also used where acids might risk explosion in closed barrel. Closed-barrel designs permit full rotation of barrel, parts, and media for aggressive action in longer, unattended cycles. Both styles are available in freestanding or tabletop configurations. Dual-barrel systems are also available. Lined or unlined barrels are available in stainless steel, carbon steel, and various plastics.
Discs and Holders perform surface preparation.
Worcester, MA 01610
Jun 18, 2002 Anderlex discs have thick layer of aluminum oxide grain bonded to one side of reinforced, non-woven nylon web backing. Discs resist loading and heat build-up, produce uniform finish, and can be used on steel, stainless steel, aluminum, plastic, wood, and other materials. Disc Holders are available in Posi-Grip or Twist Lock styles. Posi-Grip provides secure press-on disc mounting while Twist Lock has molded rubber back-up pad. Both are suited for contouring and finishing.
Sanding System processes glass fiber laminates.
Hans Weber Corp.
Olathe, KS 66063
Jun 04, 2002 Systems processes glass fiber laminates manufactured as individual panels up to 126 in. wide or webs rolled in coil form up to 196 ft long. Bonding several webs together requires specific maintained surface roughness. Material thickness must be held within precise tolerance. Sanding systems offer ±.004 in. accuracy. Transport system can feed individual panels or coil materials, and includes assist device that handles 128 in. wide sanding belts.

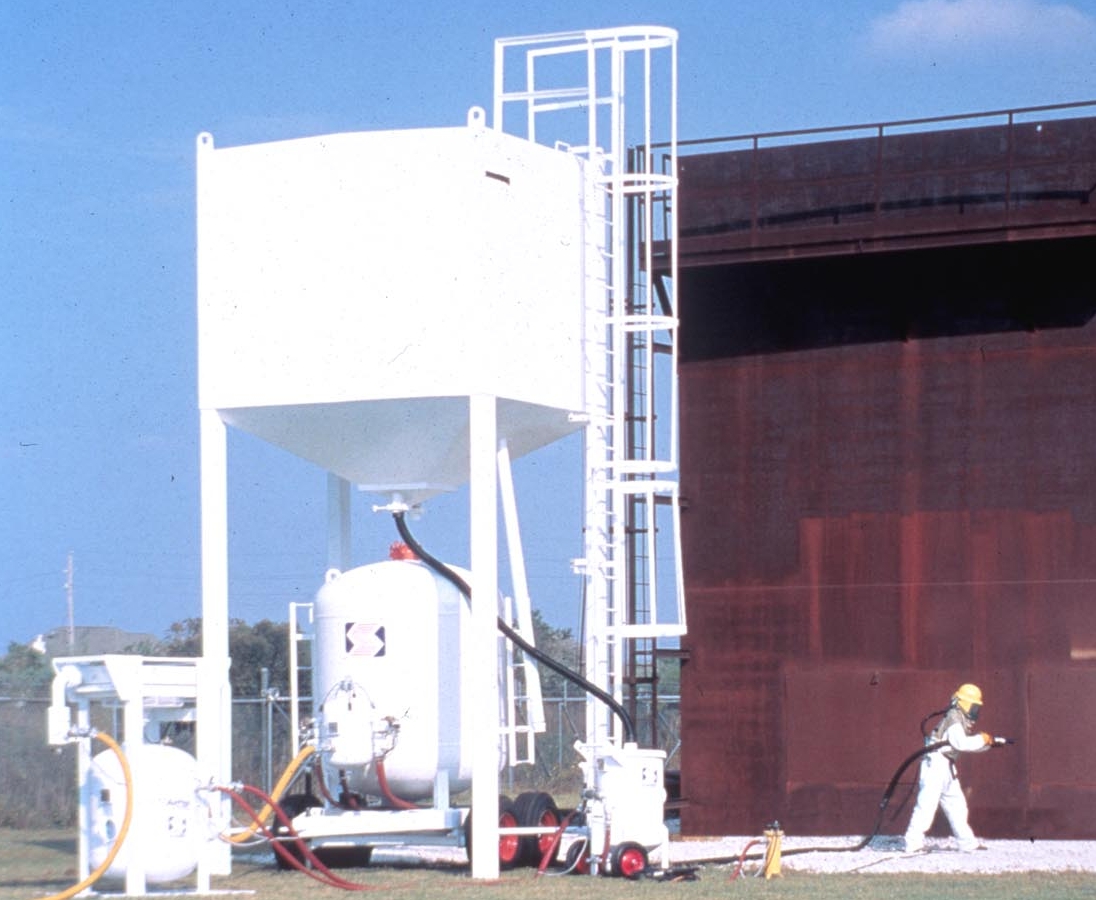

Airblasting Systems suit high volume applications.
Internation Surface Preparation Corp.
Fresno, TX 77545 0037
May 31, 2002
Bulk Abrasive Airblasting Systems use piping designed to provide lowest possible pressure drop. They feature multi-outlet Thompson Valve(TM) II controls that allow each operator independent control of abrasive media flow. All systems have normally closed, fail-safe metering and control valves. Standard bulk systems include 120, 160, 500, 650, and 800 ft³ models. Optional trailers are available for 120 and 160 ft³ systems.
Cleaning System prepares concrete and steel surfaces.
Internation Surface Preparation Corp.
Fresno, TX 77545
May 20, 2002
Blastrac® 2-20D portable blast cleaning system produces 20 in. blast pattern to strip, clean, and profile surfaces in one step. Designed for medium to large sized jobs, its travel speed is rated to 108 ft/minute. System uses two side-by-side blast wheels, positioned to ensure even pattern. It includes twin 15 HP motors, 8-54 dust collector with eight filter cartridges, and automatic pulse jet system.
Rotor/Brake Lathe operates at one spindle speed and feed rate.
Kenosha, WI 53141 1410
May 14, 2002
EEBR308A combination rotor and drum brake lathe handles drums or rotors up to 100 lbs using 1 in. arbor. Separate feed motors power twin cutter tool and boring bar independently. Dovetail tool slides with adjustable gibs are protected with felt wipers. Twin cutter tool reconditions both brake rotor surfaces simultaneously and is adjustable with aluminum micrometer dial. Complete packages include heavy-duty workbench with tool board and range of adapters.

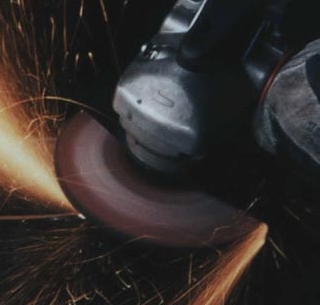

Bonded Abrasives suit rough grinding applications.
Cresco, PA 18326 0149
May 10, 2002 Bonded abrasives, used for snagging, cutting, and parting applications, are resin-bond formulated. Reinforced with fiberglass webbing to provide stability. Offering includes Type 27 Depressed Center Wheels for rough grinding, cutting, light grinding and cutting, and flexible grinding and blending. Line also includes Type 28 Wheels, shaped for grinding at angles below 30 deg, and Type 11 Cup Wheels, shaped to cover broader surface areas when grinding.
Anti-Slip Tape comes in black, white, and gray.
Cleveland, OH 44130
May 09, 2002 Mop-Top(TM) tape, made of true mineral abrasive, minimizes fraying and disintegration of mops. Surface consists of tough grit that is durable and easy to clean with detergents. Both sponge and string style mops glide easily over Mop-Top, providing for fast cleanup and neat appearance. Anti-slip tape meets OSHA and ADA regulations.
Abrasive Belt handles heavy grinding.
VSM Abrasives Corp.
O'Fallon, MO 63366
May 08, 2002 SK847 heavy-duty ceramic grain abrasive has extremely tough backing that performs well under severe grinding applications like heavy gate removal and power-assisted applications. Belt is top sized with added self-lubricating grinding layer that reduces heat during grinding process in heat sensitive applications. Problems of glazing, loading, and stripping on belts are also eliminated. It has good edge wear and extended life, cuts fast, and works in abusive environments.
Tube End Facing Tools suit pressure vessel fabrication.
Thomas C. Wilson, Inc.
Long Island City, NY 11101
May 07, 2002
Two types of tools are available: Fixed-Type for 1/4 to 9/16 in. OD tubes, and Insert-Type for 5/8 to 2 in. OD tubes. Tools face brass, copper, steel, stainless steel, copper nickel, and titanium tubes. Cutter on fixed-type tool can be sharpened, and insert-type tool uses easy-to-replace cutter bits. Fabricators use tube facing tools to trim and face tubes before they are rolled, and re-tubers use tools to trim replacement tubes before or after they are expanded.
Combination Sander includes belt and disc.
Kalamazoo Industries, Inc.
Kalamazoo, MI 49001
Apr 29, 2002 Model S613v is equipped with 6 x 48 in. belt and 12 in. solid aluminum disc. Belt side of sander features 6 x 10 in. worktable with 1/2 x 1/8 in. slot, 6 1/2 x 14 in. steel platen, and belt speed of 2800 fpm. Disc side features 8 x 14 in. cast iron worktable and disc speed of 2500 fpm. Sander is powered by 3 hp TEFC motor, and can be supplied with or without enclosed stand and built-in 100 cfm dust collector.
