MC Machinery Systems    Wood Dale, IL 60191
Jan 09, 2008 Equipped with M700 Series control with 15 in. touch screen display, FA Advance Wire EDM uses keyboard and mouse for CAD/CAM operation. 3D CAD can import Parasolid files, extract 3D model contours, and create NC data directly within control, while 2D CAM helps import DXF and IGES files, revise geometry, or define additional paths. Using 3D adaptive EDM control to analyze 3D data and recognize shape characteristics, machine virtually eliminates transition lines in stepped workpiece areas.

Methods Machine Tools, Inc.    Sudbury, MA 01776
Dec 03, 2007 Constructed with thermally insulated cast Meehanite base, iD Series accommodates 0.010 in. round diamond wire guides as well as guides for 0.004-0.012 in. wire. Heavy-duty 1.26 in. ball screws for X and Y axes are double-anchored and encapsulated in bellows style covers to prevent contamination. Machines are equipped with 310iS-WA CNC control with Windows® OS, 15.1 in. LCD touch screen, and ability to transfer program through USB memory stick/card or Ethernet network.

Makino Inc.    Auburn Hills, MI 48326
Sep 28, 2007 Designed for shops manufacturing parts for aerospace, medical, and injection mold markets, SP and U series Wire EDMs feature SurfaceWIZARD(TM) technology that is suited for use in poor flushing conditions where nozzles cannot be sealed on work surface. SurfaceWIZARD is developed for tool steels up to 4 in. thick, eliminates witness lines, supports 0.008 and 0.010 in. dia wires, and maintains part straightness within 5 and 2.5 microns in 1- and 2-pass machining, respectively.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191

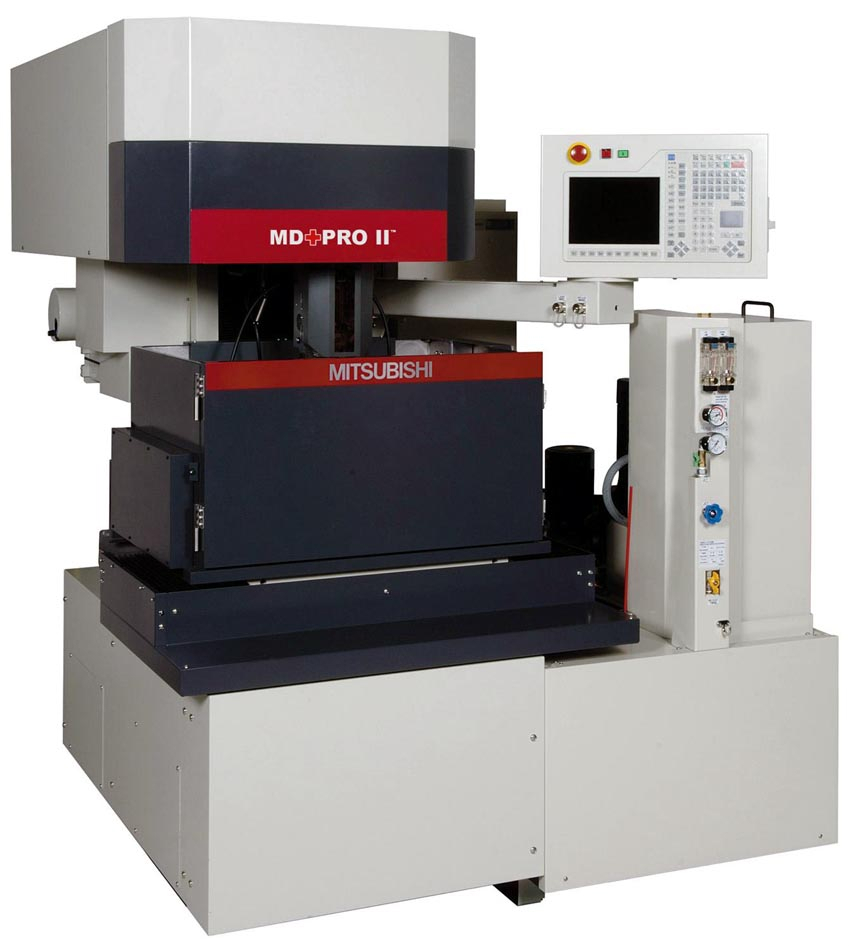

Jun 01, 2007 Integrating B-axis that enables indexing and turn-n-burn applications, Series MD+PRO II features V350 power supply with anti-electrolysis technology and PM4 control that enables full automation from rough to finish machining. Stepped shape capabilities allow multiple parts with different shapes and thickness to be machined without setting specific electrical conditions. Units come with .004-.012 in. wire capable automatic threading and all-axis absolute control.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Nov 14, 2006 Combining MELFA RV-12S 6-axis robot with MD+PRO wire EDM, MD+CELL minimizes need for operator intervention and maximizes unattended running time. Robot provides 12 kg payload and 64-position magazine. MD+PRO comes with .006-.012 in. wire capable automatic threading and all-axis absolute control, which enables accurate positioning without returning to zero after power failure. Integration of optional B-axis during turn-n-burn applications replaces need for secondary and finishing processes.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Sep 27, 2006 Measuring 100.4 x 128.7 x 101.0 in., ROBOFIL 640cc Wire EDM provides X, Y, Z axis travels of 31.5 x 21.7 x 19.7 in. With CC generator, machine achieves industrial cutting speed of 42 sq-in./hr in tool steel. Digital generator is zero voltage to protect parts against electrolytic effects. Providing max amplitude of 1,200 A, machine features Mechanical Quadrax® design for cutting angles up to 30°. ThermoCut system stretches wire and cuts it under effect of heat.

MC Machinery Systems    Wood Dale, IL 60191
Aug 01, 2006 FA-PS EDM machine features 4-axis linear scales and automatic threading of .002-.012 in. dia wire with start holes from .007 in. dia. Digital FS provides finishing circuit for target surface roughness of 3.0 µin. Ra, and AFC2 enables ±3 µm machining accuracy and .00005 in. circularity error. Full automation from rough to finish machining is provided by Power Master control with stepped shape capability, allowing machining of multiple parts with different shapes and thickness.

Methods Machine Tools, Inc.    Sudbury, MA 01776
Mar 28, 2006 Consisting of programming/probing/cutting software, microfinish power supply/generator, Hirschmann rotary axis, Renishaw probe, and tool clamping system, PCD Edge(TM) System enables users to design tool edge contours on CAD systems. Software provides input masks to facilitate parameter selection, program simulation, design modification, and verification. Rotary axis and software permit adjustment of relief angles on each contour element as well as automatic measuring of 3D PCD tip positions.

Makino Machine Tool Co.    Mason, OH 45040 9695
May 27, 2005 Series SP uses Wire WIZARDâ„¢ control system powered by Windows® CE, which prompts user through process of programming, set-up, and run. PowerWIZARDâ„¢ adaptive control system controls discharge current and maintains optimum spark gap, while CornerWIZARDâ„¢ geometric control system provides tight control of small internal corner radii. With minimal input from operator, software will output total machining time, consumable costs, and total part cost if hourly rate is applied.

Methods Machine Tools, Inc.    Sudbury, MA 01776
Jul 23, 2004 Fanuc iC Series Wire EDM machines incorporate artificial intelligence cutting functions, microfinish power supplies, digital servo systems, linear glass scales, tooling packages, high-pressure flushing, chiller units, and quick-change cartridge filtration systems. Machines have cutting speeds of 31.0 in²./hr with uncoated wire, and 33.6 in²./hr with coated wire. R1 feature monitors number of effective pulses per second and adjusts feed rate accordingly.

Makino Machine Tool Co.    Mason, OH 45040 9695
Sep 04, 2002 The SP43 part-in/part-out production wire-cutting machine handles maximum workload of 1,760 lbs and is able to hold tolerances of ±5 µ. It accommodates wire sizes from .004 to .012 in. diameter and taper cutting capability up to 15 deg. X-, Y-, and Z-axis travel is 18 x 12 x 12.8 in. Wire Wizardâ„¢ control software provides programming, set-up, and operation. It will output total machining time, consumable costs, and total part cost if hourly shop rate is applied.

AGIE USA Ltd.    Wood Dale, IL 60191
Jul 08, 2002 Designed for general job shop and die/mold applications, Xenon wire-cut EDM features X-Y-Z travels of 13.8 x 9.8 x 8.7 in. and offers ±15° taper in 4.7 in. thick material. SP and SE series of CNC die-sinking EDMs feature full 3 or 4 axis positioning and full orbiting capabilities. SE series includes integrated C-axis for full 4-axis positioning and linear electrode changer (ATC) for greater productivity.

AGIE USA Ltd.    Wood Dale, IL 60191
Apr 16, 2002 Classic 3S allows submerged cutting of workpieces up to 41 in. wide x 25 in. deep x 16.5 in. tall. It accommodates 55 lb wire spool for long runs and automated operations. Point and Click operation of control is based on object-oriented PC operating system. Frequently used features are represented by on-screen icons. Classic 3S is fully integrated within CE enclosure and designed so that all components are mounted on single support frame.
