RotoZip by Bosch    Mount Prospect, IL 60056
May 17, 2006 Multi-purpose 5/32 in. XB-MPGP2 Tracing XBIT(TM) makes correct cuts every time by avoiding object behind surface and only cutting out material desired. To use bit, users plunge directly into workpiece and bit is driven in one direction until it hits edge of object being cut out. Using object as template, users follow edge around to complete cut. Compatible with RotoZip and Spiral Saws®, bit is suited for applications in materials ranging from wood to fiberglass.

Bondhus Corp.    Monticello, MN 55362 9347
May 08, 2006 Designed for use with battery powered drills and screwdrivers, Allstar bit holder incorporates 2 rare earth magnets to hold ¼ in. shank bits and screw securely in place. One magnet holds bit in place, while other securely holds fastener. Product is available individually or packaged with bit assortment, all of which are machined from European Chrome-Moly-Vanadium steel and heat-treated.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

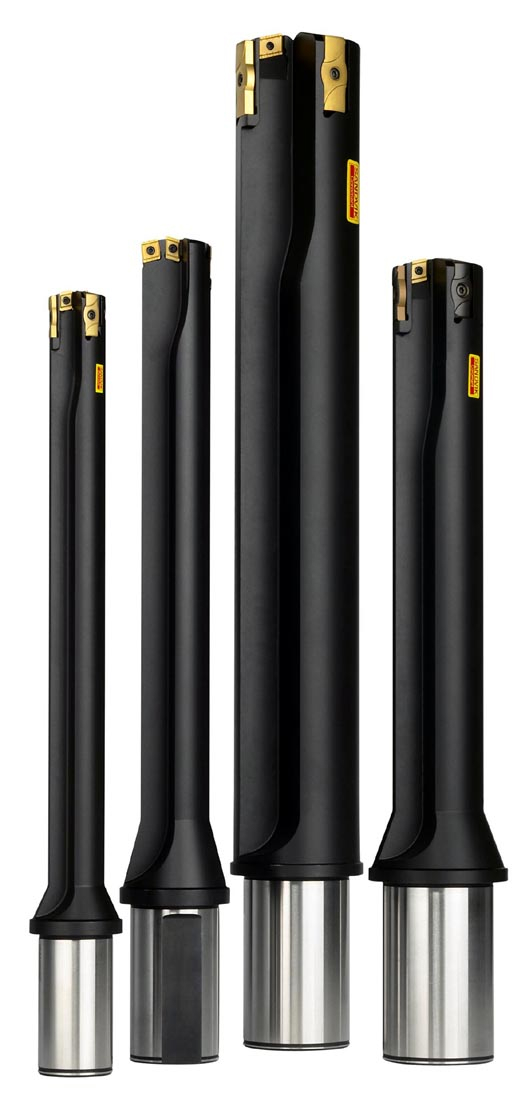

May 02, 2006 Available in .98-2.56 in. diameters with length-to-diameter ratios of 7x to 13x diameter, CoroDrill 805 enables drilling of deep holes without moving workpiece to another machine. In most applications drill achieves deep hole drilling without requiring extra coolant pump capacity.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Apr 04, 2006 Featuring 90° articulating head, cordless LITHEON(TM) 10.8 V I-Driver (PS10) has 5 detent settings and 3.5 in. head length. It can drive one hundred 3 in. screws per charge and is capable of drilling ½ in. dia holes. Head can be adjusted to work between studs, behind fixtures, near pipes, or next to ductwork. Two-finger variable speed trigger offers control over 600 rpm and over 80 in.-lb of torque. Tool comes with 2 batteries, 30-min charger, carrying case, and 2 bits, tool's

RotoZip by Bosch    Mount Prospect, IL 60056
Mar 17, 2006 Offering alternative to metal snips, shears, power shears, and nibblers, XBITS(TM) Spiral Saw® XB-MC1 provides RotoZip users with 5/32 in. diameter metal cutting bit for contractor-rated applications. Drill point tip enables users to plunge directly into material for complex cut-outs. Bit is suited for cutting duct work, auto body panels, gutters, aluminum siding, sheet metal, or studs up to 18 gauge thickness.

Nagel Precision Inc.    Ann Arbor, MI 48103
Mar 16, 2006 VARIOFLEX MD 30 combines gundrilling and deep hole drilling with milling, counter boring, and threading in 1 axis. It allows drilling of compound-angles and has capacity to drill diameters over 2 in. Machine features parallel kinematics, double sided bearings for milling spindle, and drill spindle that allows 3-D machining. Automatic changeover between gundrilling and conventional machining is possible.

Sugino Corp.    Itasca, IL 60143
Feb 24, 2006 Capable of precision end-milling and face-machining operations, Varimec SSV-4 quill-fed Selfeeder offers chuck capacities from 0.07-0.787 in. Mechanical-feed, 1.5 hp, electrically-driven unit, programmed through R232C port or hand-held Programming Console, comes in 2 models with no-load spindle speeds from 250-1,750 rpm and 1,000-7,000 rpm and torque from 5.24-9.07 lb-ft and 1.33-2.29 lb-ft. Total stroke length is 9.83 in., and max cutting speed is 0.656 ips.

Autodrill Co.    Millington, NJ 07946
Feb 09, 2006 Based on pneumatic feed and mechanical rotation designs, long stroke Models 2090 and 2190 enable multi-wall drilling operations to be done from one side. Units are heavily constructed and rated for continuous duty. Majority of parts, including recommended spare parts, are same as 2 and 4 in. stroke drill units. In addition to drilling applications, units are suited for material work, inspection, assembly, and motion control.

TechniDrill Systems Inc.    Kent, OH 44240
Feb 06, 2006 Designed for medical product applications, gun drill system offers drilling capacity of 0.030-0.375 in. dia and up to 18 in. depth. To maintain concentricity, system uses workpiece counter-rotation that allows variable speeds of 500-1,500 rpm, while drill can be variably controlled from 5,000-20,000 rpm. With provision for single spindle or 2 independently operating spindles, unit features 300 gal coolant system that delivers 6 gpm at 2,000 psi to spindles.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Jan 17, 2006 Available from 4-20 mm, Quadro 15 PLUS is suited for cutting stainless steel, steel, cast iron, and other non-ferrous materials. It can achieve hole quality of H7 and surface finish of Ra 0.8 µ. All sizes are coolant through and have Balzers coating. Available from 1-4 mm in increments of 0.1 mm, solid carbide Phoenix Drill features smooth Balzers coating and point and flute geometry. Internal coolant for diameters starting at 2.5 mm makes it suited for extra-hard and non-ferrous materials.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Dec 15, 2005 Offering cutting force balance, CoroDrill 880 is available with cylindrical shank from 29.5-16.5 mm diameter with Coromant Capto coupling down to 20.00 mm diameter. For special needs, Tailor Made option is available on drills between 20.00-29.99 mm diameter.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Dec 08, 2005 Providing drill depth of 6 x diameter, Phoenix Drill features ultra-fine grain composition and is available from 1-4 mm in steps of 0.1 mm. Specially-designed flute and point geometry assure low cutting forces and chip control. Internal coolant for diameters starting at 2.5 mm makes drill suited for cutting hard and non-ferrous materials such as steel, stainless steel, and cast iron. Smooth Balzer's coating assures wear resistance and optimizes chip evacuation.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Nov 15, 2005 Featuring 15° helix angle, Quadro 15 PLUS is suited for cutting steel, cast iron, and other non-ferrous materials. It achieves H7 or better hole quality and delivers surface finish of Ra 0.8 (32 rms). Balzer's Futura Nano Top TiAIN Coating optimizes chip evacuation and helps increase wear resistance and tool life. Carbide drills are available in diameters from .157-.787 in. and standard length of 6 times diameter with coolant through design.

Multiquip Inc.    Carson, CA 90746

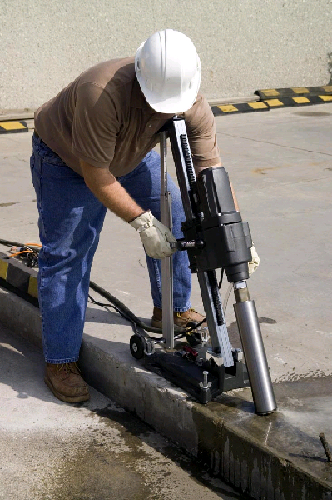

Nov 03, 2005 Handheld, single-speed Model CDM-1H is equipped with 11 A, 115 V motor and operates at 0-1,800 rpm. It excels in wet drilling applications up to 3 in. dia or can be used with Cobra dry drilling bits up to 5 in. dia. Unit includes adjustable shoulder rest, 3-position hand grip, and internal water feed. Suited for straight or angled holes, Model CDM-2CSA can be mounted by bolt or vacuum base, and features adjustable column, 9 in. capacity, and dual-speed, 15 A motor.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Oct 24, 2005 Designed with optimized balance, ½ in. hammer-drills utilize 8.5 A motor and feature metal gear case, soft grip handles that reduce vibration, and recessed selector for hammering or rotation modes. Optimized for concrete fastening, single-speed 5381 operates from 0-1,800 rpm and 0-28,000 bpm and comes with 10 ft fixed cord. Model 5387 offers dual speed/torque of 0-1,000 rpm and 0-16,000 bpm to 0-2,500 rpm and 0-40,000 bpm and comes with 10 ft Quik-Lok cord.

CS Unitec, Inc.    Norwalk, CT 06850
Oct 21, 2005 Wet Diamond Core Drill, Model END 1521 P, can drill 3/8-1¼ in. dia holes and features quick-change diamond bit system to facilitate core removal. Rotary action allows drilling without blow out and micro fractures. Hand-held drill, powered by 13.6 A, 6,000 rpm motor, operates without shock or vibration. Along with centering aid, drill comes with vacuum connection, ½, 5/8, and ¾ in. dia bits, built-in GFCI, and metal storage case.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Oct 18, 2005 Featuring 2 BLUECORE(TM) batteries, CPK40-18 is 18 V, 4-piece combo kit with 30 min dual-bay charger. Brute-Tough(TM) hammer drill/driver has carbide teeth and hammer on/off ring. Operating at speeds to 3,600 rpm, 6½ in. cordless circular saw features 50° bevel to cut 2 x 2 material as well as 45° positive stop. Reciprocating saw has dual-stroke function and variable speed trigger. Also included, 2-position pivoting head flashlight has adjustable focus beam and can stand upright.

Valenite, Inc.    Madison Heights, MI 48071 9636
Oct 12, 2005 Available with various blade types and sizes, MODCO® PI (Padded/Indexable) reamers are suited for general-duty uses and short range applications. Modular products, custom configured to meet application specifics, can finish holes from 5.9-60.50 mm for through hole work and 7.875-60.50 mm for blind hole applications. They feature 3 top rakes and 3 entry angles. Engineering is capable of delivering H6 tolerance grade, and surface finishes as low as Ra 0.25 are obtainable.

Greenlee Textron, Inc.    Rockford, IL 61109
Oct 11, 2005 Made from high-speed steel, Combination Drill/Tap Bits allow users to drill, tap, and countersink metric hole in one motion. Units tap up to 10-gauge metal and have hex shank to ensure strong connection to drill chuck. Back taper beyond tap helps prevent thread damage from over-drilling. Packaged individually or in kits, bits are suited for electrical, HVAC, plumbing, automotive, and DIY end-users.

Valenite, Inc.    Madison Heights, MI 48071 9636
Aug 25, 2005 Capable of achieving surface finishes of Ra 0.3–0.8, MODCO® BHR (Brazed Head Reamer) Reamer series is offered with choice of ValProâ„¢ carbide grades, sizes, and shank styles. Though custom-configured to specific job needs, standard construction consists of shank and interchangeable cutting head module. Reamers, engineered for blind hole or through hole applications, offer full working diameter range of head sizes for finishing holes from 9.75–32.50 mm.
