Polygon Solutions, Inc.    Fort Myers, FL 33912
Oct 24, 2012 Designed to fit inside most rotary broach tool holders, Letter Broach is driven in rotary motion around fixed pivot point, minimizing wear on cutting tool and eliminating secondary operations. Marking method eliminates impact of high powered press or hammer, and gently displaces material until desired depth is achieved. Suitable for use on soft materials such as aluminum and brass, cutting tool supports nominal broach depth of .005–.010 in.

Polygon Solutions, Inc.    Fort Myers, FL 33912
Oct 02, 2012 Designed as attachment to GT Series rotary broach holder, rotary broaching brake can be used to hold orientation for single or multiple parts. Hardware consists of standard screws and nuts that can be replaced. Brake mounts to tool holder using set screws, and additional screws are included at opening of brake to gently tighten against spindle. When broach is engaged with part, brake is loose enough to allow spindle to turn without interfering with broaching operation.

Schlitter Tool, Inc.    Warren, MI 48093 6036
Apr 10, 2009 With HexMaster(TM) Rotary Broaching Attachments, users can machine Hex, Double Hex, and other ID and OD shapes in seconds on most CNC lathes, mills, or screw machines with feed rates up to .012 ipr and speeds to 2,000 rpm. Attachments are suited for manufacturing military fasteners and defense parts.

Schlitter Tool, Inc.    Warren, MI 48093 6036
May 22, 2008 HexMaster(TM) ELITE can make ID hexes, broaches, splines, and other shapes on Swiss, Davenport, and small CNC lathes or screw machines where space is of concern. Available with shank sizes of 12 or 22 mm and 5/8 or ¾ in., this holder offers quick-set fixturing and is suited for broaching forms less than 3/8 in. dia. Solution enables manufacture of shapes in nearly any metal on nearly any machine.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Nov 13, 2007 Available for all Rotary Broaching Tool Holders, hexalobular inserts can be used on lathe, horizontal or vertical mill, or screw machine to create hexagon, square, and other polygon forms in precision metal products. Available in custom lengths, including 28 mm, broaches can be produced from hardened high-speed M2 steel, PM4, or T15 cobalt. They are useful in aircraft applications and in medical applications, such as manufacture of bone screws.

Slater Tools, Inc.    Clinton Township, MI 48038 1554

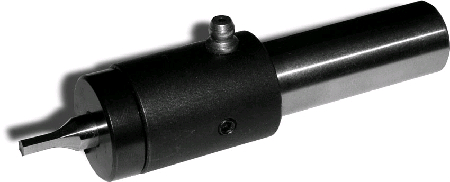

Jun 08, 2007 Available with .625 in., .750 in., 12 mm, or 22 mm shank, Adjustment Free Rotary Broaching Tool Holder is designed for Swiss type lathe and screw machines. Design lets operator use tool holder without need for centering. It also eliminates interference and clearance problems while facilitating access to grease fitting for maintenance. Product can be used for any type CNC, Swiss, or manual turning, milling, drilling, or screw machine.

Genevieve Swiss Industries Inc.    Westfield, MA 01085
Feb 21, 2007 Model 2160 features no center indicating, which facilitates setups for CNC Swiss-type machines and gang style lathes. With 1.1 in. head dia and length of 2.42 in., product can withstand 2,200 lb of push force and fits into tight tooling areas without loosing adjacent ID stations. Size also permits use in limited-space sub-spindle applications. Each holder has extended shank, eliminating need to add bushing while reducing vibration and promoting rigidity and tool life.

Genevieve Swiss Industries Inc.    Westfield, MA 01085
Oct 02, 2006 Designed for CNC Swiss-type and gang style lathes, PCM® 2160 eliminates need to indicate broach to center and thereby facilitates setups. Product, which measures 1.1 in. in dia and 2.42 in. long, is suited for sub-spindle applications. Each holder has extra long shank, eliminating need for bushing and minimizing vibration. Capable of withstanding 2,200 lb of push force, broach head is offered with shank sizes of 16, 20, 22, and 25 mm as well as 5/8, ¾, and 1 in. dia.

duMONT Co., LLC., The    Greenfield, MA 01302
Aug 21, 2006 Suited for cutting 1/8, 3/16, ¼, and 3/8 in. keyways, Minute Man No. 10-10A Combination Set includes 4 broaches, shims, and 18 bushings with diameters increasing in 1/16 in. increments from ½ to 1 9/16 in. Supplied in varnished hardwood box, broaches are high-speed steel, push-type units that can be used with any hydraulic press with adequate throat depth.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Aug 03, 2006 Featuring adjustment-free design, Rotary Broaching Tool Holder can be used without centering. It uses standard 1.25 in. length rotary broaches, which allow for deeper broaching than non-adjustable rotary broaches and tool holders. Broaches are available as squares, hexagons, splines, serrations, and other polygon forms. Tool Holder is suited for any type CNC, swiss, or manual turning, milling, drilling, or screw machine.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Sep 01, 2005 Available in standard hexagon forms as small as 1.5 mm, as well as in smaller custom sizes, external rotary broaches are suited for swiss-type tools that can be used to manufacture precision machine products and other micro fastener products. Sizes range from .056–1 in. dia, and broaches are available as squares, hexagons, splines, serrations, and other polygon forms.

duMONT Co., LLC., The    Greenfield, MA 01302
Apr 05, 2005 Designed to cut ISO standard metric keyways in commonly encountered, metric size bores, Minute Man No. 80 Keyway Broach Set contains 3 broaches and 12 bushings that can be used interchangeably to cut 10, 12, or 14 mm keyways in 12 bore sizes from 32–52 mm. Steel, push-type broaches can be used with any hand-operated arbor press or hydraulic press with adequate throat depth. Product is suited for machine maintenance, erection, or parts production work.

Slater Tools, Inc.    Clinton Township, MI 48038 1554
Jan 01, 2005 Designed for use on any type of CNC or manual turning, milling, drilling, or screw machine, Swiss-type Rotary Broach Tool Holder is built on proprietary design of 8 mm broach holder. Fully adjustable, 12 mm shank broaching tool provides users of smaller Swiss-type automatics with tooling type normally used in larger automatics.

Du Mont Co., LLC., The    Greenfield, MA 01302
Jan 09, 2004 Minute Man No. 10 Set consists of high-speed steel broaches, bushings, and necessary shims for cutting 1/8, 3/16, 1/4, or 3/8 in. keyways in 9 bore sizes from ½ to 1½ in. Push-type broaches can be used with either hand-operated arbor press or hydraulic press with adequate throat depth.

Du Mont Co., LLC., The    Greenfield, MA 01302
Oct 25, 2002 Minute Man heavy-duty keyway broaches, bushings, and shims cut 1/2, 5/8, or 3/4 in. keyways in 17 bore sizes from 2 to 3 in. Set No. 50 can be used to cut keyways in pulleys, gears, collars, and similar pieces in experimental, maintenance, machine assembly, or limited production work. Broaches are push-type and can be used with hand operated arbor presses or hydraulic presses with adequate throat opening. Other sets are available in range of 1/16 to 3/4 in. in bores from 1/4 to 3 in.

Du Mont Co., LLC., The    Greenfield, MA 01302

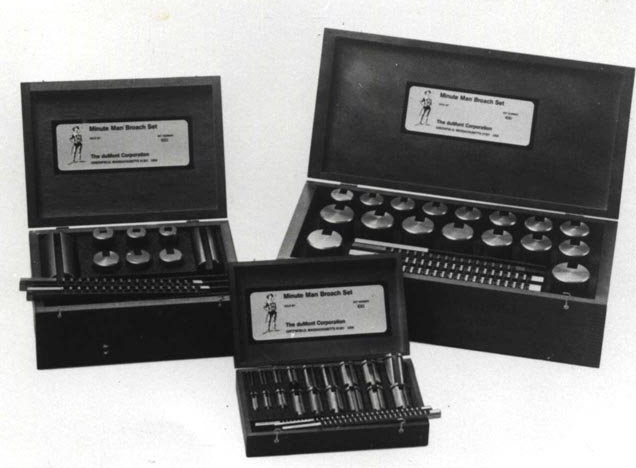

Aug 13, 2002 Minute Man® 100 Heavy Duty Combination Set of 9 high speed steel broaches, 44 bushings, and necessary shims can cut 102 keyway combinations. It can cut keyways from 1/8 to 3/4 in. in pulleys, gears, and collars. Broaches are push-type and can be used with any hand operated arbor press or hydraulic press having adequate throat opening. Set is packaged in 3 hardwood varnished boxes for convenient handling and storage.

Broaching Machine Specialties    Novi, MI 48375 2044
Jun 24, 2002 Electro-Mate table-up broaching machine is powered by force-tube and servo motor technology. It features single piece, welded construction and is electro mechanically operated in every axis. Table-up machine design is easily automated and can be tooled to broach multiple parts simultaneously. Electro-Mate is available up to 10 tons in capacity and 72 in. stroke. It provides easy floor level loading and eliminates need for operator stands and pits.

Du Mont Co., LLC., The    Greenfield, MA 01302
Jun 21, 2002 No. 00 Precision Set has 3 broaches and 5 bushings that allow cutting 15 keyway combinations. Set includes high speed steel broaches, bushings, and shims capable of cutting 1/16, 3/32, and 1/8 in. keyways in bore sizes from 1/4 to 1/2 in. Push-type broaches can be used with any type hydraulic or hand-operated arbor press with adequate throat opening.

Du Mont Co., LLC., The    Greenfield, MA 01302
May 01, 2002 Steel broaches, guide bushings, and necessary shims for cutting 1/8, 3/16, 1/4, and 3/8 in. keyways are available in 36 keyway combinations. In addition to its 4 broaches, Minute Man 10-10A Combination Set includes 18 bushings with diameters increasing in 1/16 in. increments from 1/2 to 1-9/16 in. Push-type broaches can be used with hydraulic presses, and require no special skill or set-up time.

Du Mont Co., LLC., The    Greenfield, MA 01302
Mar 14, 2002 Minute Man No. 90 Set consists of keyway broaches, bushings and shims designed for cutting 16mm or 18mm keyways in 8 bore sizes from 52 to 65mm. Broaches are push-type and can be used with any hand-operated arbor press or hydraulic press with adequate throat opening. Applications include pulleys, gears, collars, and similar pieces. Set is packaged in hardwood varnished box.
