Uhlmann Packaging Systems Inc.    Towaco, NJ 07082
Jun 16, 2011 Designed for all solid dose products, Model IBC-120 packages small- to medium-sized batches at rate of 24,000 tablets or capsules/min. Pharmaceutical-compliant system processes round, rectangular, and oval bottles measuring 45-200 mm in height and 25-125 mm in diameter. In between batches, it can be reset to different bottle diameter in 6 minutes. Integrated packaging stations are controlled by central touchscreen interface, enabling machine to adjust to new bottle heights at touch of button.

GaleWrap    Douglasville, GA 30134

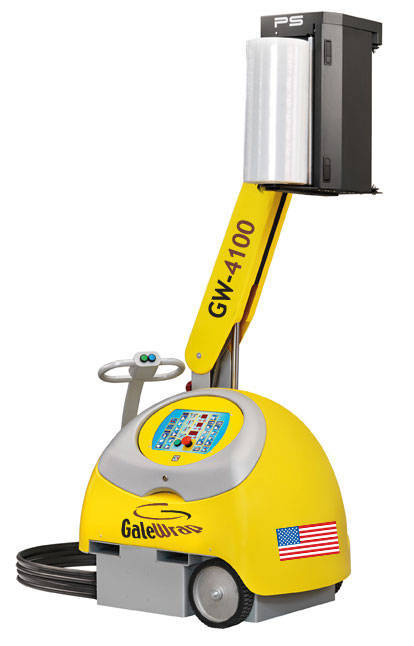

Jun 15, 2011 With height-adjustable mast to facilitate movement through warehouse, GW-4100 handles up to 37 loads/hr and accommodates loads up to 6 ft 11 in. high. Design promotes product protection, wrapping consistency, and employee safety while reducing waste and time. Along with automated wrap-up/down cycle, features include film cutter, push/pull mushroom emergency stop button, and safety contact edge. Carriage is optimized for GaleWrap-oriented film, and tension adjusts electronically.

Makita U.S.A., Inc.    La Mirada, CA 90638
Jun 14, 2011 Model LXDG01, 18 V LXT Lithium-Ion Cordless ¼ in. Die Grinder features 25,000 rpm, barrel grip, stepped neck for working in tight spaces, slide switch with lock-on, and vent slots that direct exhaust air away from user. Portable, compact product, suited for metalworking applications, is 15¾ in. long and weighs 4.4 lb with solid aluminum housing. Built-in LED protection circuit with over-torque protects motor and LED light flashes red to indicate low battery charge.

CS Unitec, Inc.    Norwalk, CT 06850
Jun 14, 2011 Designed with horizontal motor mount, MAB 150 stands 7 in. tall and weighs 24 lb. It has 1 in. max drill depth with annular cutters in structural steel and other metals and is powered by 9.25 A, 110 V double-insulated motor with no-load speed of 400 rpm. Able to accept cutters with ¾ in. Weldon shank, portable drilling machine integrates automatic cooling/lubrication system, dual-coil magnet with holding strength of up to 2,640 lb, and left- or right-mounted advancing lever.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Jun 14, 2011 Designed for surface preparation in coating work cells, Robotic Grit-Blasting System features 6-axis robot arm that serves as blast gun manipulator. Arm is attached to 52 x 32 in. rotary blasting cabinet with servomotor-driven 24 in. turntable controlled as seventh axis of coordinated robotic motion. Key to elimination of over-/under-blasted surfaces is ability to constantly maintain exact blasting angle, nozzle-to-surface distance, and surface speed while precisely following part contours.

MAG IAS, LLC    Erlanger, KY 41018
Jun 10, 2011 Designed for workpieces up to 2,700 mm dia, multi-axis Model VTC 2500H combines gear hobbing and milling with turning, drilling, threading, and contouring capabilities. Machine can turn blanks and subsequently cut gear teeth in one setup. It can also perform rough turning of outside diameter and gear cutting on inside diameter in one set up. Available with 36 or 46 kW power, 2 different heads can hob modules up to 24.0 mm or form-mill teeth up to 28.0 mm on parts with max face width of 600 mm.

BLM Group USA    Wixom, MI 48393

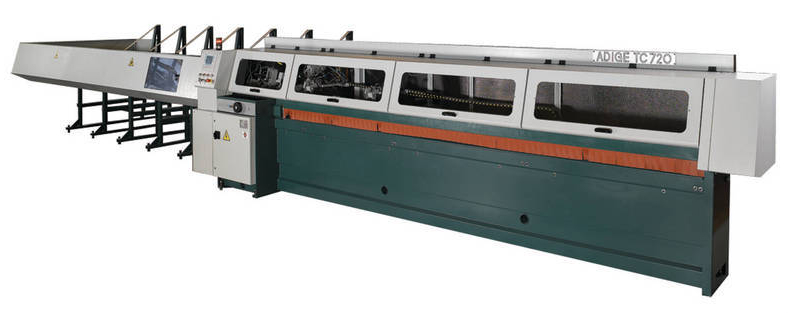

Jun 10, 2011 Tube cutting system TC720 operates as stand-alone unit or as part of automated tube processing line controlled by single CNC, integrating downstream functions such as deburring, washing, drying, and accumulating. Programming system automatically selects optimum parameters for job at hand, and complete changeover can be accomplished in less than 3 min with all settings centralized and to scale. Saw performs cutting of square and rectangular sections with slideway mounted cutting head.

RIDGID    Elyria, OH 44035
Jun 10, 2011 Featuring capacity up to 1 5/8 in. OD, Model TC-40 cuts polyethylene, polypropylene, PEX, rubber hose, PVC, and CPVC. Unit features 75 W motor that drives pointed X-CEL® blade to provide square, precise cut in 4 seconds. Repeat cuts can quickly follow with use of push-button blade release. Forward and reverse blade operation is possible via single trigger on front of tool. Powered by detachable 12 V Li-ion battery, TC-40 can make up to 250 cuts/charge.

Doosan Infracore American Corporation    Suwanee, GA 30024
Jun 08, 2011 Suitable for parts up to 16.5 dia x 29.9 in. long, Puma 3100 accepts bar stock to 4 in. dia and employs 30 hp motor which drives spindle at speeds to 2,800 rpm and generates max spindle torque of 828 lb-ft. Thermal isolation system eliminates thermal deformation by preventing machine-generated heat from reaching bed or headstock. Other features include tooling system with conical and flat-face planar interface; non-lifting, 12-station turret; and Fanuc 0iTD controller.

Methods Machine Tools, Inc.    Sudbury, MA 01776
Jun 07, 2011 Nakamura-Tome Multitasking Turning Centers are available with CAMplete TruePath Turn/Mill software, which provides G-Code editing, optimization, analysis, and verification tools. Enabling range of turn/mill functions, software delivers full Simulation of Nakamura turning centers and programs as well as tooling and workholding libraries. Capabilities for G-Code editing and verification, reorder and move operations, as well as toal machine motion monitoring are standard.

Power Adhesives Ltd    Charlotte, NC 28209
Jun 07, 2011 Featuring handle modeled after computer mouse, Mouseplane® fits in user's hand and promotes safe use. Product fits flush against wood surface or edge to neatly remove any surplus dried glue or fix uneven surfaces, without any gouging. Tool can also be used to level edges and clean out corners of cabinets. Along with hardened carbon steel blade that maintains its sharp edge, features include storage piece that fits on blade to protect edge when tool is not in use for safety.

Krones AG    Franklin, WI 53132
Jun 02, 2011 Comprised of container infeed and strapping modules, Evolite Packer handles LitePac packaging, which addresses secondary packaging of PET containers. In infeed module, containers are divided into 2 continuous lane flows. Four strapping units then create LitePac packs in strapping module. Fine-tuned motor dimensioning minimizes power consumption, while standby circuits minimize heat loss at welding tongues. With lifetime-lubricated bearings, machine almost completely eliminates lubricant use.

Dr. Shrink, Inc.    Manistee, MI 49660
Jun 01, 2011 Combining Ring Cutter and Film Knife tools into one unit, Wrap n' Strap Knife provides safe and convenient tool with which user can cut strapping and film. One side of tool is designed to cut woven cord strap, while other is optimized for making clean, smooth, and even cuts for shrink wrap. Two additional blades are included to facilitate replacement, and tool is sized to fit snugly in back pocket or in any toolbox.

SEALPAC UK Limited    Poole, Dorset BH12 4QT  United Kingdom

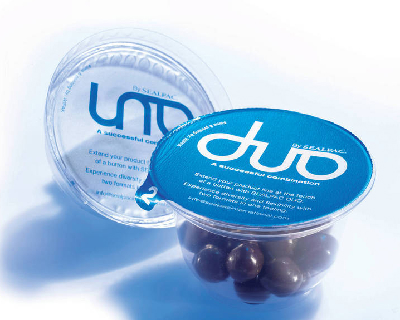

May 31, 2011 Compatible with SEALPAC's A-series traysealers, SEALPAC DUO lets users seal 2 different packs in different heights and shapes in one operation. By means of handle, each tooling can be activated or deactivated, so that 2 formats may be produced simultaneously or consecutively. InsideCut system, which ensures that film is neatly cut on inside of tray, allows for optimal fit of combined parts after sealing, making SEALPAC DUO suitable for multi-component packs, such as ready meals or snacks.

Bunting Magnetics Company    Newton, KS 67114 0468

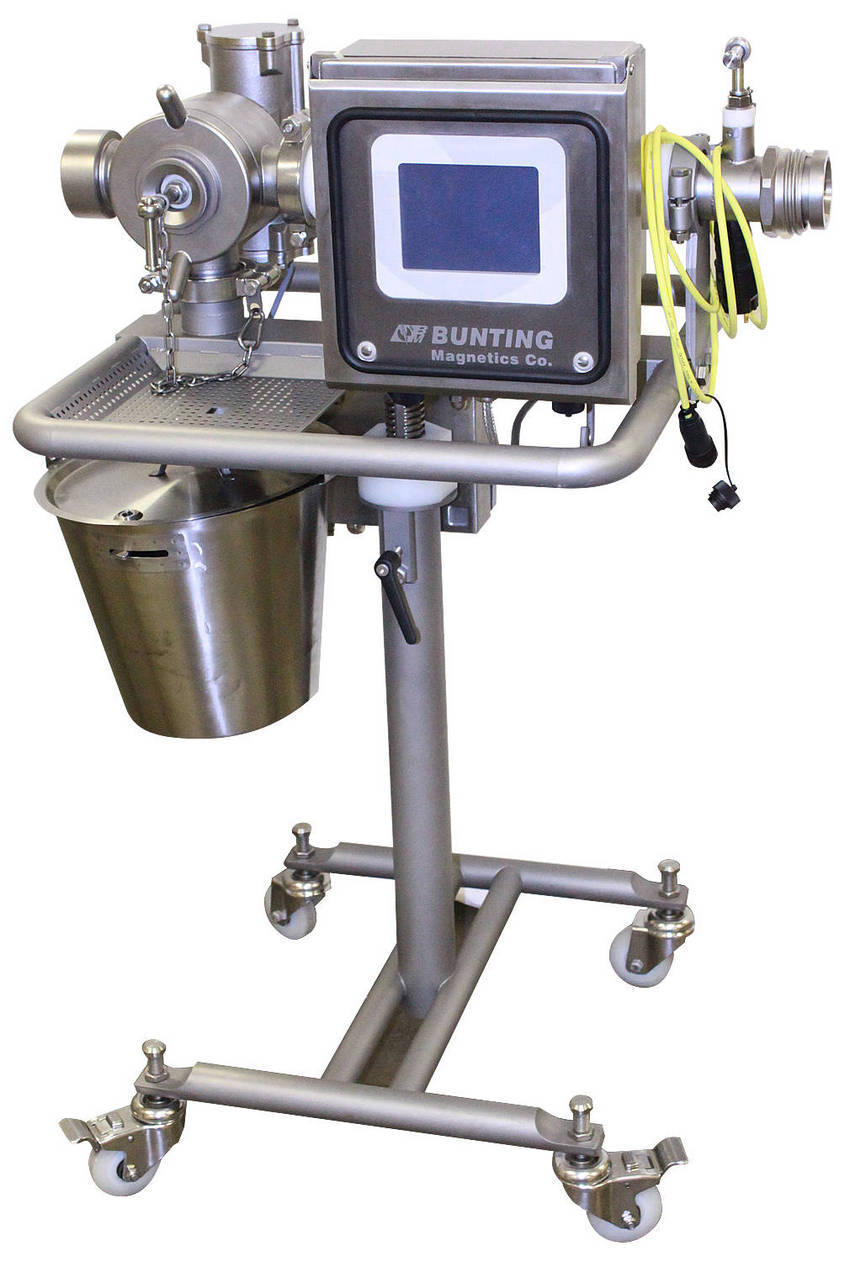

May 27, 2011 Designed for integration in vacuum fillers, Meatline 05 0 detects and separates any type of metal, encapsulated or free, from liquid and pasty food products. Reject mechanism can be taken apart without tools to facilitate cleaning, and all components are linked together with chain to prevent loss. Able to fit all commercial vacuum fillers, detector is pressure washer safe and has stable frame with lockable casters. Touchscreen display and menu structure facilitate operation.

Rehm Thermal Systems    Blauberen   Germany
May 27, 2011 CondensoX series lets users adapt vapor phase soldering to manufacturing conditions. Utilizing range of handling variants, system ensures void-free soldering can be achieved in any SMD manufacturing system. Condensation reflow soldering system employs hermetically locked vacuum chamber and meets challenges of Pb-free solder alloys for small and high thermal mass PCBs. Without moving assembly during soldering process, CondensoX combines vacuum profiling and thermal profiling in one machine.

Schunk    Morrisville, NC 27560
May 26, 2011 Designed for automated tool and cutter grinding, PRISMO Toolholder is based on precise clamping sleeve with prism guidance. Each of 5 chuck jaws is guided by double prism, while third prism on clamping face directly contacts tool shank. Holder always adjusts itself to individual tool diameter. At overhang length of 2.5 x D with tool diameter of 20 mm, PRISMO provides repeat accuracy of less than 0.005 mm. To avoid contamination, toolholder is rinsed with clean oil during grinding operation.

Netgear Inc.    Santa Clara, CA 96054
May 26, 2011 Combining ADSL2+ modem with WNDR3700 Ultimate Networking Machine wireless router, NETGEAR N600 Home DSL Gateway supports simultaneous 802.11n dual band networking at 2.4 and 5 GHz, providing 2 separate networks for data and video traffic. Unit supports NETGEAR ReadySHARE(TM) technology though 2 USB ports, transforming external USB hard drives into shared storage. Device is also future proof, with separate gigabit Ethernet WAN port for connecting to high-speed cable or fiber optic broadband modems.

CGW-Camel Grinding Wheels    Niles,, IL 60714
May 24, 2011 Featuring high concentration of diamond grit and solid steel body, CGW diamond wheels produce fewer sparks, no odor, and minimal material debris. They will not fracture during use, increasing safety, and consist of type 29 depressed center grinding wheels, type 1 notching/grinding wheels, and 16-20 in. combination cutting wheels. Intended for chop saws, stationary saws, gas saws, and rail cutting machines, each wheel type suits specific applications.

Saint-Gobain Abrasives, Inc.    Worcester, MA 01606
May 24, 2011 Intended for metal fabricating industry, Norton Vortex Rapid Finish Non-woven Right Angle Discs prepare surfaces before coatings/plating, perform light cleaning, and remove blemishes after welding stainless steel. Units feature thick nylon web for extended life and porous design for cool cutting. Type 27 Depressed Center discs are available in 4½ x 5/8 to 11 in. and 4½ x 7/8 in. sizes with aluminum oxide abrasive, and grit size of 100-120 with medium grade.
