LVD Group    GULLEGEM 8560  Belgium
Nov 09, 2011 Designed to handle workpieces up to 60 x 98.4 in., Strippit P-1525 delivers up to 270 hits/min on 1 in. centers and up to 600 hits/min in nibble mode. Machine processes material thicknesses up to 0.135 in. mild steel and up to 0.250 in. aluminum, providing ±.004 in. finished part accuracy and ±.002 in. finished part repeatability. In addition to servo-driven hydraulic ram, press features 21-station thick-style turret, three 2 in. auto-index stations, and PC-based Fanuc control.

Okamoto Corp.    Buffalo Grove, IL 60089
Nov 09, 2011 Capable of basic surface, slot, side face, and profile grinding with optimal straightness, flatness, and mirror finish over 2,000 x 1,000 mm area, ACC-208CHiQ double column, gantry-type surface grinder features 500 mm dia x 100 mm wide wheel driven by 22 kW motor and shift-plunge grinding cycles. Overhead dressing for rough grinding, combined with table top dressing for finishing, reduces cycle times, while touchscreen iQ control combines CNC technology and GUI for efficient operation.

J.E. Grote Company, Inc    Columbus, OH 43230

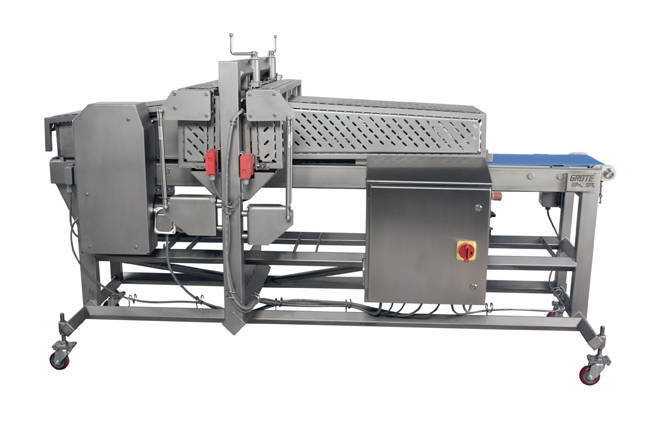

Nov 08, 2011 Featuring dual-lane, stainless steel design, Horizontal Bread Cutter handles virtually all types of sandwich breads and rolls. Cut height is adjustable from ½ to 1½ in. and is accomplished with mechanical hand wheel. In addition to 12 in. wide transfer belt, cutter includes independently driven upper feed belt to maintain positive pressure on each bread top during cutting process. Accuband® Band Blade System cuts with ½ in. wide band blades running continuously between 2 pulleys.

J.E. Grote Company, Inc    Columbus, OH 43230

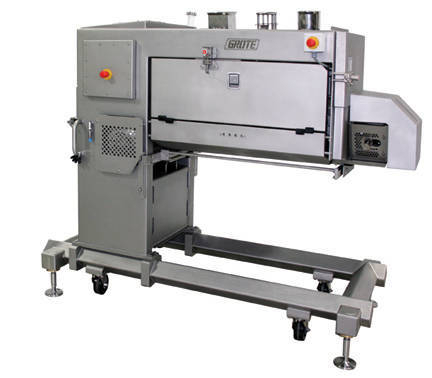

Nov 08, 2011 For purpose of sanitation, 530E model features sloped and hermetically sealed framing as well as open frame design with all control electronics located outside main body. Additional features include solid nylube clevis on main crank arm, scalloped bearing bar support mounts, and curved thickness tray that removes without tools. Built to survive harsh wash down environments, system features clutchless cluster drive system (electric models only) and full 6 in. stroke capability.

KMT Water Jet Systems, Inc.    Baxter Springs, KS 66713
Nov 04, 2011 Supplied with or without electrical panel and booster, NEOLINE can be incorporated into machines built by water jet cutting and profiling system OEMs. Modular, CE-marked, 40 hp unit can supply one waterjet nozzle up to 0.30 mm dia or two 0.23 mm dia nozzles. Features include stainless steel topworks, 1 L accumulator, heat exchanger, and safety dump valve. Waterjet can be pure and also supports addition of garnet abrasive.

Essemtec Ag      Switzerland
Nov 04, 2011 Available for Cobra and Paraquda pick-and-place machines, TCQ 18-bin changer can replace component tray in less than 5 sec and align it with better than 50 µm accuracy. Trays are stored in magazine that is equipped with handles and can be replaced. Standard magazines feature 18 or 14 slots, depending on tray thickness, each with room for one standard JEDEC tray; space also can be divided for several smaller trays. Capabilities can accommodate needs of small and lightweight components.

Fountain Quail Water Management    Roanoke, TX 76262
Nov 04, 2011 Comprised of low-profile clarification trailer and auxiliary support trailer, ROVER System is designed for primary treatment of shale gas flowback at or near source. This self-contained, in-field, mobile clarifier treats up to 10,000 barrels of flowback and produced water per day. It removes suspended solids and soluble organics from shale gas wastewater and then returns clean brine that can be blended for re-use as hydraulic fracturing fluid.

Kennametal, Inc.    Latrobe, PA 15650-0231

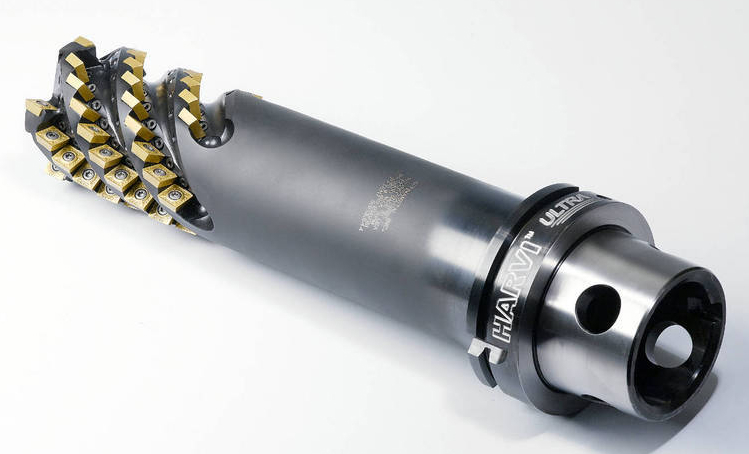

Nov 03, 2011 Spindle connection, KM4X(TM), delivers combination of clamping force and controlled interference levels that lends to robust connection, stiffness, and restrained bending moment. In turn, this helps machining centers increase speeds and feeds in difficult titanium machining applications. Ability to retrofit to existing machine tool offers advantage of increasing throughput without investment in additional capital equipment.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Nov 03, 2011 For roughing, semi-finishing, and finishing, CoroMill 176 covers gear profile sizes from 4-6. With standard carbide inserts for gear profiles according to DIN3972-2, tool is custom-made for specific profiles with addendum modification and protuberance. CoroMill 176 is registered as Quality class B in accordance with DIN3968 and uses iLock interface for precision and stability.

Carver, Inc.    Wabash, IN 46992 0544
Nov 03, 2011 Available with heated and/or cooled platen packages, AutoFour/48 Press offers 3 platen sizes: 15 x 15 and 18 x 18 in. for general purpose applications, and 19 x 19 in. for ASTM D3182 rubber test slab preparation. Floor-standing press has max operating temperature of 650°F, adjustable daylight of 0-15 in., and 4 in. stroke. Other features include self-contained hydraulic system, programmable control system with touchscreen interface, and 2 anti-tie-down close buttons for operator safety.

Ceragon Networks, Inc.    Paramus, NJ 07652
Nov 03, 2011 Designed to provide up to 4 Gbps of traffic and support up to 4 carriers in single rack unit, FibeAir® IP-10Q meets needs of Ethernet and IP/MPLS aggregation networks. Traffic optimization and frame cut-through technology optimize operation, while no single point of failure (SPoF) design enables operators to meet subscriber SLA requirements. Built for 3G, 4G/LTE, converged, and private networks, solution is optimized for migration from SONET/SDH aggregation networks to packet networks.

Worksaver Inc.    Litchfield, IL 62056
Nov 02, 2011 Suited for compact tractors with non-quick attach buckets, clamp-on snow blades features 3/8 x 6 in. cutting edge of 1044 steel and ability to angle right or left. Attaching frame slides over bucket cutting edge, and frame extends under bucket bottom for complete system support. Available in 5 and 6 ft models, blades are suited for use in removing snow from driveways or small parking areas and remove with chain and turnbuckle system.

Ameropean Corp.    North Haven, CT 06473
Nov 02, 2011 Constructed of elastic material, Way Wipers keep slide ways clear of swarf, dust, and other abrasive materials found in workshop environments. Synthetic rubber material is resistant to mineral oils and cooling emulsions and features vulcanized metal reinforced facing. Silicone rubber wipers and wipers without metal facing are also available to accommodate unique requirements. Available in standard strips of 22 or 39 in., wipers can be adapted to shapes of slide ways.

HURON GRAFFENSTADEN SAS    Illkirch 67401  France

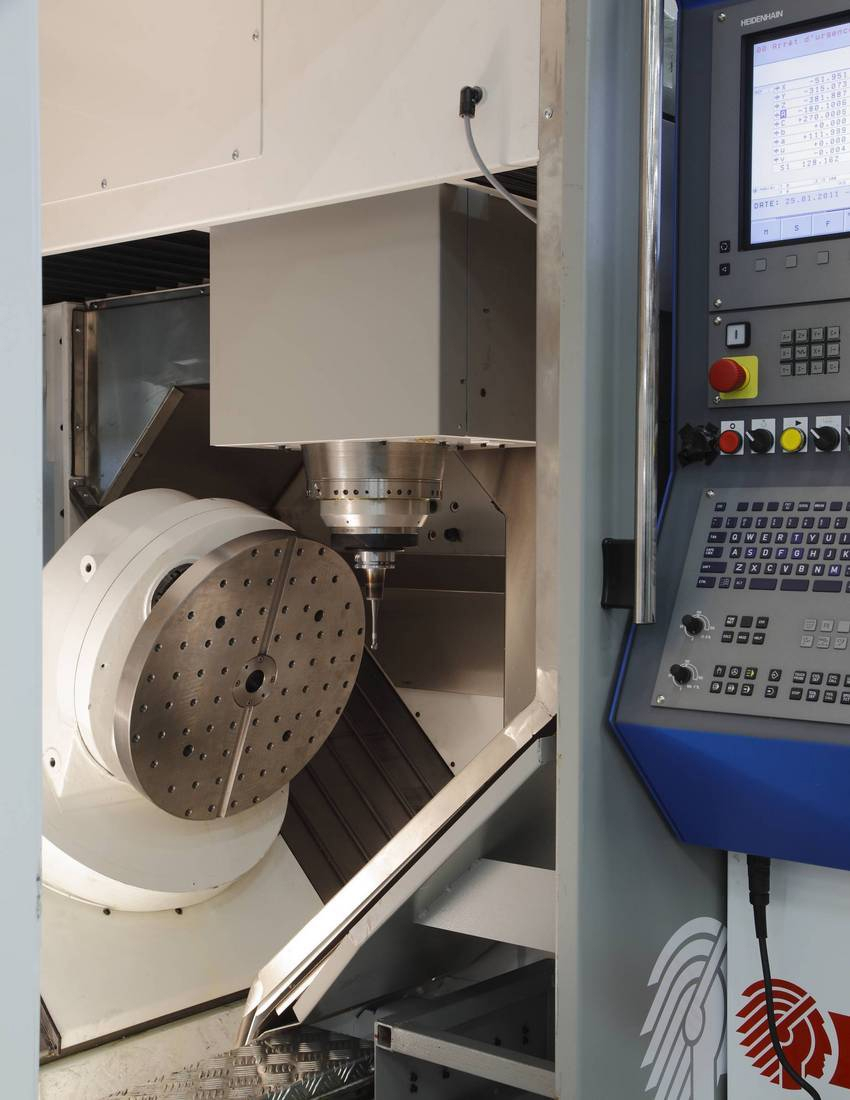

Nov 01, 2011 Suited for roughing and finishing work in 5 simultaneous axes and on 5 faces, K3X 8 Five employs standard spindle that reaches 24,000 rpm with torque of 40 Nm for 25 kW. Table inclined in 55° plane enables negative machining angles up to -20° to be reached. Consequently, angle of spindle axis in relation to table ranges from 0° to 110°. Milling center architecture consists of fixed gantry and bed and 500 mm dia table that rotates 360° and tilts -30°/+180° and accommodates up to 250 kg.

Burr Oak Tool    Sturgis, MI 49091

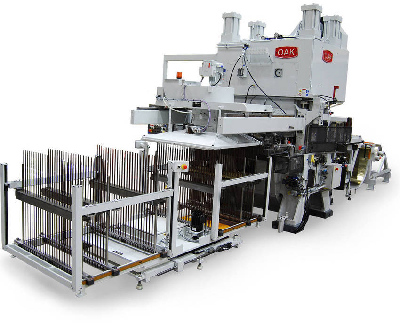

Nov 01, 2011 Intended for HVAC and refrigeration applications in heat transfer industry, Model FP-1400 features extensive solid modeling and added weight, optimizing press rigidity for consistent product output. Balanced platform minimizes vibration, while electronic servo-feed centers and balances forces on feed shaft and allows access to left side of press and die. Using touchscreen on control panel, operator can program fin length.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Oct 31, 2011 Featuring 36 x 60 x 36 in. chamber, customized Model 7 allows one user to change positions to reach all aspects of 5 ft long component or 2 people to blast simultaneously. Each work station has view window and independently adjustable blast nozzle, and top-hinged upper section accommodates loading of taller components. In addition to safety interlocks on all doors, features include stainless steel shot collection, cyclone media reclaimer, and dust collector.

Essemtec Ag      Switzerland
Oct 31, 2011 Integrating active tape pull-back system and cutter, intelligent 12 mm Cobra Feeder facilitates and accelerates setup of component reels to SMD pick-and-place machines. One 12 mm tape feed takes less than 60 msec, and pickup position is reproducible within few micrometers. Due to feeder precision, pick-and-place head can pick up 4 components simultaneously from 4 different feeders. Feeders further simplify SMD reel setup by automatically threading tape and cover tape.

MC Machinery Systems    Wood Dale, IL 60191
Oct 28, 2011 Featuring 3-axis, cross-flow resonator design, eX Series provides optimized cutting power. Eco mode cuts carbon dioxide emissions, and magnetic head protects against catastrophic crashes. In addition to built-in control panel, workpiece area window, and barcode reader, machine includes email notification system, nesting with component thumbnails displayed on screen, high-speed lens movement, and fast processing head.

Tyrolit    Westborough, MA 01581
Oct 27, 2011 Featuring reinforced carbon fiber core that can be reused several times with addition of segments, GENIS CF Wheels are suitable for external cylindrical grinding of automotive components. Units feature thermally stable CBN grains within wear-resistant, vitrified bond, and porous abrasive layer that minimizes friction and heat generation in cutting zone. Wheels up to 700 mm dia are available for grinding truck crankshafts, while wheels up to 250 mm wide can be supplied for camshaft production.

Essemtec Ag      Switzerland
Oct 24, 2011 Available in loader, unloader, and combined module, Models BHL-04 and BHU-04 replace pneumatic piston with electric telescope push-in, cutting overall length by ½ m. Loaders and unloaders can be integrated into any production line via SMEMA interface, while combined module is suitable for fully automatic batch solutions such as independent printing cells that serve multiple assembly lines. For programming, units include graphical touchscreen console where all parameters can be set and saved.
