Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Able to cut dry with 14 in. carbide tipped blade, Model KM14SC handles light-duty wall thicknesses, 1/4 in. angles, pipe, and structural steel. Saw cuts up to 4½ in. stock at 90° and miters up to 3½ in. at 45° left or right. With 1 in. spindle arbor and 1300 spindle speed at 1725 RPM, saw offers 5 hp motor with manual switch, cast iron construction, and dual cam-lock vises. Also included: dual V-belt drive and OSHA safety blade guard.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 06, 2002 Model KM14HS cuts aluminum, brass, and plastic with a 14 in., carbide-tipped, steel blade. It miters 45° left and right, has 4½ in. capacity at 90°, and has 4 x 3½ in. capacity at 45°. Saw offers twin V-belt drive, 4400 spindle speed at 3450 rpm, and 1 in. spindle with sealed ball bearings. Equipped with 5 hp motor with manual switch, saw has cast-iron construction, dual cam-lock vise, and OSHA safety blade guard.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Sep 06, 2002 Clausing/Equiptop PNC grinders utilize longitudinal servo hydraulic control systems, PLCs with NC mode control, and vertical and crossfeed servo motor control systems. Grinders are available in 5 sizes with tables from 10 x 20 to 16 x 40 in., longitudinal table movements (hydraulic) from 22.75 to 41.73 in., and wheel diameters from 8 to 14 in. Offerings include C3 class vertical and crossfeed ballscrews and 10 in. color TFT display.

TRUMPF Inc.    Farmington, CT 06032
Sep 06, 2002 CNC TrumaBend C 60 has 82 in. of bending length with down-acting y1/y2 hydraulic ram drive that delivers 472 ipm on approach, and returns with up to 74 ipm pressing speed. Model C 60 offers ±.0004 in. ram repeatability. It is offered in 4-axis and 6-axis configuration and comes equipped with auto-passive bed crowning system as standard. Programmable back-gauging table gauges flange and can also support large, thin sheets.

TRUMPF Inc.    Farmington, CT 06032
Sep 05, 2002 TRUMATIC TC 2020 R has 50 x 100 in. working range, Gantry drive, linear tool changing rail, and Pentium-based PC control. Single station punching head allows complete tooling changeover in less than 1 min. Its linear tool magazine can hold up to 19 tool cartridges and can be expanded to up to 190 tools via company's Multitool® punching tools. Sensors and vacuum system ensure that only one sheet is selected at a time and is loaded and unloaded correctly.

TRUMPF Inc.    Farmington, CT 06032
Sep 05, 2002 Trumatic L 3050 has 5000 watt laser that cuts thin sheet and thick plate at speeds up to 1,600 in./min. It has programmable focus system, DIAS® capacitive height sensing, 4 quick change cutting heads, and Siemens 840D PC controller. Sprintlas® on the fly piercing punches through material up to 1/4 in. thick without stopping cutting head. Options include rotary tube cutter, automated load/unload device, and variety of storage and retrieval systems.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

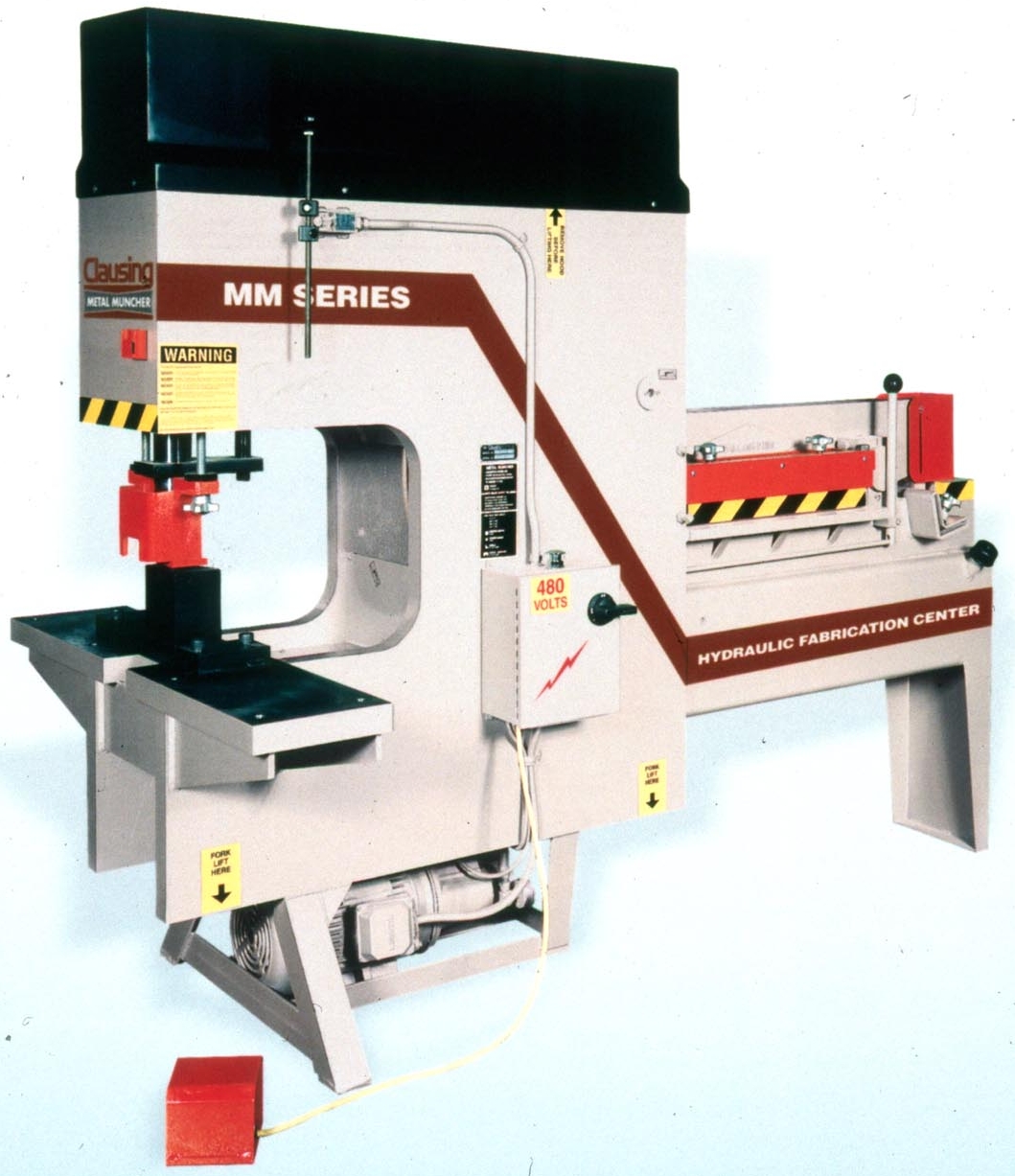

Sep 04, 2002 Clausing/Metal Muncher MM Series includes punch press, flat bar/plate shear, coper, notcher, and angle shear for punching, shearing, coping, notching, and forming operations. Available in 40 to 135 ton capacities, center offers 2-cylinder/2-person operation, which allows punch and shear end to be operated separately, independently, or simultaneously. Center also includes adjustable stroke lengths up to 9 in., ram up to 3 in., and foot-activated press cylinder.

Makino Machine Tool Co.    Mason, OH 45040 9695
Sep 04, 2002 The SP43 part-in/part-out production wire-cutting machine handles maximum workload of 1,760 lbs and is able to hold tolerances of ±5 µ. It accommodates wire sizes from .004 to .012 in. diameter and taper cutting capability up to 15 deg. X-, Y-, and Z-axis travel is 18 x 12 x 12.8 in. Wire Wizardâ„¢ control software provides programming, set-up, and operation. It will output total machining time, consumable costs, and total part cost if hourly shop rate is applied.

Emco Maier    Columbus, OH 43221
Sep 04, 2002 EMCOTURN 420MC has 2 main spindles, 2 counter spindles, and 2 tool turrets. It handles simultaneous machining of two parts without interruption or collisions. Digital drives produce performance in both main spindle and X and Z axes. HYPERTURN 665MC combines 4 axis turning capability with Y and B axes, adjustable milling spindle, cross-roller linear guides, and easily accessible tool turrets. It can handle bar stock, shaft work, and chucking operations.

Kice Industries, Inc.    Wichita, KS 67219

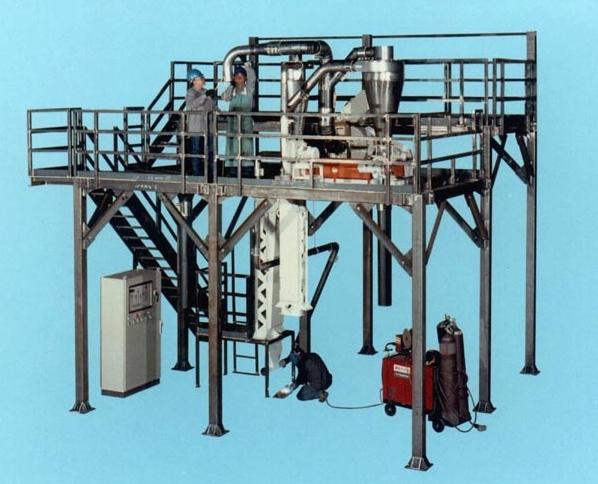

Sep 03, 2002 Modular Processing Systems, for material processing, are factory-engineered and pre-assembled, minimizing on-site labor for erection, custom fitting, and unforseen factors. Systems include structure and individual equipment as required including Multi-Aspirator®, cyclones, fans, filters, airlocks, spouting, and automation. Systems are suitable for industries such as grain and milling, chemical, plastics, foundries, and mining.

ESAB Welding & Cutting Products    Florence, SC 29501

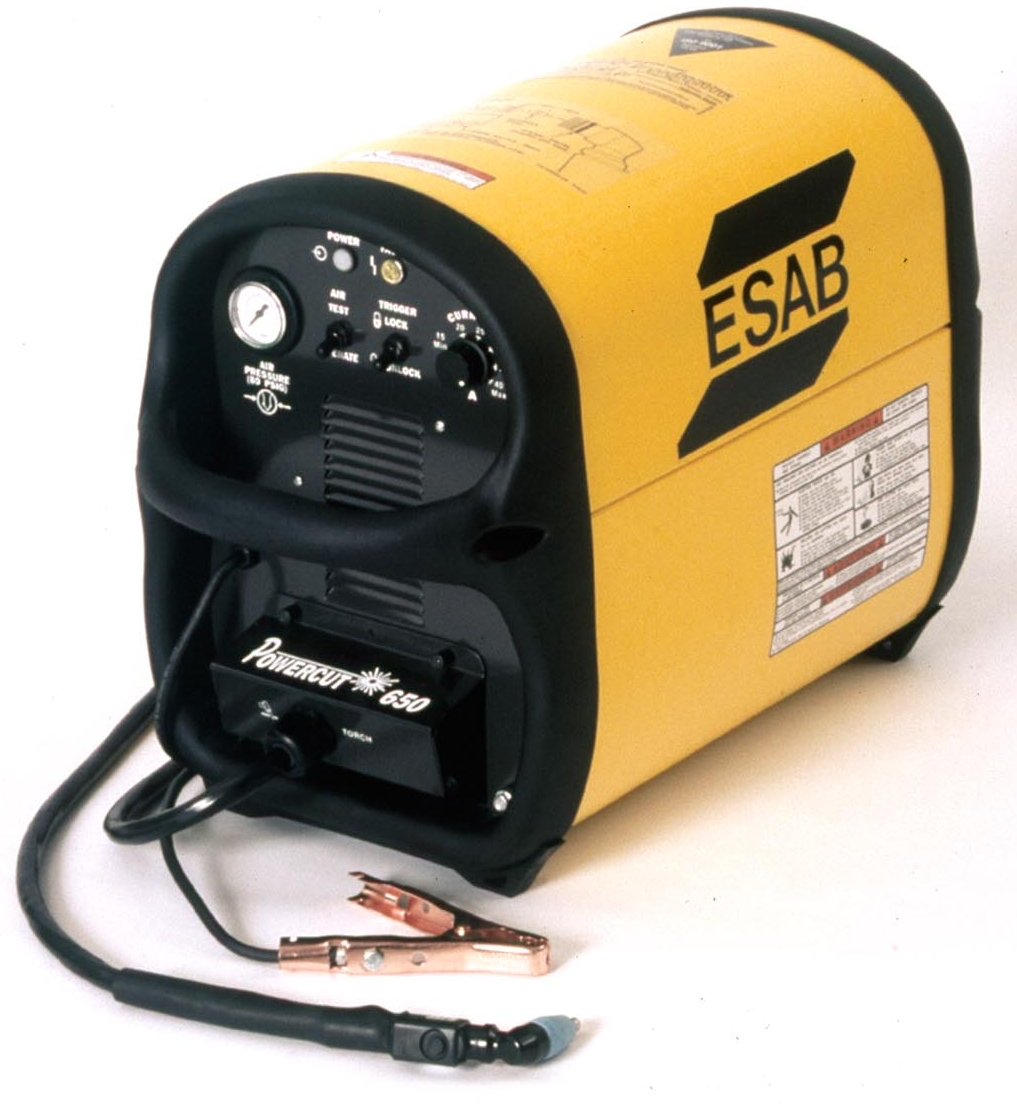

Sep 03, 2002 Rated at 40 A, 40% duty cycle, PowerCut(TM) 650 offers 5/8 in. cutting capacity and 3/4 in. severing capacity for carbon steel, stainless steel, and aluminum. Fiberglass composite case stands up to abuse and harsh weather conditions. Compact package weighs just 53 pounds and fits through manholes. Machine operates on poor power lines and offers drag or standoff cutting, template following, trigger lock-in, adjustable output, and PT-31XLPC torch.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Sep 03, 2002 Drill Presses are 15 in. with 3 in. column, lubricated-for-life ball bearings, positive depth stop, and heavy-duty quill return spring. They are offered in slow speed and high speed models, with either heavy-duty infinitely variable drive or 5-step pulley drive, and choice of hand feed or air-hydraulic feed. Production rated capacity with power feed and ¾ hp motor is 5/8 in. in cast iron and ½ in. in mild steel. Presses are available with ½ in. key chuck or 2 MT spindle.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Sep 03, 2002 Series B Column Geared Head Drilling Machine is offered in 6 sizes with capacities from 1.38 to 2.75 in. in steel. All have hardened and ground steel gears and automatic gear box lubrication. Electromagnetic clutch provides precise automatic feed control that can be activated from any of 4 push buttons built into end of feed crank handles. Machine includes automatic tool ejector, front-mounted speed selection for up to 12 speed ranges, adjustable depth stop, and rotating table.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

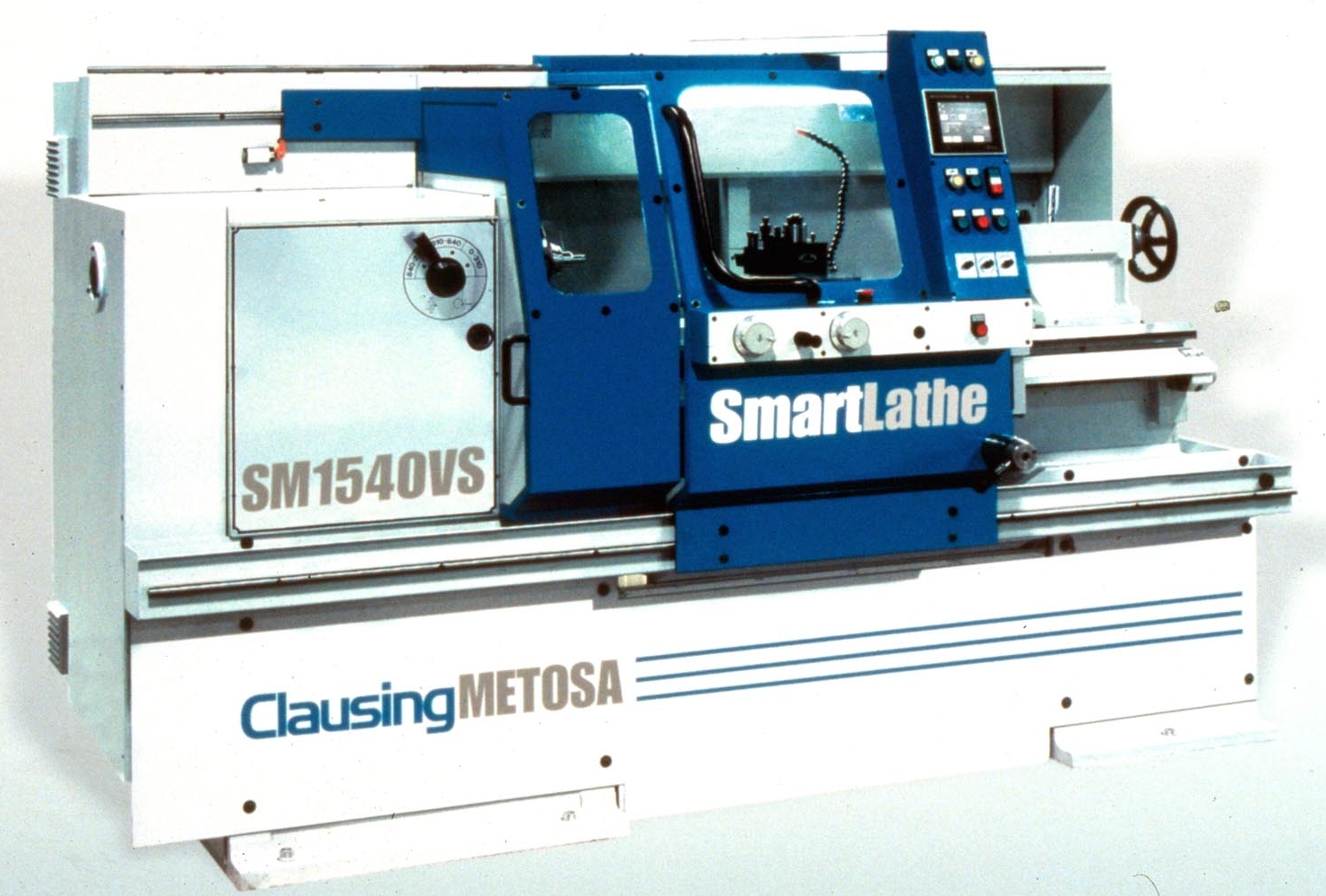

Sep 03, 2002 Model 1560 VS includes touch screen electronic controls complete with electronic stops, taper adjustment, and high speed threader. Variable Constant Surface Speed spindle has three speed ranges. Lathe is supplied with complete guarding and chip collection tray, coolant equipment, and automatic lubrication of bed ways. Manual operation is made easy with electronic hand wheels for X and Z axes, and joystick for rapid feeds.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

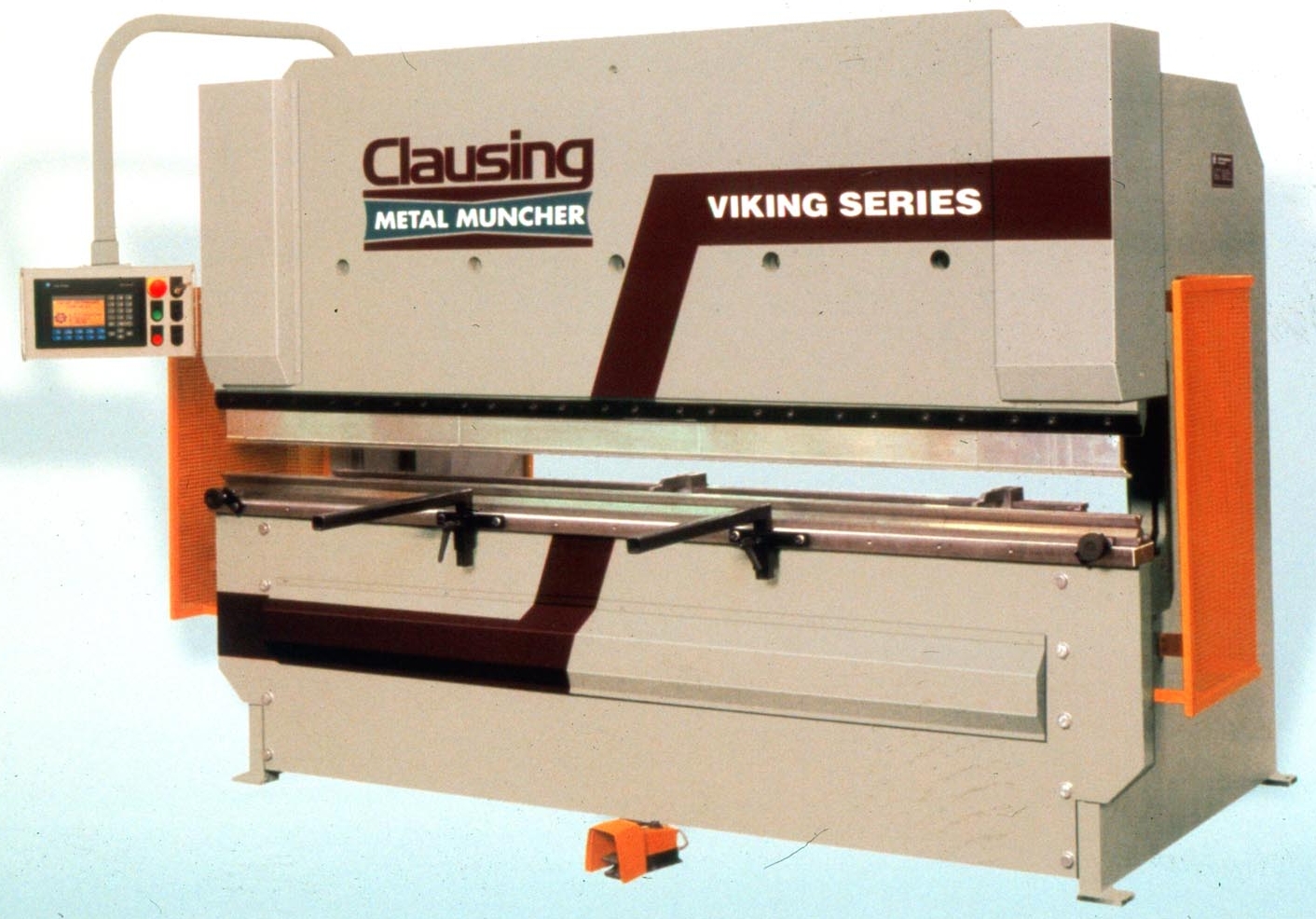

Sep 03, 2002 Metal Muncher Viking Series hydraulic brake, with 2-axis Allen-Bradley Panelview 550 NC-control system, provides manual, automatic, or sequential programmable operation. Hydraulic system has 2 cylinders, twin pumps, modular valve system, hydraulic fluid tank, level gauge, fluid filter, and star-delta switch. Press brakes are available in capacities from 75 to 250 tons, with folding lengths from 78 to 157 in. and throat depths to 15.94 in.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

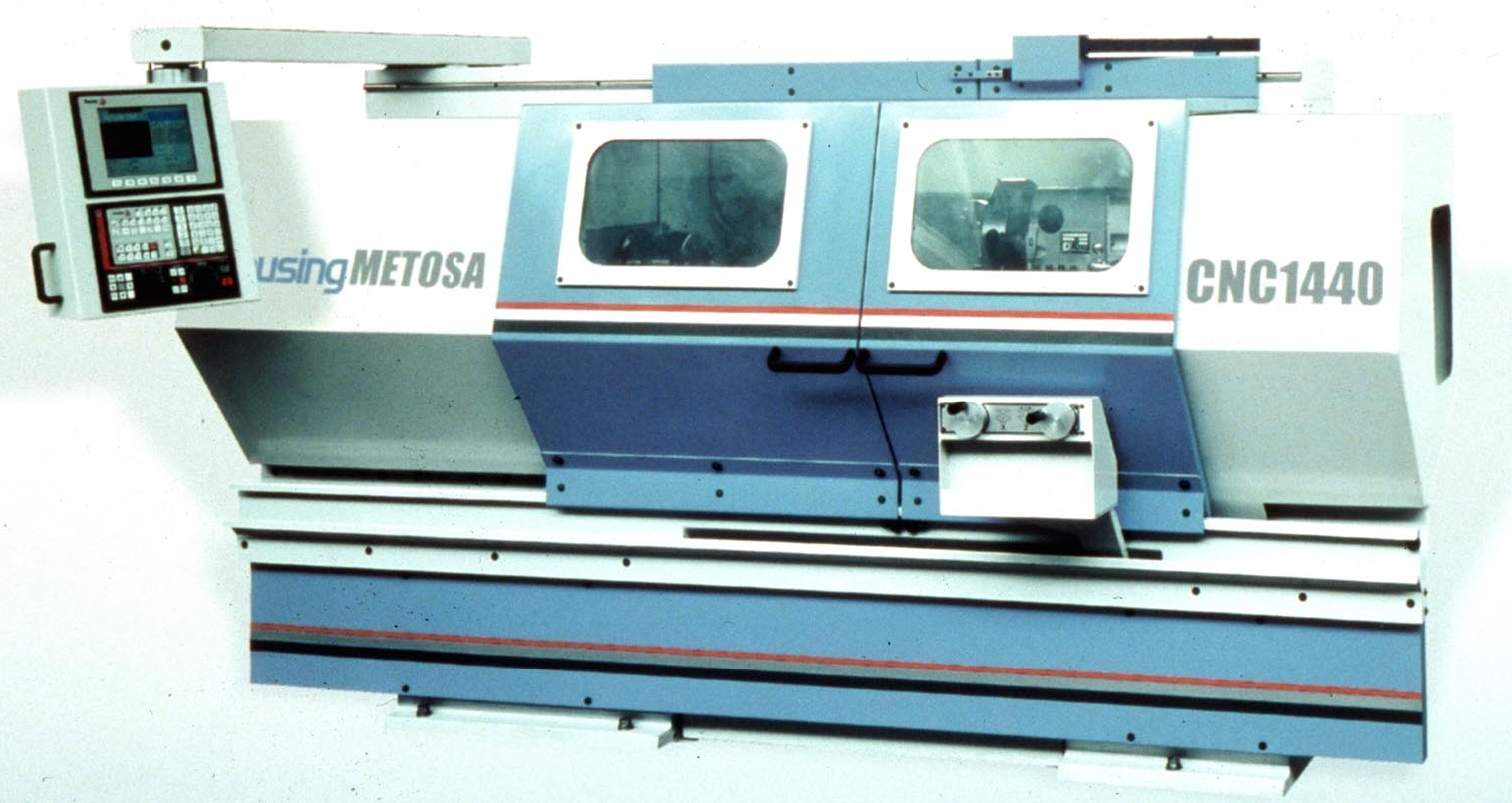

Sep 03, 2002 The CNC Auto Teach Lathes utilize FAGOR CNC 8055 TC control, which allows user to create particular cycles and integrate them into CNC. Available in 8 models with swings from 13 to 24 in. Lathes with swings of 15 in. and greater have 2 variable speed spindle ranges and system for automatically changing speed ranges. They offer ground and hardened heavy-duty carriage cross slides, bed ways, and X and Z axes ballscrews.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

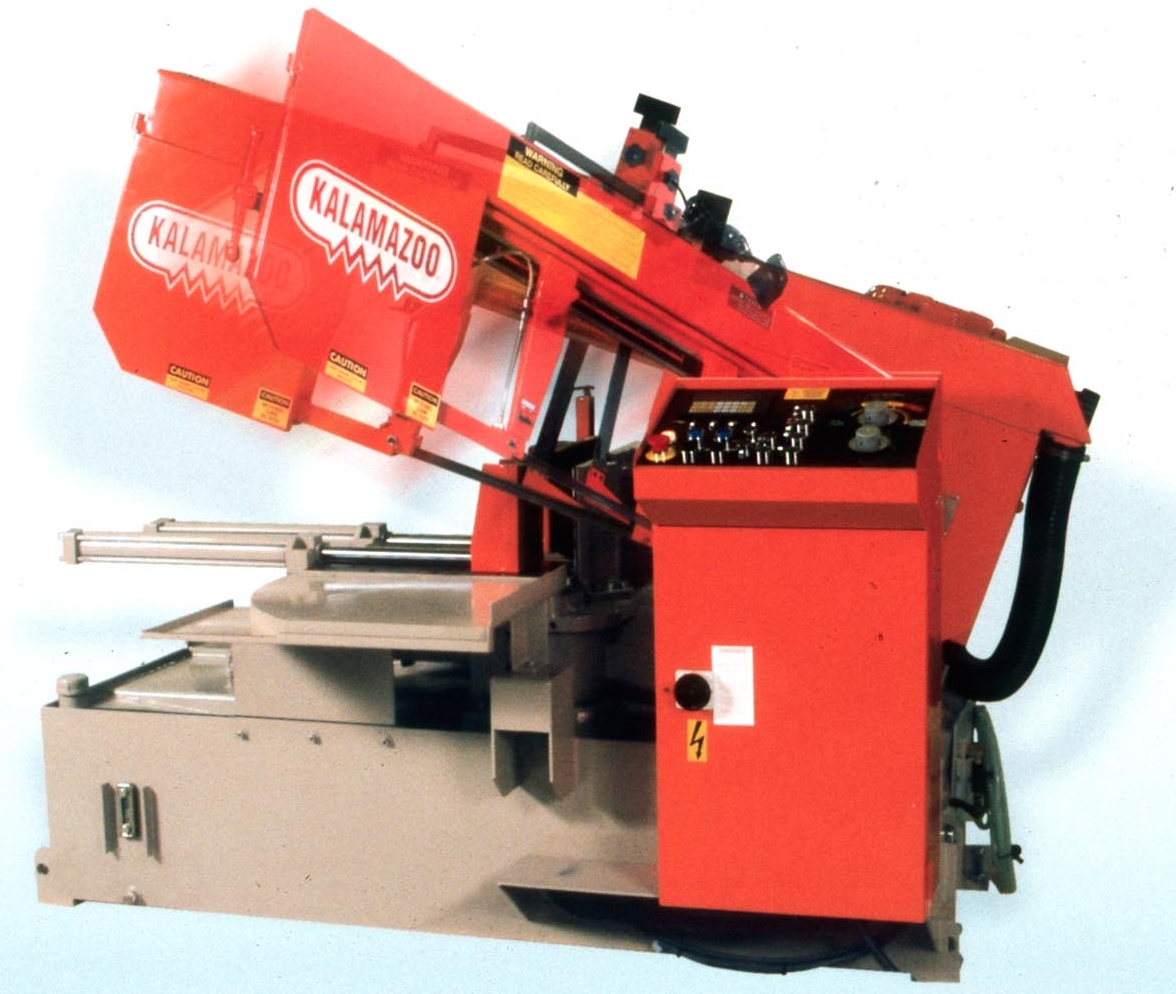

Sep 03, 2002 Semi-automatic Kalamazoo Model MS1318SA enables angle cutting without swinging of material. Offerings include 2 hp main drive with magnetic starter and overload protection, ¼ hp hydraulic motor, and 102-30 FPM variable speed drive. Equipped with solid carbide blade guides, 13 in. bandsaw also offers full stroke hydraulic vise, automatic shut-off at end of cut, and adjustable head feed with power lift. Saw accepts up to 13 in. round stock at 90° and 8.7 x 8.7 in. square at 60°.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

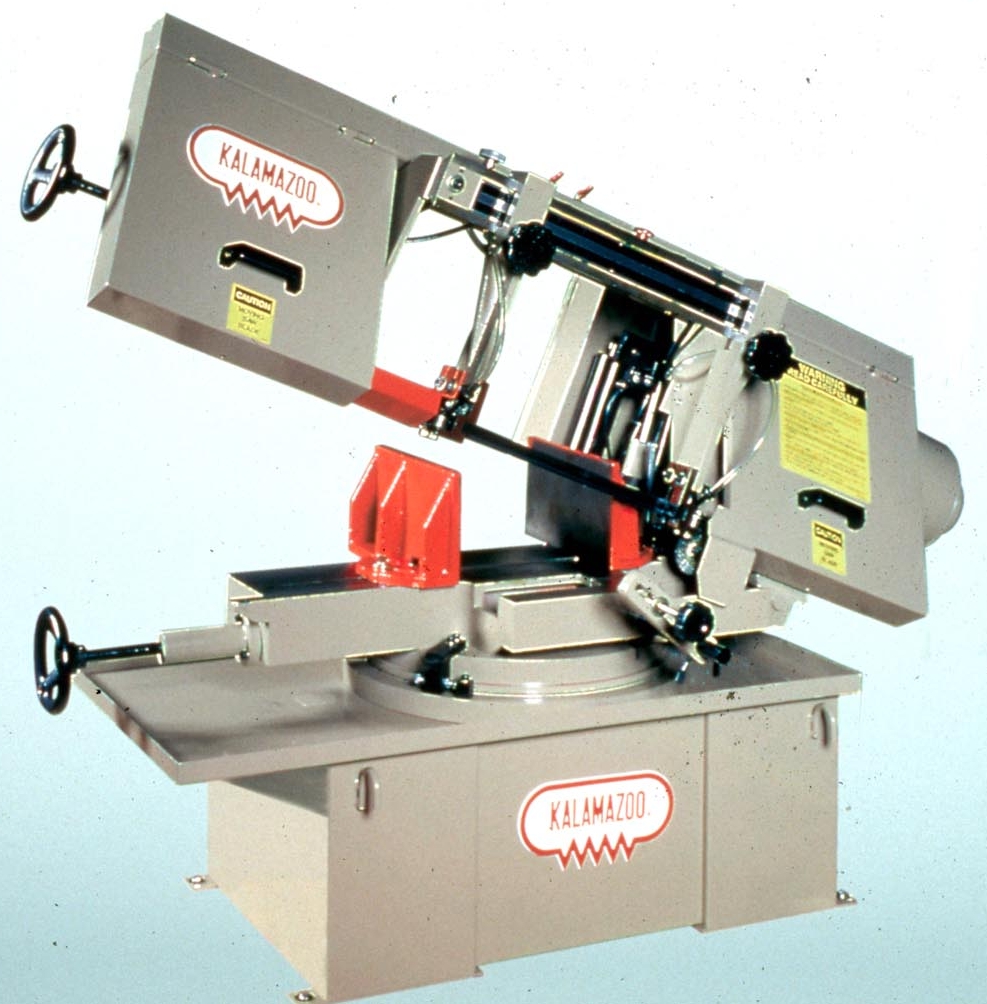

Sep 03, 2002 Kalamazoo Model MS1218VS, 12 in. bandsaw offers 0 to 45° miter cutting to enable angle cutting without swinging material. Saw includes 2 hp main drive with magnetic starter and overload protection, ¼ hp hydraulic motor, and 80-360 FPM variable speed drive. It comes with solid carbide blade guides with rollers, 18 in. vise, and adjustable head feed with power lift. Saw accepts 12 in. round and 10 x 16 in. rectangular stock at 90° and 8 x 12 in. rectangular stock at 45°.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Sep 03, 2002 Model KS690HV has 6 in. (w) x 8 in. diameter 70 duro serrated contact wheel and 6 x 24 in. platten for flat work. Grinder also offers 5 hp motor with manual switch, 400 CFM vacuum base, air belt tension, and horizontal/vertical spark chute. Operating speed is 7200 SFPM.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Aug 30, 2002 Model S32cnc has center height of 175 mm, between centers grinding length of 650 mm or 1,000 mm, and chuck capacity between centers of 130 kg. Wheels are 500 x 63 x 203 mm. Universal turret wheelhead, with optional B-axis, swivels automatically, permitting external, internal and face grinding of workpieces. Digital, direct-drive, 3-phase servo motors, with 40 mm diameter pre-stressed ballscrews, power X- and Z-axes. Cross slide X-axis travel is 254 mm at speeds ranging to 5,000 mm/min.
