Lamb Technicon Inc.    Warren, MI 48091

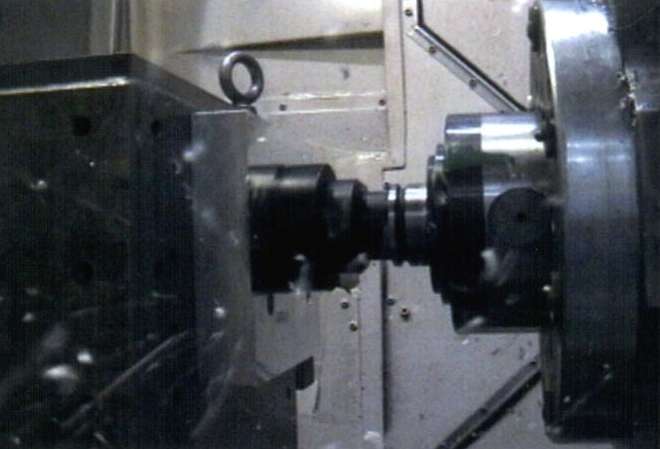

Sep 25, 2002 To hog cast iron and aluminum on same machine, CNC Jaguarâ„¢ horizontal machining center (HMC), with optional spindle, performs both high-speed and high-torque cutting without changing spindles. HMC utilizes 50% of spindle torque when cutting 6061-T6 aluminum with 2 mm depth-of-cut at 8000 rpm and 15840 mm/min feed. Conversely, it can cut cast iron at 463 rpm and 940 mm/min feed rate with 5 mm depth-of-cut and requires less than 80% of torque.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 25, 2002 Hawk® TC-200CX is equipped with Siemens A2100Di digital controls, drives, and motors that include Profibus interface for I/O communications. It maintains positioning accuracy of ±3 microns in X-axis and ±4 microns in Z-axis. Reliability accuracy of ±1 micron is achievable in both axes. Universal 12-station turret disk is standard, allowing for any combination of OD and ID tools. Tool-to-tool index time is 0.4 sec.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 24, 2002 Operating on 110 V power, Porta-Fab 45 incorporates 45-ton punch with 4¼ in. throat depth. Unit's 3-in-1 tool includes flat bar shear that can shear 3 x 3 x 5/16 in. at 90° and 2 x 2 x ¼ in. at 45° and ¾ in. rod shear. Its tool table accepts optional tooling such as 8 and 12 in. Press Brakes, Pipe Notchers, Rectangular Notcher, and Picket Tool Attachment. Portable unit has bushed pivot points, hydraulic system with electric valve, stroke control, and remote foot pedal.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 24, 2002 Grit belt grinders and tube and pipe fabricators include deburring machine and centerless grinder for external cleanup and finishing of tubes with diameters up to 8 in. Grit grinders and notchers offer 5 hp drive motors and rubber drive and backup wheels for aggressive grinding and efficient cooling of belt. Available with 3 and 6 in. belt widths, tube and pipe notchers can notch up to 6 in. material. Clamping system allows infinite adjustment of angles between 30° and 90°.

Lamb Technicon Inc.    Warren, MI 48091

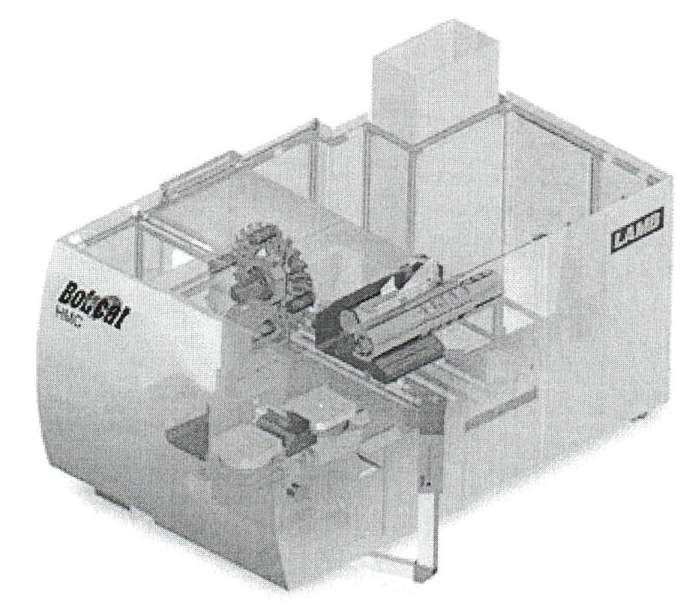

Sep 24, 2002 Bobcatâ„¢ Horizontal Machining Center (HMC) utilizes hybrid kinematic design to deliver high acceleration (1.5 g in X and Y axes and 2.0 g in Z axis) and rapid traverse rates (80 m/min). It also provides ±0.005 mm accuracy and ±0.0015 mm bi-directional repeatability. Unit features baseline spindle of 16,000 rpm and its saddle-on-pivot construction eliminates mass of travelling column, increasing acceleration using AC servo motors and ball screws.

Thomson Industries Inc.    Port Washington, NY 11050 2214

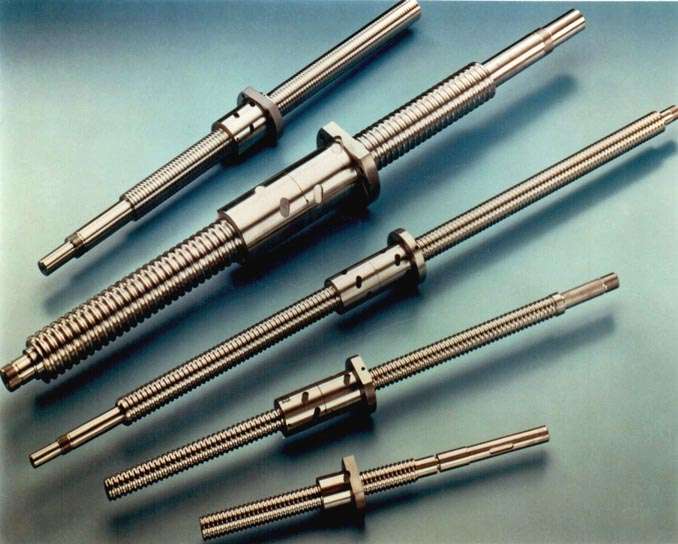

Sep 24, 2002 Ball Screws are assembled, packaged, and nitrogen purged inside laminar flow, Class 10 clean room environment. They are lubricated, bagged, and sealed to eliminate contamination and enhance shelf life. Custom clean room hollow and telescoping screws can be designed and built, in addition to stainless steel and chrome plated assemblies. Inch and metric sizes are available with preloaded and non-preloaded ball nuts.

Liquid Control Corp.    North Canton, OH 44720
Sep 24, 2002 The C500 3D Contour Motion Platform provides heavy-duty robotic dispensing. Operator selects programs through flat panel control. Programming selections can be made by choosing program name or photos of part to reduce potential for operator error. System delivers dots, lines and contours in 2D and 3D. P200 Point to Point Motion Platform is designed for fast dispensing placement accuracy and repeatability without coordinated XY movement. Five pallet programs can be stored.

Scotchman Industries, Inc.    Philip, SD 57567

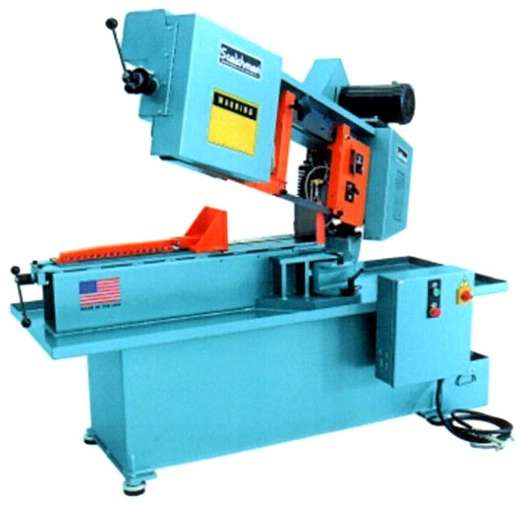

Sep 23, 2002 Horizontal Model FH 1016 includes 1 in. blade, controlled with carbide guides, and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash-down hose for clean up.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 23, 2002 Model SH 1016 horizontal band saw includes 1 in. blade, which is controlled with carbide guides and pre-set blade tensioning, along with power blade-cleaning brush. Its 2 hp, infinitely variable-speed drive motor offers speeds from 105 to 275 fpm. Capacity is 10 x 16 in. at 90° and 10 x 10¾ in. at 45°. Hydraulics feature fine adjustment of head feed control, quick approach, and head hold for easy line up of marks. Flood coolant system includes wash down hose.

Scotchman Industries, Inc.    Philip, SD 57567

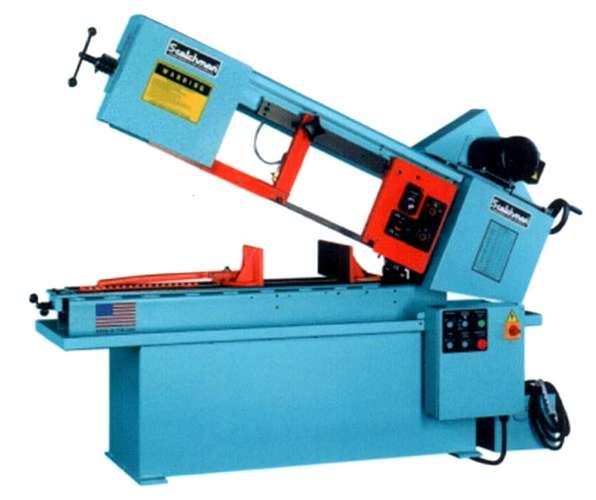

Sep 23, 2002 Swing-head Model SHA 1016 offers 60° mitering capability. It has capacities of 10 x 16 in. at 90° and 10 x 8 in. at 30°. Band saw includes 1 in. blade, controlled with carbide guides, preset blade tensioning with power blade-cleaning brush, and fine adjustment of feed control. Machine has 40 in. stroke, parts counter, and 2 hp variable-speed drive.

Scotchman Industries, Inc.    Philip, SD 57567

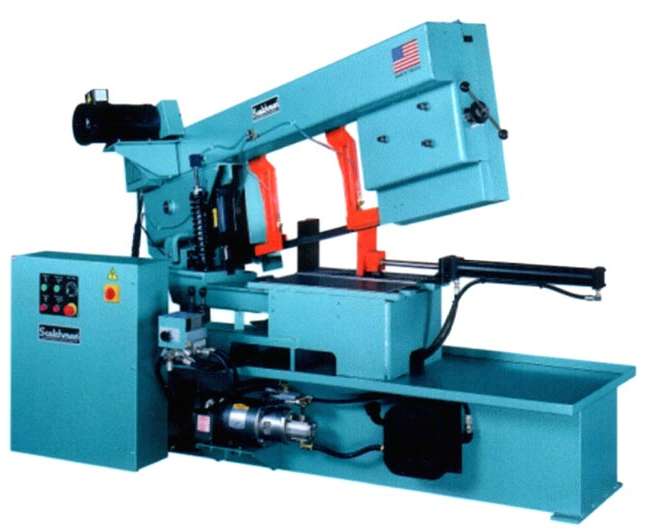

Sep 23, 2002 Model SH 1419 swing head band saw has 60° mitering capability with capacities of 14 x 19 in. at 90° and 14 x 8 in. at 30°. It includes 1 1/4 in. blade, carbide guides, preset blade tensioning, power blade brush, and 3 hp variable frequency AC drive with speeds from 70 to 400 fpm. Self-contained hydraulic unit offers quick approach, head hold, and separate cutting feed rate. Saw also features feed force adjustments, recirculating flood coolant system, and ANSI guarding.

Scotchman Industries, Inc.    Philip, SD 57567

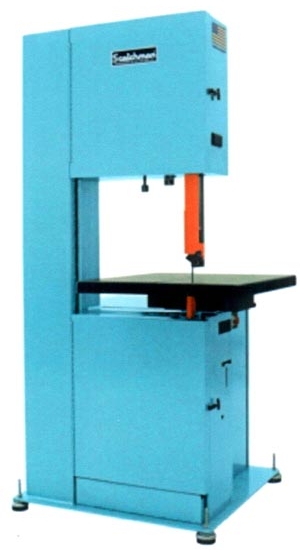

Sep 23, 2002 Vertical Contour Model VC-20 saws, polishes, and files wood, plastic, steel, aluminum, and stainless steel. Variable-frequency, 2 hp AC drive achieves band speeds from 100 to 2000 fpm. Band saw accepts blade widths from 1/16 to 1 in. and follows radiuses or cuts off large sections. Equipped with one set of insert-type guide blocks for bands 1/8 through 1/2 in., saw may be adapted for up to 1 in. bands. It includes band tension indicator and chip pan.

Scotchman Industries, Inc.    Philip, SD 57567

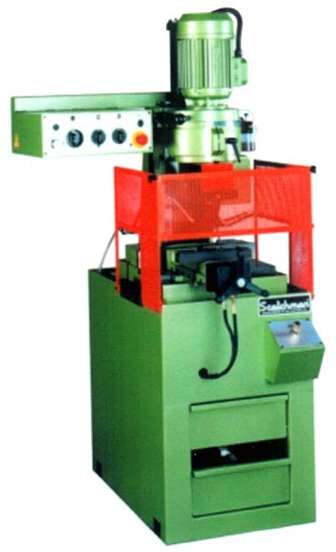

Sep 23, 2002 Semi-automatic Model CLM 350 offers rigid column design, allowing cutting of up to 4 in. solid tool steels. Rugged enough to cut tough alloys and heavy wall tubes, saw utilizes 5 hp driven motor with self-contained hydraulic system, and can miter 45° left and right. It offers electric stroke control with optional foot pedal, fine adjustment of head travel, emergency lockout tag-out, 14 in. blade, and 39 in. stop.

Scotchman Industries, Inc.    Philip, SD 57567

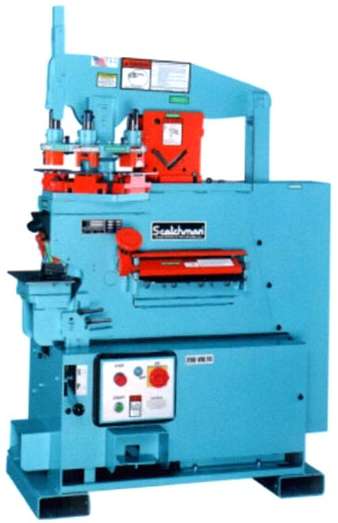

Sep 23, 2002 Model 5014 TM Ironworker has capacity of up to 50 tons of pressure and can punch a 13/16 in. hole in 3/4 in. plate. Standard offerings include keyed punch ram and 3-station revolving turret, which accepts up to 3 pieces of tooling that can be changed in seconds. Rectangular notcher notches material up to 2½ x 3 in. in 5/16 in. material. Angle shear will shear up to 3 x 3 x 5/16 in. angle iron. Component tool table design accepts optional equipment.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 23, 2002 Model V5-4000 5-axis VMC offers 137.8 x 66.9 in. table and standard X-Y-Z travel of 157.5 x 98.4 x 29.5 in. It comes with 45 hp, 15,000 rpm HSK-63A spindle. Extended A and B rotary axis travels of ±40° allows processing of broad range of parts. SINUMERIK 840D digital NC system offers modular 32-bit microprocessor control. Housed in 50 mm wide unit with SIMODRIVE 611D drive system, it integrates SIMATIC S7 programmable controller and Profibus DP distributed I/O link.

Cincinnati Machine, A UNOVA Company    Cincinnati, OH 45209
Sep 23, 2002 MEGA-150 horizontal machining center offers X-Y-Z travels of 57.0 x 43.3 x 49.8 in., and can machine parts 51.2 in. dia and 59 in. high. XT option features 60 hp, 2-range geared, #50 taper or HSK-100A spindle with either 6,500 or 10,000 rpm, giving max torque of 845 lbs-ft. AP option offers HSK-63A spindle with 15,00 or 21,000 rpm. Tilt spindle for full 5-axis contouring is available in both. Fanuc 160i-MB dual processing CNC runs on Windows 2000.

Metabo Corp.    West Chester, PA 19380 4243
Sep 23, 2002 Model Lf724 strips paint, varnish, and other coatings on flat wood surfaces. S-automatic clutch reduces damage to gear train when planer hits nail on siding or wood. Tool has 4 reversible solid tungsten carbide blades and creates minimal dust during use. Blade cutting diameter is 3 1/7 in. and max rabetting height is 1 1/0 in. Cutting depths are .012 in. axil and .006 in. radial. No-load speed is 11,000 rpm with torque of 18 lbs-in.

Eraser Co., Inc., The    Syracuse, NY 13221

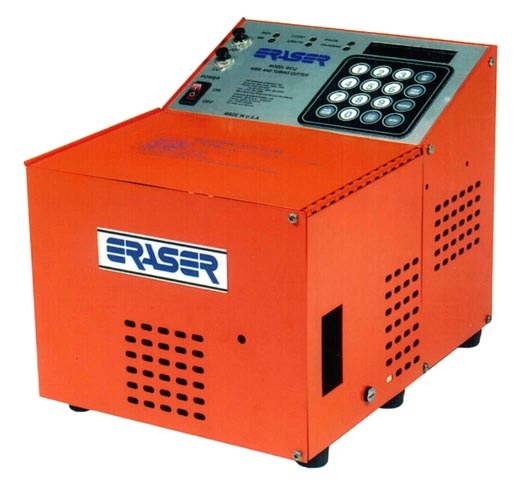

Sep 20, 2002 Model WC2 measures, counts, and cuts wire from 29 to 16 AWG and flexible tubing up to ¼ in. OD. It will cut hook-up wire, sleeving, heat shrink tubing, and other small wire and cable with cut lengths from 0.22 to 999.99 in. Automatic operation eliminates operator fatigue and repetitive motion disorders caused by using hand tools.

Bahco North America, Inc. A Sub. Of Snap-On, Inc.    Scranton, PA 18501 2036

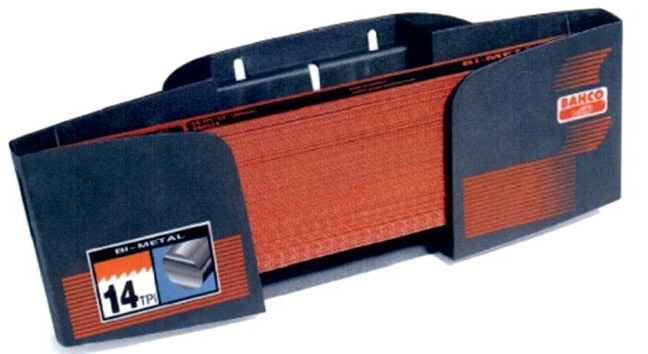

Sep 20, 2002 Bi-metal hacksaw blades improve cutting performance through positive rake angle and precision ground teeth. They include 14 or 18 teeth per inch for cutting through heavy metals such as aluminum or copper. Slicing through stainless steel or thinner metals can be accomplished using blades with 24 or 32 teeth per inch.

Internation Surface Preparation Corp.    Fresno, TX 77545

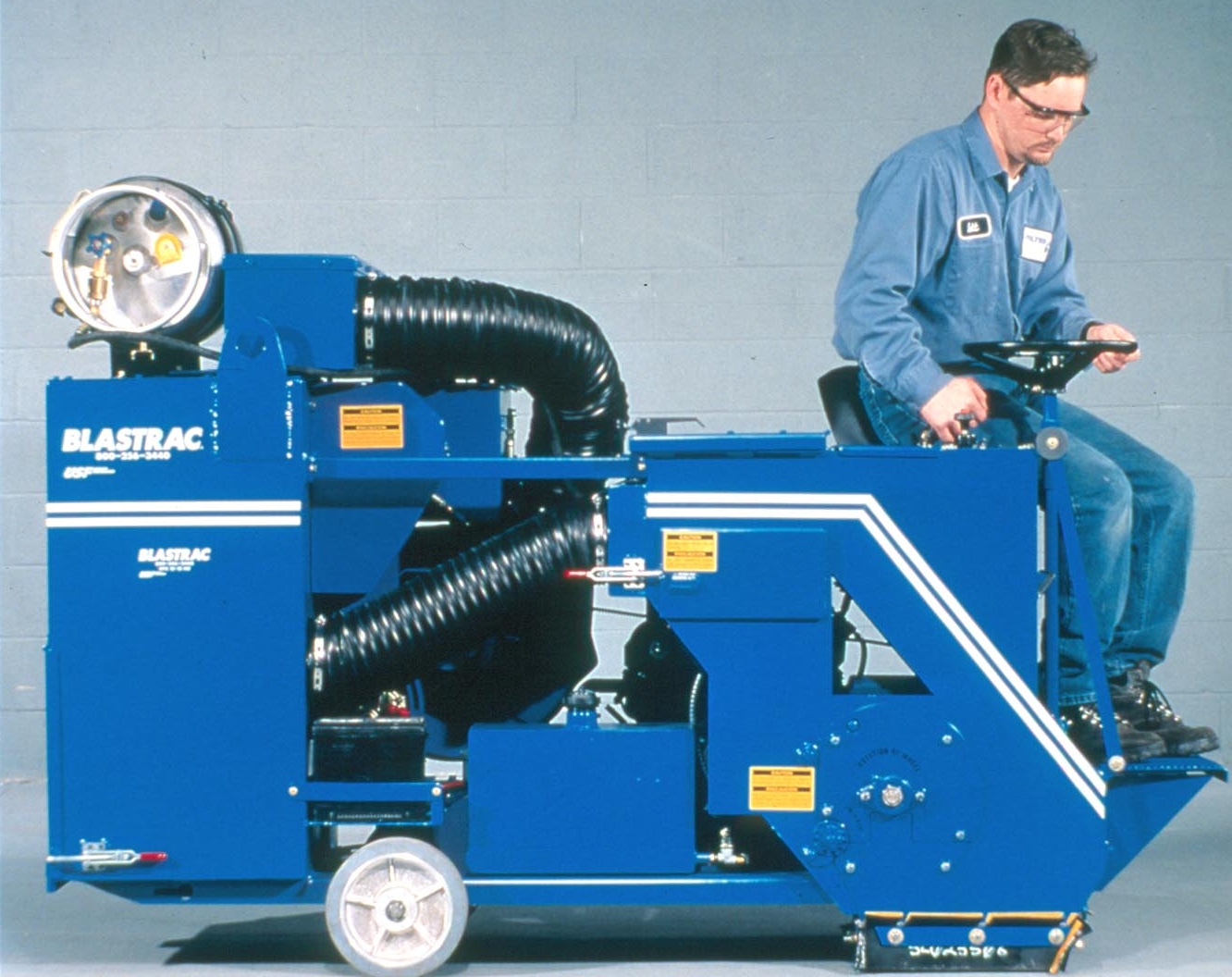

Sep 20, 2002 Blastrac® GPX 10-18 propane-powered, ride-on shot blast cleaning system strips, cleans, and profiles simultaneously. Onboard dust collection system controls dust and contaminants. With 10 in. blast cleaning path and travel speed up to 200 fpm, system offers production capacity up to 1300 ft²/hr.
