IKA Works, Inc.    Wilmington, NC 28405-7419

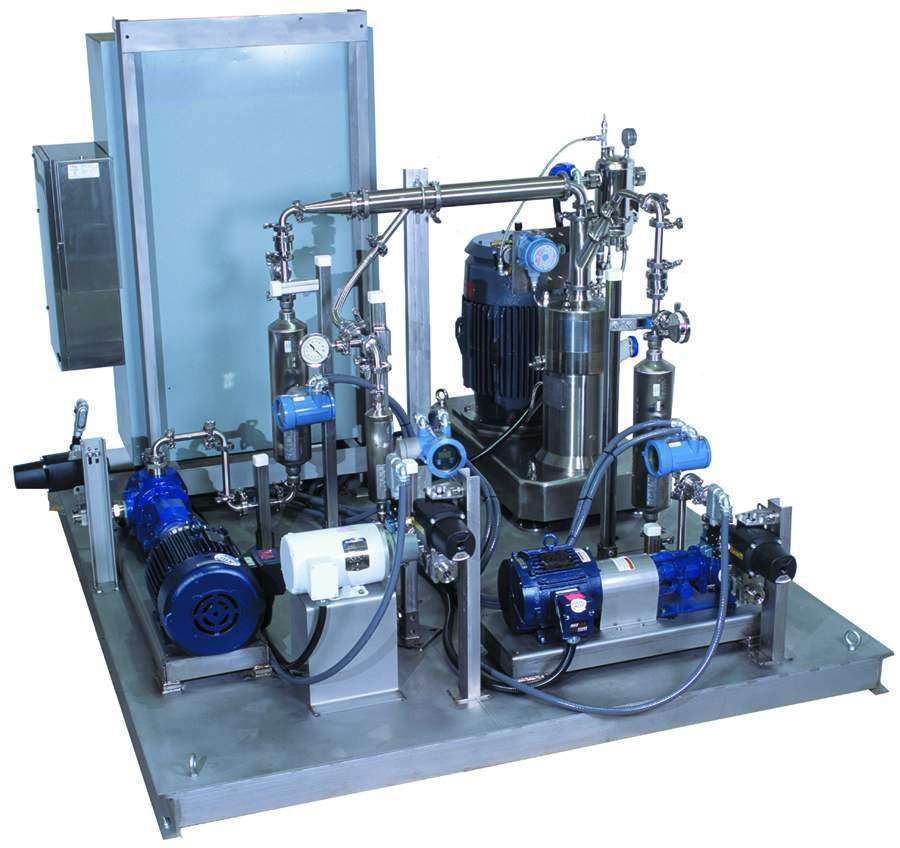

Jul 21, 2003 Turn-key systems provide continuous or batch mixing, dispersion, and dilution and can be used for combining multiple liquid streams, solids addition, or injection of gases into liquids. Products incorporate DISPAX Reactor high-shear mixer, which is available in 7 sizes with flow rates from 1–1,600 gpm and motors from 2–200 hp. CIP and SIP capable units are provided with vessels, pumps, flow meters, and complete production controls.

Komet Of America, Inc.    Schaumburg, IL 60193 4544

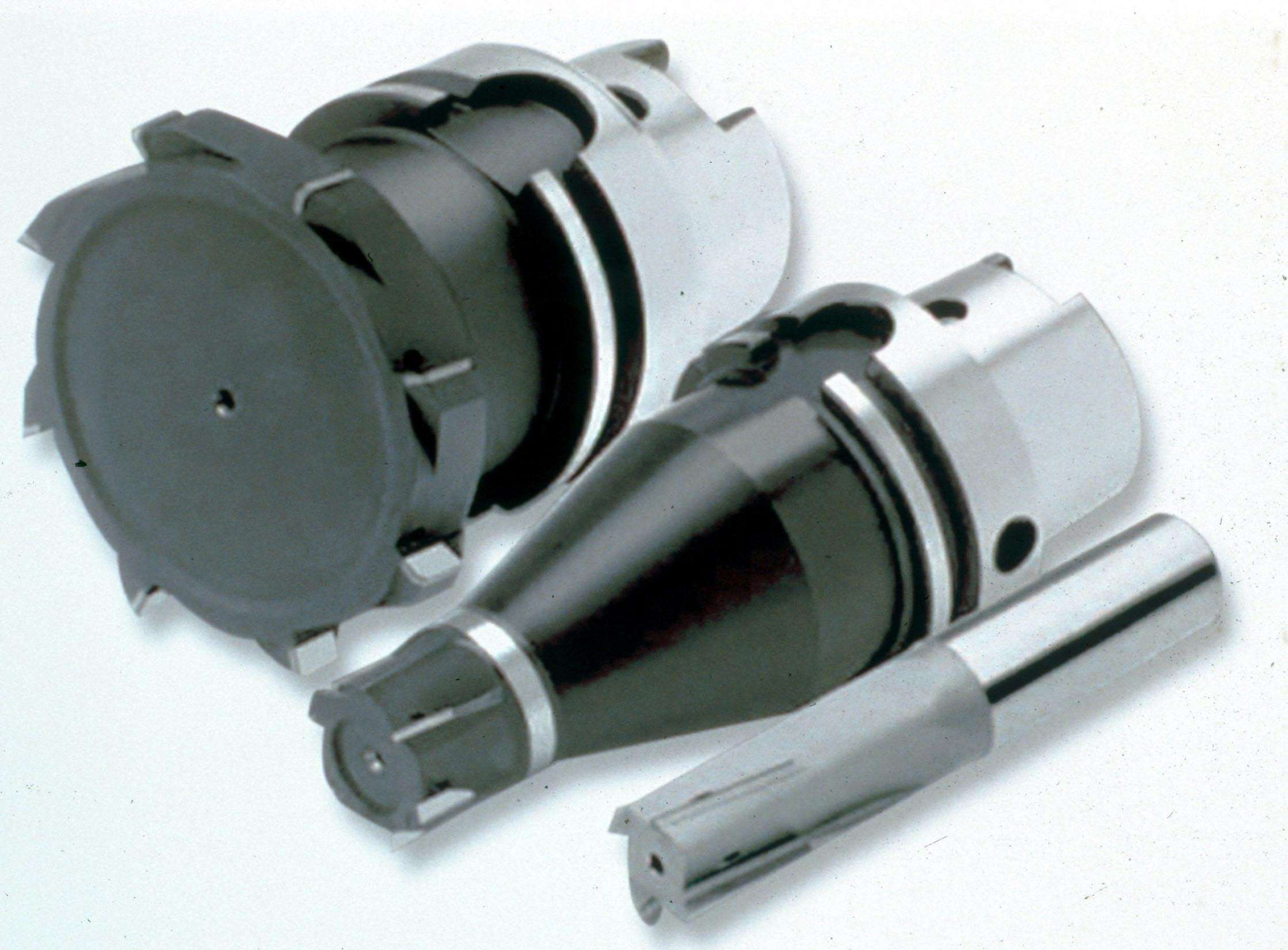

Jul 17, 2003 Dihart Cutters utilize inserts with polycrystalline diamond tips for longer tool life and improved surface finishes. Additional tool pre-setting is eliminated since cutting edges are soldered on. Multiple cutting edges provide high level of repeatability. Cutters are suitable for both face milling and end milling. Full range of standard sizes is available; with up to 125 mm diameter bores.

Contech    Goddard, KS 67052
Jul 17, 2003 UltraPress can perform die-cutting tasks such as thermal die-cut, emboss, hot and cold steel-rule thru cut, and steel-rule kiss cut, all in one unit. Offered with optional Allen-Bradley PLC control capability and remote touchscreen, product can be Automation Engineered to communicate with other equipment in facility. Available in sizes 20 x 28 to 60 x 148 in., free standing unit may be used in-line as part of system.

Spraymation, Inc.    Fort Lauderdale, FL 33309-6314
Jul 17, 2003 Upright, free-standing 3910 Series Thermopulse Hot Melt Unit includes 10 gal (80 lb) melt-on-demand reservoir and positive-displacement, dc-motor-driven gear pump. Suited for use with up to 4 automatic or handgun Electromatic Applicator Heads and hoses, unit holds constant pressure to within ±5%. System includes plug-in connections and MICROTEMP microprocessor-based temperature control with 10 zones. Melt rate is 32 lb/hr, and pump rate is 132 lb/hr.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191

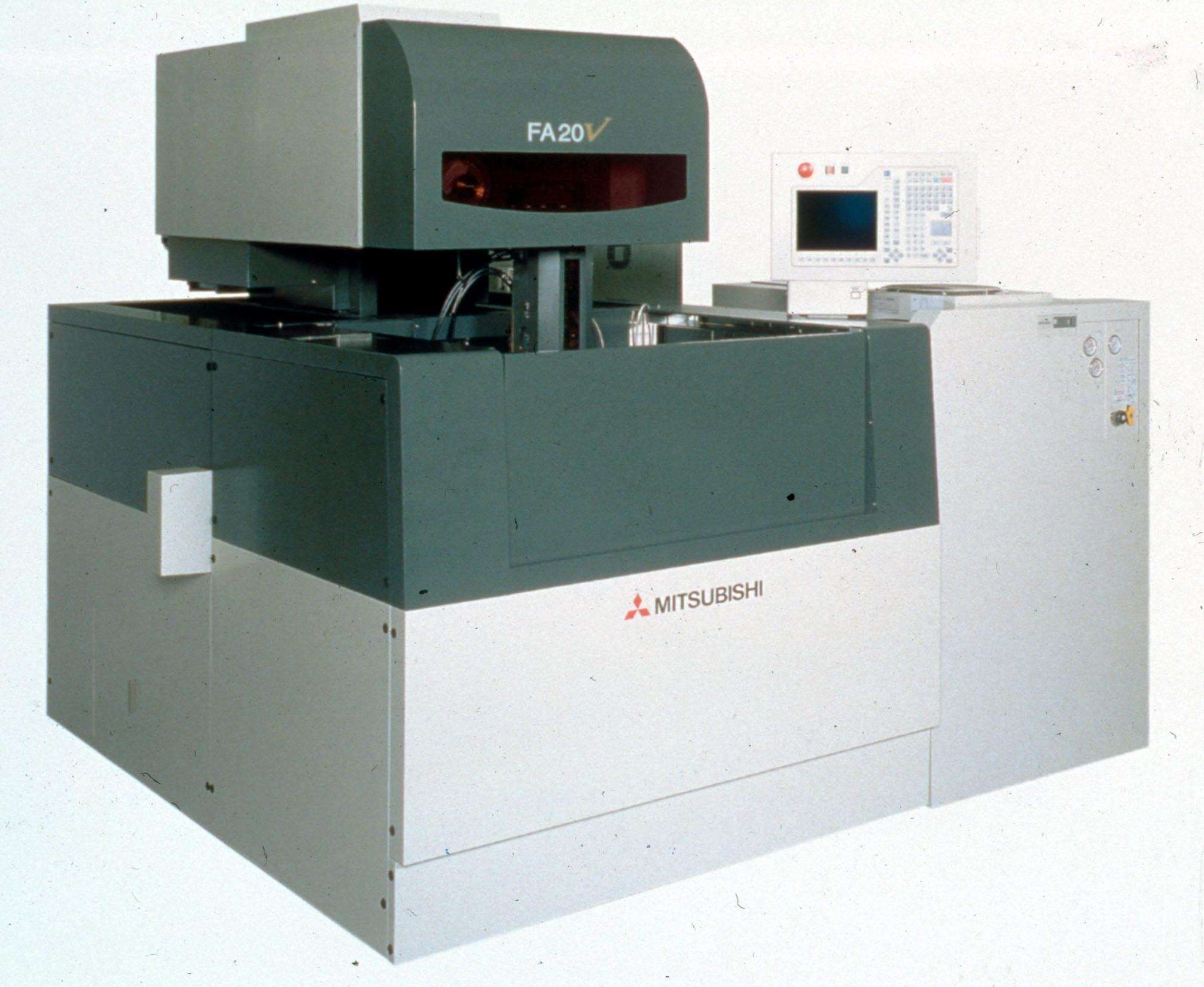

Jul 17, 2003 Equipped with high-speed generator, FA-V Series incorporates power supply system, reservoir, and power feeder shape design. Series adapts for special materials, from PCD to CBN, conductive ceramics, and low conductivity materials. Its 64-bit CNC interface provides automatic control for step shape machining and read-in of pre-programmed data from memory. Additional offerings include automatic fluid quantity control and inverter drive control.

Standard Mill Supply Co.    Providence, RI 02940 6345

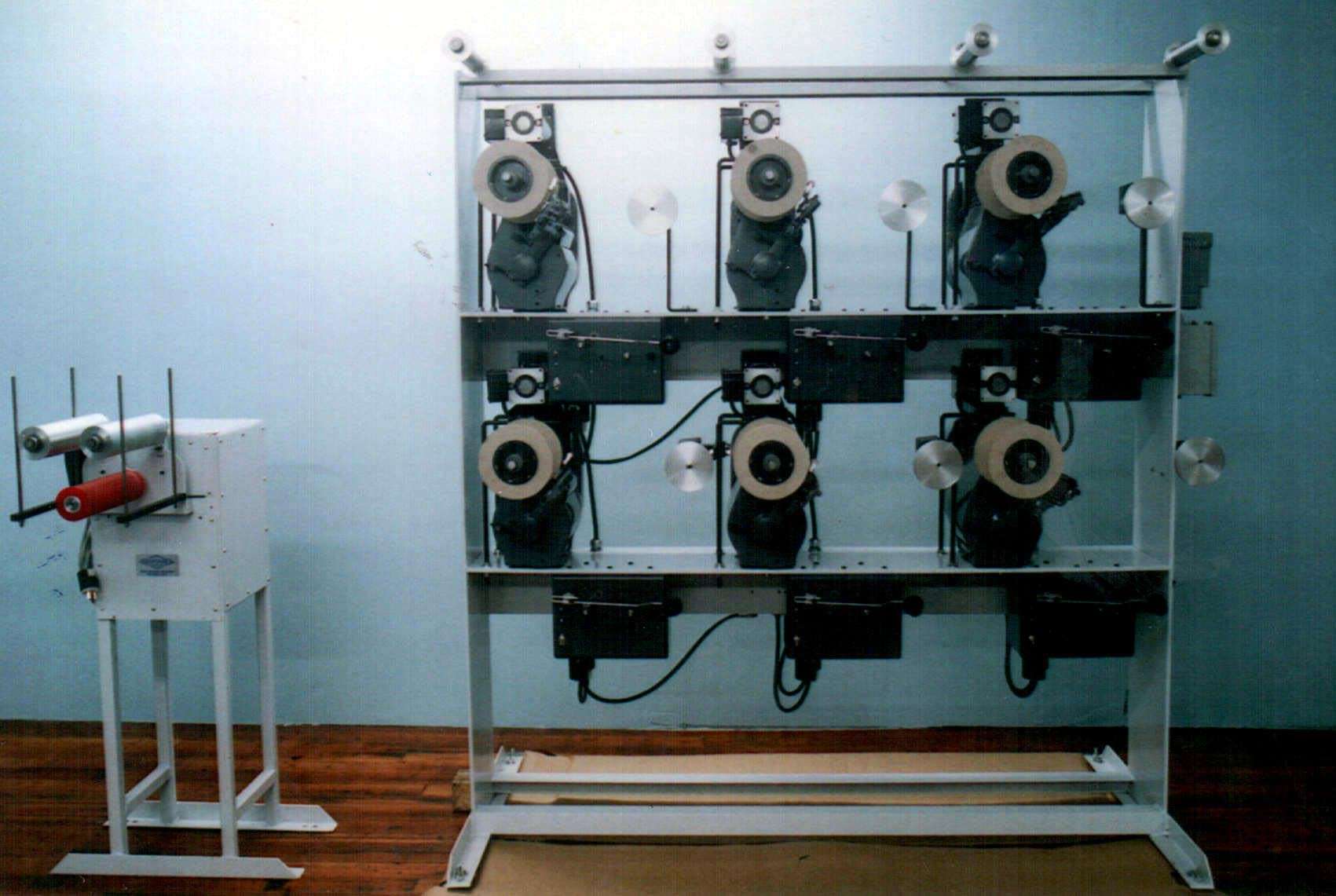

Jul 16, 2003 Leesona #950 Take-Up Machine is rebuilt to customer specifications. It includes frame assembly, gear train assembly for precision winding, compensator control for removal and adjustment of material, adjustable tension control, material break limit switch, and preset speed function as component of drive chassis. Machine can accommodate 1–10 spindles and is suitable for manufacturers in extrusion, slitting, coating, printing, and singeing.

Parpas America    Livonia, MI 48150

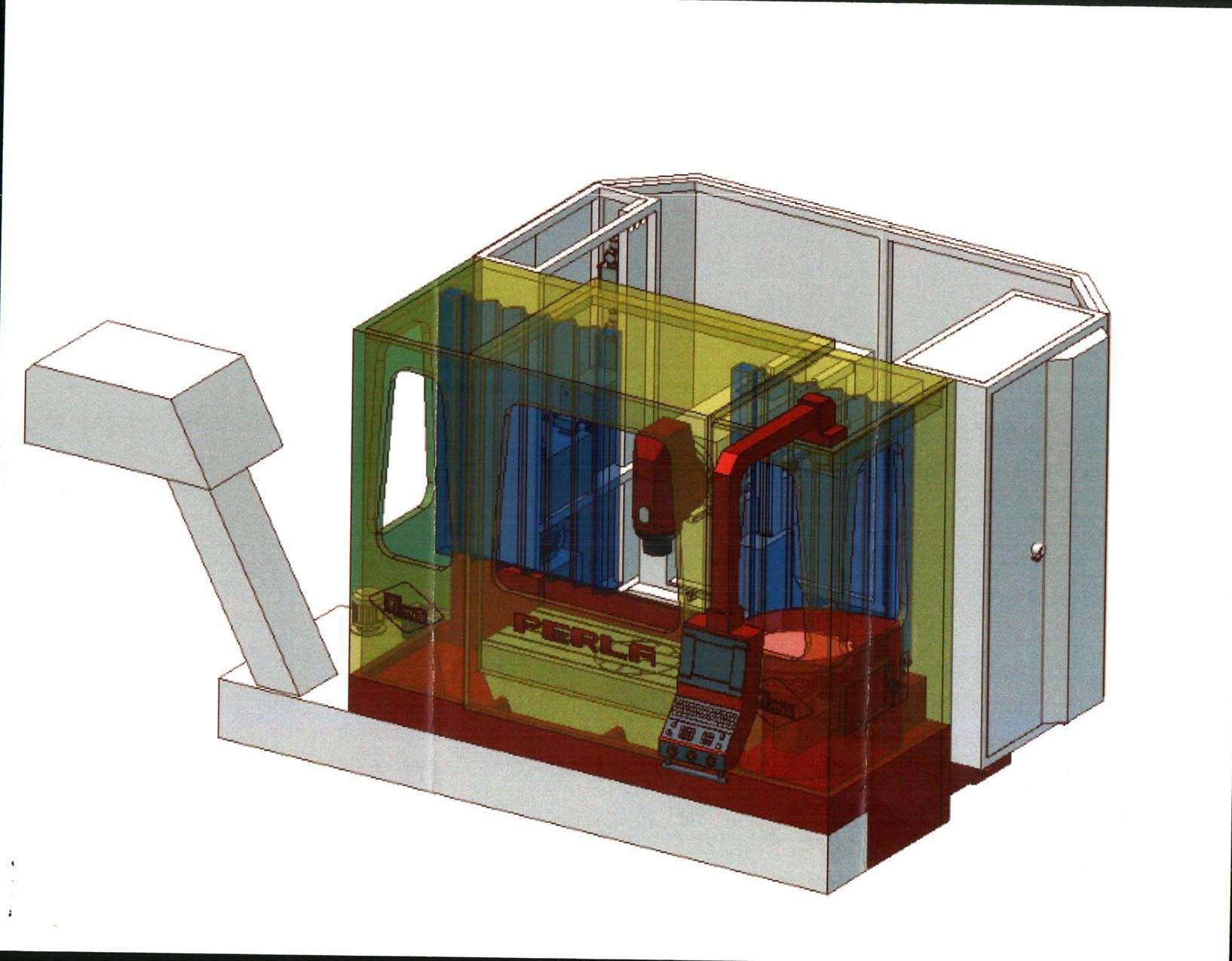

Jul 16, 2003 Pearl universal, multi-axis milling machine provides longitudinal travel of 51 in. Horizontal ram integrated into traveling column features cross travel of 25 in. Ram moves up and down inside column for vertical travel of 19 in., with 26 in. clearance under spindle. A 16,000 rpm 46 hp motorspindle, achieving full power from 4,500 rpm, is integrated into milling head. CNC-controlled continuous machining rotary axis allows milling head to swivel 340°.

Air-Mite Devices Inc.    Chicago, IL 60641
Jul 16, 2003 Compact Press Packages are available with pneumatic or electric, 2-hand safety controls for production applications requiring ¼â€“3 tons of deliverable force. All pneumatic circuits are supplied with necessary tubing and fittings for immediate, user-ready operation, while electric circuits are furnished with necessary connections for immediate, plug and play operations.

Moog, Inc., Industrial Controls Div.    East Aurora, NY 14052

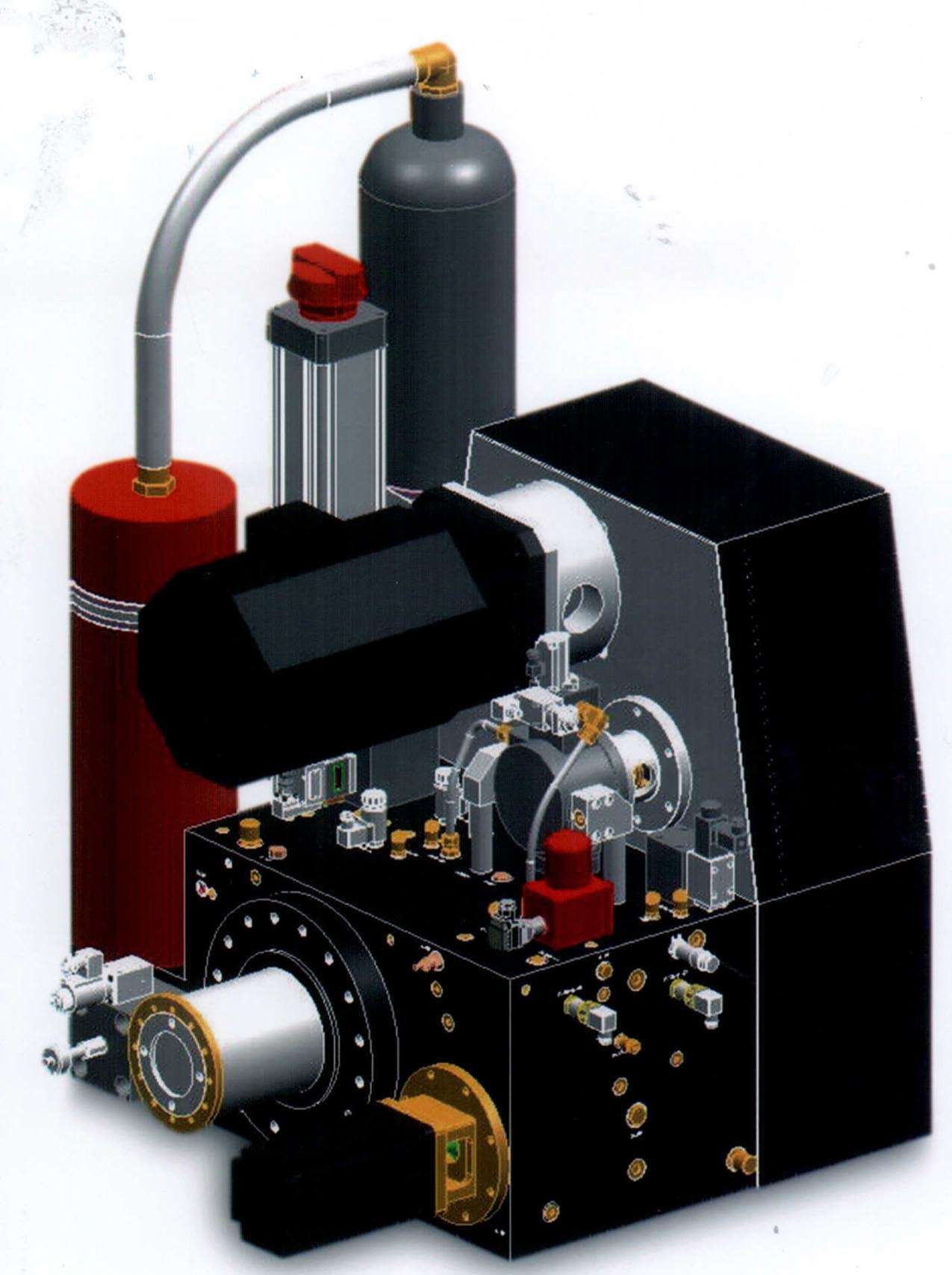

Jul 16, 2003 PowerShot(TM) Injection System is a sealed, closed-loop actuator that requires no external power unit. Single servomotor controls entire system, including screw rotation of plasticizing screw. Injection and decompression control is accumulator driven, and controlled by servocartridge, which allows closed-loop control of velocity, pressure, and position. Package is installed with few connections to customer's machine, providing plug-and-play convenience.

E-Power Remote, Ltd    White Cloud, MI 49349

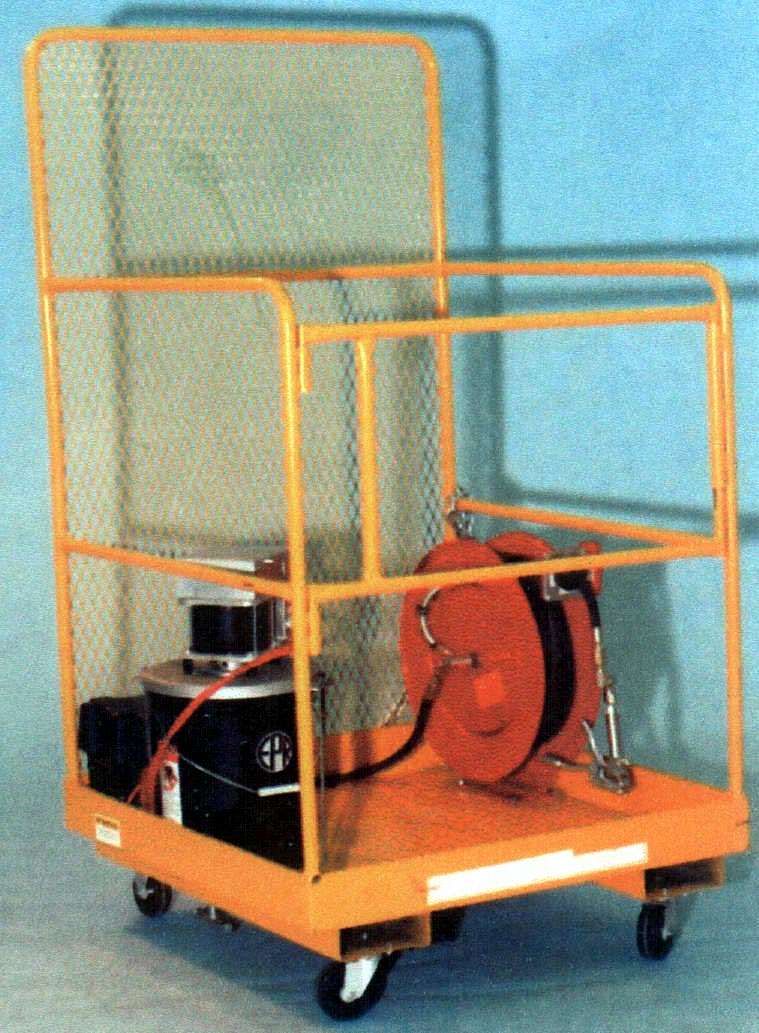

Jul 16, 2003 Bulk Grease System is contained in caster-mounted safety cage to handle operating equipment that is mounted above ground level reach. Rechargeable, battery-powered DC pump develops up to 6,000 psi, cable reel contains 25 ft hose, and control valve gun utilizes both pails and 120 lb drums of HDMP grease suitable for wide range of applications including conveyor bearing and conveyor accessories.

Reed Manufacturing Co.    Erie, PA 16512
Jul 15, 2003 HOLE MASTERâ„¢ provides means of clamping onto pipe and using drill to cut hole in pipe. It comes with base, chain, and screw. Plate and drill holder allow mounting drill with hole saw, while handle and gear provide leverage for cutting holes in pipe. Pipe diameter mounting range is 1¼â€“10 in. Base fits up to 4¾ in. hole-saw diameter. HOLE MASTER works with Dewalt® DW131 Spade Handle Drill and Milwaukee® 1660-1/1660-6 Compact Drill.

Somex Corp.    Grand Blanc, MI 48439
Jul 15, 2003 Model ECPP4 provides deep-hole drilling for mold-making industries. It combines spindles, slides, chip/coolant recovery box, drill bushing plate, high-pressure coolant union, gundrill adapter, and servo motor. Spindle has 40 taper opening with 3 hp ac motor and poly-V belt drive for smooth torque transmission. Slide consists of cast-iron base, linear ball guides, and ground, 25 mm ballscrew. Drilling diameters are 2-14 mm and speeds range from 400-8500 rpm.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Jul 15, 2003 Available with 20 mm and 1 in. arbor hole sizes, 14 in. metal and ductile gas saw blades measure 5/32 in. thick. Blades are constructed with 3 layers of fiberglass reinforcement for increased strength on the sides of the wheels. DSA approved blades are available in 2 grains: aluminum oxide, for metal/steel applications, and aluminum oxide-silicon carbide mix, for working with ductile iron.

Emuge Corp.    West Boylston, MA 01583-2121

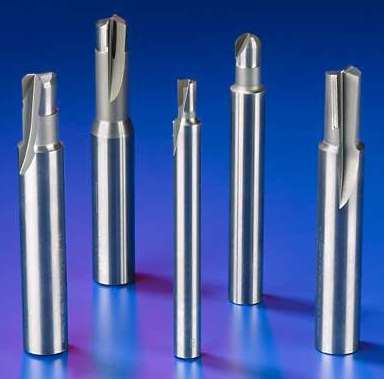

Jul 14, 2003 Poly-Crystalline Diamond (PCD) tools have matrix of randomly arranged diamond crystals, bonded to form hard film or wafer, which are cut to desired form for end mill's cutting edge and permanently affixed to precision manufactured carbide shanks. Formed via sintering process, Cubic Boron Nitrate wafers undergo tool manufacturing process similar to that of PCD tools and are capable of machining hard steels to 66Rc. Both are available in ball nose, torus, and flat end designs.

Makino Machine Tool Co.    Mason, OH 45040 9695

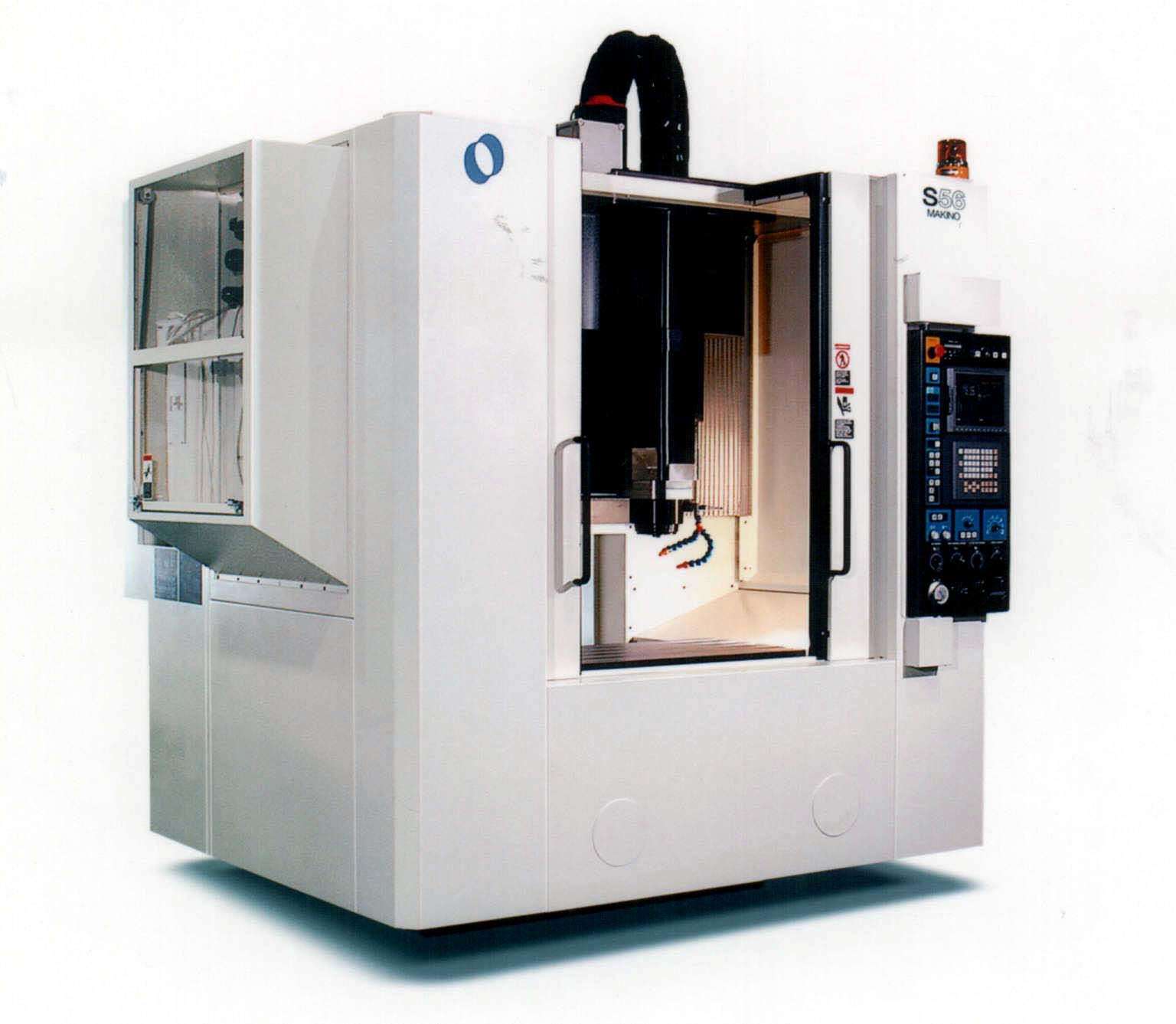

Jul 11, 2003 Model S56 utilizes 40 taper, 13,000 rpm spindle and can maintain positioning accuracies to within ±0.0001 in. It includes 20-tool magazine and automatic tool changer with tool-to-tool exchange time of 1.2 sec. Table-working surface is 40 x 20 in. and axes travel area is 36 x 20 x 18 in. Linear motion guides on X-, Y, and Z-axes provide rapid traverse and cutting feed rates of 1,575 ipm. Super Geometric Intelligence servo control provides smooth machined surfaces.

Mazak Corp.    Florence, KY 41042 3092
Jul 11, 2003 Model PFH-4800 features 2-pallet shuttle system that allows part loading to be performed while spindle is cutting. Standard pallet size is 15.7 x 15.7 in. with X, Y, Z axis strokes of 22.0, 24.8, and 23.6 in. Machine includes 40 hp spindle drive and 15,000 rpm spindle with 123 lb-ft of torque for heavy cutting of steel and aluminum. Tool change takes 2.2 sec chip-to-chip, and tool magazine capacity is 40 tools with No. 40 taper. Positioning accuracy is ± 0.00012 in.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Jul 10, 2003 Model 49X automatically unloads and single files reverse tapered glass bottles from club store display cases at up to 50 cases/min. Single filing section with series of multiple tabletop chains separate bottles while maintaining bottle control and stability. As cases are lifted from bottles, they are transported by motorized belts backed by duro-soft rollers that adjust to variations in case and partition dimensions.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 10, 2003 Magnet Wire Splicing System allows manufacturers of motors and magnetic coils to pigtail splice up to 8 magnet wires and 2 lead wires with Circular Mill Area (CMA) up to 38,000. Servomotor-driven, 5 ton press incorporates pneumatic-feed applicator and programmable control cabinet. Wire-entry guides allow accurate positioning of magnet and lead wires into splice before crimping. Programmable machine is capable of crimp height sequencing.

Graco Inc.    Minneapolis, MN 55440

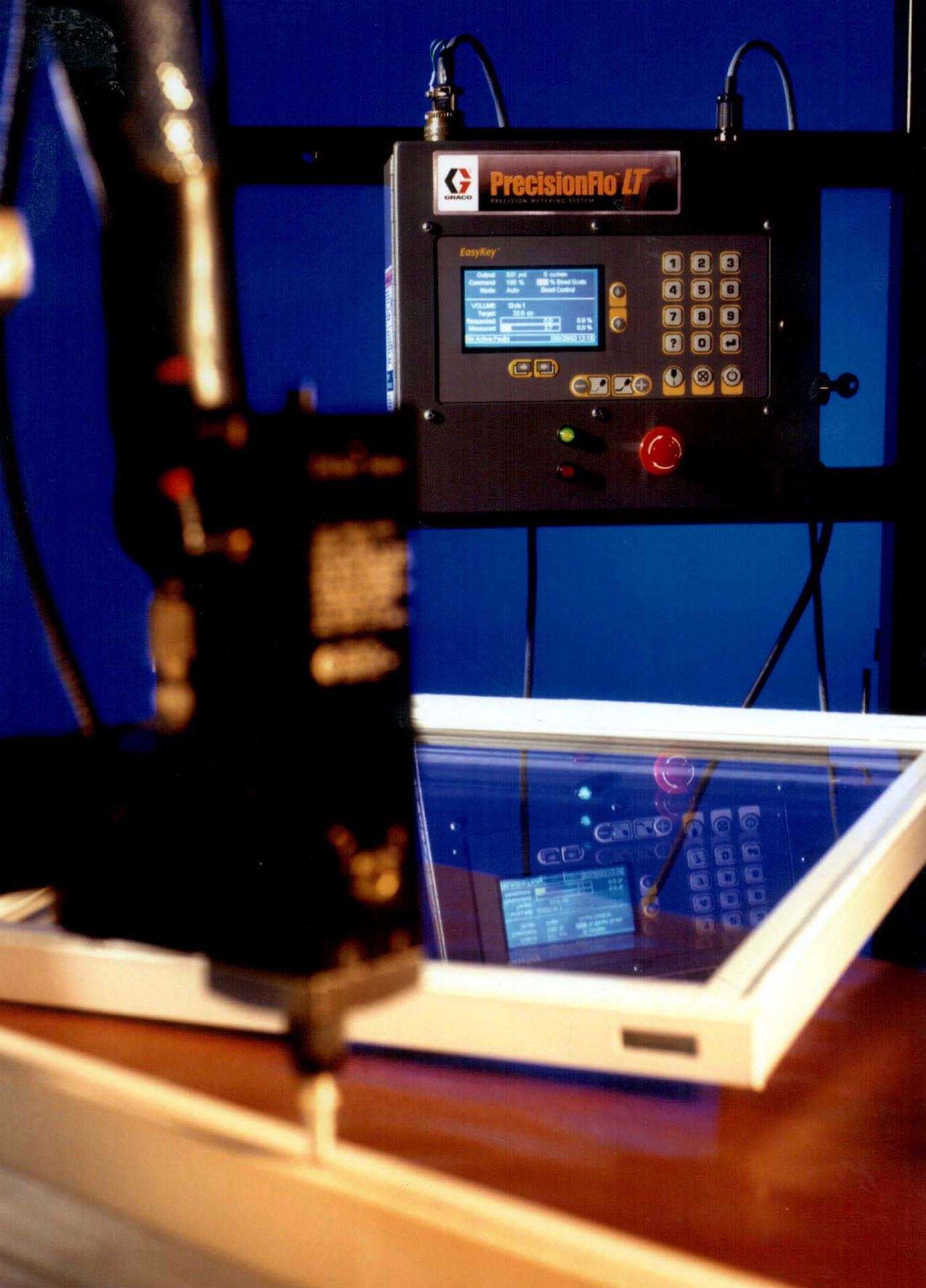

Jul 10, 2003 Continuous flow, electronically controlled, PrecisionFloâ„¢ LT provides real-time, close-loop metering and dispensing of ambient and hot melt sealants and adhesives. It automatically maintains desired dispense rate by adjusting for changes in material viscosity, temperature, tip wear, and speed. Easy-Keyâ„¢ user interface offers easy navigation and multiple languages. System includes touch pad, help screens, one run screen, and bead adjustment controls.

Agie USA, Ltd.    Davidson, NC 28036

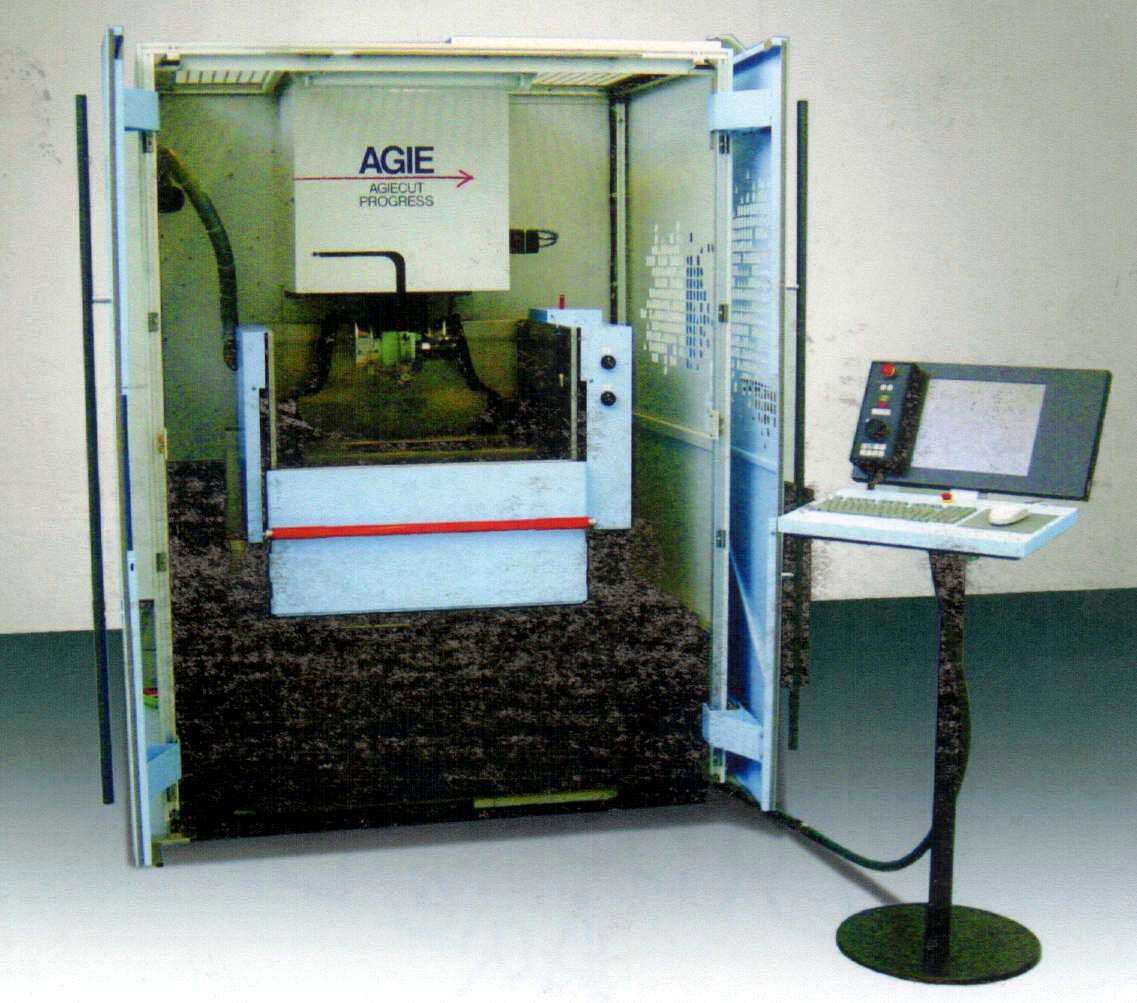

Jul 10, 2003 Agiecut Progress 2 features 120 in./min positioning speed and 15 sec wire threading time. V-guide permits threading of all wire sizes and types and allows taper cutting of ±30°. Wire bending control detects and corrects wire bending in real-time. eCut generator makes it possible to get surface finishes as good as 0.8 µm Ra with one precision cut. Dual measuring system continuously measures and corrects axis positions to achieve accuracy in µm range.
