French Technology Press Office, Inc.    Chicago, IL 60601

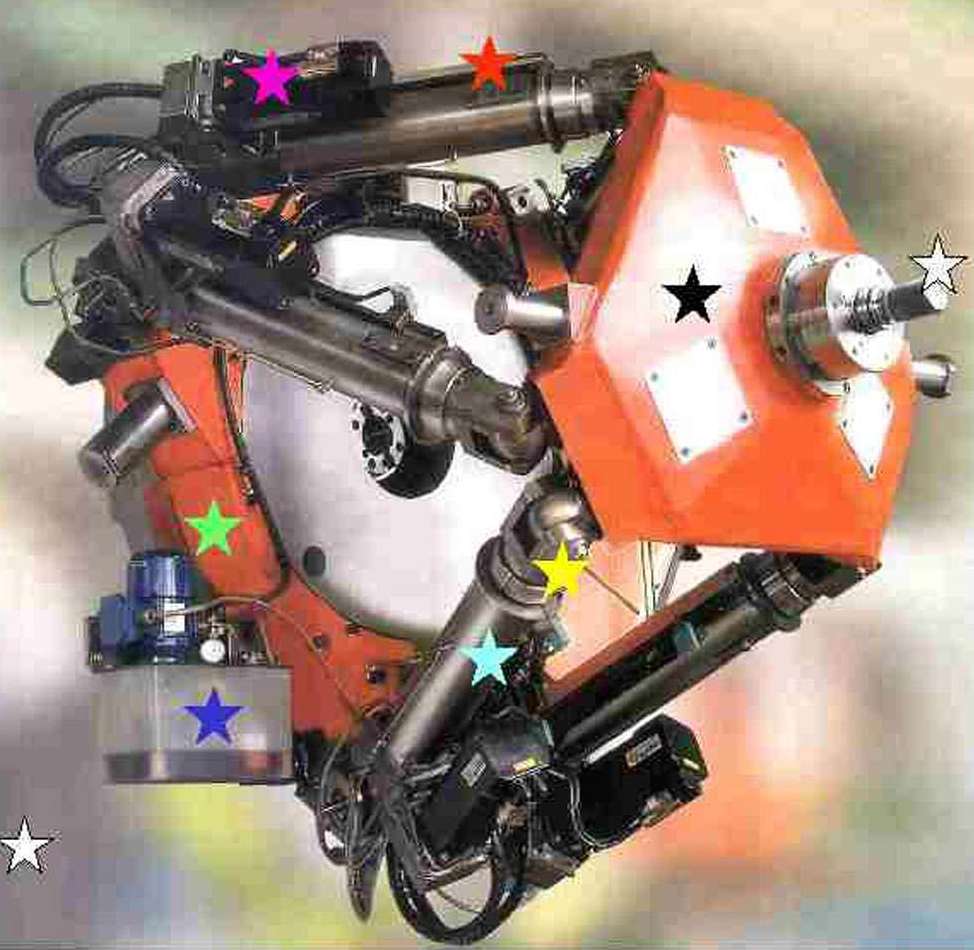

Dec 01, 2003 With max speed of 164 fpm and 40 kW spindle running at 24,000 rpm, HEXAPODE CMW 380 corrects geometrical errors of support machine. When milling in successive meshes, head of machine moves, while support machine remains fixed. It enables high-speed machining of large items in 5 axes with no modification of support machine. When milling in successive strips, unit moves at same time as support machine, enabling milling of strips of up to 3.3 ft wide.

TRUMPF Inc.    Farmington, CT 06032
Dec 01, 2003 TRUMATIC L 2510 XL combines high-speed laser cutting machine with rapid in-line load/unload device, which eliminates need for pallet changer. Machine cuts up to ½ in. thick carbon steel. Cut consistency is assured by integral mounting of laser resonator to machine frame. Model TCF 1 CO₂ laser combines RF technology with diffusion-cooling technology. Machine includes programmable focus control, advanced process control, pierce-on-the-fly, and high pressure cutting.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231

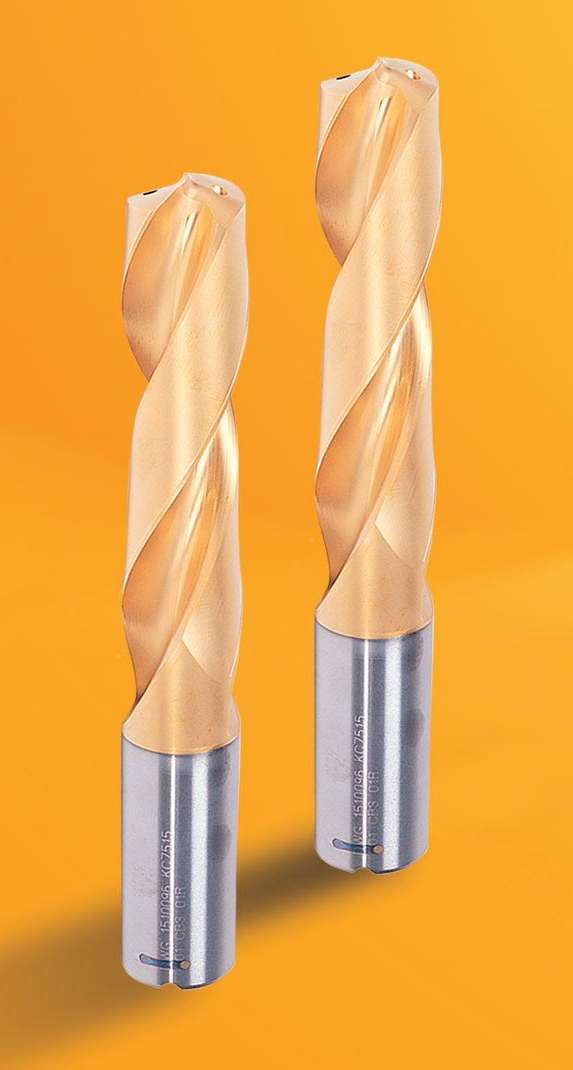

Nov 26, 2003 Models SE210HP, SE211HP, and SE212HP in grade KC7515 feature free-cutting, high positive rake angle and sculptured edge drill geometry. Points are coated with titanium nitride using physical vapor deposition process. Drills handle range of materials, including common steels, stainless steels, and high temperature alloys. Metric sizes range from 4-21 mm dia, and inch sizes range from 0.1563 to 1.010 in. in lengths of 3, 5, and 7 times hole diameter.

Glenro, Inc.    Paterson, NJ 07501 1799

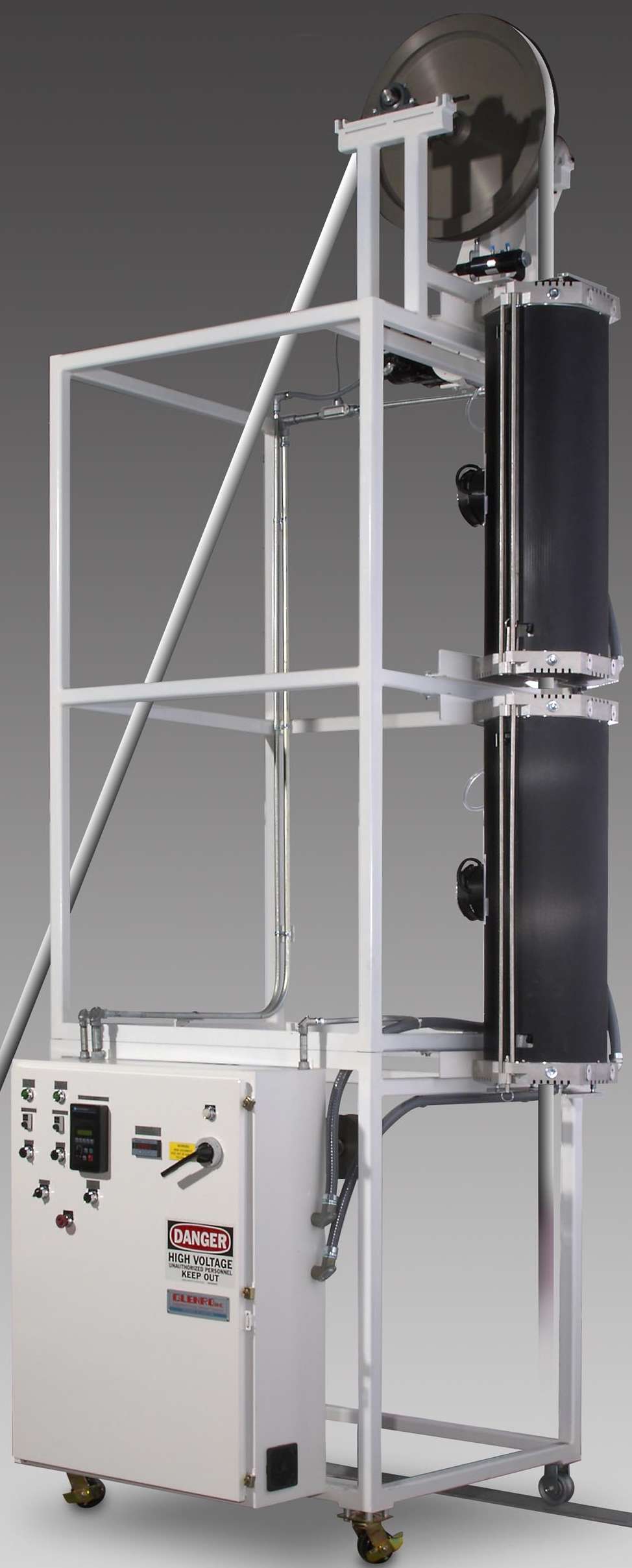

Nov 25, 2003 Infrared tower uses 2 Radround(TM) short wave IR heaters and drive system to cure silicone tubing at adjustable rates. Heaters have clamshell design and consist of rapid-response T3 lamps. Focused, 91.2 kW IR heat ensures tubing reaches green strength. Ready for product processing almost immediately on power-up, it cools fast enough so that product is not damaged when line stops. Parabolic reflectors direct IR energy to product for added efficiency.

Mi-T-M Corporation    Peosta, IA 52068
Nov 20, 2003 Cool Cut(TM) Saw cuts mild steel up to 5/16 in. thick, aluminum up to 3/8 in. thick, and stainless steel up to ¼ in. thick. Over 90% of chips and sparks are collected. Powered by 3,500 rpm and 15 A/1,200 W motor, it produces 2 in. deep cut. Features include 7 in. blade, chip collector, blade housing, aluminum base, guide handle with convenient guide edge, 45° bevel angle adjustment capacity, and soft comfort grip.

DataCard Corp.    Minnetonka, MN 55343
Nov 20, 2003 Datacardâ„¢ Snooperâ„¢ SQ45 uses high-resolution camera to count full or partially full boxes of cards. Results are verified up to 30 times then immediately displayed on digital screen. Results may also be printed in report or on adhesive label. System accommodates various card materials and types and has no moving parts. No part of system ever touches card stock, which prevents scratches and abrasions.

Bridgeport Machine, Inc.    Bridgeport, CT 06606
Nov 19, 2003 With trunnion style table system that provides A and C axes, 5-axis model 5ax 400 has 32 x 24 x 20 in. envelope; 1,700 ipm feed rate; and 25 hp, 24,000 rpm spindle. Max load is 440 lb. Bridge-type, high-speed HSC 500 has 20 x 16 x 16 in. X, Y, Z envelope; linear scales on all axes; and 12 hp, 40,000 rpm spindle. Max load is 660 lb. Other models include C-frame and large bridge-types, all with spindles that feature high-retention draw bars with 2,700 lb tool holding force.

Hypertherm, Inc.    Hanover, NH 03755 0010

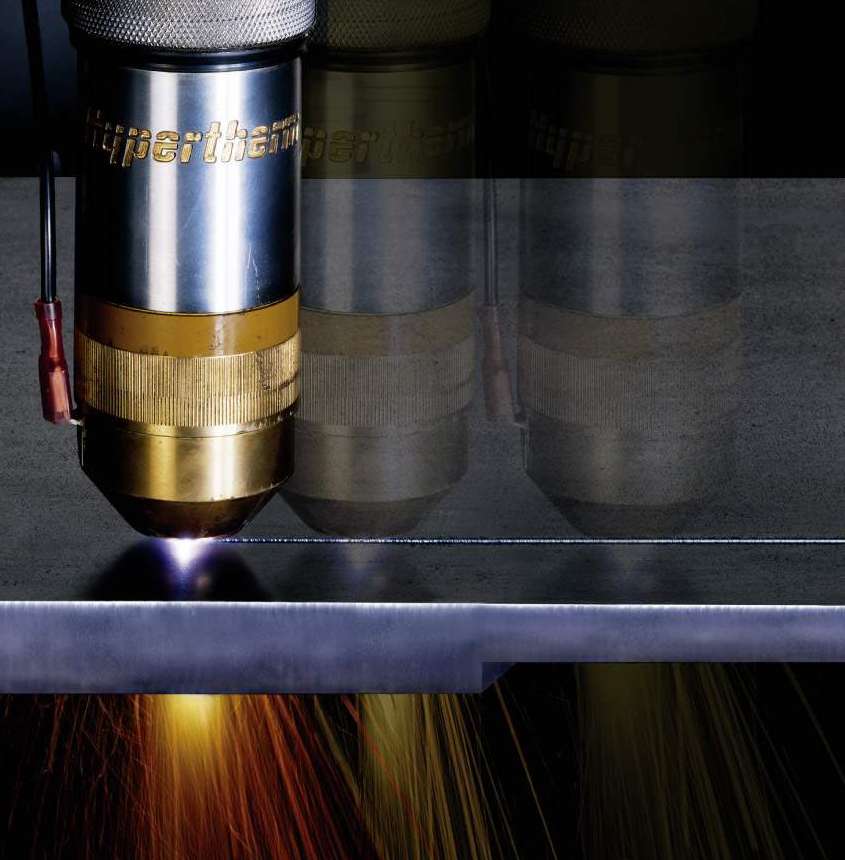

Nov 19, 2003 HyPerformance Plasma incorporates proprietary HyDefinition®, HySpeed®, and LongLife® technologies. Cut quality is consistent across range of plate thicknesses, and system provides flexibility with up to 38 mm mild steel edge-start cutting. Production pierce capability is 16 mm with 25 mm max pierce. It achieves 100% duty cycle in operating environments from – 10 to +40°C with 95% humidity, and has CSA, NRTL/C, CCC and CE and ISO 9001:2000 certification.

RIDGID    Elyria, OH 44035
Nov 18, 2003 Model JP0610 utilizes sealed, 1 hp, TEFC induction motor that converts from 120 to 240 V for continuous applications. Belt drive delivers consistent power to cutterhead, which features 3 knives and provides 15,000 cuts/min, 6 1/8 in. max planing width, and 1/8 in. max depth of cut. Jointer/planer includes center-mounted fence that bevels in both directions, and depth stops placed at 45°, 90°, and 135°. Bed features rabbeting ledge for rabbets up to ½ in. deep.

Storopack Inc.    Cincinnati, OH 45246 1106
Nov 18, 2003 PAPERplus® Classic machine produces 2 sheets of kraft paper together to form protective paper mattress. Lightweight paper provides protection against shock, breakage, and deformation. Pliability or rigidity of mattress can be varied based on basis weight of paper used. Machine is adjustable for manual, automatic, food pedal, or special mode operations. Paper output ranges from 6 in. to any length. After use, paper can be re-used or recycled.

Mimot - California, LLC    Irvine, CA 92618 2326
Nov 17, 2003 Triligent Triple Intelligence Feeders, available in tape and stick configurations, maintain uninterrupted high-speed communication with pick-and-place machine. Multiple-LED status indicator and operator signaling display are provided on each unit. Data transmission between Feeder and pick and place system is accomplished via optical interface. Closed-loop servo tape-advance mechanism can be programmed and ensures fast, accurate component pick-up.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Nov 17, 2003 BP-Smart provides steady deburring, edge preparation, and polishing of hard materials such as CBN, PCD, ruby, sapphire, and industrial ceramics. It can be operated with abrasive-loaded nylon brushes for simple shapes and/or with natural bristles with diamond paste for complicated shapes. Flat components are brushed on planetary polishing table. Rotary motions of polishing table, workpiece holders, and brush produce equal controlled radius on edges of component.

Asymtek    Carlsbad, CA 92008

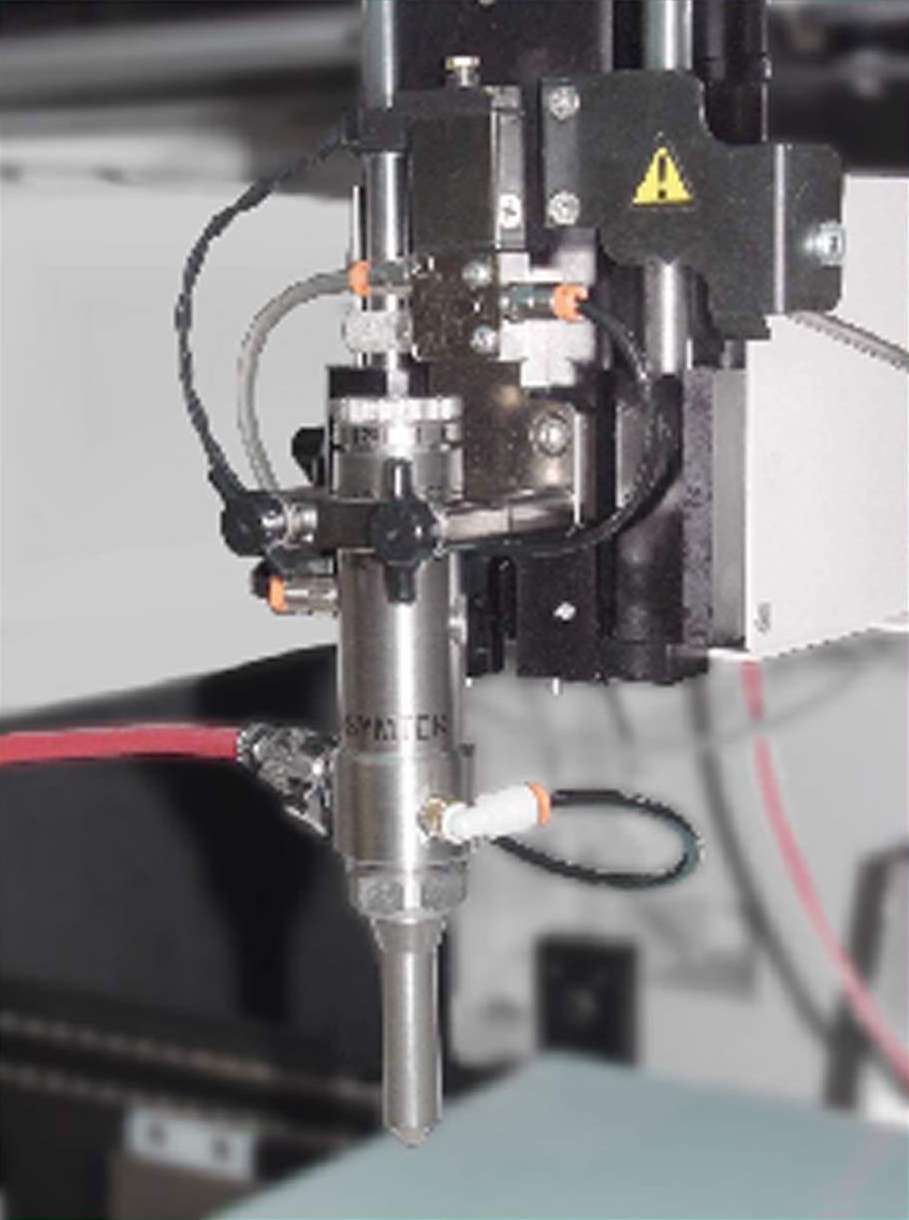

Nov 14, 2003 Model SC-300 Swirl Coat™ allows application of conformal coatings to circuit boards in bead, monofilament, and swirl operation modes with variable dispensing pressure, volume, and shape of air assist. It applies solvent-based and 100% solids coatings with viscosities from 30–3,500 cp. Exposed, zero cavity nozzle design reduces clogging, while low fluid pressure and fine control of film thickness reduces chances of inducing bubbles in coating layer.

Ford, M. A., Mfg. Co., Inc.    Davenport, IA 52808

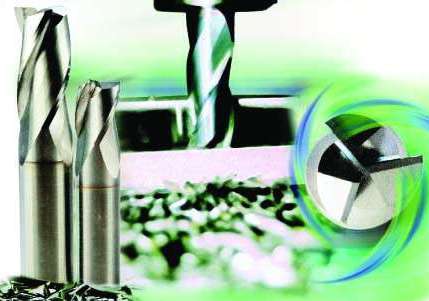

Nov 14, 2003 TuffCut® GP 3-flute, solid carbide end mill is available with .01, .02, and .030 corner radii as standard. Tool is suited for all types of machines and materials such as stainless steel, Inconel, and Stellite. TiCN coated, they are available in sizes from 1/8 to 1 in. Both Series 116C (standard length) and 169C (stub length) are suited for long cuts at moderate speeds and feeds.

Rex-Cut Products, Inc.    Fall River, MA 02720

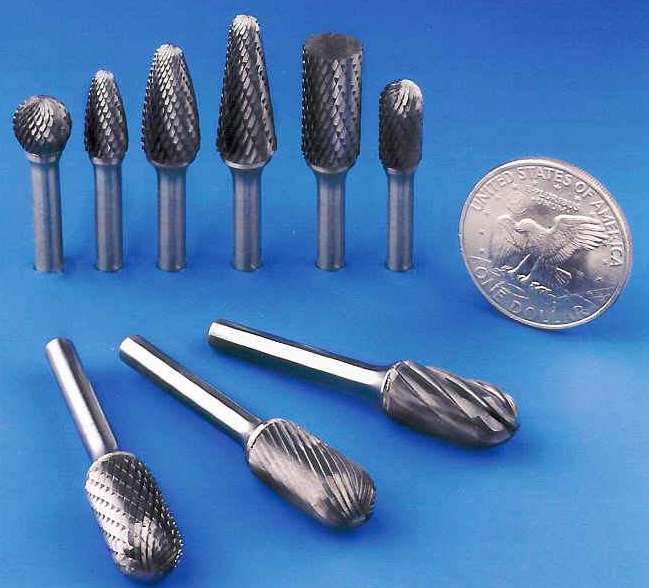

Nov 14, 2003 Rex-Cut Carbide Burs feature head designs including standard-, double-, non-ferrous, and heavy-duty cuts and come in cylindrical, oval, ball, ball nosed tree, and tapered shapes. Suited for use on hard and soft metals, they are available in various industry-standard sizes with 1/8 and ¼ in. shanks. Heat- and wear-resistant products are suited for weld and metal removal, weld preparation, deburring, chamfering, edge breaking, and creating radii.

Makino Machine Tool Co.    Mason, OH 45040 9695
Nov 14, 2003 V-Series Machining Centers can achieve depth accuracy of ±2 microns and surface finish quality of 0.4 microns in 40 HRC steel. They provide smooth machined surfaces, even in high-feedrate machining of 3D shapes involving continuous tiny blocks of NC data. Featuring machine-stiffness, rigidity, and thermal stability, machining centers are capable of producing molded membrane separators, which are key element to fuel cell stack power source development.

Data I/O Corporation    Redmond, WA 98073-9746
Nov 13, 2003 Model TF30 Automated Tray Feeder processes devices in and out of JEDEC and semiconductor-specific matrix trays during programming. Self-adjusting feature allows it to change tray configurations in seconds without need for operator adjustments. Batch Plusâ„¢ process allows component replenishment to feeder while host machine continues to program and process components. Model TF30 is compatible with PP and PS Series automated programming systems.

Liberty Precision Industries    Rochester, NY 14692-2785
Nov 13, 2003 With 3 liquid-cooled, 15,000 rpm spindles mounted vertically in traveling column configuration, 5-axis Model EA 2600-3 incorporates carousel-style, automatic tool changer and Indramat MTC-200 control system. Column has 24.80 in. Z-axis stroke and travels on 102.36 in. X-axis bed. B-axis rotary table provides one rotary axis, while second rotary axis is supplied by 3 A-axis NC rotary tables mounted on trunnion-style, 2-station part swapper.

U.S. Tsubaki, Inc.    Wheeling, IL 60090 6431
Nov 13, 2003 Energy Series™ Chains are available in sizes 80–240 and up to 10 strands wide. Pins hold tight under extreme vibration, and smooth holes eliminate fatigue cracks that can compromise chain strength. Link plates help distribute loads evenly. Z-cotter connecting links hold tight, yet allow assembly and disassembly in the field. Chains are suited for on-shore and off-shore drilling applications.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231

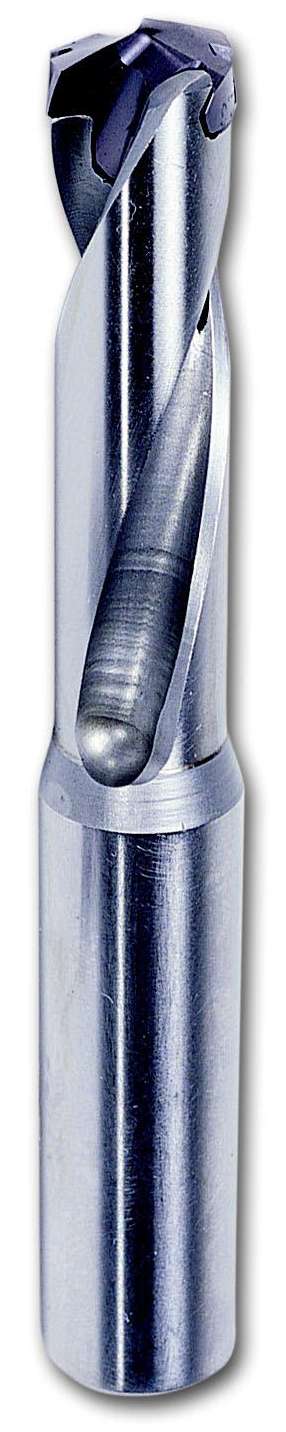

Nov 12, 2003 KenTip features cam-actuated clamping mechanism that requires ¼ turn to lock/unlock tip into body. HP geometry provides higher positive rake angle, and edge preparation provides 30% to 50% higher tool life and higher penetration rates on Z-axis thrust limited machines. Heavy hone-edge treatment protects cutting edges. TiAIN coating delivers resistance to heat and abrasion. Drill is available in inch sizes from 5/16-5/8 in., and metric sizes from 8-16 mm.
