Metabo Corp.    West Chester, PA 19380 4243

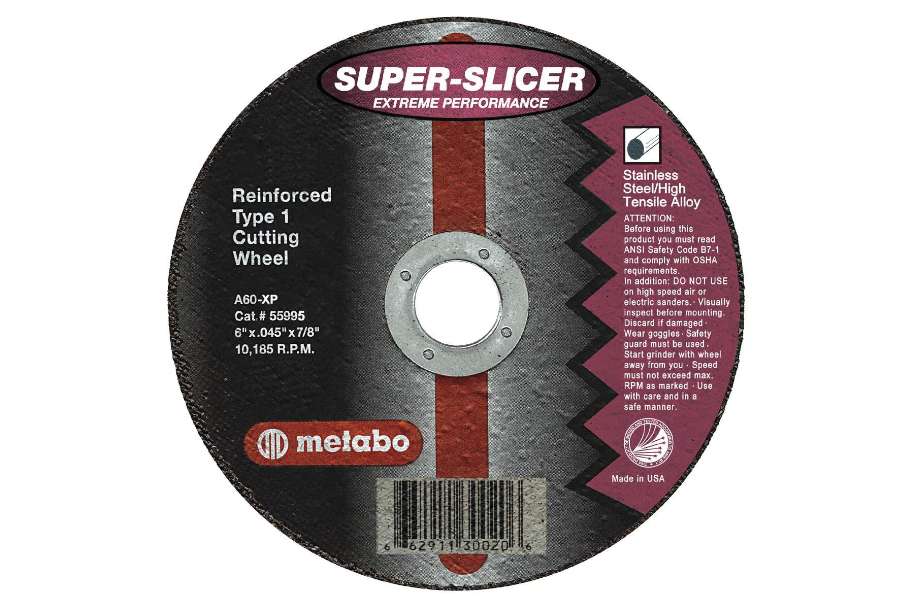

May 07, 2004 ChoiceCutsâ„¢ Super-Slicer Wheel provides increased cutting speed and minimal burr when cutting hard and heavy-gauge metals, such as stainless or abrasion-resistant steels, high-tensile alloys, chrome, and hastelloy. Aluminum oxide Type 1 cut-off wheel is available in 4½ and 6 in. versions. Rigid cutting wheel is 0.045 in. thick and coated with blended grain that provides up to 300% increase in wheel life. Wheel leaves no contaminants behind, such as sulfur, carbon, or chlorine.

Behringer Saws, Inc.    Morgantown, PA 19543
May 06, 2004 Model HBP413A can cut solids up to 16 in. in dia and rectangular shapes up to 19.7 in. wide x 15.7 in. high. Machine is controlled by PLC, and BT-41 operator's terminal incorporates diagnostic display for data entry and program storage of up to 10 numerically controlled applications. Bandsaw utilizes 1½ in. wide blades positioned at 3° bias. Frequency controlled 5.3 hp motor provides variable speed range of 65-460 sfm.

Ophir Optronics, Inc.    Danvers, MA 01923
May 06, 2004 Digital BeamStar FX Series works with laptop or desktop PCs to provide everything necessary for beam profiles of pulsed and CW lasers from µW to W. System consists of camera, filters, laptop or PC card, and software. Trigger input lets BeamStar FX 33 and FX 50 synchronize with trigger output from pulsed laser. Series features automatic gain and exposure adjustment as well as automatic photodiode synchronization with pulsed lasers.

CML USA, Inc.    Davenport, IA 52804
May 06, 2004 Mega-Bender® 030 uses mandrel system to produce bends on tubes and hollow profiles. Depending on material, wall thickness, and distance between bends, mandrel can accommodate centerline bend radiuses as small as 1.3 x OD on tube diameters from 3/8-3 in. Mandrel system incorporates 5 separate tools and produces up to 1,000 bends/day. Bender features electromechanical drive and microprocessor control for NC semi-automatic, 3-axis operation.

Intertech Worldwide Corp.    Boca Raton, FL 33431 5187

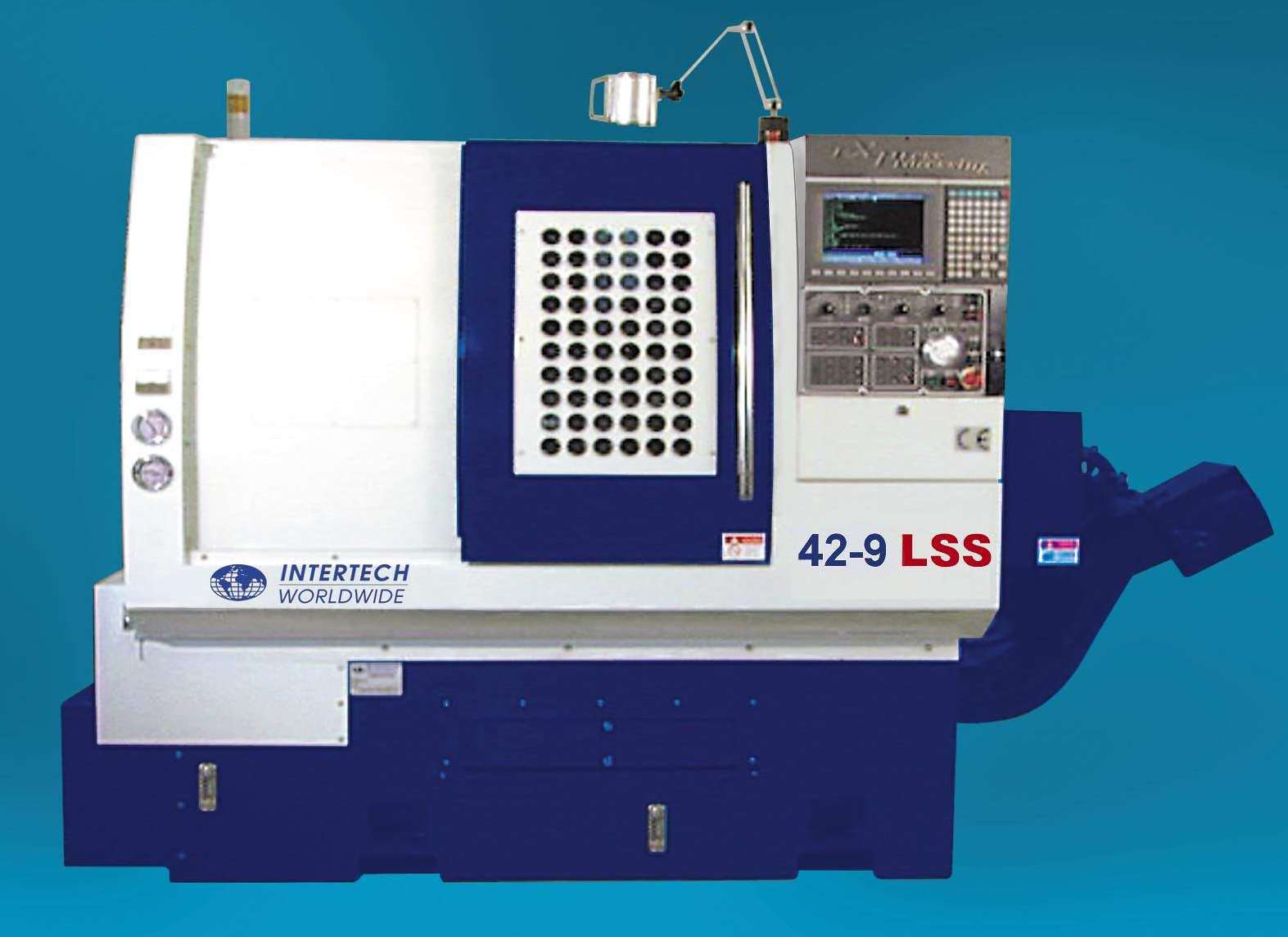

May 05, 2004 Quad-axis CNC machining center 42-9 LSS utilizes 10/15 hp Servo main spindle drive, 2.6/3.5 hp Servo sub-spindle drive, and Mitsubishi Servo drives for all axis movements. Control stores up to 128 programs, has 10½ in. flat color monitor, and is capable of 6-axis simultaneous interpolation. Main spindle has 1 5/8 in. collet capacity and sub-spindle has 1 3/16 in. collet capacity. Parts catcher, takeaway conveyor, and chip conveyor are standard.

Royal Machine & Tool Corp.    Berlin, CT 06037

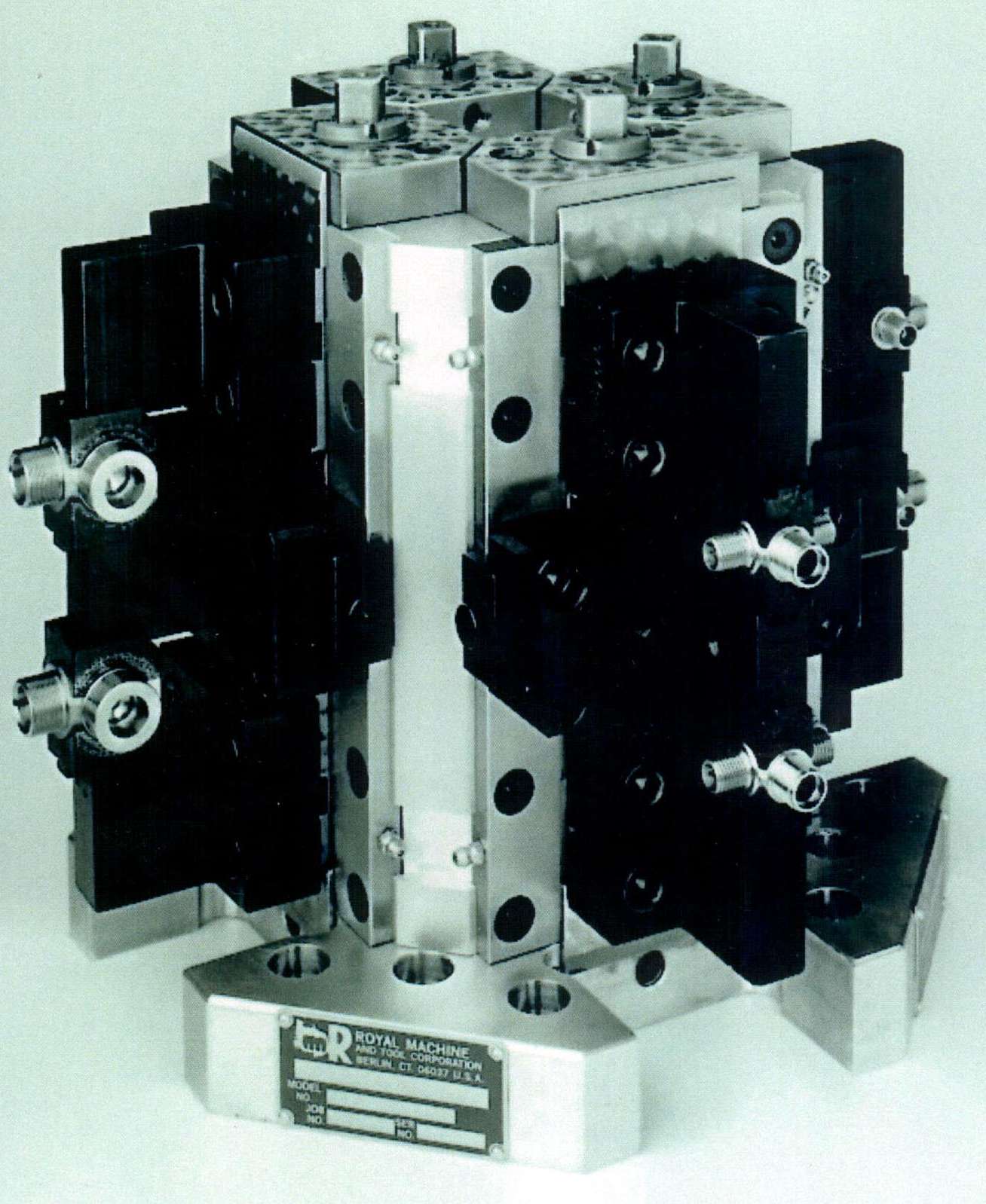

May 03, 2004 Quad Vertical Combination Chucks allow simultaneous holding of up to 8 parts, plus complete machining of part in single operation. Visually continuous spindle use is possible because chucks allows access to 3 sides of work piece, eliminating need for multiple set-ups. Master jaws can be set in either self-centering or compensating mode with use of center bracket for multiple loading of parts.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Apr 30, 2004 CoroTurn XS tooling solutions for internal turning, grooving, and threading, are designed for small part machining. Program is comprised of 4 sizes: CXS-04, -05, -06 and –07. Each includes inserts of varying length that fit into boring bars with internal cutting fluid supply directed at cutting edge via 2 nozzles to ensure chip evacuation and sufficient cooling. Boring bars range from 10–25.4 mm dia.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Apr 30, 2004 Model DS-22 features dual cutting mechanisms to reduce up to 1,800 lb of waste/hr down to particles as small as 3/32 in. Variable-speed conveyor delivers bulk material to shredder, which starts destruction process by preshredding material. Preshredded material is reduced to desired particle size by rotary knife mill. Once end particle is small enough, it passes through exit screen and is evacuated to twin-bag collection system or dumpster.

Waytek Inc.    Chanhassen, MN 55317
Apr 30, 2004 Scotchlok™ Splice Taps, used for quick connections with no wire stripping, are available in wire ranges from 22–10 gauge. Users insert both wires, squeeze down metal insert with pliers, and snap cover in place. Moisture resistant Splice Taps employ protective gel that ensures moisture-resistant barrier. They are available in 18–14 gauge wire.

Precision Airconvey Corp.    Newark, DE 19702
Apr 30, 2004 OSHA-approved cutter automatically removes materials from defective and/or out-of-spec rolls to permit material to be reclaimed. Applying uniform cutting force, product slices through material in less than 1 min/roll without cutting core to prevent fiber contamination and permit reuse of core. Operator safeguards include control panel requiring 2-hand operation; electrically interlocked safety surround enclosure; and full guarding around knife.

Komet Of America, Inc.    Schaumburg, IL 60193 4544
Apr 29, 2004 Model M03/Speed Boring Head offers 7 tool bodies to cover boring diameters from 24.8-206 mm. Rough adjustment of rotating clamping holder to graduation collar on external diameter allows fine adjustment up to 0.00008 in. To compensate for insert wear, fine adjustment can be accomplished while tool is still mounted on machine spindle. When insert position is changed, automatic balancing adjustment is made via weight that lies diametrically opposite.

Stafford Mfg. Corp.    Wilmington, MA 01887
Apr 29, 2004 Stafford Rail Clamps function as positive mechanical end stop or mounting block on rail-mounted shafts. Clamp-style devices slide over end of both shaft and support rail and separate to permit assembly anywhere on shaft. Machined from steel with black oxide finish, products are offered in 6 sizes from ½â€“1½ in. bore and adjust using hex wrench. They can include drilled and tapped holes for mounting components and can be made from stainless steel.

Stellram    La Vergne, TN 37086
Apr 29, 2004 Designed to provide high metal removal rate and chip evacuation, 7791VS series utilizes Z-axial cutting force. It is efficient in both roughing operations and deep cavities, and process minimizes tool deflection and side forces. Available in 1.5–6 in. and 40–125 mm dia, construction materials include steels, cast iron, aluminum, alloys, and high-temperature alloys. Product is suited for aerospace and mold making industries.

Service Network Inc.    Auburn, MA 01501
Apr 27, 2004 Model SN1000-I offers workpiece OD swing up to 38 in. and slide strokes from 5–50 in. Cross slide is hydrostatic with hydrostatic hold downs. Resolution and repeatability of slides is in millionths, while workhead roundness is .000050 in. or better. Solid or lift up type dressers are available for straight, radius, and contour dressing using single point or cluster diamonds, silver dollar or cup type diamond wheels, and diamond roll form wheels. Up to 5 axes may be employed.

KMT Water Jet Systems, Inc.    Baxter Springs, KS 66713
Apr 26, 2004 SL-V Plus utilizes Hyperlife? plunger seal and ceramic plunger technology. Hard seal end cap design provides ease of maintenance and increased life cycles when compared to O-ring seals. Kits are available to upgrade existing SL-I, SL-II, and SL-IV intensifier units.

Porter-Cable Corp.    Jackson, TN 38302
Apr 26, 2004 Series 7430K and 7416K 4½ in. angle grinders have spanner wrench on handle that facilitates changing pad, blade, disc, or other accessory during use. Operating at 10,000 rpm and incorporating 3-position auxiliary handle and case, 7430K provides 8 A power with paddle switch and 7416K provides 6 A power with slide switch. They suit sharpening, cutting, sanding, stripping, and grinding applications in construction, masonry, and automotive sectors.

Elsner Engineering Works, Inc.    Hanover, PA 17331
Apr 22, 2004 ZFV Series automatic folding machines utilize servo controls for stack separating and lowering and cut-off knife operation. Various fold styles can be made on machine, including Z, C, and specialty folds, and cut lengths can be selected in increments from 3.5–10.5 in. Products convert web widths from 20–80 in. to any cut length and fold size. Central console displays product count, web speed, production rate, wetting saturation rate, and other data.

ExxonMobil Coal & Minerals Co.    Houston, TX 77063 2005
Apr 22, 2004 Available in NLGI Grades 1 and 2, Mobil Centaur Moly greases are formulated with calcium sulfonate thickener technology to deliver water resistance and protection from corrosion and pressure. Greases are designed for equipment that operates in wet environments or is subjected to demanding conditions such as heavy loads and severe sliding. Applications include heavy-duty truck chassis, heavily loaded industrial bearings, and construction and mining equipment.

International Surface Preparation    Houston, TX 77054
Apr 21, 2004 With travel speed of 0-350 fpm and 48 in. blast pattern, Blastrac® 2-4800DH strips, cleans, and profiles up to 30,000 ft² of concrete or 7,500 ft² of steel per hour. Machine is powered by 350 hp diesel engine and uses twin centrifugal blast wheels to propel blast media in controlled pattern and direction. Media is recycled for reuse, while onboard 3,500 cfm dust collector gathers dust and debris. Product is suited for highways and airport runways.

JMD Mfg., Inc.    Framingham, MA 01701
Apr 21, 2004 Model 315 produces repeatable, smooth, parallel cuts that are burr-free and require little or no surface cleaning. Heavy-duty base table and sub-assembly provide structural support, while hydraulically actuated tube clamp anchors various sized tubes that can be cut simultaneously. Hydraulic motor drives blade, and hydraulic cylinder with feed valve feeds blade through tubes. Lubrication and cooling are provided via automatic spray mist system.
