Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Jun 07, 2004 Suited for TIG and plasma welders, Model TEG-3 employs diamond wheel that grinds tungsten electrodes longitudinally and at set angle for consistent angle and shape. Ground and polished tips prevent arc instability and require minimal resetting or re-welding. Available in 110 and 220 V, 50/60 Hz versions, grinder eliminates circumferential lines and ridges on electrodes and accommodates sizes from 1.6-4 mm.

General Equipment Co.    Owatonna, MN 55060 0334
Jun 04, 2004 Suited for floor preparation projects, SG12/E is powered by TEFC 1.5 hp electric motor and features one rotating disc with 12 in. working width. It has top disc rotation speed of 250 rpm and is built for portability with folding handle. Able to be navigated through stairwells, unit has unitized, welded-steel plate frame that includes integral bail design, self-aligning ball bearings, and heavy-duty V-belt reduction drive system.

UNOVA Inc. / Landis Gardner    South Beloit, IL 61080
Jun 04, 2004 Viking SuperSeries II CNC Centerless Grinder incorporates Landis 6400 CNC PC-based, open-architecture control system, which is hardware-independent. Featuring digital servo controls with SERCOS interface and sealed anti-friction spindles, grinder utilizes 20 hp grinding wheel drive and accommodates parts from 0.05–2.4 in. diameter. Surface speeds range from 8,500–12,000 sfpm for conventional abrasives and up to 16,000 sfpm for superabrasive applications.

Eraser Company, Inc., The    Syracuse, NY 13221
Jun 03, 2004 Air-operated Model HCA20 cuts materials from 0.010-1.25 in. OD, including most non-ferrous conductors such as copper and aluminum. Guillotine-style blade provides clean, square cutting, while dual activation buttons ensure operator safety during cutting cycle.

Steinmeyer Inc.    Bedford, MA 01730
Jun 03, 2004 UltraThrust Precision Ground Ball Screws are offered in 50 x 20, 63 x 20, 63 x 30, 80 x 20, 80 x 40, and 100 x 20 mm sizes, all with 15 mm load carrying balls. UltraThrust 63 x 20 mm ball screw offers dynamic capacity of 430 kN, compared with 179 kN for standard series 1416 ball nut, which uses 11 mm balls. UltraThrust ball screws are suited for very large transfer line modules or to replace hydraulic drives in injection mold machines.

GE Intelligent Platforms    Charlottesville, VA 22911
Jun 02, 2004 Models C5000-E and C6000-E are carbon dioxide laser sources offering 5 kW and 6 kW power. Laser source, CNC, and servomotors are integrated and interfaced as complete system. Laser communicates with CNC via optical bus, and all laser control and diagnostics are integrated into CNC. Historical data for maintenance purposes is logged and can be accessed via CNC screen. Both laser packages can simultaneously control up to 6 axes to enable 3-D machining.

Weiler Corporation    Cresco, PA 18326 0149
Jun 01, 2004 Burr-Rxâ„¢ 3 and 5 in. dia abrasive nylon disc brushes employ proprietary high-aggression filaments that facilitate removal of larger burrs. Products do not alter part dimensions and are suited for use on custom-designed machines or in CNC machining centers.

ROMI Machine Tools, Ltd.    Erlanger, KY 41018
Jun 01, 2004 Romicron Systems finish high-precision bores by adjusting tip of boring tool. Series SVS includes 10 models with through-the-tool coolant, boring range of 25-183 mm, and spindle speed of 3,000-10,000 rpm. With bore range of 71-326 mm, Series SVU can be balanced to G 6.3 according to ISO standard 1940 by adjusting one dial. Spindle speeds range from 6,000-10,000 rpm. SVUBB1/SVUBB2 boring heads use replaceable boring bars that allow boring range of 4.0-16.5 mm and 6-25.5 mm, respectively.

Trico Mfg. Corp.    Pewaukee, WI 53072 3954
May 28, 2004 Streamliner V applies precise flow of grease to critical machine parts. It comes pre-filled in 250 cc reservoir and has variable feed rates of 1, 2, 3, 6, and 12 months with auto purge cut-out. Unit contains electro-chemical drive that produces inert gas, nitrogen, for operation. Unit can be deactivated and adjusted as necessary.

International Filter Testing Services Inc.    Springfield, NJ 07081
May 28, 2004 Designed for on-line continuous measurement of filter cartridge efficiency, particle counting cabinet is based on testing method that allows efficiency and retention capacity of filter to be assessed continuously. Dual flowmeters record actual flows through each sensor, while computer records and processes all data and displays number of particles before and after filter. Computer also displays instant filtration efficiency or ratio.

Hurco Companies, Inc.    Indianapolis, IN 46268-0180

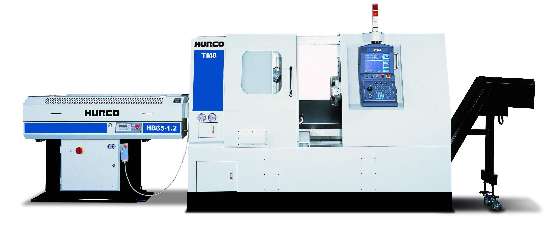

May 27, 2004 Identified according to chuck size, CNC turning centers Models TM6, TM8, and TM10 feature ±.0002 in. position accuracy, 12-station turrets, and spindle speeds up to 6,000 rpm. Control allows machinists to program directly at machine with knowledge-based programming, convert CAD drawings into part programs by using DXF transfer software option, and download M and G programs directly from offline CAM systems.

EZE-LAP(TM) Diamond Products, Inc.    Carson City, NV 89721
May 26, 2004 Available in 5/32, 3/16, and 7/32 in. sizes, CSGâ„¢ Diamond Chainsaw Sharpeners have precision guides and accommodate any chainsaw. Each features 1/8 in. shank and sharpening surface that utilizes industrial-grade diamonds. Design allows for foolproof sharpening, ensuring smooth, safe chainsaw operation. Products, available in 1- and 2-packs, come showcased in informative blister-pack.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
May 26, 2004 Available in 75, 110, 175, and 250 ton capacities with 8–12 in. stroke, Series OBS allows blanking, forming, drawing, punching, and crimping, all on same machine. Hydraulic valves and electronic control enable high cycling speeds. Standard CNC controller with program storage allows accurate setups on repeat jobs. Presses accept manual or coil feed and feature virtually infinite stroke length adjustment.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
May 25, 2004 MGC-Special grinding centers provide horizontal, vertical, and inclined spindle orientations to enable face, bore and diameter grinding, as well as turning, milling, boring and drilling. Equipped with hydrostatic rotary NC table, machine provides index accuracy of ± 1 arc sec and variable table speed up to 80 RPM. X-axis travels range from 1300–3300 mm, 3 independent Y-axis spindle heads travel up to 1050 mm, and Z-axis travels are up to 220 mm.

PAM Fastening Technology    Charlotte, NC 28208
May 25, 2004 Contractor-grade Model P13KDE drives 1–3 in. long fasteners with No. 6–12 dia, making it suitable for multi-purpose contractors who use tool for various applications. Its 36¾ in. extension lets user operate unit in standing position, minimizing fatigue and strain on joints or back. Features include posi-lock depth settings, 2,500 rpm Milwaukee motor, and steel feeding system. Weighing 7 lb, tool has side handle, non-slip nose piece, and 120 mm bit.

PIAB Vacuum Products    Hingham, MA 02043
May 25, 2004 Featuring vacuum technology, Modular Automation Tooling is made of hard-coat anodized aluminum and can be assembled on-site without welding. It features swivel arm assembly with choice of various attachments, including air-driven vacuum pump. Equipped with VacTrap® check valve, pump traps vacuum pressure for indefinite period in leak-free system, allowing parts to be handled safely in case of system interruption or failure.

Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
May 25, 2004 VARIOTURN Welding Lathe interfaces to ORBIMAT 250C orbital-welding power supply, which controls welding cycle, supplies up to 2,000 welding procedures, checks welding parameters to 2 decimal places 500 times/second, and adjusts as necessary. Infinitely adjustable tail stock saddle is locked securely in place by pneumatic locking system. Torch tower is moved on easy-glide rail, and arc gas is controlled by mechanical compensation system.

ANCA Inc.    Farmington Hills, MI 48335
May 24, 2004 Primarily suited for tool sharpening, RX7 is also capable of tool production. All axes use proprietary direct-drive technology, and machine features ToolRoom software suite, Digital Servo Drives, and 5DX CNC with touchscreen interface, USB port, and UPS. Motor and ball screw are coupled directly in-line, eliminating problems of backlash and loss of position. Unit employs single direct-drive, multi-directional spindle with dual wheel packs, positioned at either end of spindle.

Convertech    Wharton, NJ 07885 1800
May 21, 2004 Available in 3–12 in. dia, chucks expand pneumatically for positive, instant lock up and release. Suited for all shaftless unwinds and rewinds, products incorporate steel body and expandors, and are available with flange or cantilevered type mountings. When running different core diameters, interchangeable adapters are available that can be fitted onto one base chuck.

Schmidt Feintechnik Corp.    Cranberry Township, PA 16066-6415

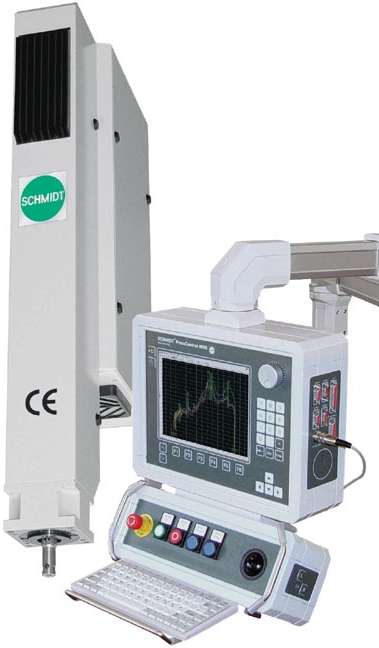

May 21, 2004 ServoPress System, Model 405/4000, features 100% in-process control and monitoring with 180 lb peak load and 115 lb continuous duty load. Industrial servo actuator offers up to 5.9 in. ram stroke and max ram speed of 11.8 ips, while spindle assembly features load cell and mechanical clutch. Equipped with .000004 in. resolution encoder, system uses precision ground ball screw with direct motor drive and has Windows-based OS.
