NLC Laser    Phelps, WI 54554
Oct 07, 2004 Hinged around Sealed DC laser technology, Integrator Series Lasers produce stable, pinpoint heat source suited for high-speed processing in non-metal applications. They provide non-contact sterile processing and can be employed for services including drilling holes as small as .002 in. in diameter, cutting, marking, perfing, sealing, and kiss cutting. Energy from one unit can be split and delivered to multiple processing points.

ATI Industrial Automation    Apex, NC 27639

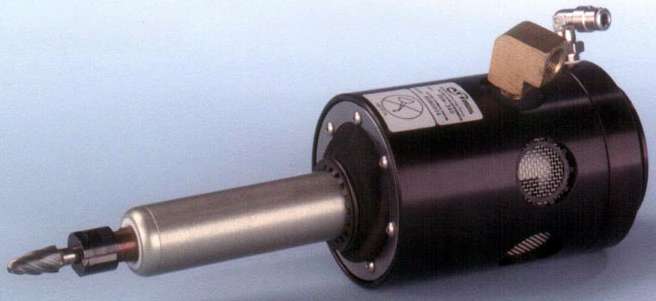

Oct 07, 2004 Flexdeburr radially-compliant tools have floating air-turbine motor and spindle arrangement that provides deburring tip's radial compliance to perform consistently on irregular part patterns. Pneumatically controlled tools allow cutting bit to follow part profile, maintaining constant force on part surface. Pivot bearing provides radial movement. Tool requires clean, dry, non-lubricated air for spinning cutting file and applying radial force.

LENOX    East Longmeadow, MA 01028
Oct 07, 2004 ARMOR Rx+ bi-metal band saw blades cut through structurals, tubing, and small rounds of mild carbon steels and tool steels with minimal vibration and noise. Coating process binds coating to blade, acting as defense mechanism against heat build-up. Tooth design eliminates tooth strippage and prevents premature failure, while backing steel withstands stresses of structural cutting applications.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Oct 06, 2004 Suited for cast iron milling, M750 Hexacut Line features 8 in. cutter, 45° lead angle roughing cutter, three 30° lead angle cutters, 30° lead angle roughing cutter, and two 30° lead angle finishing and semifinishing cutters. All use 2-sided, hexagonal inserts with 12 true cutting edges. Double negative geometry provides strength needed for high metal removal rates. Diameters range from 3-12 in. and 80-315 mm. Variety of coated carbide grades are available.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Oct 06, 2004 Designed for volume production of round and non-round shaft parts, Zeus M has grinding length to 950 mm, max diameter of 430 mm, and center height of 220 mm. Product handles workpieces up to 80 kg and combines cylindrical, non-round, plunge, and high-speed peel grinding (HSP) in one machine. It employs polymer Granitan machine bed, galvanic-bond and ceramic-bond CBN grinding wheels, and 130 mm rotary diamond dressing.

United Grinding Technologies, Inc.    Miamisburg, OH 45342
Oct 06, 2004 Featuring GE Fanuc 18i control, Blohm Planomat 408 HP, in split splash guard configuration, keeps doors open and lets operator exchange parts while machine goes through dress cycle. Linear guideways in all axes consist of 6-row ball and 4-row roller bearing systems that provide stick-slip free positioning. Work area is entirely enclosed to contain high-pressure coolant, and grinding range is 800 x 400 mm. Table clamping area is 1,200 x 400 mm.

Micro 100, Inc.    Los Angeles, CA 90029
Oct 06, 2004 Available in 2, 3, and 4-flute designs, solid-carbide AECM Series features AlTiN coating and is engineered with corner radii ranging from 0.1-1.5 mm as sizes increase. Cutter diameters range from 1-12.0 mm with tolerance of +0.000/-0.014 mm up to +0.000/-0.043 mm, depending on size. Shank diameters range from 4-12 mm and are held within -0.0025 to -0.008 mm. TIR maximum is 0.012 mm.

Lund International Corporation    Hudson, MA 01749
Oct 06, 2004 Cutting Blades and Systems are custom-designed to optimize cutting, shredding, or scraping processes. Blades, cutters, knives, shredders, and shear bars are made with specific angles, pitch, and shear for proper introduction to process. Manufactured from materials that match application, such as steels and alloys, cutting systems are available with wear-resistant, tungsten carbide hard-facing or multi-zone heat treating.

Wabash MPI    Wabash, IN 46992 0298

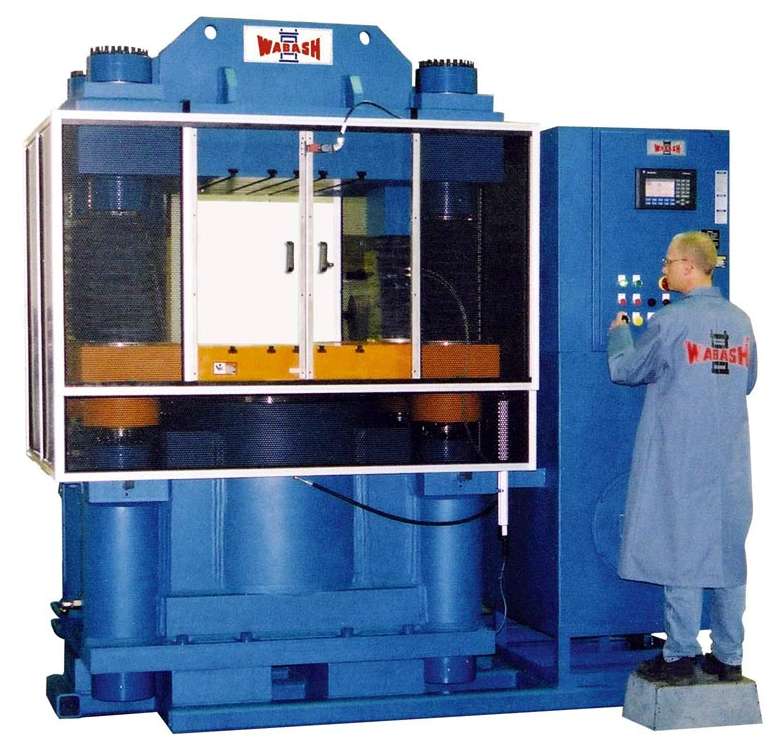

Oct 06, 2004 Model 1000-36X features programmable control of clamp position, closed loop control of clamp force from 10–1,000 tons, and fully programmable compression and decompression rates throughout force range. PLC control provides for recipe storage as well as remote communication capabilities. Machine's 36 x 36 in. work area can be equipped with heated platens, and 4 tie rod design assures minimal deflection and facilitates parallelism adjustment.

DoAll Company    Des Plaines, IL 60016

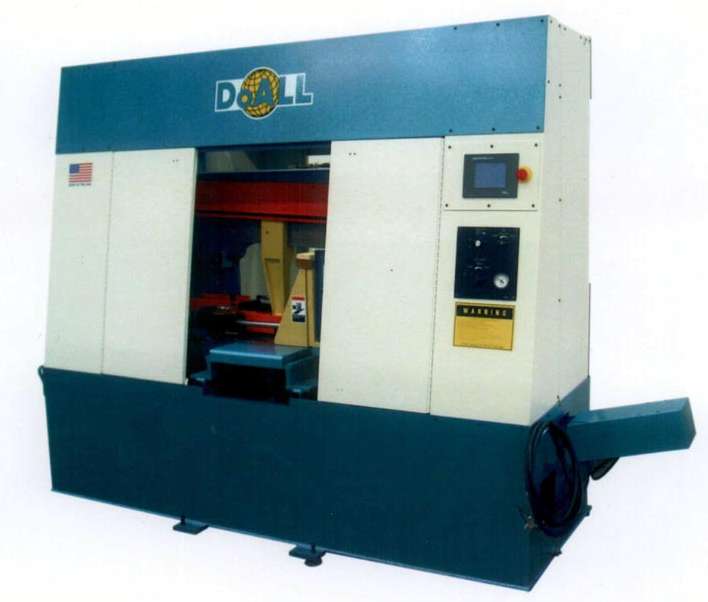

Oct 05, 2004 Model C-3350NC features enclosed cabinet to contain chips and cutting fluid, and 21 in. diameter band wheels mounted on columns for stability. Max workpiece capacity is 13 x 13 in. for rectangular and round stock. Rated at 10 hp, ac inverter band drive motor powers 1½ in. blade with infinitely variable band speeds from 50–400 fpm. NC controls with touchscreen store up to 20 jobs and allow operator to program automatic indexing from 16 in. to as little as ½ in.

DoAll Company    Des Plaines, IL 60016

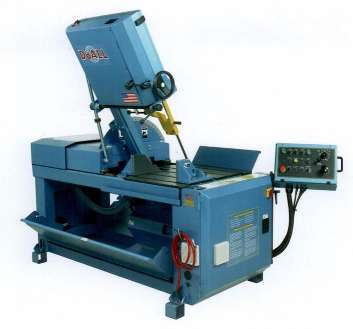

Oct 05, 2004 Model TF-1822M features rectangular cutting capacity of 18 x 22 in. at 90° and 18 x 14 in. at 45°. It includes counter-balanced saw head, full stroke hydraulic clamp cylinder, and adjustable hydraulic feed force control. Utilizing 5 hp band drive motor, saw offers adjustable band speeds from 65–385 fpm to power 1 hp saw blade. For unobstructed loading and unloading, articulating and telescoping control panel can be lowered below machine's table surface.

Data Flute CNC    Pittsfield, MA 01201

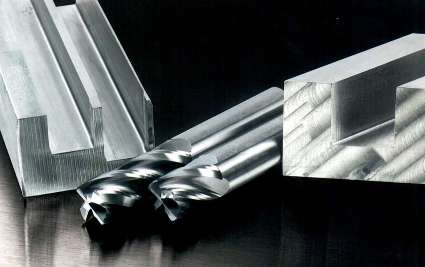

Oct 05, 2004 Made of premium-grade, solid carbide, Series AFDH Aluminum Finisher/Double-Helix end mills are suited for roughing and finishing non-ferrous metals. Geometry allows tools to perform double-duty operations. Aggressive roughing can be achieved with full engagement cuts of 1x diameter. Wide range of sizes and styles are available, as well as application-specific coatings.

Data Flute CNC    Pittsfield, MA 01201

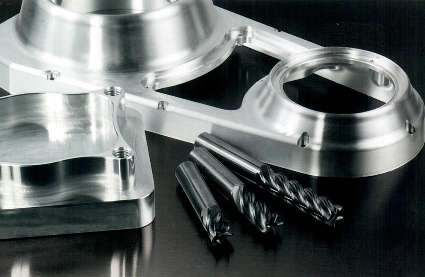

Oct 05, 2004 Series SSDH Stainless Steel/Double Helix end mills feature chip-release flute form technology and harmonics, which eliminate inter-flute helical transition, facilitating chip flow and evacuation. Made of solid carbide and suited for ferrous materials, tools produce no chatter, virtually no flute packing, and offer stability in aggressive applications. Wide range of sizes and styles are available as well as application-specific coatings.

Data Flute CNC    Pittsfield, MA 01201

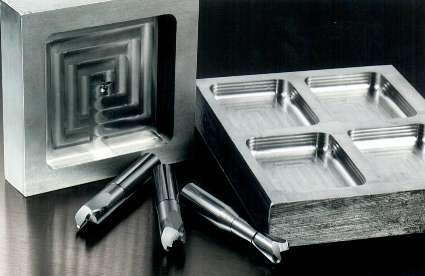

Oct 05, 2004 Solid carbide, Multi-Axis Series MA allows ultra-aggressive feed rates on most ferrous materials. Featuring neck-relieved design, tools are suited for deep pocket milling operations, as well as ramping, pocketing, slotting, and 3D contouring. They help reduce need for preparatory operations such as pre-drilling.

Hougen Mfg. Inc.    Flint, MI 48501 2005
Oct 05, 2004 Adapter assembly provides quick-release change feature that adapts spindles of drills to use RotaLocâ„¢ and the RotaLoc Plus Annular Cutters. It allows use of proprietary tools with Quick-Shank mounting design in drill models HMD505, HMD904, and 10914. With ¾ in. depth of cut, RotaLoc cutters are available 1/2–1 1/16 in dia in 1/16 in. increments and 12–27 mm dia. RotaLoc Plus tools extend size range to 1 3/8 in. and 35 mm and provide 1 in. depth of cut.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839
Oct 05, 2004 Offering 20 x 18 x 8 in. XYZ travel in compact floor-stand system, multi-sensor SmartScope® Flashâ„¢ 500 features AccuCentric® 12x zoom lens, which is automatically calibrated at every magnification change. Optical assembly moves in X-axis across angled steel crossbeam, while part moves in Y-axis on servo-driven stage. Granite platform ensures proper damping and structural integrity. Illumination sources include LED SmartRingâ„¢, coaxial surface illuminator, and LED backlight.

PSI Peripheral Solutions Inc.    Mississauga, ON L5L 5Z4  Canada
Oct 05, 2004 AutoSlip system prints up to 6-page packing lists and/or invoices and folds and inserts them into adhesive packing slip pouch. Equipped with applicator to attach adhesive packing slip pouch to cartons as they move along conveyor, product can also produce print-on-demand laser printed documents via attached printer. Document barcode, exposed through pouch, eliminates shipping errors.

ThyssenKrupp AG      Germany
Oct 01, 2004 Suited for automotive parts suppliers and production job shops, inverted-spindle BLUETURN 250 features turn/swing diameter of 250/320 mm, rapid traverse rates of 60 m/min, and acceleration rate of 6 m/s². It includes 12-station turret with DIN 69880 VDI 40 tool holder adapter. GE Fanuc 21i controller provides straightforward operator interface and interactive screens. Turning program can be simulated in 2D or 3D solid model view, displaying cutting path and tooling.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Sep 29, 2004 CoroMill 210 is designed for plunge milling and high feed face milling. Ten degree entering angle allows extreme feed rates at small axial depths of cut when tool is fed tangentially, and also allows high radial depths of cut when fed axially in roughing operations. When used in plunge milling, product removes large volumes of metal in axial direction, such as when milling deep cavities or externally along deep shoulders.

PRC LASER    Landing, NJ 07850
Sep 29, 2004 Low-powered XL 1000 and 1500 W lasers are designed for thin metal and non-metal processing markets. STS 5000 Power Source offers long term power stability and performance in cutting applications and laser welding.
