Sunnen Products Co.    St. Louis, MO 63143
Feb 04, 2005 Model SV-200 features crosshatch pattern throughout entire bore length, allowing machine to dwell in any part of bore, end-to-end, to selectively remove stock. With 7.5 hp spindle motor and 3-axis hand wheel control, machine is suited for medium- to high-volume production honing of bores between .750–8 in. diameter. Machine incorporates Windows®-based control system with drop-down menus displayed on industrial PC touch screen color display.

Hitachi Power Tools    Norcross, GA 30093
Feb 04, 2005 Model C12LC includes digital LCD display to view miter and bevel readings, while Model C12FCH features laser marker that indicates where blade will cut material and can be adjusted to right or left. Both 12 in. saws are powered by 15 A motor with 1,950 W of max output power. Standing at height of 5 1/8 in., pivoting aluminum fence allows crown molding to be cut vertically. Miter angles can be adjusted using thumb actuated positive stops.

Command Tooling Systems LLC    Ramsey, MN 55303

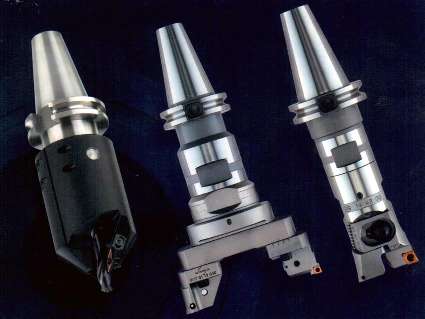

Feb 03, 2005 Solid Carbide Drills, in combination with Chamfer Collet Chuck System, can be used instead of step-drills in applications from 5/32–¾ in. VersaMaxâ„¢ twin boring heads offer axial-stepped insert cartridges that allow offset of inserts both radially and axially. To rough and finish bore in single pass, IntraMaxâ„¢ bridge-type system with twin cutters is available in 2–14 in. dia. Urma Modular Boring tools from .228–14 in. can be applied to any straight shank machine adaption.

Even Cut Abrasive Co.    Cleveland, OH 44103
Feb 01, 2005 Ranging in size from ¼â€“8 in. diameter with lengths from ½â€“11 in., Spiral Bands are made from aluminum oxide abrasive grain bonded with resins to cotton cloth backing material. They provide jointless sanding surface, ensuring consistent finishes on flat and contoured surfaces. Bands are mounted on rubber expanding wheels and can be used on hand-held power tools and drill presses. Applications include deburring, polishing, blending, and general surface finishing.

TechniDrill Systems Inc.    Kent, OH 44240
Feb 01, 2005 Counter-rotating BTA drilling system incorporates self-centering part steady that keeps longer parts from bowing during drilling process. Capable of drilling 1.600 in. dia hole in heat-treated 15-5 stainless steel (36 Rockwell hardness) at 7.8 ipm, machine uses cooling system that delivers 80 gallons of coolant per minute at 1,000 psi. Counter-rotation allows for accuracy of .0005 in. per inch of drilling.

Dymec-Dynastar Inc.    North Andover, MA 01845
Jan 31, 2005 Providing high-density, integrated communications for harsh environments, DynaStar 2000 Industrial Frame Router (DS2000-IFR) combines LAN consolidation and Ethernet switching with integrated access to WANs. Purpose-built data networking platform extends monitoring, control, and automation networks to power substations. Hardened product can simultaneously support IP convergence strategy and transport of native-mode SCADA communications.

Arc-Zone.com, Inc.    Carlsbad, CA 92009-1551
Jan 31, 2005 Hand-held Sharpieâ„¢ DXV Vacuum Grinder allows dust-free electrode preparation to facilitate maintenance of clean weld environment, while delivering consistent grind angle and diamond-ground finish.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Jan 28, 2005 Designed for impact treatment operations that require 360° coverage of components, RXS-400 rotary indexing spindle-blast machine incorporates touch-screen HMI, rotary table mounted on 180° cam indexer, and 2 rotary spindles. Inside 30 in. wide x 36 in. deep cabinet, spindle is rotated at controlled speed and component is exposed to blast from multiple nozzles adjustably bracketed at correct angles on programmable ball screw and ball nut linear traverse.

LMT-Fette    Cleveland, OH 44135
Jan 26, 2005 Series SBR features fine radial adjustment for hole accuracy and compensation after regrinding. Two-point cutter clamping ensures precise support for cutting inserts. In addition to extra-wide guide strips consisting of ultra-fine grit carbide, reamers come equipped with coolant valve, making machining of blind- and through-holes possible with one tool. Internal coolant supply can be controlled by turning routing valve.

Weir & Harrod Packaging Machinery    St Marys NSW 2760  Australia
Jan 24, 2005 Modular Model SP-120 features stainless steel frame and adjustable hand wheel for size change over. With bag size range from 1 oz to 11 lb, unit offers packing rate up to 120 bags/min. Programmable logic control features low voltage inputs and outputs. Model SP-120 is suited for packing frozen vegetables, pasta, rice, sugar, and chocolates.

Lund International Corporation    Hudson, MA 01749

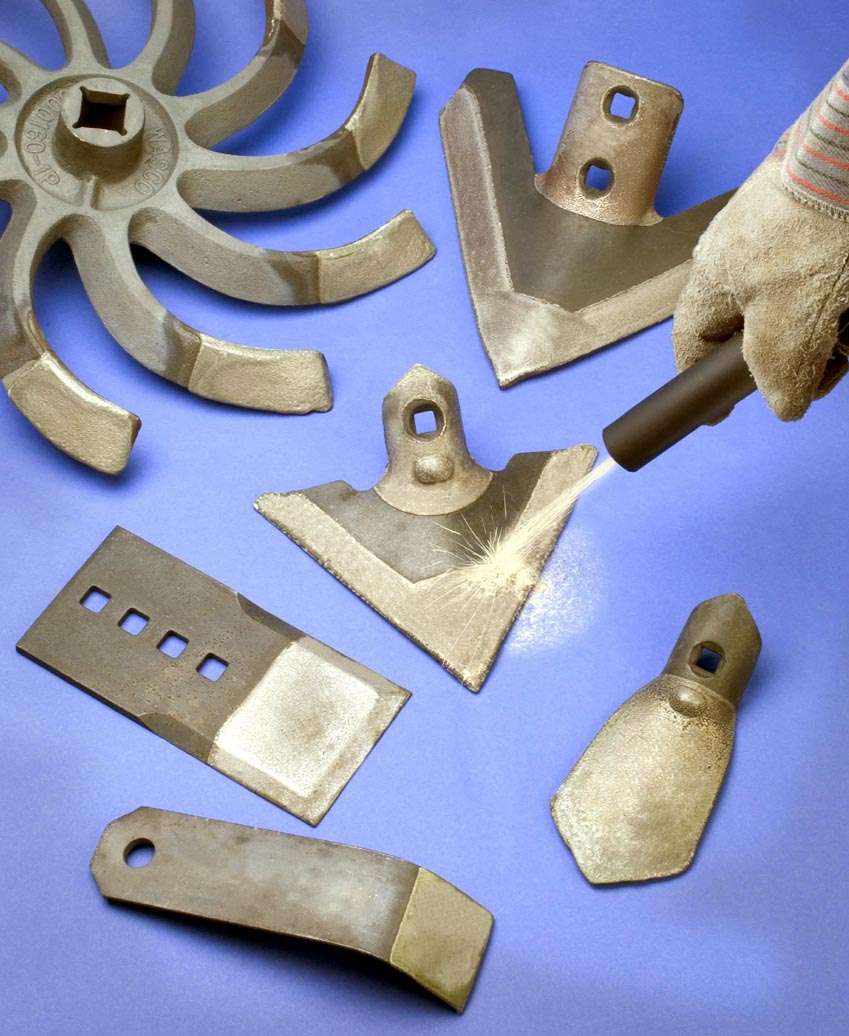

Jan 24, 2005 Applied as slurry or sprayed onto cast or machined parts, Wear-Tuff® metallic coatings feature chromium carbide and nickel base formulation. Products are sintered and fused in controlled atmosphere and provide Rc 60–65 hard surface finish. Able to withstand sandblasting, grinding, mixing, cutting, sliding, and other abrasive applications, coatings can be applied from .025–.040 in. thick on parts up to 30 in. wide.

Prima North America Inc., Laserdyne Systems Division    Champlin, MN 55316
Jan 21, 2005 LASERDYNE 5-axis Model 450 delivers precision percussion and trepan drilling of turbine engine blades, nozzle guide vanes, and shrouds. CNC controlled, pulsed Nd:YAG laser is mounted outside work area. System has linear accuracy of ±0.0005 in./ft in X, Y, and Z axes. Accuracy in rotary A and B axes is ±20 and ±6 arc-sec, respectively. Optical focus control is provided for ceramic coated and metal surfaces. Active optical sensing monitors state of optics during drilling.

Conicity Technologies, LLC    Cresco, PA 18326-0149
Jan 21, 2005 Model IXM-50 hones edges on all conventional cutting tool materials and geometries including threading and grooving tools, milling inserts, dog bones, form tools, and symmetric geometries like diamonds, squares, and triangles. System can produce edge hones of different sizes on separate edges of same tool. Software in system’s CNC control manages all critical process variables.

Jancy Engineering    Davenport, IA 52804
Jan 21, 2005 RadiusMaster Grinders offer 5 different work station/contact wheels including rotating small wheel cassette with ¾, 1, and 1½ in. wheels; 3½ in. wheel; 8 in. wheel; pipe notching station; and strap for contours. Teflon® is used between moving components with vital pivot parts tapered and adjustable to provide wear-proof operation. No tools are needed to change wheels, tilt contact points, change belts, or adjust safety guards.

SKF Motion Technologies    Lansdale, PA 19446
Jan 20, 2005 Featuring internal recirculation system design, Inch Series precision ground ball screws can be used to lift, lower, pick-and-place, and perform positioning operations for computer-controlled equipment. Non-tube internal return design incorporates balls in each circuit removed from raceway and returned to it by solid metal deflector pins. Series ranges in size from 3/8-6 in. diameter with leads from 0.100-1.000 in. and overall lengths to 60 ft.

Oki Data Americas Inc.    Mount Laurel, NJ 08054
Jan 20, 2005 Combining software applications, signage media, and digital color printers, Color Signage Solution enables retail customers to produce professional-quality signage and materials in-store. OKI® C9300dxn and C9500dxn printers feature up to 1200 x 1200 dpi resolution and are developed with Single Pass Colorâ„¢ and digital LED technology. System handles various media, such as film, card stock, banners, labels, table tents, and shelf strips.

Witels Albert USA, Ltd.    East New Market, MD 21631
Jan 19, 2005 Model ERS HL PO offers high straightening forces for high-strength process materials with diameter or cross-sectional height of 5.0–40.0 mm. Adjustment force of a few Newtons applied manually by operating personnel is converted into adjusting force of up to 300 kN by hydraulic system, with straightening roll being positioned with accuracy of approximately 0.01 mm. Straightener requires no downstream elements such as controllers, software, and control terminals.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Jan 19, 2005 Widia M 780 is fitted with square, negative indexable inserts with 8 cutting edges. Four coated grades include TN2510 for machining GTS and GTW cast iron; TN5515 for GGG with low/average hardness up to GGG50, as well as GG and GGV; TN7525 for GGG increased/high hardness from GGG50, as well as steel; and TN450 for GGG increased/high hardness from GGG50 and steel. Three geometries are suited for light, general, and moderately heavy milling.

Esco Micro Pte Ltd    Singapore 486777  China
Jan 19, 2005 Providing particulate-free work environment, PCR Cabinet offers 99.9998% efficient, HEPA-filtered vertical laminar airflow within work zone that provides ISO Class 4 product and cross-contamination protection. Sentinel microprocessor control monitors performance and usage hours of UV lamp, pre-filter, and main HEPA filter, and alerts user when replacement is required. Double-hinged safety front cover is UV-absorbing, beta radiation resistant polycarbonate.

Weldcraft    Appleton, WI 54911
Jan 19, 2005 Able to fit existing torch configurations, single piece collet/collet body facilitates changeover between tungsten sizes while optimizing tungsten centering on TIG applications. Unit, available in 10N and 13N series, combines functions of traditional 2-piece collet and collet body into one part while maintaining performance. Eliminating mismatch of collets and collet bodies, product reduces part count and eliminates need to maintain or manage spare inventory.
