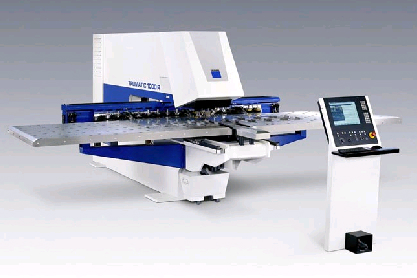

TRUMPF Power Tools    Farmington, CT 06032
May 16, 2006 Providing punching speeds up to 600 hits/min, entry-level TC 1000 R includes automatic tool changer and all-tool rotation, which minimizes tooling requirements. Multishear is used for edging work, while Multibend provides bending, and Multitool integrates 10 punches in 1 station. By using Multitool, machine's linear magazine can accommodate up to 150 tools. It can also high-speed mark at 1,300 strokes/min. Software component enables programming with touchscreen or keyboard.

TRUMPF Power Tools    Farmington, CT 06032
May 16, 2006 Able to handle parts up to 500 kg, Model TLC 1000 Hybrid 5-axis laser offers cutting and welding capability for 3D and 2D parts. Unit has moving table in X-axis, and cantilever Y-axis. Offered with 5 or 7.5 in. cutting head, work envelope is 118 in. on X-axis, 65 in. on Y-axis, and 30 in. on Z-axis. B-axis is ± 120 degrees, and continuous rotation is possible on C-axis. Accuracy and repeatability are less than or equal to 0.1 mm and 0.03 mm, respectively.

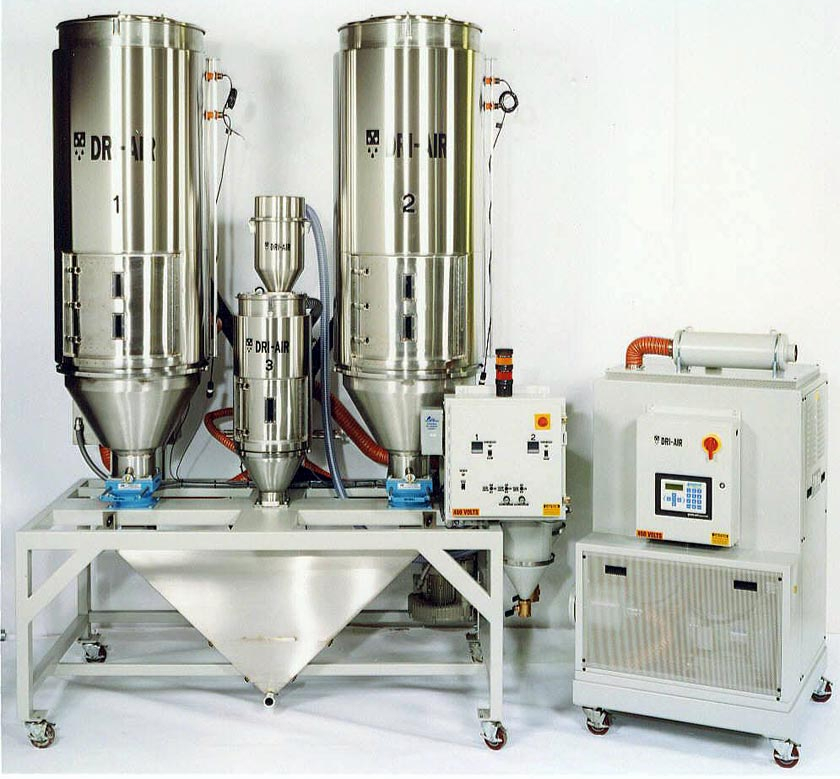

Dri-Air Industries, Inc.    East Windsor, CT 06088
May 15, 2006 Stand-alone system allows individual drying parameters for 3 components - such as virgin, regrind, and colorant - and then mixes and conveys components on demand. Equipped with 4-bed dryer and sealed mixing chamber, system offers individual temperature controls for each component material and includes volumetric mixing (variable and fixed rate) augers placed under each hopper. Changing colorant/regrind ratios is possible via 10-turn potentiometers in control panel.

Solace Systems, Inc.    Ottawa K2K 3B8  Canada
May 12, 2006 Moving application-level functionality into network, VRS/32 Value-Added Services Routing System transforms bit-pipe networks into intelligent application exchange systems. It features 4 GigE ports supporting link aggregation, and custom silicon to process, filter, and forward messages at wire-speed. System includes full active-active failover support, RAID protected storage, and hot-swappable, redundant power supplies. End-to-end security ensures integrity of content and infrastructure.

Gravograph - New Hermes Inc.    Duluth, GA 30096
May 10, 2006 Weighing 33 lb, Model LS100 is 30 W, 18 x 12 in. laser engraving machine that features auto-focus, red pointer, and air assist. Accessories include vector cutting table, cylindrical attachment, and integrated exhaust options. With Z axis travel of 5.87 in., machine handles wide range of items and can be combined with GravoStyle 5 engraving software.

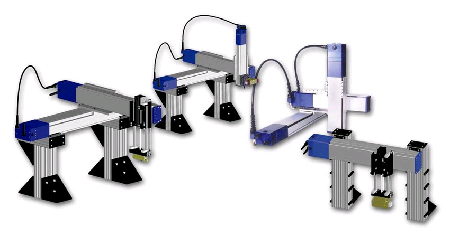

DE-STA-CO Industries    Madison Heights, MI 48071
May 10, 2006 Smart Linear Actuator Series SLA features DIRECTCONNECT(TM) technology, allowing for integration of pneumatic slides, grippers, and rotaries. Modular system includes weld field immune electronics, fully integrated servo/pneumatic motion control, on-line web configurator, networking capabilities, and Smart Motor technology for integrating motor and drive. Slides come in 3 models with stroke lengths from 100-1,400 mm and max stroke speeds from 1-1,100 mm/s.

D-Link Systems, Inc.    Fountain Valley, CA 92708
May 10, 2006 Powered by Atheros AR5008 chipset, D-Link RangeBooster N(TM) 650 series of wireless routers and network adapters deliver high data throughput speeds and broad wireless coverage in heavy data traffic and bandwidth-intensive applications. Compliant with IEEE Draft 802.11n specification to equal and/or surpass 100 Mbps speeds, products have wizard to guide users through installation process, from plugging in necessary cables to entering password for network security.

Linksys    Irvine, CA 92614-5723
May 10, 2006 Model WRT54G3G-NA Router turns wide area mobile broadband connection into shared wireless 802.11g and/or wired LAN for up to 5 users. It features 16/32 bit PCMCIA slot WAN interface for mobile broadband connection and EV-DO PC card with hot insertion protection. Acting as DHCP server, solution features SPI firewall and supports VPN pass-through with IPSec and PPTP. Wireless LAN transmissions are encoded with WEP or WPA security.

Cap Coder Ltd    Chalgrove   United Kingdom
May 09, 2006 Suited for bottling, filling, and packaging industries, Tri-Torque Head features 3 rubber-lined gripping fingers capable of reaching over variety of cap shapes before latching on. It can grip oval perfume-bottle-type caps, tamper-proof caps, flip-tops, and spray nozzles. Used with electric or pneumatic drive, head can be supplied with linear transfer feature to engage cap. It also has 3-position transfer mechanism for picking up cap before screwing it on to bottle.

REGO-FIX Tool Corp.    Indianapolis, IN 46268
May 09, 2006 Utilizing electronic parallel correction, SMART and TCAM2 Presetters produce run-out less than 0.00008 in. Needle bearing basket counteracts effects of debris and scratches. TCAM2 features 6.7 in. LCD display with chip edge inspection, while SMART model features 3 in. color screen and displays for X and Z axis tool setting. AcuRite scales measure dimensions of tool, and provide absolute and deviation measuring for each axis. ToolManager software offers full databasing of tool information.

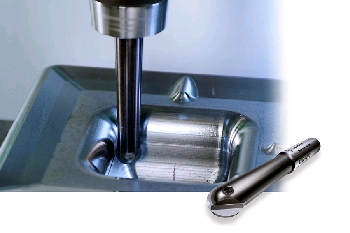

Sandvik Coromant Co.    Fair Lawn, NJ 07410
May 09, 2006 Equipped with P10A inserts, CoroMill Endmill enables high-speed finishing to super finishing of profiles. Inserts are screw clamped into high security seats, ensuring stability during high-speed machining. Available in diameters from 8-32 mm, device uses 2 active edges for optimized surface quality. It can be coupled with CoroGrip chucks for precision from spindle nose to cutting edge.

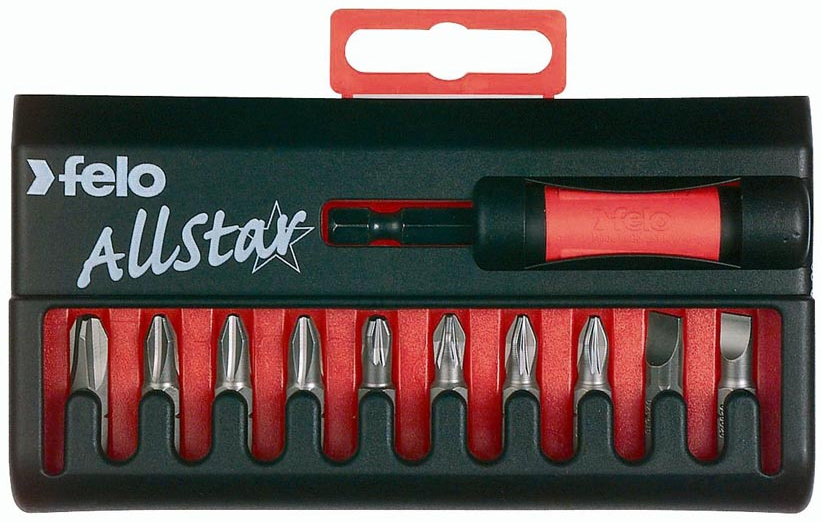

Bondhus Corp.    Monticello, MN 55362 9347
May 08, 2006 Designed for use with battery powered drills and screwdrivers, Allstar bit holder incorporates 2 rare earth magnets to hold ¼ in. shank bits and screw securely in place. One magnet holds bit in place, while other securely holds fastener. Product is available individually or packaged with bit assortment, all of which are machined from European Chrome-Moly-Vanadium steel and heat-treated.

Metabo Corp.    West Chester, PA 19380 4243
May 08, 2006 Rated at 10 A with input rating of 1,200 W and no-load speed of 900-2,810 rpm, Model SE 12-115 includes Vario Tacho Constamatic speed stabilization, and is suited for finishing and polishing stainless steel for commercial kitchen and lab equipment. Motor has winding protection grid that deflects harmful dust and debris. Auto-stop carbon brushes protect motor from damaging arcing, while spiral bevel gears allow for efficient transfer of power from motor to spindle.

Multi-Tech Systems, Inc.    Mounds View, MN 55444
May 08, 2006 MultiModem® Ethernet® Wireless Router uses data encryption, user authentication, and Internet to securely connect remote locations via built-in EDGE, GPRS, or CDMA cellular modems. Combining attributes of VPN router operating over Internet and cellular wireless technology, product benefits applications in M2M environment. Product may be used as backup if primary WAN connection fails, as primary connection for temporary network locations, or in mobile networks for emergency response.

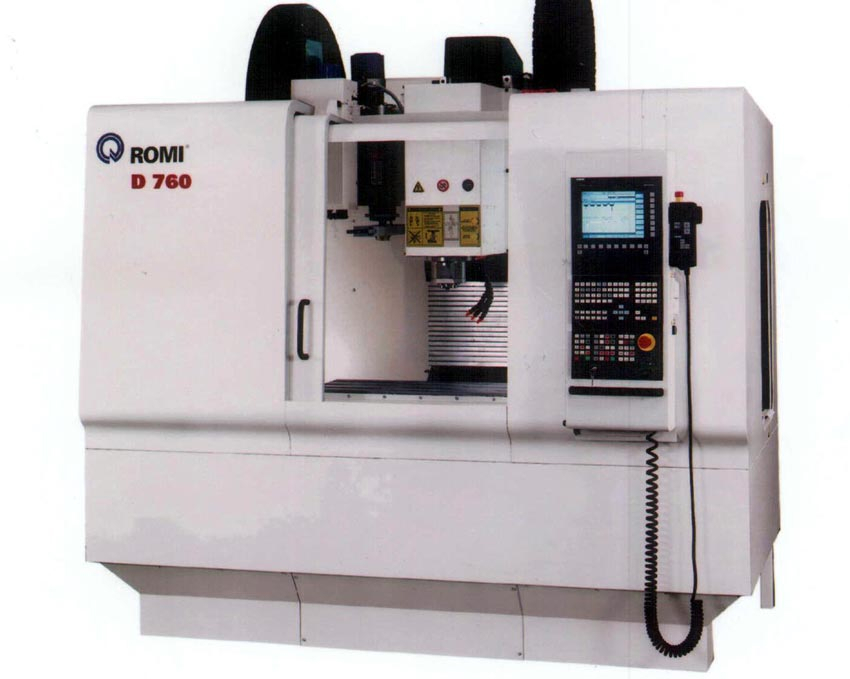

ROMI Machine Tools, Ltd.    Erlanger, KY 41018
May 05, 2006 With work envelope of 30 x 15.98 x 20 in. and table work surface of 36.02 x 14.17 in., D 760 vertical machining center offers rapid traverse rates of 1,181 imp (X- and K-axis) and 787 imp (Z-axis) mean accelerated machine cycle times. Automatic tool changer with bi-directional selection mode offers 22-tool capacity, and 5.5 sec station-to-station index time. Poly-V belt-driven heavy-duty cartridge-style headstock features 15 hp ac high-precision spindle motor.

NTC America Corporation    Novi, MI 48377
May 05, 2006 Model Zµ3500 uses temperature-controlled hydrostatic oil in hybrid spindle bearing, static pressure guides, and linear motor cooling system, virtually eliminating thermal distortion saturation time. At 25 hp, spindle reaches speeds of 30,000 rpm. Travels are 13.78 in X-axis and 11.8 in Y- and Z-axes. Positioning is accomplished with cooled scaled linear motors at 0.6 G in acceleration. Near absence of friction and vibration increases precision and reduces noise levels.

Pat Mooney, Inc.    Addison, IL 60101
May 05, 2006 Able to cut from 0-60°, FMB Titan features hydraulic control downfeed and variable speed saw drive. ACCU-CUT Blade Guide System uses carbide blade guides with set tolerance of 0.0007 in., and top and side roller guides for support into carbide guides. Featuring blade speeds of 62-310 fpm, 24 in. length stop, and heavy duty clamping vise, saw is suited for cutting thin wall tubes and profiles as well as heavy steel sections and hard solid material.

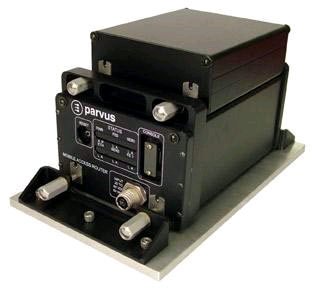

Parvus Corp.    Salt Lake City, UT 84115 2913
May 04, 2006 Intended for harsh environments, DuraMAR Mobile IP Router leverages Cisco Systems' IOS® software and Mobile Access Router for in-vehicle networking applications. It integrates power supply and hardened enclosure isolated against voltage spikes, transients, and environmental stresses. LED indicators for power, network, and serial connections, as well as console port and manual reset switch are located on front panel. Rear panel includes IP67 hardened Ethernet and serial connectors.

PRIMA LASER TOOLS    Chicopee, MA 01020

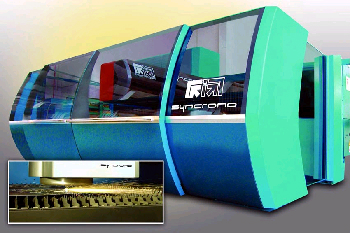

May 04, 2006 SYNCRONO 2-D Cutting System features vibration-free design and constant beam path throughout 60 x 120 in. work area, providing accurate cutting, even in very small and intricate profiles. Laser head is designed with 2 additional linear-driven parallel kinematic axes on moving gantry, creating machine within machine and allowing head to cut at acceleration up to 6 G. Interchangeable optics allow system to pass from lowest to highest material thickness.

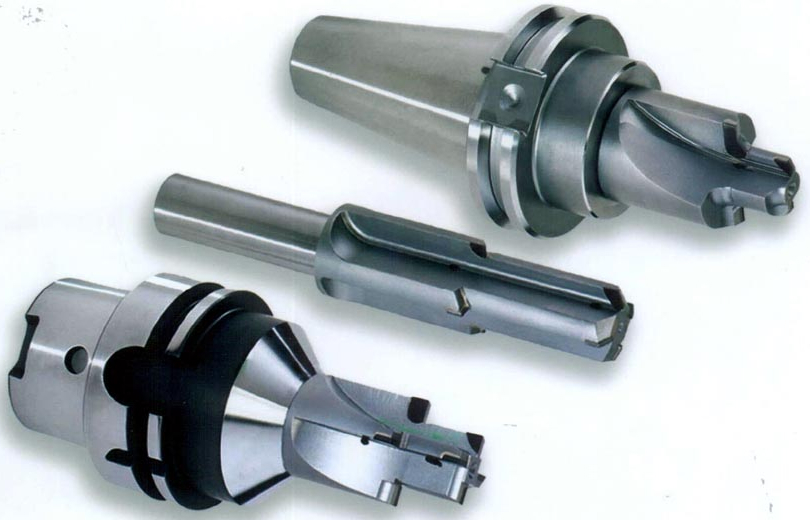

Kitzel, E.C., & Sons    Cleveland, OH 44135-2677
May 03, 2006 Usable as replacements for solid carbide or carbide-tipped tools, round PCD (polycrystalline diamond) tools come in all sizes up to 4 in. dia and can be designed with integral shank special connectors based on end-user requirements. They can be used with variety of materials, including nonferrous metals, carbon, ceramics, fiberglass composites, graphite, and plastics, in high-volume reaming, boring, and drilling applications.
