Mori Seiki USA Inc.    Rolling Meadows, IL 60008
Nov 10, 2006 Mid-size NV6000 DCG(TM) features DCG (Driven at the Center of Gravity) technology, whereby net driving force acts through center of axis for optimal surface finish and contouring accuracy. Machine provides X, Y, Z axis travels of 35.4, 23.6, and 17.7 in., respectively, with rapid traverse rate of 787.4 ipm for all axes. No. 40 taper spindle achieves max speed of 12,000 rpm, with 20,000 rpm optionally available. Five ball screws minimize vibration without sacrificing speed for accuracy.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Nov 10, 2006 Cutskill 250 Series combines all components in toolbox for protection and organization. Torch handles include VanGuard safety features such as built-in flashback arrestors and reverse flow check valves. Regulators have forged brass housing cap and fine threaded adjusting T bar for smooth operation. Cutting attachment includes stainless steel cutting oxygen lever, spiral mixer that blends all fuel gases with preheat oxygen, silver brazed tubes at torch head, and beveled seat design.

Avure Technologies, Inc.    Franklin, TN 37067
Nov 10, 2006 Flexform Model QFC 1x2-800 intermediate sized sheet metal forming press offers cycle times that average to less than 3 min. Sheet metal blanks are formed over single, shape defining tool half by flexible rubber diaphragm under uniform hydrostatic pressure. Multiple tool halves and blanks are placed in dual 1 x 2 m trays which shuttle in and out of press frame containing pressurized diaphragm. Pressures up to 11,600 psi ensure close tolerance parts from press.

Danray Products LLC    Rockford, IL 61107
Nov 09, 2006 Portable Shields can be used on metalworking and woodworking machinery such as milling machines, drill presses, lathes, and any other machines that need hand-held or attached shield to safeguard personnel from point-of-operation hazards as well as flying chips, sparks, and coolant. Shields comply with OSHA 29 CFR 1910.212 and applicable ANSI B11-series safety standards for machine tools. All are furnished with storage hook and fasteners.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Nov 09, 2006 Suited for machining nodular cast iron and wet cast iron, Model GC1020 has PVD coating that improves cutting speeds and wear resistance for reliability in unstable conditions. Model GC3220 has thick protective coating that helps dry machining of grey cast iron, and is designed for shoulder milling and face milling.

Centricity    Girard, OH 44420
Nov 09, 2006 Utilizing Feedscape(TM) I.D. feeding technology in conjunction with MS Series(TM) Indexer, VERSA-STACK lets users create stacks of various sub-assemblies. Feedscape isolates and feeds each component directly from bowl feeder or spring feeder, and guides them on series of indexing pins positioned on outer edge of indexer dial plate. Once stack is complete, escapement deposits stack to final fixture, pick-and-place unit, or robot. Each stack arrangement can be different from previous one.

Mitee-Bite Products Inc.    Center Ossipee, NH 03814
Nov 08, 2006 Available in variety of sizes and lengths, low-carbon, precision ground Locating Rails include mounting holes and socket head cap screws. Users mill slot in fixture plate to locate rail and drill and tap mounting holes. Height of rails can be adjusted by depth of slot. Steps can be machined on rails to hold work piece above fixture plate, or radius can be machined to match contour on machinable clamps for irregular shaped parts.

D-Link Systems, Inc.    Fountain Valley, CA 92708
Nov 07, 2006 Powered by Ubicom's StreamEngine(TM) technology, D-Link Xtreme N Gigabit Router (DIR-655) and accompanying Xtreme N desktop (DWA-552) and notebook (DWA-652) adapters help optimize wireless network performance. Router uses Draft 802.11n wireless technology and incorporates Intelligent Wireless QoS Technology, automatically prioritizing high-bandwidth, latency-sensitive wireless data traffic. Additionally, router comes with Gigabit LAN and WAN ports.

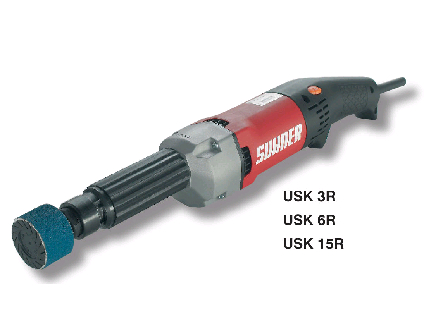

Suhner Abrasive Power Tools    Rome, GA 30162
Nov 07, 2006 Comprised of 5 models with various speed ranges, K-Series features low-noise gears and abrasion-resistant carbon brushes. Constant ventilation shaft across units enables constant volume flow, while air gap and outer diameter of stator are cooled evenly. Digitally constructed, steady power electronics regulate engine speed and keep speed constant even under high loads. Starting current limitation, overload protection, and warm restart protection are provided.

Makino Inc.    Auburn Hills, MI 48326
Nov 07, 2006 High-speed Models V99 and V99L help minimize benchwork and post-production polishing on large die and mold work. With 70.8 x 39.4 in. worktable, Model V99 features X, Y, Z axes of 59 x 39.4 x 31.5 in., while Model V99L provides X, Y, Z axes of 78.7 x 39.4 x 31.5 in. with 90.5 x 39.4 in. worktable. Machines offer rapid traverse and cutting feedrates of 787 ipm and come with #40 taper 20,000 rpm or #50 taper 12,000 rpm spindle. Both are equipped with Professional 5 Control utilizing Windows CE(TM).

Stafford Manufacturing Corporation    North Reading, MA 01864-0277
Nov 07, 2006 Featuring 1 and 2 piece clamp-style construction, High Temperature Shaft Collars are manufactured from variety of alloys such as Type 330 Stainless for service up to 2,250ºF. Customized to sizes from ½-10 in. ID, collars suit drive systems, conveyors, mixers, test fixtures, and other applications. Product incorporates features such as threaded, square, or hexagonal bores, and mounting holes on face or OD.

CML USA, Inc.    Davenport, IA 52804
Nov 07, 2006 Model TB76 produces repeatable bends, without mandrel, to centerline radii as tight as 2x material diameter in tube, pipe, and profiles to 3 in. capacity. Heavy-duty, 2-speed gear box accommodates work piece centerline bend radii up to 15 in., while programmable control with digital display stores 10 individual programs with 9 separate bend angle and material spring back values in each program. Tooling mounts to hex shaft for quick setup and changeover.

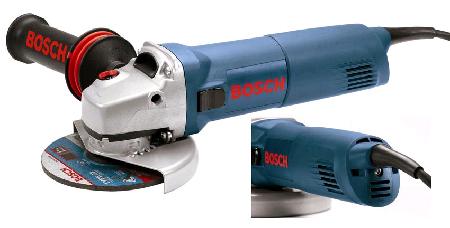

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Nov 06, 2006 Comprised of 4½, 5, and 6 in. models, 1800 Series features optimized motor commutator and brush system, which minimizes heat buildup. Select models incorporate channels at top, bottom, and sides to keep dust and debris from contaminating inner workings of tool. Pulling clean air from back of tool as opposed to front, channels direct airflow where it is needed most for maximum motor cooling.

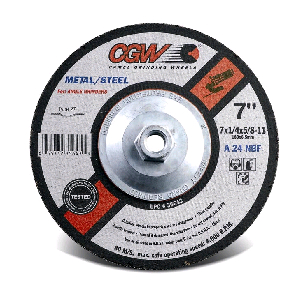

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Nov 06, 2006 Engineered with soft N-grade bond for high stock removal, Fast Cut Series Type 27 Depressed Center Wheels are ¼ in. thick, single-grain grinding wheels made from aluminum oxide. Units are available in 4, 4 ½, 5, 7, and 9 in. diameters with 5/8, 7/8, or 5/8-11 in. arbor hole. Carton quantities range from 10 to 25.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Nov 06, 2006 Measuring 42 x 30 x 75 in., twin spindle RSSA-6 blast cabinet employs 2 side-by-side spindles for pressure cleaning or surface preparation of IDs and ODs of cylindrical components. Each spindle is topped with mini-turntable fixture that secures component during processing, and 2 pressure-blast nozzles traverse vertically to provide thorough coverage of full part height. Programmed blasting routine is followed by automatic blow-off and media recharge cycles.

Viking Corporation, Blast & Wash Systems    Wichita, KS 67226
Nov 06, 2006 Utilizing six 15 hp VC-1 direct driven center-fed blast wheels for cleaning, Model RT 9616-SP is used for exterior surfaces of plates up to 8 ft wide and 3 in. high and structurals up to 16 in. wide and 24 in. high. Dual direction, powered roller table conveyor system features variable travel speeds ranging from 1-20 fpm. Variable feed rate can be adjusted to provide surface finishes ranging from SSPC-7 brush off finish to SSPC-5 white finish.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Nov 06, 2006 Precision Dado Sets feature precision matched blades roll- and hammer-tensioned by hand. Blade bodies are laser cut from nickel-alloy steel, then ground and hardened to Rockwell 42-44C, while arbors are honed to .0007 in. tolerance. Carbide teeth feature tri-metal brazing and are CNC sharpened with diamond wheels. Each set includes 2 outside blades, one ¼ in. chipper, two 1/8 in. chippers, one 1/16 in. chipper, shim set for incremental adjustments, and carrying case.

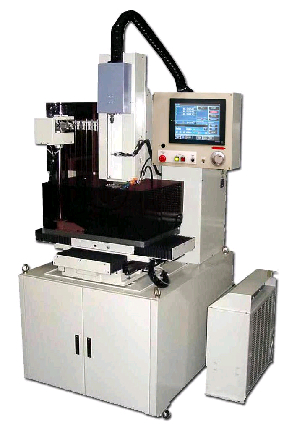

MC Machinery Systems    Wood Dale, IL 60191
Nov 03, 2006 Suited for diverse applications, Model ED-2000NC features 5-axis design with C-axis ranges from 50-800 rpm. PLC and Motion Control System with 2-axis linear scales includes touch-screen with manual drive, positioning, e-conditioning, and program editing screens. Machine options include automatic 8-position electrode changer with auto-length sensing and tilt and rotary indexing for multi-angle hole applications.

T. M. Smith Tool International Corp.    Mt. Clemens, MI 48046
Nov 02, 2006 Offered in 31 sizes, Smith Grip(TM) Chuck Line includes chucks with 0.0002 in. runout at 4 in. from holder face. Units offer heavy-duty gripping by hand tightening with 90% contact with tool shank, and ability to handle high-pressure coolant. Available with ID clamping ranges from .380-2.580 in., chucks have 4-6 mounting screws in bolt circle around flange. Four tuning screws mounted around periphery of flange OD provide for zeroing-out of concentricity.

Pitney Bowes    Stamford, CT 06902
Nov 02, 2006 Utilizing servo-powered technology to speed mailstream operations, Model HPI-72C performs 2-up continuous roll-fed or fan-folded applications and can be integrated with APS(TM) Advanced Productivity Series and FPS(TM) Flexible Productivity Series inserting systems. Suitable for mail operations with high page count applications, cutter's fast-motion control allows input to process odd-page-count accumulations without throughput degradation.
