FisherCast Global Corporation    Peterborough K9J 6Y9  Canada
Jan 03, 2007 Offering max shot volume up to 500 g, Model AM 51 Injected Metal Assembly System allows for forming and joining of large component assemblies and end terminations. Machine features stationary operating head, 2-stage melt pot, and pneumatic injection. IMA(TM) technology uses molten zinc alloy to die cast component while it is simultaneously joined to other components in assembly, or to form and join end termination directly onto wire, cable, rod, or shaft.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jan 03, 2007 Equipped with 15 A, 5.5 max motor HP, 14 in. model D28715 chop saw cuts 4½ x 4½ in. square pipe, 4½ x 6½ in. rectangular pipe, full steel bundles, and up to 5 in. round pipe. Saw has stamped steel base, allowing welding of out-feed tables to base of tool to support materials being cut, and pivot bracket for durability. Weighing 39 lb, unit includes heavy-duty lock-down pin, carrying handle, and adjustable spark guard.

Blue Tiger Engineering GmbH    Bremen   Germany

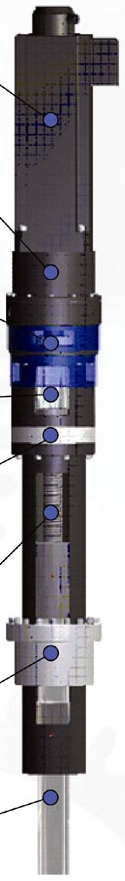

Jan 02, 2007 Comprised of 18 models with capacities starting at 5 kN, electro-mechanical APS series features synchronous servo motor with integral brake and encoder. Components include inline planetary gearbox or optional right-angle gearbox with toothed belt drive; backlash-free bellows coupling; and strain gauge. Compressive and tensile forces up to 500 kN can be implemented at stroke lengths to 1,200 mm. Positioning accuracy is 0.01 mm, and max traverse rate is 1,500 mm/sec.

Sioux Tools, Inc.    Murphy, NC 28906
Jan 02, 2007 Designed to promote ergonomics, productivity, and operator safety, Signature Series Drills are available in reversing and non-reversing pistol grip and lever handle configurations. Incorporated 5-vane motor makes drills suited for drilling applications that contain ferrous and non-ferrous metals, wood, and composite materials. Along with aluminum housing and comfort grip, drills feature 3 planet gear system that lends to tool life and load capacity.

TRUMPF Power Tools    Farmington, CT 06032
Dec 27, 2006 Featuring 8 kW of power, TruDisk 8002 integrates cooling unit and beam switches and provides up to 6 fiber outputs standard. Modular laser can process nearly any material, including reflective materials such as copper and aluminum. It can weld 10 mm deep in construction steel with welding speed of 1 m/min or 3 mm deep at 20 m/min. Design does not exhibit any thermal lens effect, which makes beam source insensitive to adjustments.

Cornerstone Automation Systems, Inc.    Prosper, TX 75078

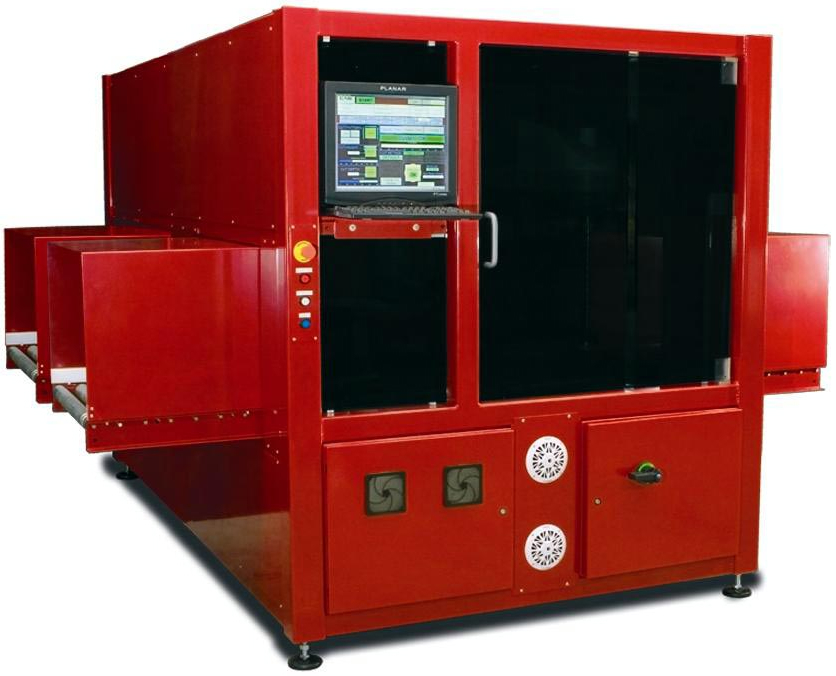

Dec 22, 2006 Featuring in-line, pass through design with welded steel frame, ABOT-DUO(TM) utilizes 2 feeding conveyors for optimized throughput. Self-feeding, self-aligning machine measures size of each incoming case to automatically find programmed cut line on 3 or 4 sides. Cases and cartons, ranging in size from 4 in.³ to 30 x 21 x 19 in., can be fed manually or via upstream conveyors at rates to 1,000 boxes/hr in any order or mixed.

CS Hyde Company    Lake Villa, IL 60046

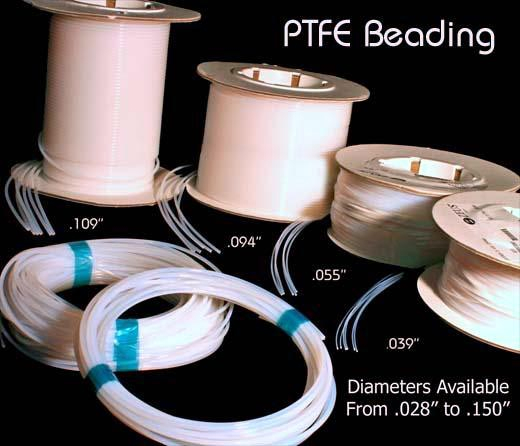

Dec 22, 2006 With 0.028-0.150 in. dia, PTFE (Teflon®) are available in small put-ups of 10, 50, and 100 ft, or large put-ups to maximum of 1,000 continuous ft. Units possess low coefficient of friction and dielectric insulation properties and are suited for electrical applications. Chemically inert miniature cords/rods meet UL 94 VO for flammability and can be used indoors or outdoors.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
Dec 22, 2006 Available in range of wire diameters to address different wire bonding challenges, CuPRAplus(TM) Copper Capillary can handle copper wire from 0.8 mil to 3.0 thicknesses. Product works together with iCu copper wire and bonder kit, and ensures both 1st and 2nd bond quality for stable mass production.

Rex-Cut Products, Inc.    Fall River, MA 02720
Dec 22, 2006 Suitable for industrial fabrication and maintenance purposes, Sigma Screen(TM) depressed center Type 27 wheel with 4.5 in. dia features blend of zirconia-ceramic abrasive grains bonded to flexible mesh for grinding, blending, and finishing applications. Cool-running, chatter- and clog- free mesh wheel is available with coarse, medium, and fine grits. Several wheels can be stacked onto grinder and they can be used on stainless steel, metals, aluminum, composites, and wood.

Mimot - California, LLC    Irvine, CA 92618 2326

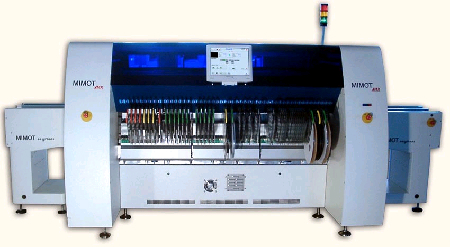

Dec 21, 2006 Featuring cascading modularity, Model MX offers placement rates up to 80,000 c/hr and provides 216 feeder slots per segment. It includes double placement areas in each module, with Multilevel Transport System for absolute line balancing and elimination of local head-downtimes.

JP Sercel Associates, Inc.    Manchester, NH 03102

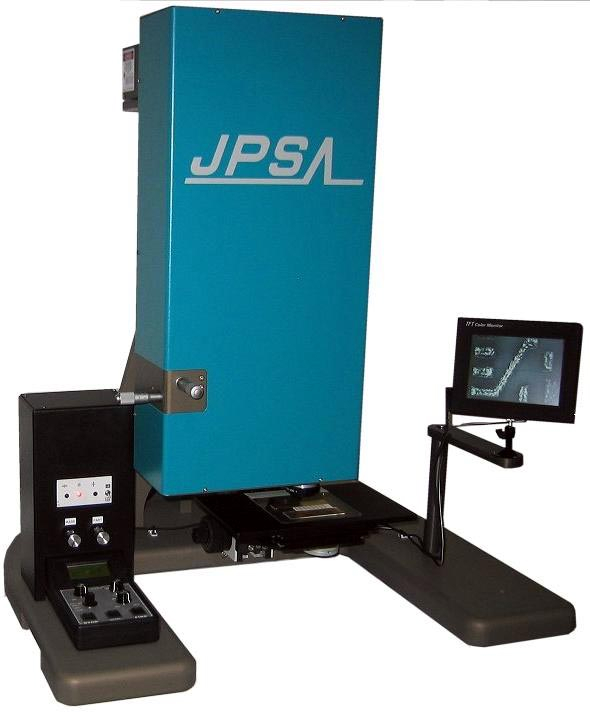

Dec 21, 2006 Developed for repairing flat panel displays, micro circuits, and wafers, Model IX-70 ChromAblate(TM) on-target inspection and short deletion system can be configured with IR, visible, or UV wavelengths to process materials from metals to polymers. Adjustable attenuator allows precise control of laser power. IX-70 incorporates co-axial CCD camera with adjustable zoom lens for alignment and inspection of the work surface and LCD display for real-time process viewing.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192

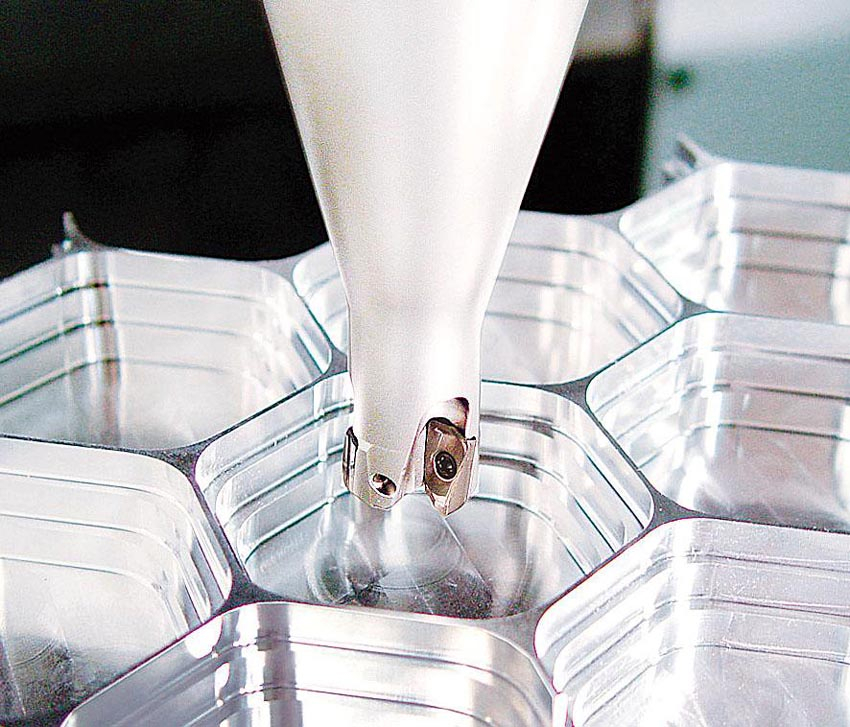

Dec 20, 2006 Featuring high DOC capability, Fullcut Mill FCR Type indexable insert endmill is available for 5/8, ¾, 1, and 1¼ in. dia in various length configurations with BIG PLUS integral shanks CAT40, BT30, and BT40 as well as HSK-A50 and A63 versions. Sharp cutting edges with both high radial/axial rake angles achieve smooth and quiet endmilling in all materials, and retain high strength and toughness.

ADMET    Norwood, MA 02062
Dec 18, 2006 Micro EP palm-sized universal testing machines are suited for determining mechanical properties of miniature specimens in tension, compression, or flexure. Each stage can be used as standalone tester or be installed in optical or atomic microscope to compare macroscopic stress-strain states with microscopic changes in material. Available in 450 N and 5 kN capacities, machines are equipped with load and displacement transducers as well as MTESTWindows Materials Testing System.

RIDGID    Elyria, OH 44035
Dec 15, 2006 RIDGID® Compact 100-B press tool is available with RIDGID Compact Series Jaw for Murray Heavy Duty Stainless Steel PEX Clamps (No. 24923), which is suited for making quick connections on 3/8-1 in. PEX tubing in potable water and radiant heat applications. Compact jaw design enables end user to work in tight spaces, and jaw ID clip is provided for quick identification. Weighing 7.5 lb, tool is powered by 14.4 V NiMh battery and features 90° swivel barrel for maneuverability.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Dec 15, 2006 With 5,000 W GE Fanuc laser resonator, CL-707 includes linear motor drive delivering 10,000 ipm head positioning, and cuts through 18 ga steel at up to 1,000 ipm and processes mild steel up to 1 in. thick. With multi-sheet processing and automated pallet change, up to 320 sq. ft. of material can be processed without operator attention. Height sensor, insensitive to plasma, uses nitrogen or air assist gas on metal to achieve optimal feed rates.

JATO Precision    Taichung   Taiwan
Dec 14, 2006 Comprised of diaphragm chuck, chuck actuator, and spindle unit, Model JAM100 can achieve total TIR under 0.001 mm. It is most suitable for machining fiber connectors, micro bearings, optical components, medical coronary stents, and spindles of micro motors, hard disks, and CD/DVD players. Chuck can also be customized to user requirements, including higher speed and tailor-made jaw pads.

MC Machinery Systems    Wood Dale, IL 60191
Dec 13, 2006 Built to jig-borer standards, Roku-Roku RMX-5 features bridge construction with Meehanite GC for both base and bridge casting material. It is equipped with 200-32,000 rpm integral motor spindle, HSK-E40 tooling, and Fanuc 31i-A5 control. Spindle design uses two 45 mm bearings at bottom and two 35 mm bearings at top of motor. Surrounding jacket of oil stabilizes spindle temperature, and is then circulated through Oil Temperature Controller that maintains ±1.0°F operating window.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Dec 12, 2006 Available in Type 1 or Type 27, Super Quickie-Cut(TM) Cut-Off Wheels provide clean cutting of carbon and stainless steel. Line includes 4 models with thinnest wheel measuring 4½ x .035 x 7/8 in. Other available sizes include 4½ x .045 x 7/8 in. and 6 x .045 x 7/8 in.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Dec 12, 2006 With maximum speed of 80,000 rpm, Air Power Spindle can be used on existing machines as additional spindle. Thermal displacement in Z-axis remains constant at less than .001 mm, and when combined with Mega Micro collet chuck, spindle delivers dynamic run-out accuracy of less than .002 mm. Spindle is available in dual contact spindle types, including BIG PLUS CAT, BIG PLUS BT, and HSK

QED Environmental Systems, Inc.    Ann Arbor, MI 48106
Dec 12, 2006 Designed for VOC removal in process-type projects involving multiple treatment stages, EZ-Tray low-profile air strippers feature front-access trays that slide out to facilitate cleaning and inspection. Models are available in various corrosion- and solvent-resistant materials and can be integrated into water or wastewater processes in manufacturing, refining, and chemical processing industries. They can act as pre-treatment stage for other process elements.
